Axle Shaft: Removal

NOTE: The wheels and tires do not have to be removed in order to remove the axle shafts.

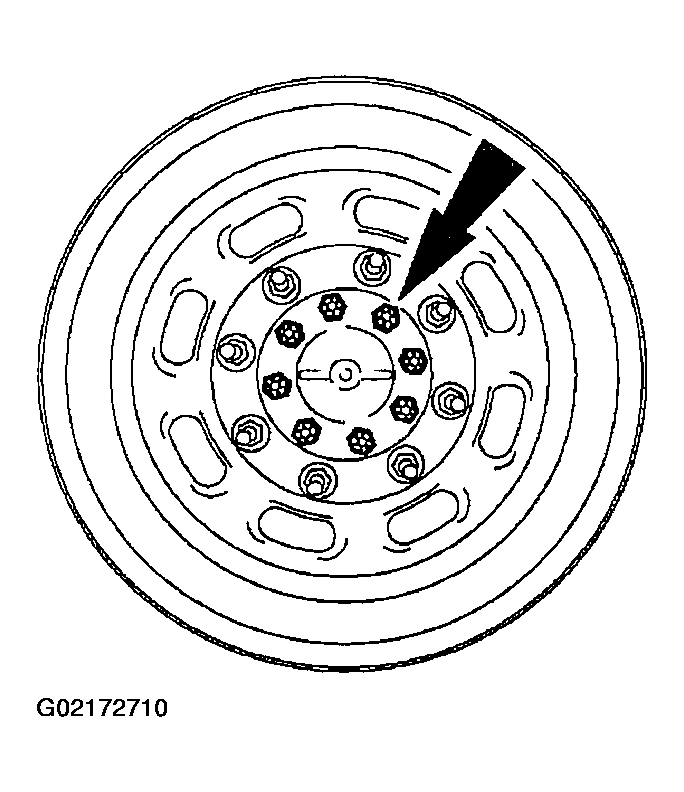

Fig 1: Removing Retaining Bolts

G02172710

Courtesy of FORD MOTOR CO.

Loosen and remove the retaining bolts.
Remove the axle shaft.

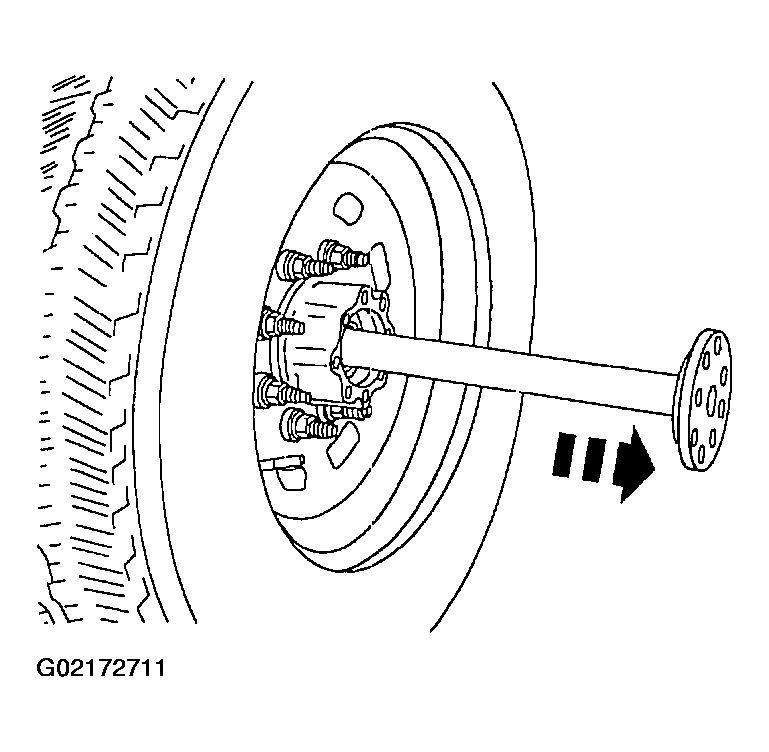

Fig 2: Removing Axle Shaft
Courtesy of FORD MOTOR CO.
Inspect the axle shaft O-ring seal for cracks, nicks or wear and replace it if required.

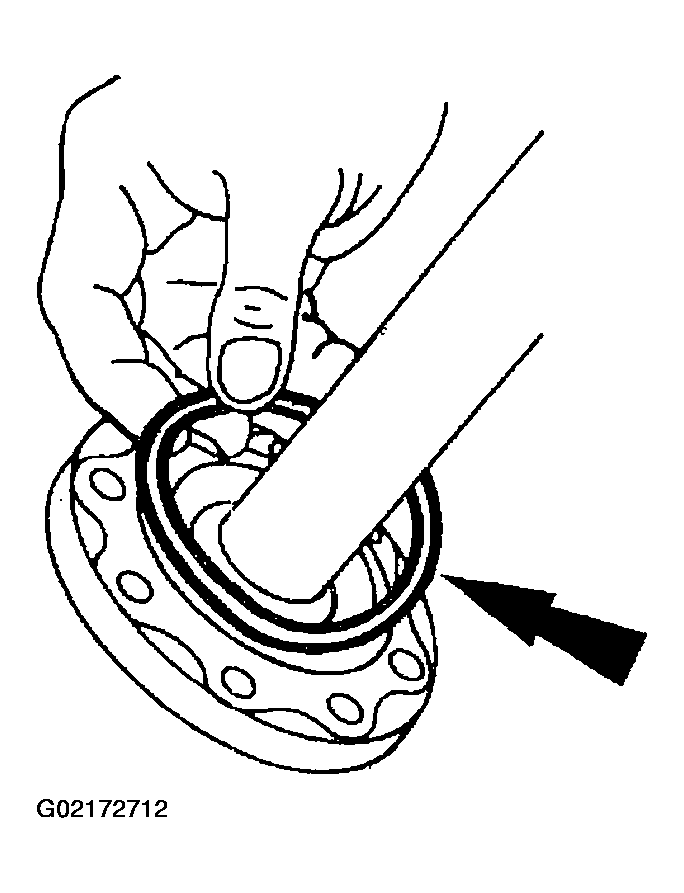

Fig 3: Inspecting Axle Shaft O-Ring Seal For Cracks
Courtesy of FORD MOTOR CO.
