Axle Shaft: Installation

NOTE: Lubricate the O-ring seal with lubricant prior to installation of axle shaft.
  1. Install the axle shaft.

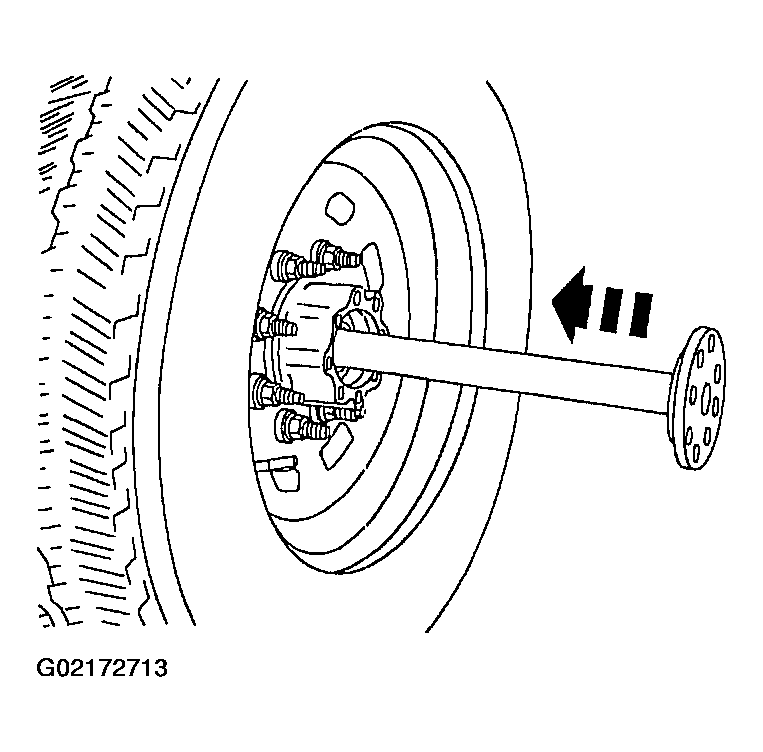

    Fig 1: Installing Axle Shaft
    G02172713Courtesy of FORD MOTOR CO.
    2. NOTE: Coat the threads of the retaining bolts with stud and bearing mount.

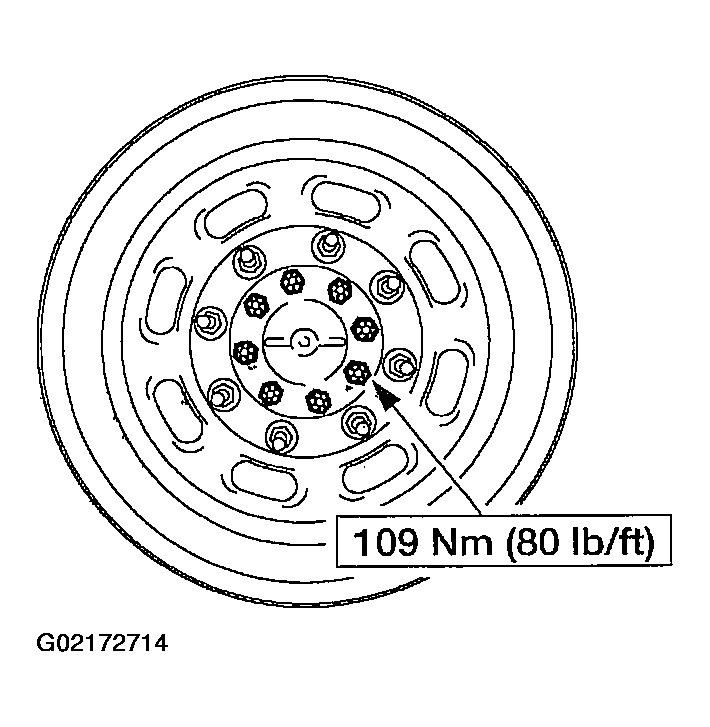

    Fig 2: Installing Retaining Bolts And Tighten
    G02172714Courtesy of FORD MOTOR CO.
  2. Install the retaining bolts and tighten.
