Removal and Installation

  1. Remove the instrument cluster; refer to ANALOG INSTRUMENT PANELS - EXCURSION & F250-F550 SUPER DUTY PICKUPS .
  2. Remove the illumination bulbs.

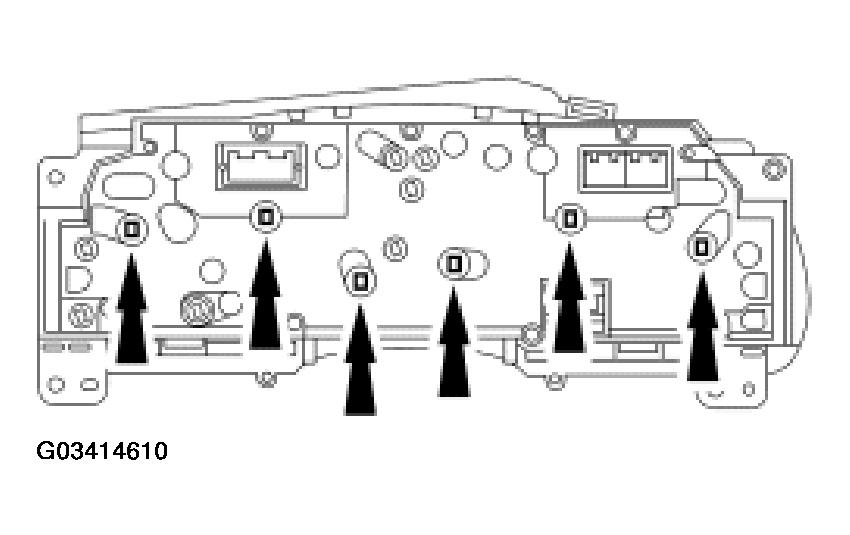

    Fig 1: Removing Illumination Bulbs
    G03414610Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
