Clutch Pressure Plate Locating Dowels: Removal
WARNING: This page is about a different car, the 2002 Ford Pickup, 2002 Ford F550 Super Duty, and 2002 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

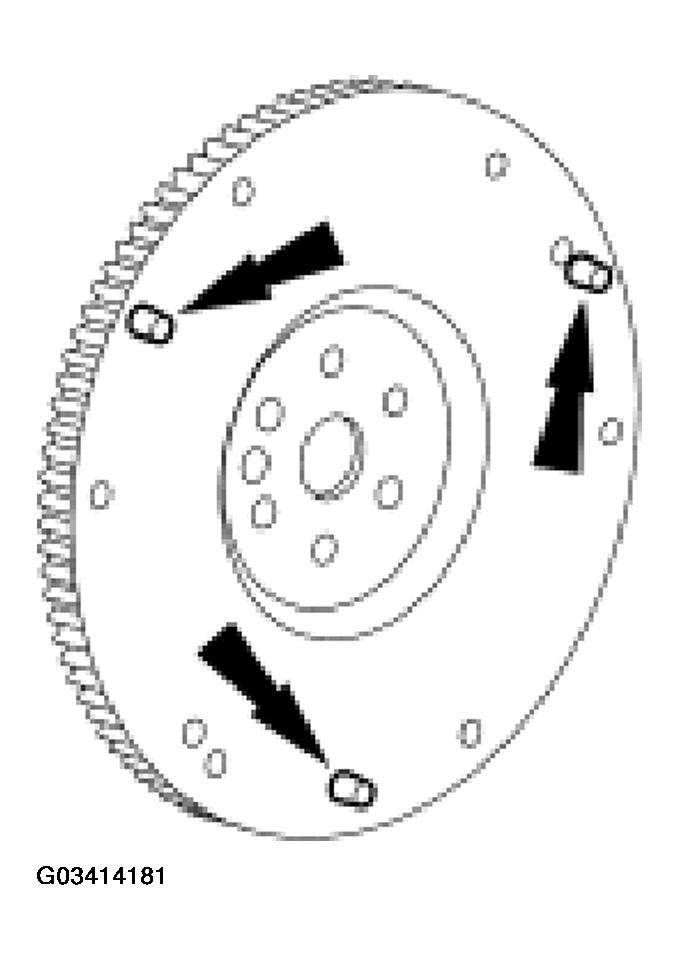

- When installed in an open hole, use a drift to remove the dowel. When installed in a blind hole, use locking pliers to remove the dowel.
- There are two dowels on the diesel engine flywheel, and three dowels on the gasoline engine flywheel.
CAUTION:
Do not damage the bore or the surrounding surface area.
