Clutch Cylinder Bench Bleeding

WARNING: This page is about a different car, the 2002 Ford Pickup, 2002 Ford F550 Super Duty, and 2002 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid C6AZ-19542-AB	ESA-M6C25-A, DOT 3

CAUTION: So as not to trap air in the clutch hydraulic system, fill any disconnected component (such as master cylinder, slave cylinder) with the specified brake fluid before connecting it.

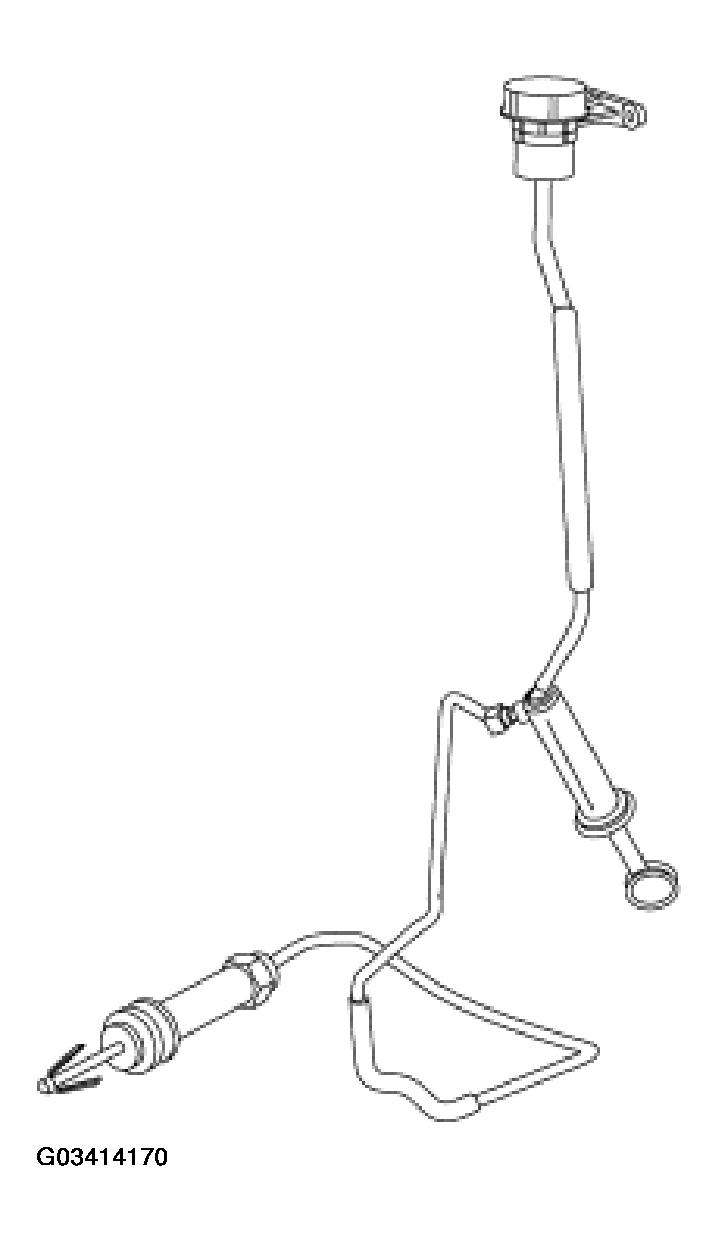

Fig 1: View Of Reservoir Above Master Cylinder And Slave Cylinder Below Master Cylinder

Courtesy of FORD MOTOR CO.

Support clutch hydraulic system components so that the reservoir is above the master cylinder and the slave cylinder is below the master cylinder.
Fill the clutch master cylinder reservoir to the full line with brake fluid.

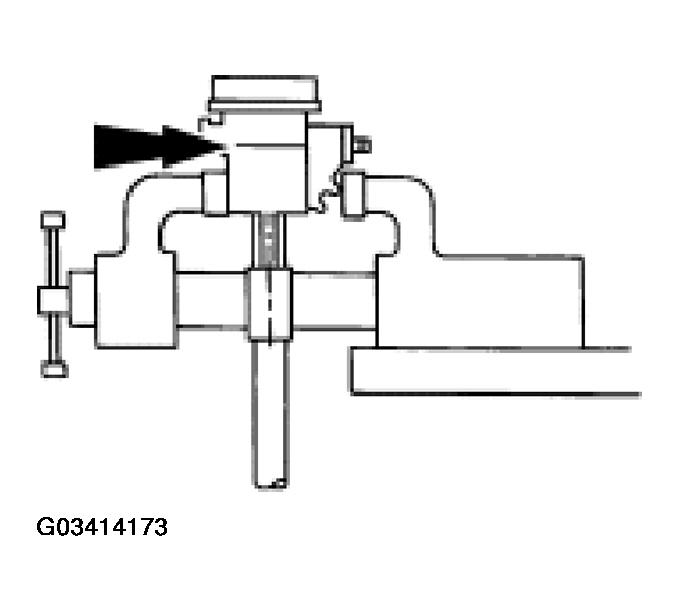

Fig 2: Filling Clutch Master Cylinder Reservoir To Full Line With Brake Fluid
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the clutch master cylinder reservoir to run dry.

Purge the air from the clutch hydraulic system.
- Push the push rod slowly into the slave cylinder until it bottoms out the piston. Hold the push rod in this position for five to ten seconds to allow all trapped air to rise through the system. Look for air bubbles in the fluid in the clutch hydraulic reservoir. Very slowly, so that air is not drawn back into the slave cylinder, release the pushrod (the spring in the slave cylinder will force the piston outward). Wait five to ten seconds for the air bubbles to rise. Repeat this process five to ten times to make sure that all air purged from the system.

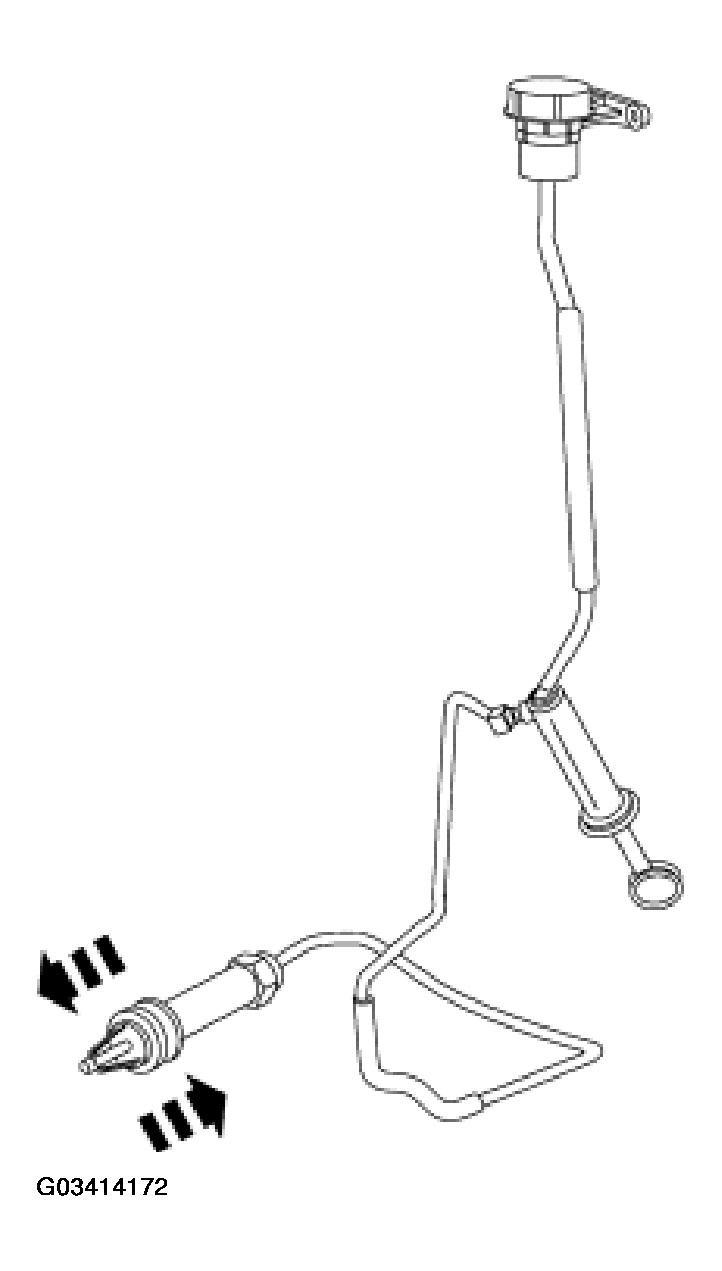

  Fig 3: Purging Air From Clutch Hydraulic System
  Courtesy of FORD MOTOR CO.
Verify that the fluid level in the reservoir is correct, and install the cap.

Fig 4: Checking Fluid Level In Reservoir
Courtesy of FORD MOTOR CO.
