Synchronizer Inner Ring Material Displaced

WARNING: This page is about a different car, the 2002 Ford Pickup, 2002 Ford F550 Super Duty, and 2002 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

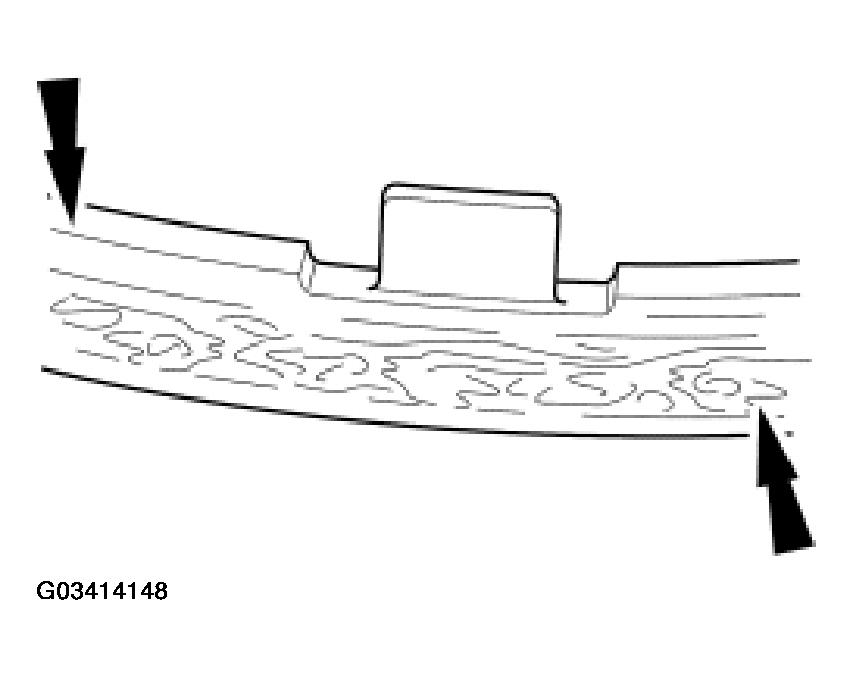

Fig 1: Identifying Synchronizer Inner Ring Material Displaced

Courtesy of FORD MOTOR CO.

The term describes heat discoloration and slight material displacement that is visible on the cone of the inner ring.
