Synchronizer Friction Cone Worn with Material Displaced

WARNING: This page is about a different car, the 2002 Ford Pickup, 2002 Ford F550 Super Duty, and 2002 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

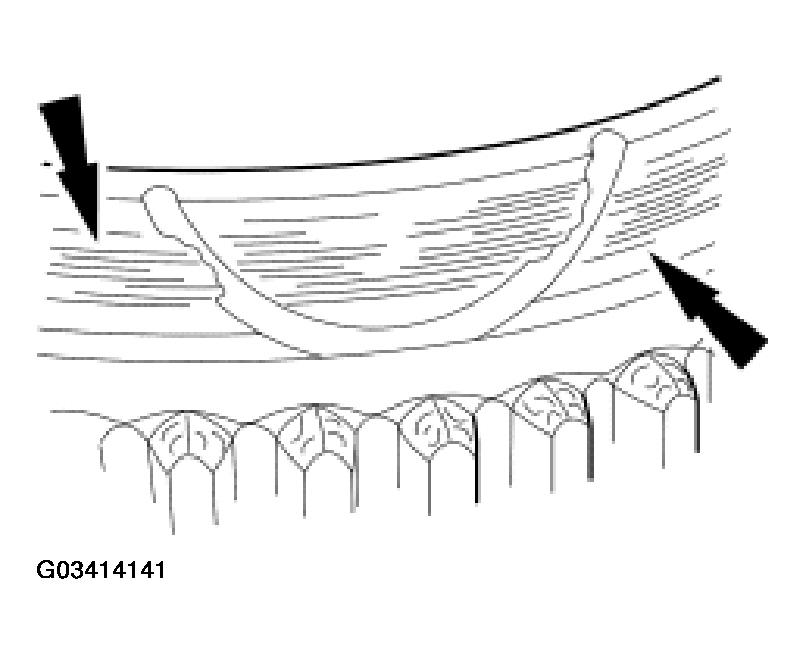

Fig 1: View Of Synchronizer Friction Cone Worn With Material Displaced

Courtesy of FORD MOTOR CO.

The term describes pronounced groove-shaped wear with material displacement around the friction cone circumference. The material displacement is clearly visible in the area of any oil grooves.
