Removal And Installation: Hub: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the parking brake.
  2. Loosen the retaining bolts.

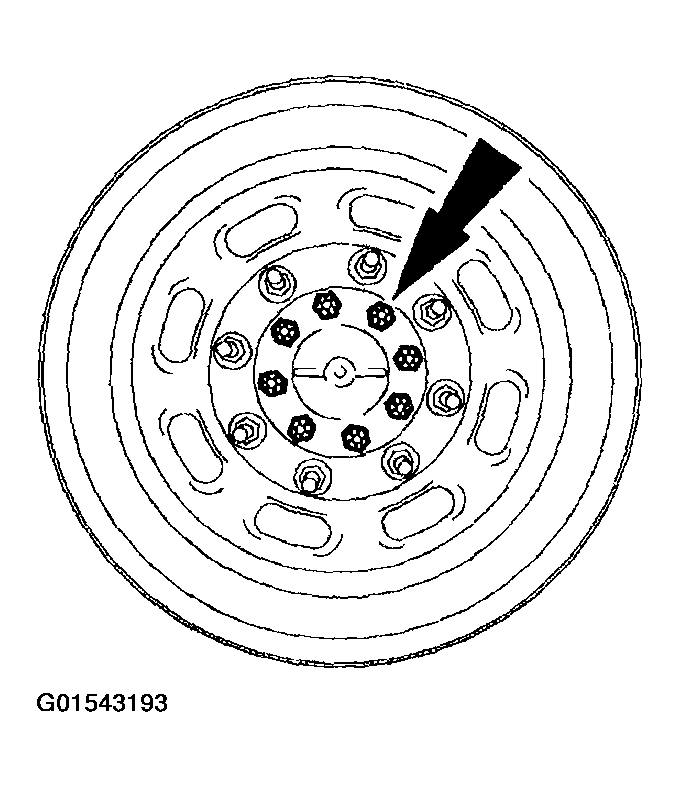

    Fig 1: Identifying Retaining Bolts
    G01543193Courtesy of FORD MOTOR CO.
  3. Raise the vehicle to the desired working height, keeping the axle parallel with the floor.
  4. Release the parking brake.
  5. Remove the wheel(s). Refer to WHEELS & TIRES - EXCURSION & F250-F550 SUPER DUTY PICKUP .
  6. Remove the brake caliper and rotor on the single rear wheel axle. Refer to DISC - EXCURSION, F250-F550 SUPER DUTY PICKUP .
  7. Remove the retaining bolts and axle shaft.

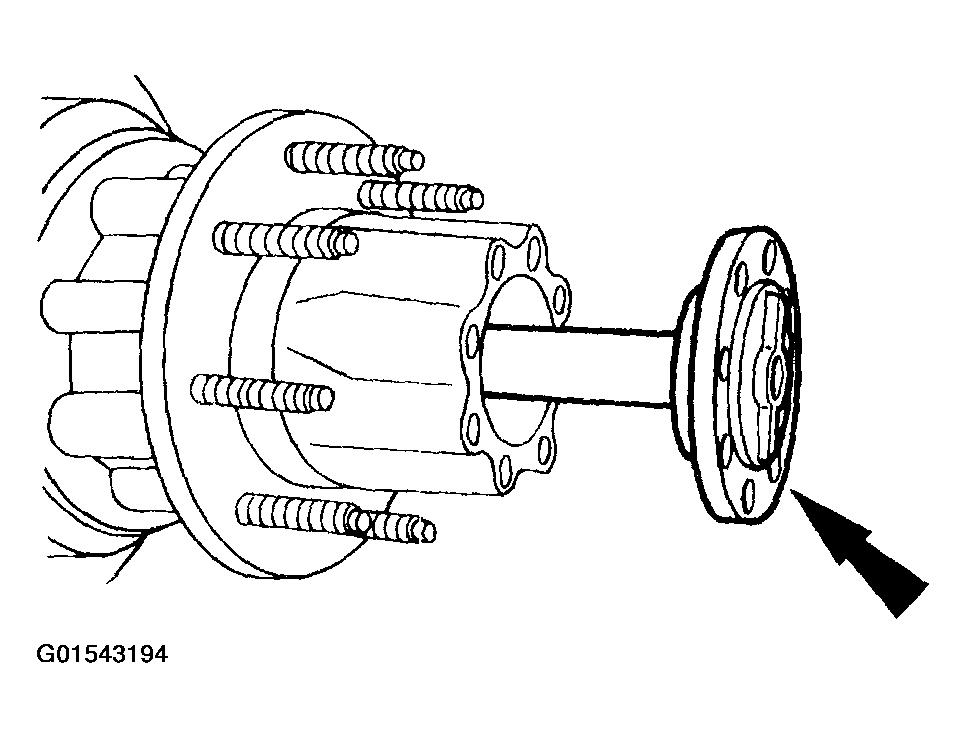

    Fig 2: Removing Retaining Bolts And Axle Shaft
    G01543194Courtesy of FORD MOTOR CO.
    8. CAUTION: The hub nuts are right-hand thread (right hub) and left-hand thread (left hub). Each hub nut is stamped RH or LH.

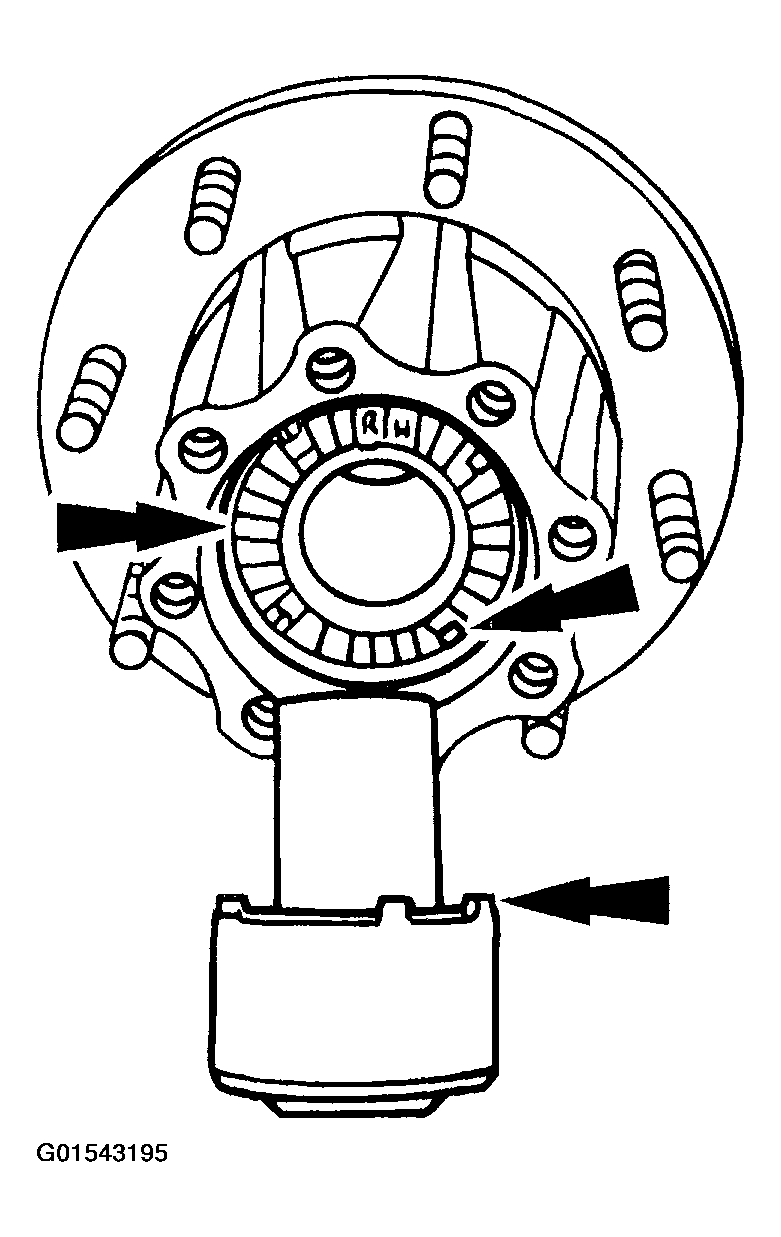

    Fig 3: Installing Ford Axle Locknut Socket
    G01543195Courtesy of FORD MOTOR CO.
  8. Install the Ford Axle Locknut Socket so that the drive tangs of the tool engage the four slots in the hub nut.
    9. CAUTION: Discard the hub nut if the hub nut comes apart during removal.
    CAUTION: Under no circumstances are power tools to be used when performing these operations.
    NOTE: The hub nut will ratchet during this operation.
    Fig 4: Removing Hub Nut
    G01543196Courtesy of FORD MOTOR CO.
  9. Remove the hub nut (counterclockwise for right-hand thread; clockwise for left-hand thread).
  10. Install the Step Plate.
    Fig 5: Installing Step Plate
    G01543197Courtesy of FORD MOTOR CO.
  11. Install the 2-Jaw Puller and loosen the rear hub to the point of removal.

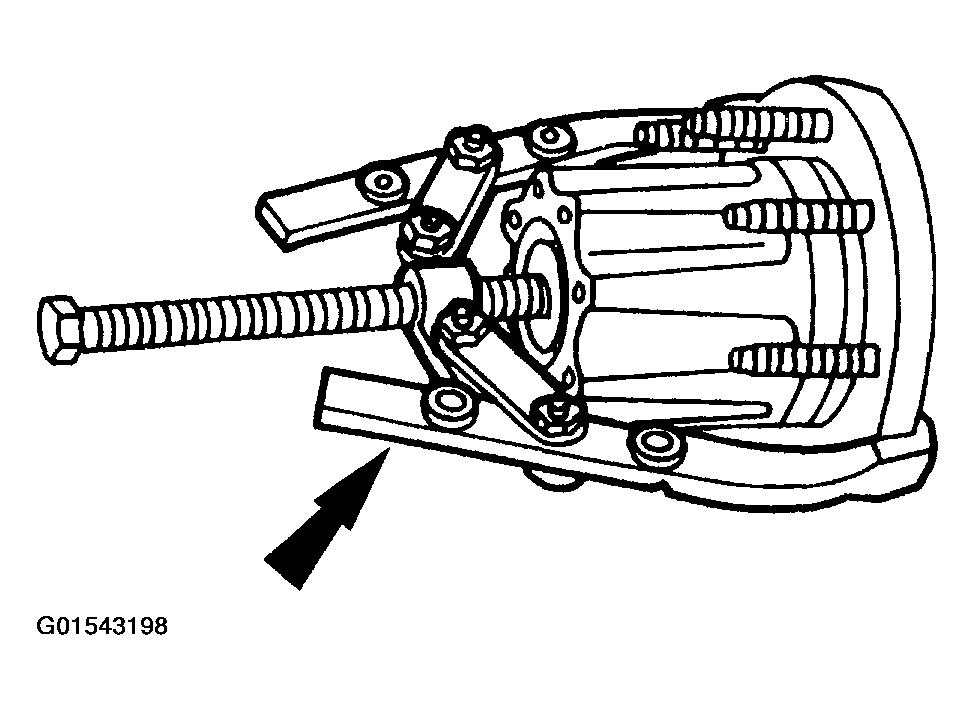

    Fig 6: Installing 2-Jaw Puller And Loosening Rear Hub To Point Of Removal
    G01543198Courtesy of FORD MOTOR CO.
    12. CAUTION: Do not drop the outer hub bearing when removing the hub.

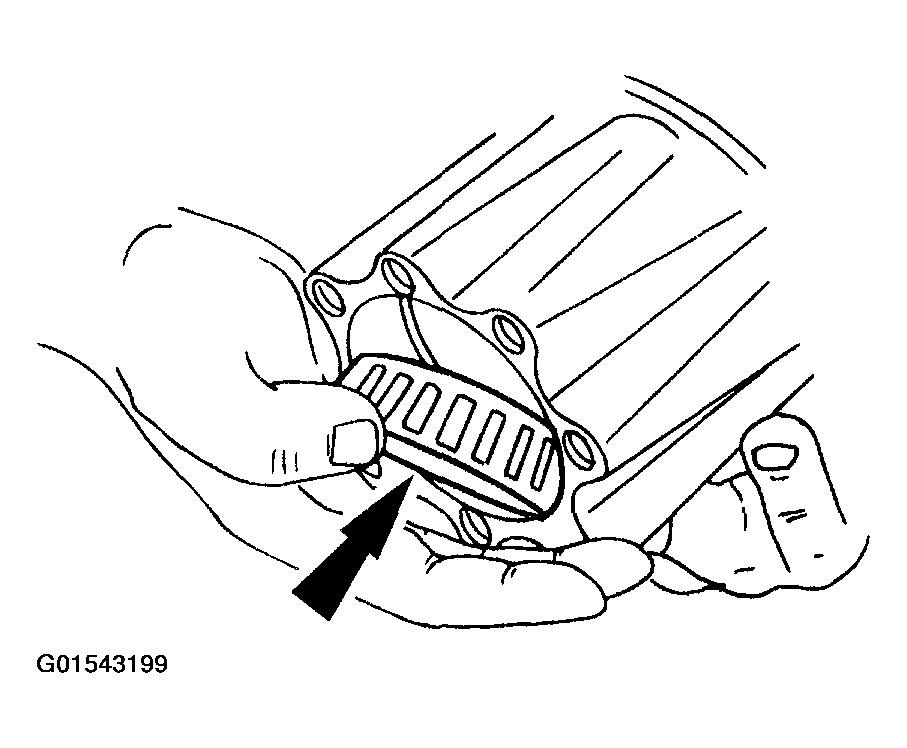

    Fig 7: Removing Rear Hub Assembly
    G01543199Courtesy of FORD MOTOR CO.
  12. Remove the rear hub assembly.
    13. CAUTION: Install a new hub seal each time the hub assembly is removed.
    NOTE: The inner bearing is located behind the hub seal.
  13. Pack each bearing and replace the hub seals. Refer to Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups .
    14. CAUTION: Use extreme care not to scratch or gouge the seal or bearing surfaces.
    Fig 8: Removing Hub And Hub Seal
    G01543200Courtesy of FORD MOTOR CO.
  14. If after hub removal, the hub seal or seal inner sleeve remains on the spindle, remove it as shown using the Step Plate and the 2-Jaw Puller.
  15. Inspect the seal surface and inner shoulder for scratches and damage.
    • Remove all scratches, gouges or galling damage with No. 600 or finer crocus cloth.

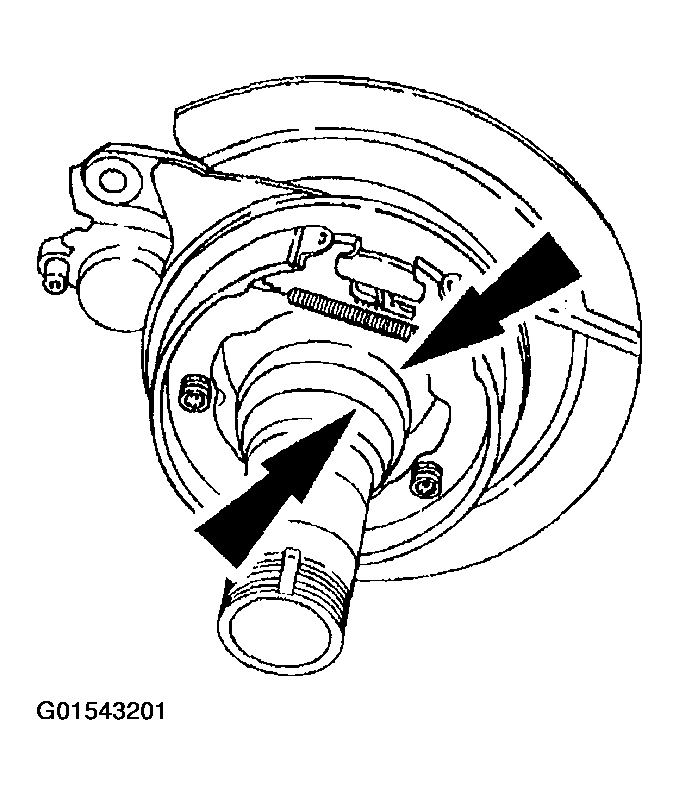

      Fig 9: Inspecting Seal Surface And Inner Shoulder For Scratches And Damage
      G01543201Courtesy of FORD MOTOR CO.
