Toe Adjustment - F-250, F-350, 4x4 and F-450, F-550

Start the engine. Center the steering wheel.

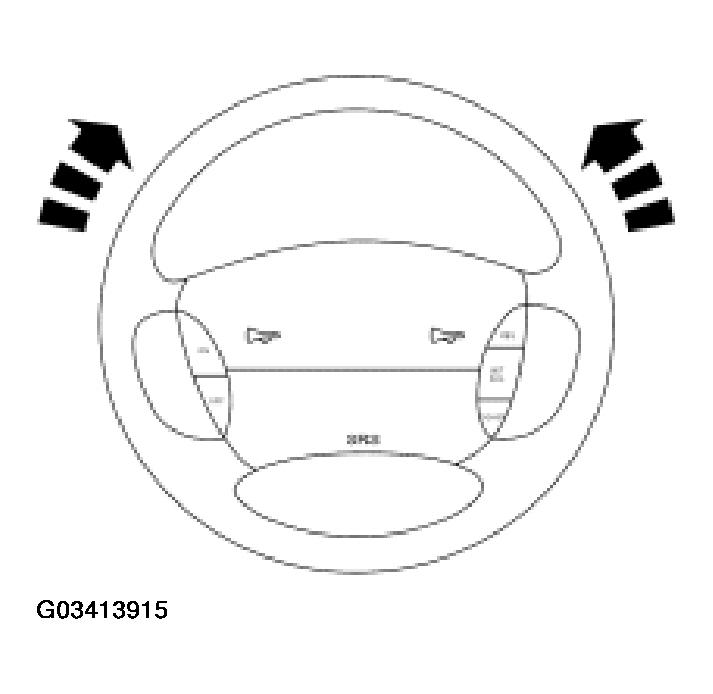

Fig 1: Identifying Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off. Use a rigid link from the steering wheel to the brake pedal to lock the steering wheel in the straight-forward position.

NOTE: If the RH toe measurement is within specifications and only the LH toe measurement needs adjustment, go to Step 6 .

Loosen the nuts.
- Clean and lubricate the steering linkage and tie rod end threads.

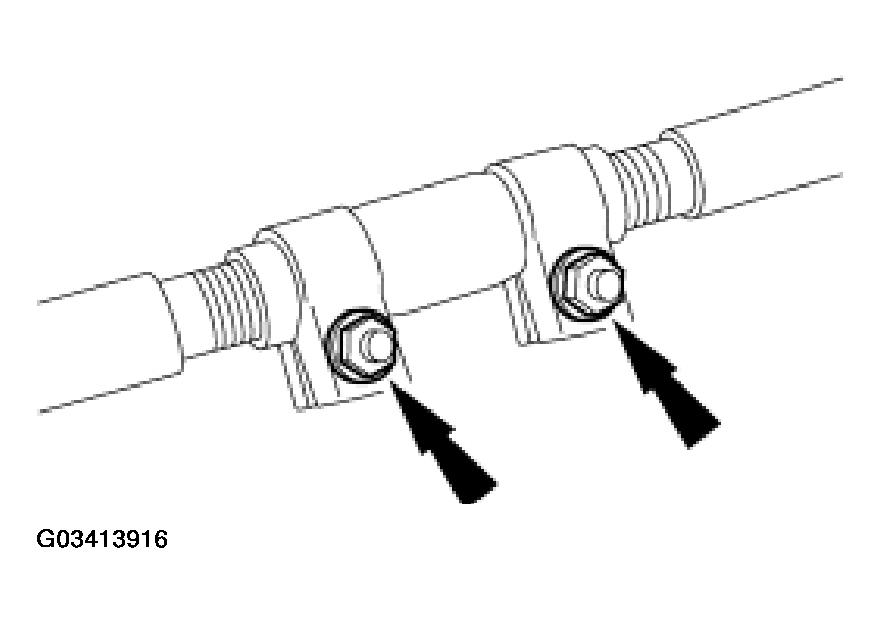

  Fig 2: Identifying Steering Linkage And Tie Rod End
  Courtesy of FORD MOTOR CO.
Rotate the tie rod adjusting sleeve to the correct toe setting.

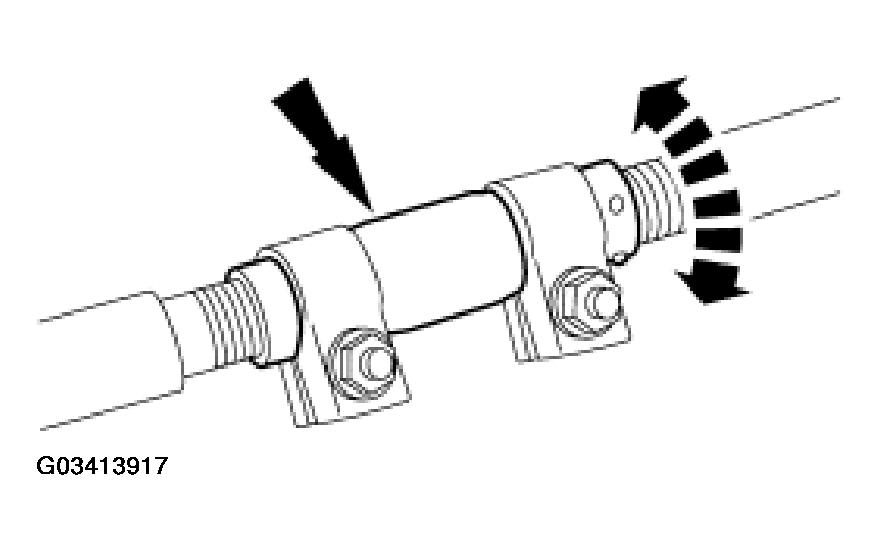

Fig 3: Rotating Tie Rod Adjusting Sleeve To Correct Toe Setting
Courtesy of FORD MOTOR CO.
Tighten the nuts.

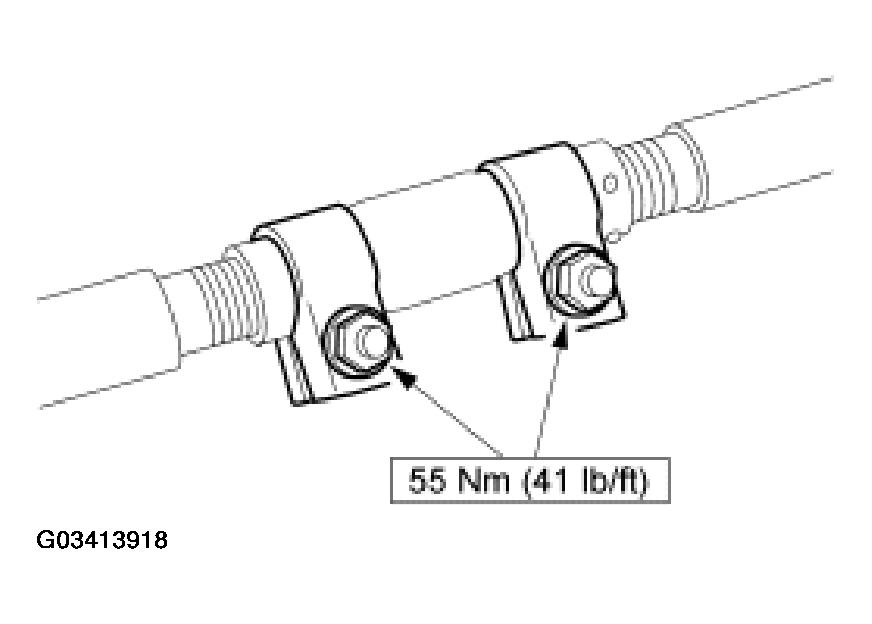

Fig 4: Tightening Nuts
Courtesy of FORD MOTOR CO.
Loosen the nuts.
- Clean and lubricate the steering linkage and tie rod end threads.

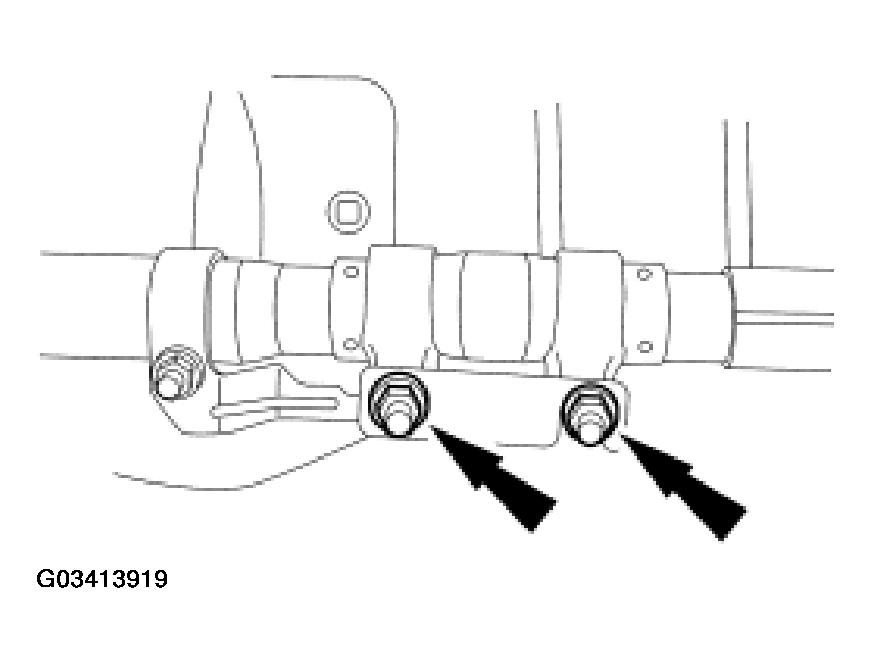

  Fig 5: Loosening Nuts
  Courtesy of FORD MOTOR CO.

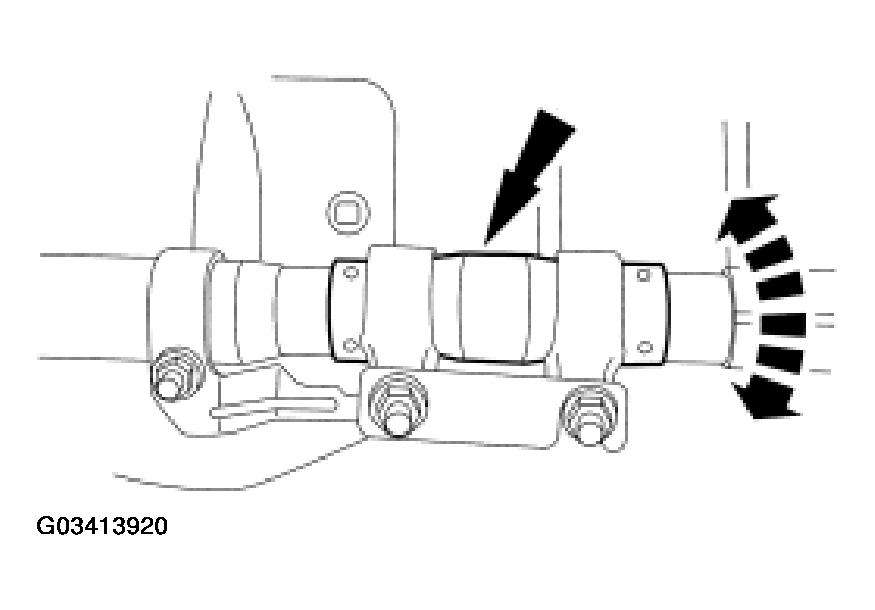

Rotate the tie rod adjusting sleeve to the correct toe setting.

Fig 6: Rotating Tie Rod Adjusting Sleeve
Courtesy of FORD MOTOR CO.
Tighten the nuts.

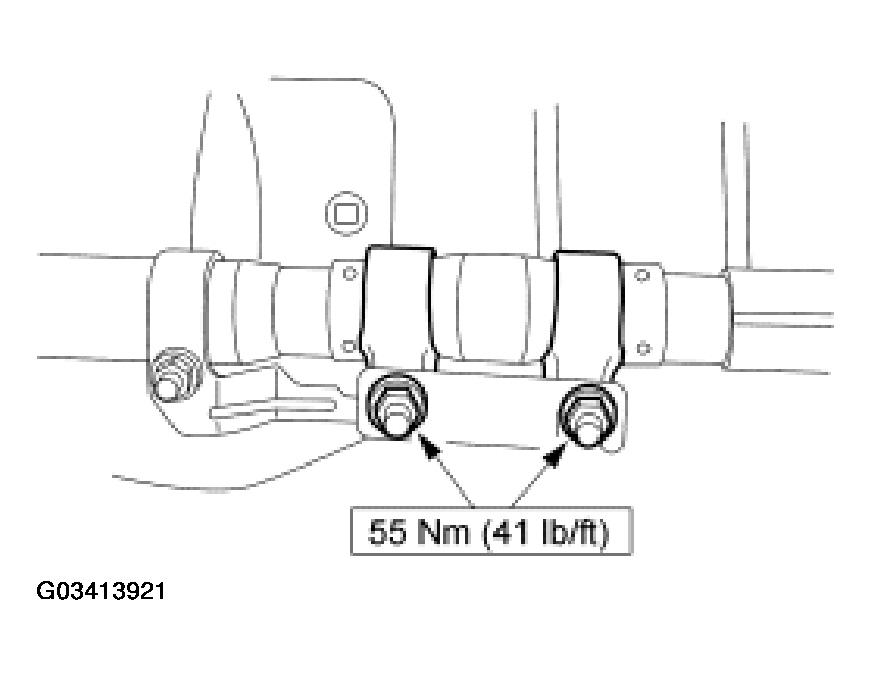

Fig 7: Tightening Nuts
Courtesy of FORD MOTOR CO.
Recheck the toe settings. Follow the manufacturer's instructions.
