Initial Assembly
WARNING: This page is about a different car, the 2002 Ford F550 Super Duty and 2002 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Press the inner pinion bearing onto the pinion.
- Press the inner and outer pinion bearing cups into the carrier until seated.
- Use a 0.0381-mm (0.0015-inch) feeler gauge to verify the bearing cups have completely seated in the bearing bores.
- Lubricate the bearing cups and cone.
- Seat the outer pinion bearing on the pinion.

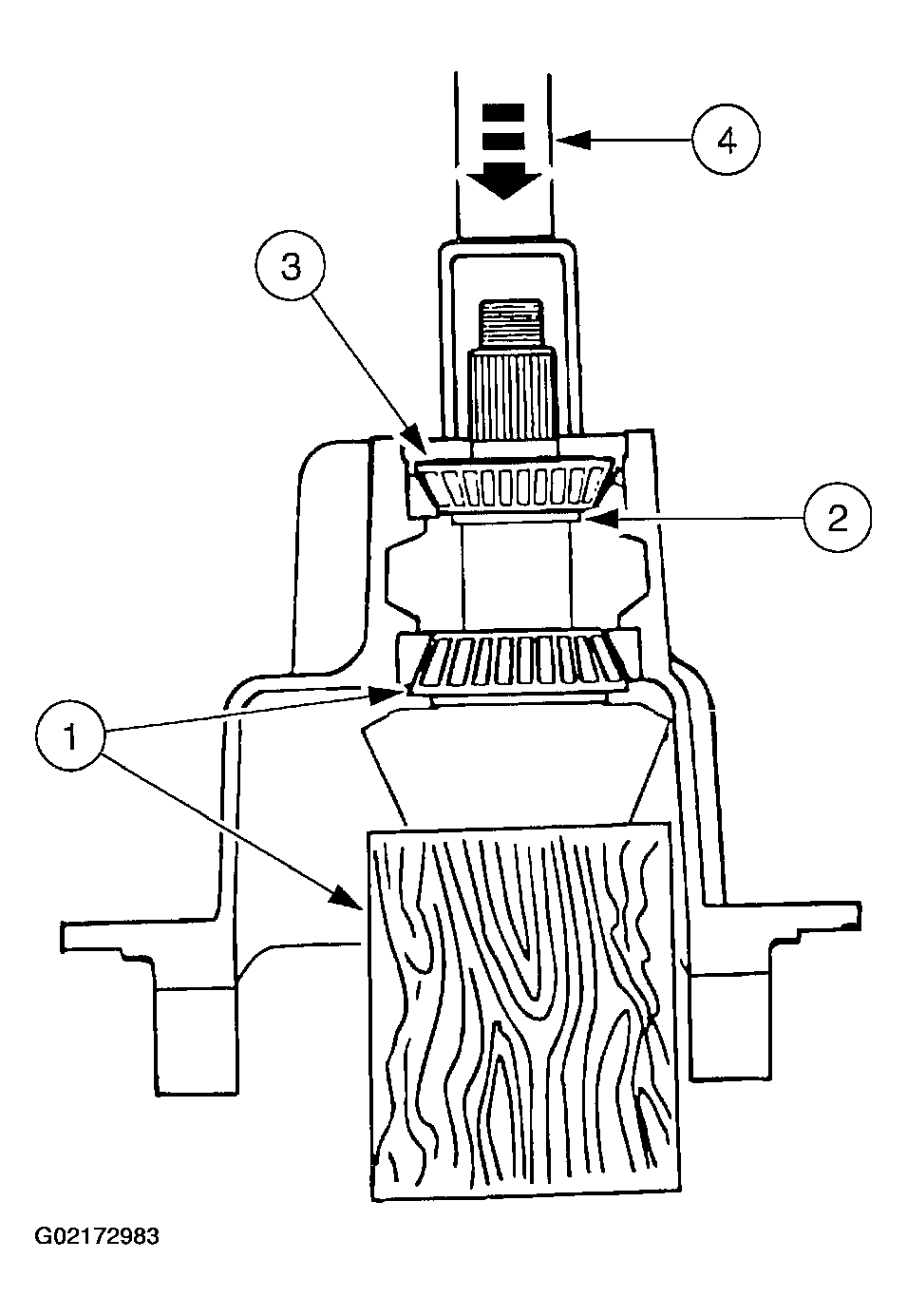

- Seat the inner pinion bearing into the cup by positioning a 152.4 x 152.4 x 152.4-mm (6 x 6 x 6-inch) block of wood under the pinion.
- Place the original pinion preload spacer onto the pinion.
- Place the outer pinion bearing onto the pinion.

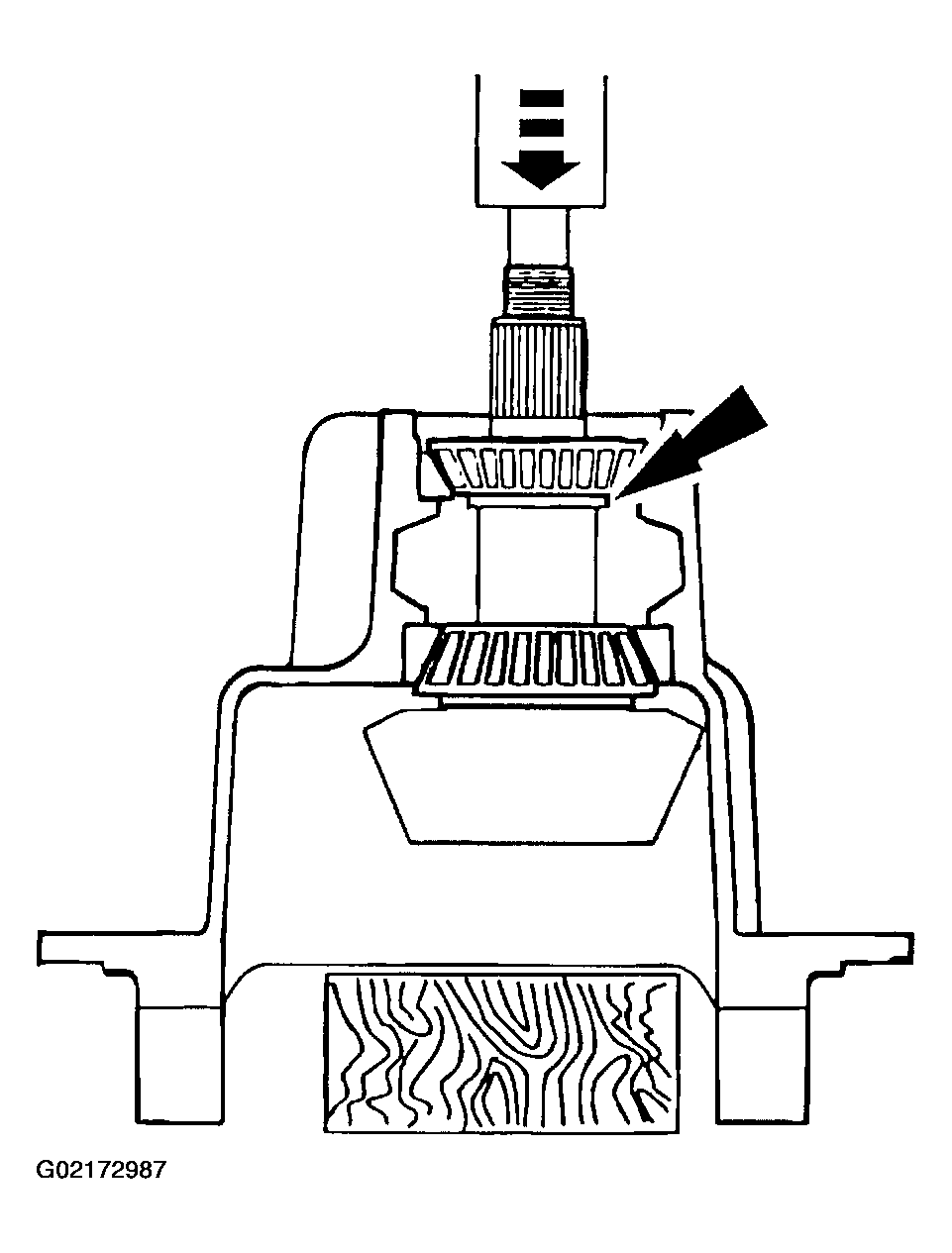

- Using a suitable press, seat the outer bearing on the pinion.

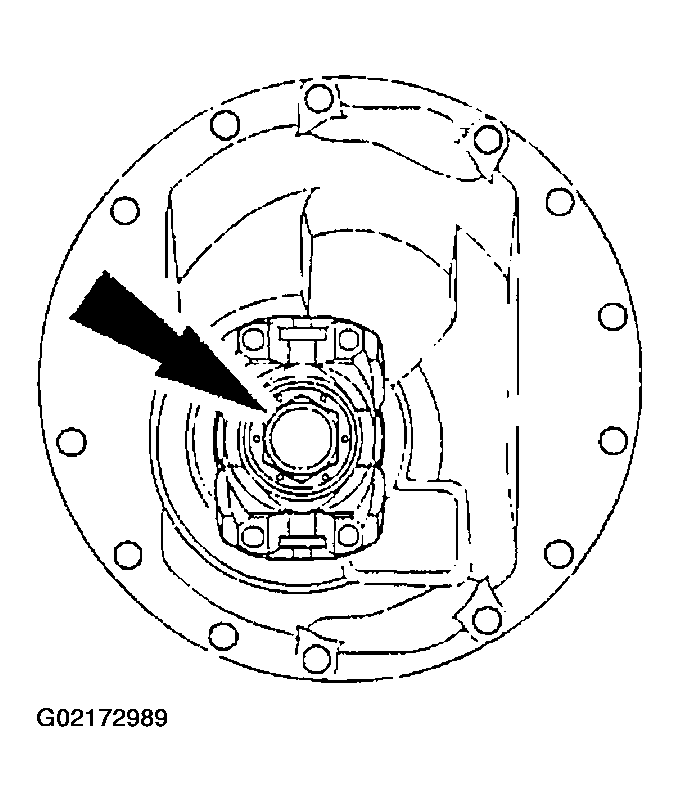

- Using the special tool, install the pinion flange.
- Install the hex nut.

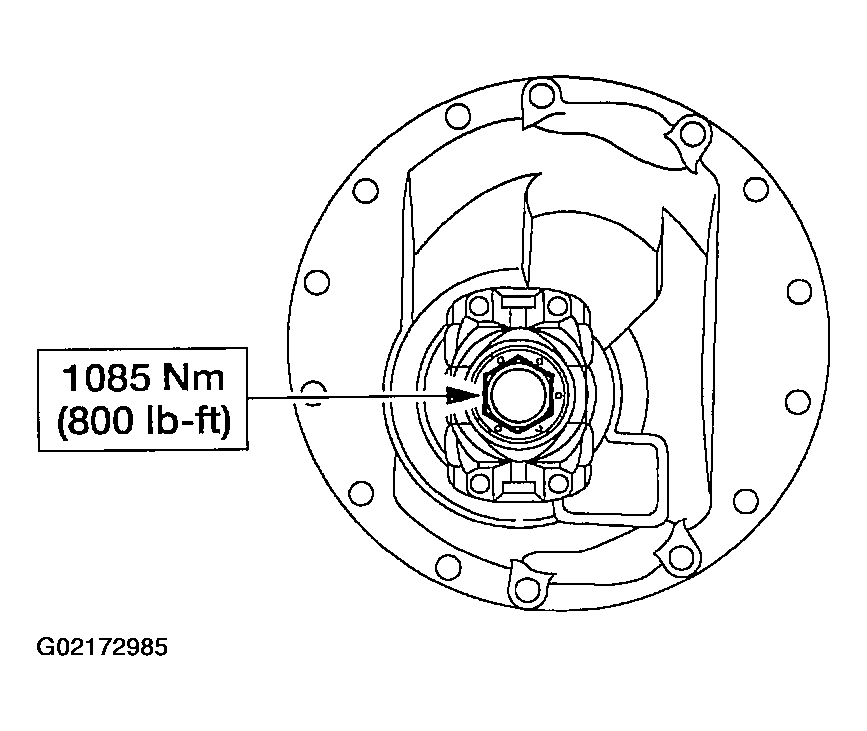

- Using a suitable torque multiplier, tighten the hex nut.
Measuring pinion bearing preload torque
- Measure the torque to rotate.
- Take torque measurements every fourth revolution.
- Proceed to Pinion bearing preload adjustment in this procedure if the bearing preload torque is not within the specifications. Proceed to Final assembly in this procedure if the bearing preload torque is within the specifications.
Pinion bearing preload adjustment
- Adjust the pinion bearing preload by installing a new pinion bearing preload spacer.
- To increase the preload, install a thinner spacer. To decrease the preload, install a thicker spacer.
- The pinion bearing preload spacers are available in sizes from 7.26 to 8.00 mm (0.286 to 0.315 inch).
- Always measure the new spacer before installing it.
- On a flat surface, sand the next thicker size spacer with emery cloth to the required thickness to obtain a closer adjustment. Thoroughly wash the spacer to remove the emery cuttings before installation.
- A 0.0254 mm (0.001 inch) change in the spacer thickness will change the torque rate approximately 3.3894 Nm (30 lb-in).
- Repeat Measuring pinion bearing preload torque and Pinion bearing preload adjustment in this procedure until the rotational torque is within specifications.
Final assembly
- Using a suitable torque multiplier, remove the hex nut.
- Using the special tool, remove the pinion flange.
- Using the special tool, install the pinion seal.
- A rotational torque of 1.6947-5.0841 Nm (15-45 lb-in) is acceptable with the pinion seal installed.
- Using the special tool, install the pinion flange.
- Apply Stud and Bearing Mount E0AZ-19554-BA or equivalent meeting Ford specification WSK-M2G349-A1 to the pinion threads, and install a new hex nut.

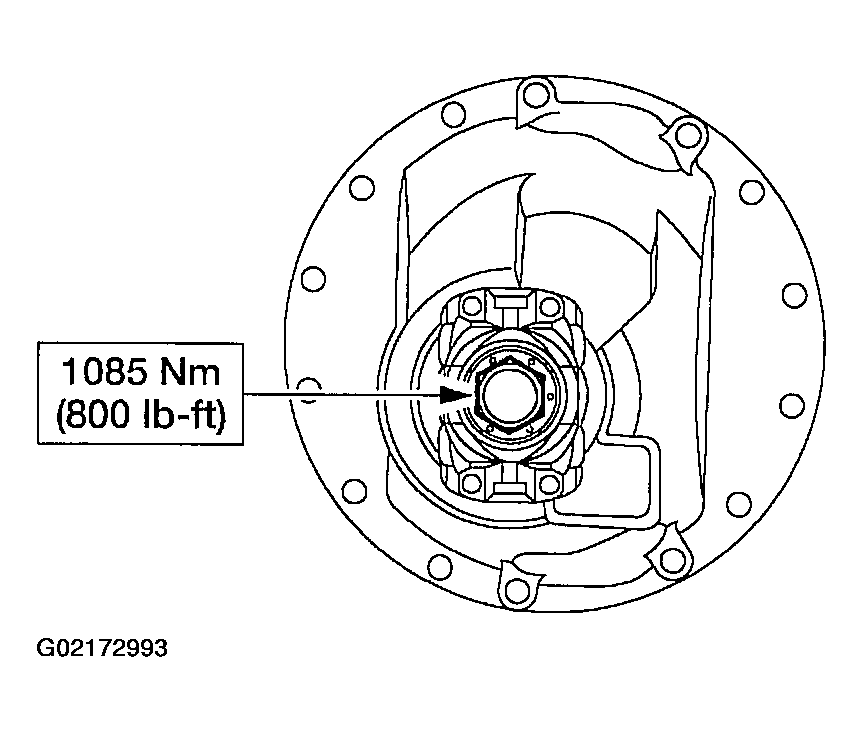

- Using a suitable torque multiplier, tighten the nut.
- Assemble the carrier. For additional information, Refer to DIFFERENTIAL CASE AND RING GEAR .
NOTE:
Do not install the pinion seal at this time.
NOTE:
Also refer to the following illustration.
CAUTION:
Hammering on the pinion flange will close in the bearing bores and misalign the flange lugs. This will result in premature failure of the journal needle bearings/other driveline components. Serious damage will also occur internally to the differential ring gear and pinion set/pinion bearings by hammering on external parts. Remove and install the pinion flange using only the procedures in this section.
