Pinpoint Test G: A Single Illumination Source Is Inoperative - Door Lock Control Switches

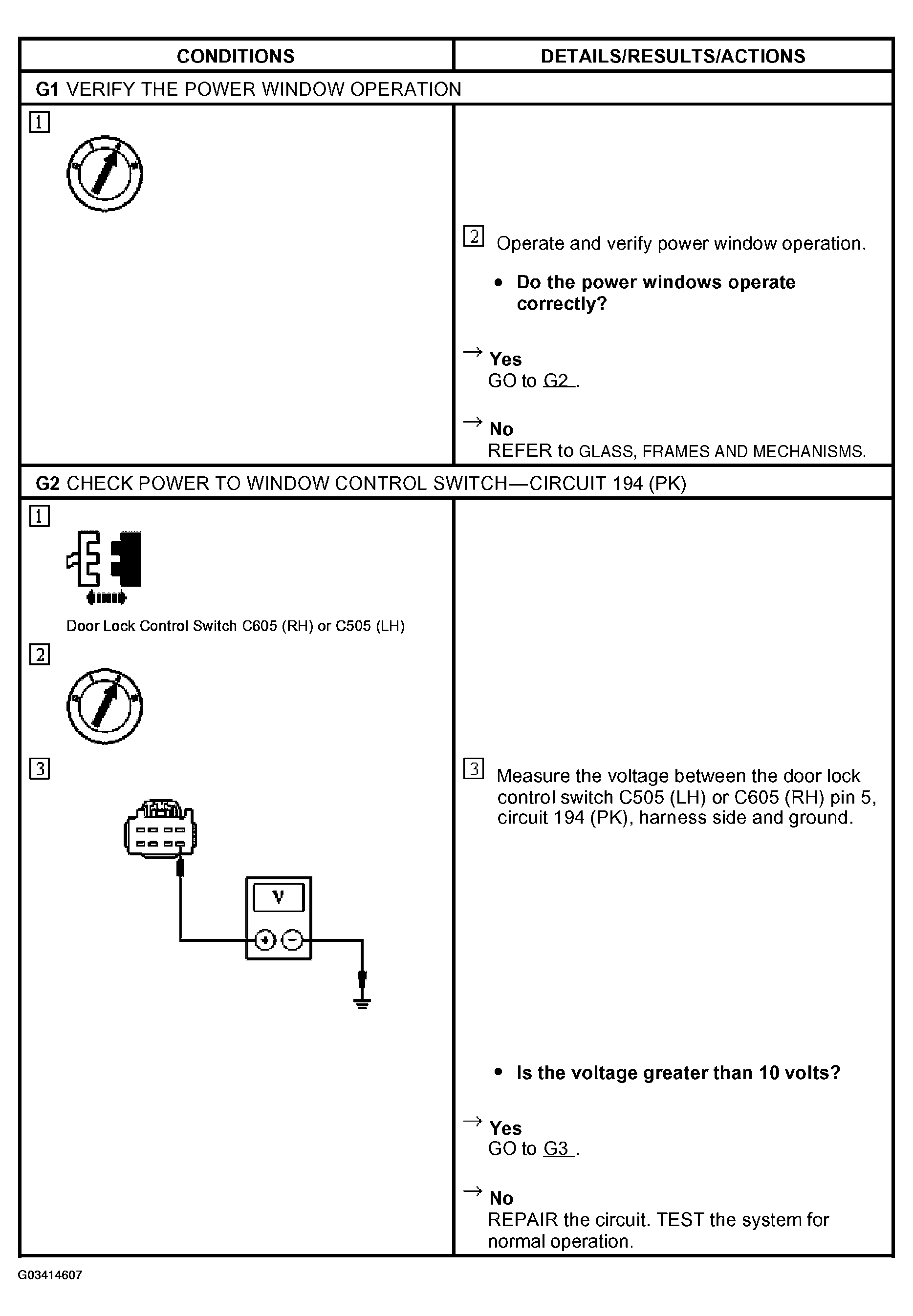

Fig 1: Pinpoint Test G: Single Illumination Source Is Inoperative - Door Lock Control Switches (G1-G2)
G03414607Courtesy of FORD MOTOR CO.

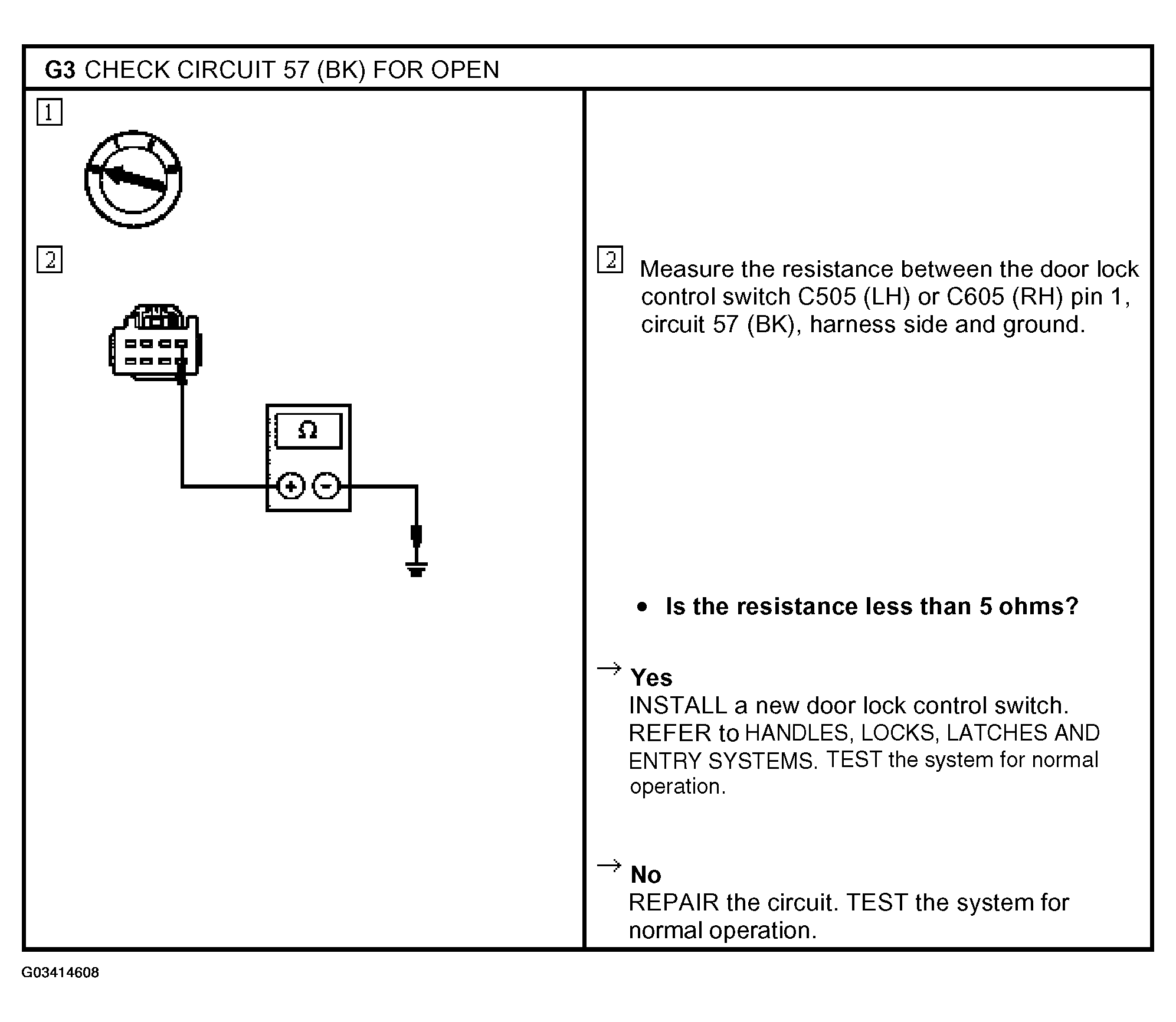

Fig 2: Pinpoint Test G: Single Illumination Source Is Inoperative - Door Lock Control Switches (2 Of 2)
G03414608Courtesy of FORD MOTOR CO.
