Pinpoint Test F: A Single Illumination Source Is Inoperative - Steering Wheel Switches

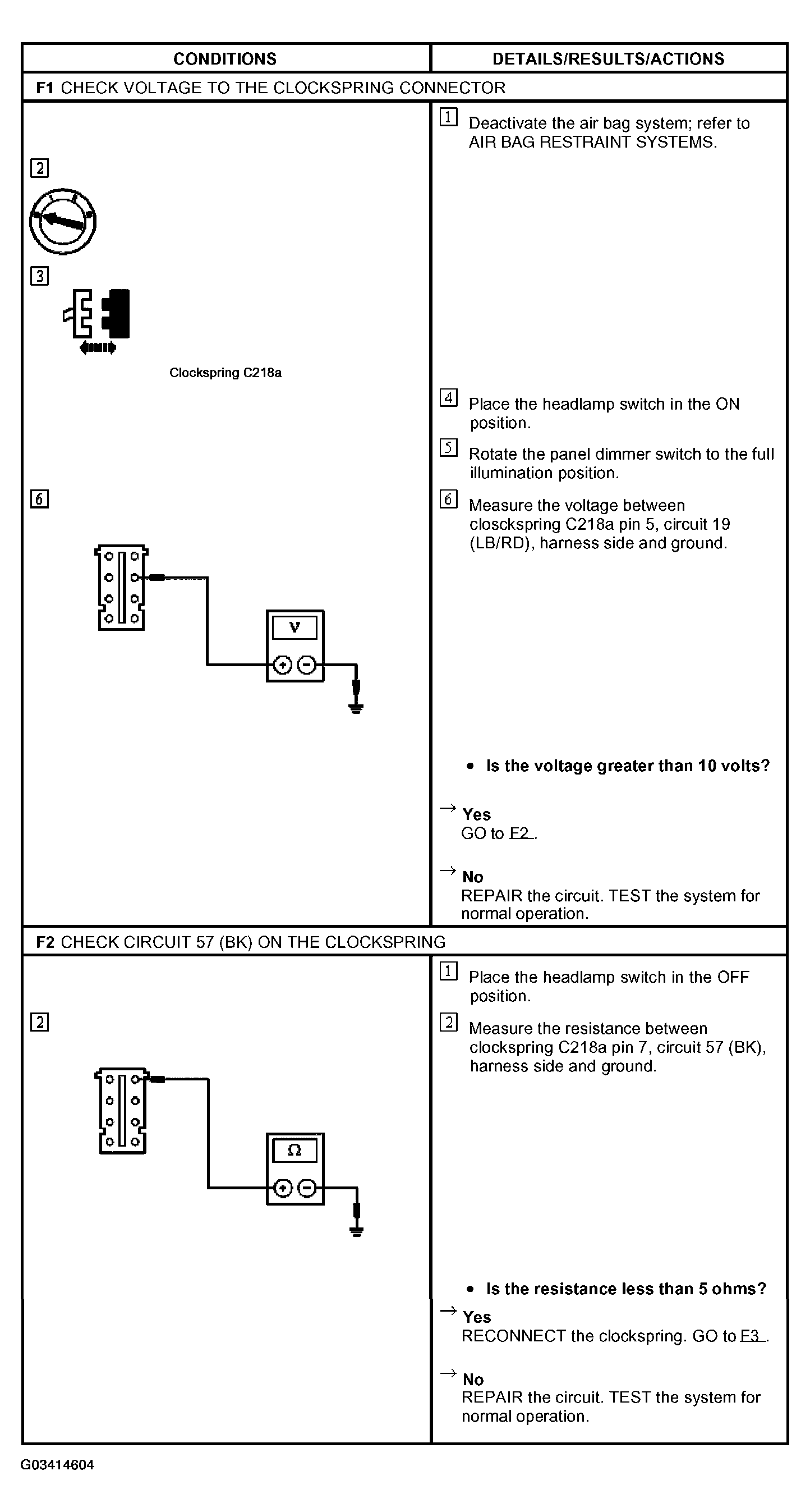

Fig 1: Pinpoint Test F: Single Illumination Source Is Inoperative - Steering Wheel Switches (F1-F2)
G03414604Courtesy of FORD MOTOR CO.

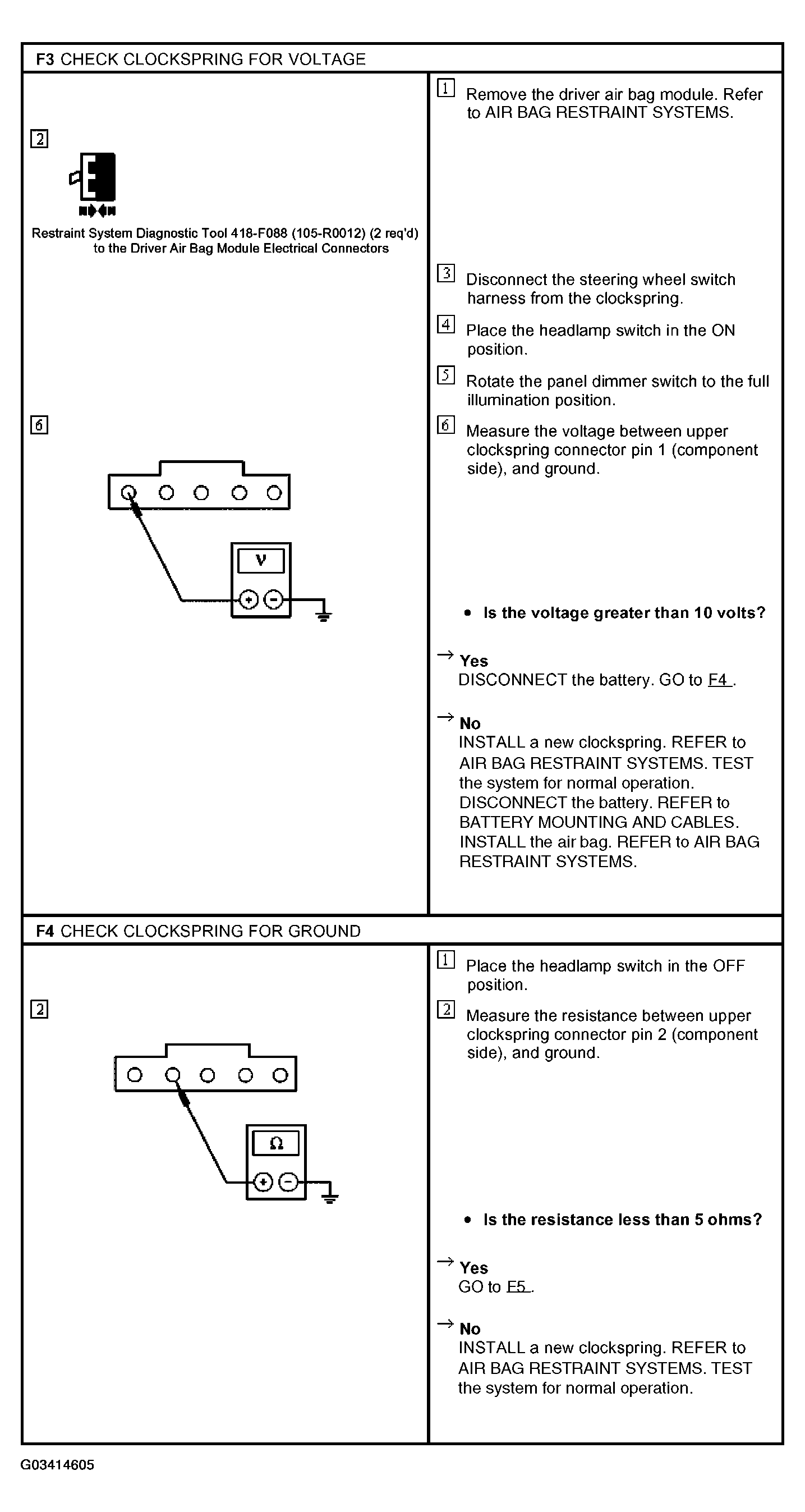

Fig 2: Pinpoint Test F: Single Illumination Source Is Inoperative - Steering Wheel Switches (F3-F4)
G03414605Courtesy of FORD MOTOR CO.

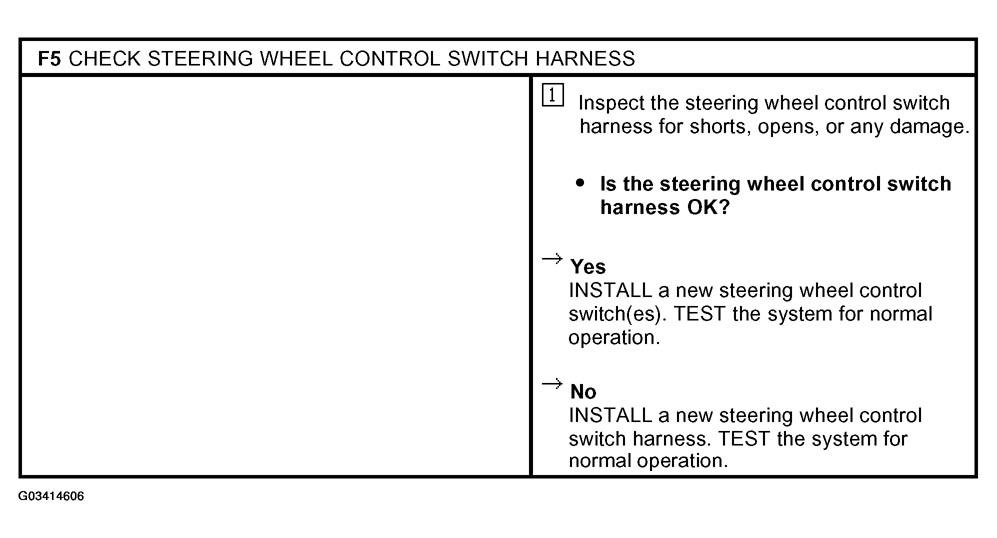

Fig 3: Pinpoint Test F: Single Illumination Source Is Inoperative - Steering Wheel Switches (F5)
G03414606Courtesy of FORD MOTOR CO.
