Pinpoint Test E: A Single Illumination Source Is Inoperative

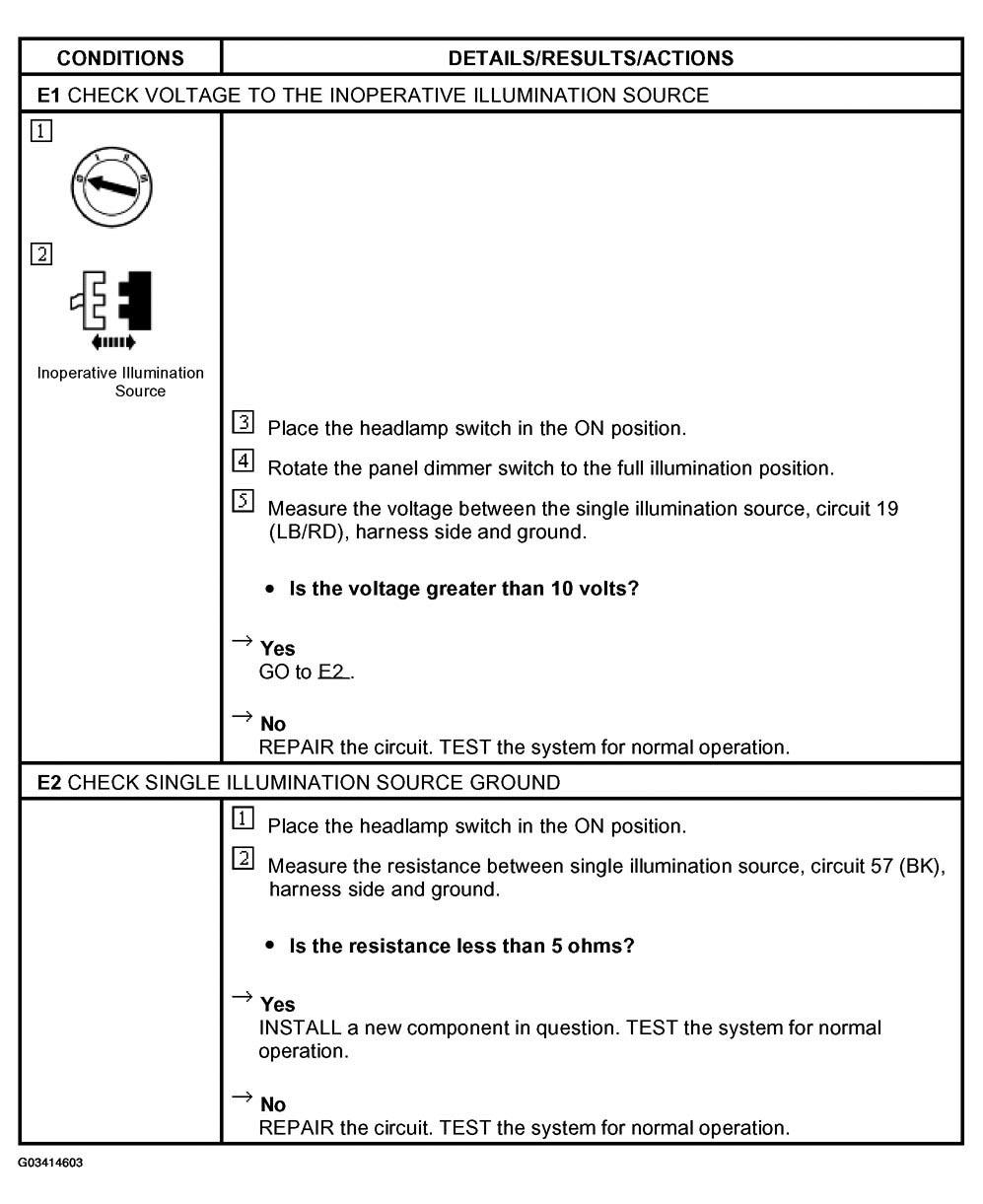

Fig 1: Pinpoint Test E: Single Illumination Source Is Inoperative

G03414603

Courtesy of FORD MOTOR CO.
