Pinpoint Test D: The Audio System Illumination Is Inoperative

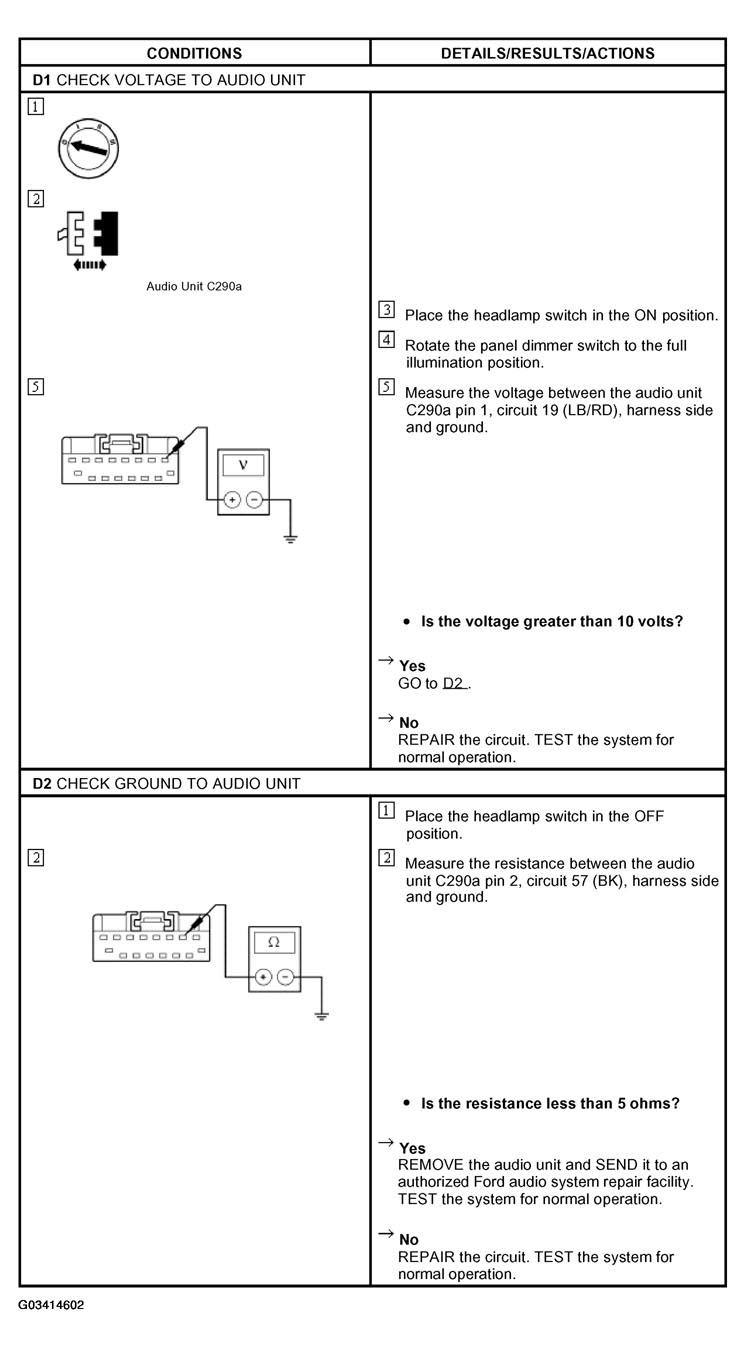

Fig 1: Pinpoint Test D: Audio System Illumination Is Inoperative

G03414602

Courtesy of FORD MOTOR CO.
