Pinpoint Test C: The Climate Control Illumination Is Inoperative

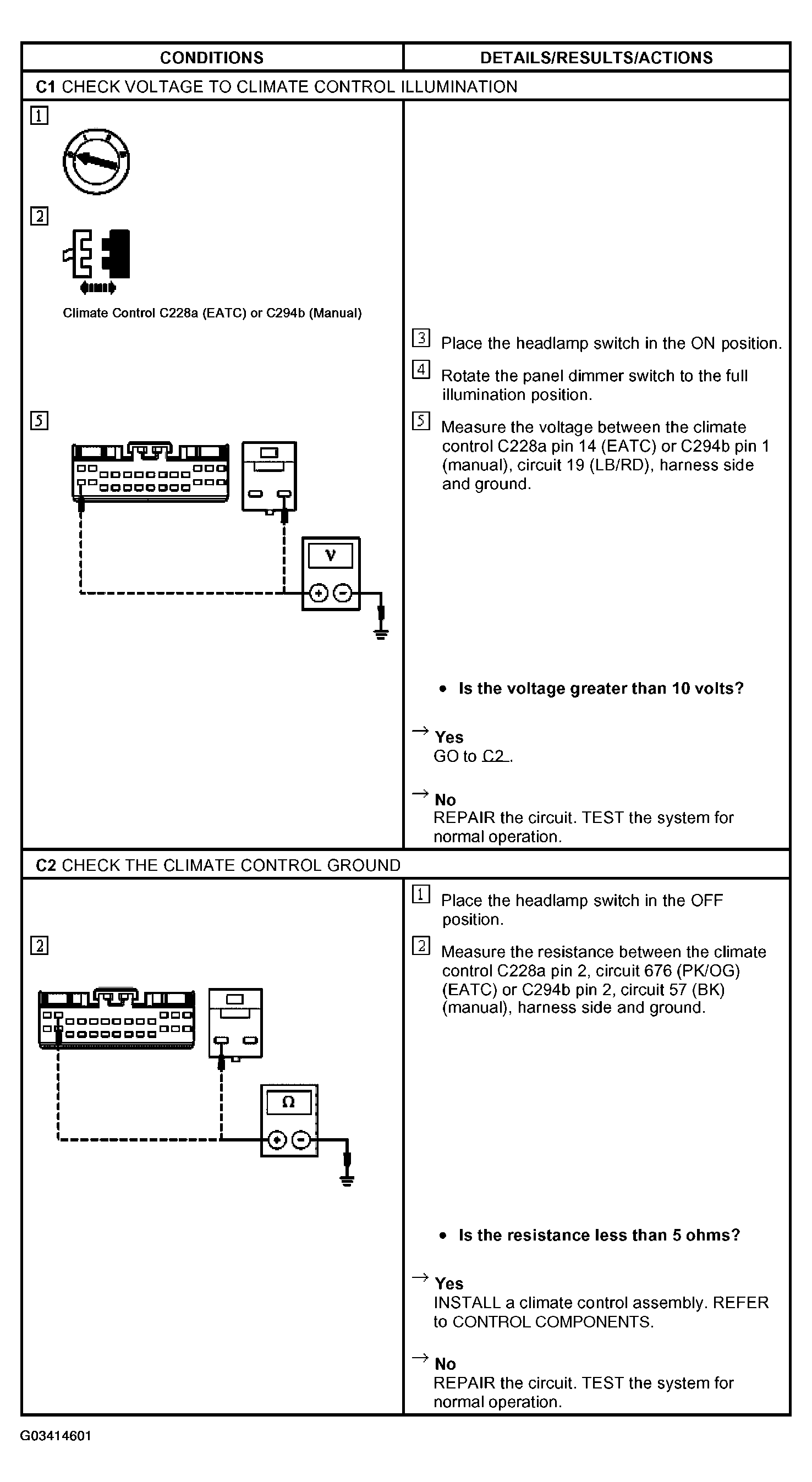

Fig 1: Pinpoint Test C: Climate Control Illumination Is Inoperative

G03414601

Courtesy of FORD MOTOR CO.
