Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative

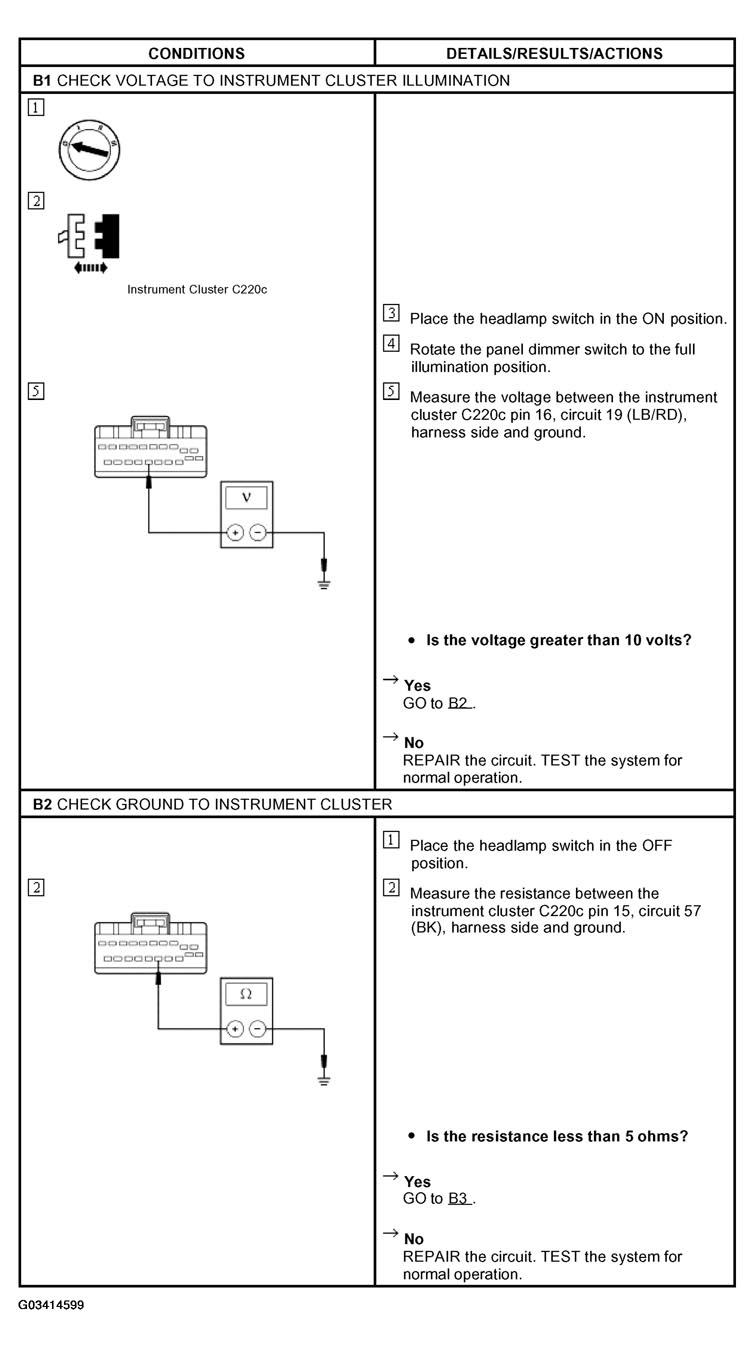

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B1-B2)
G03414599Courtesy of FORD MOTOR CO.

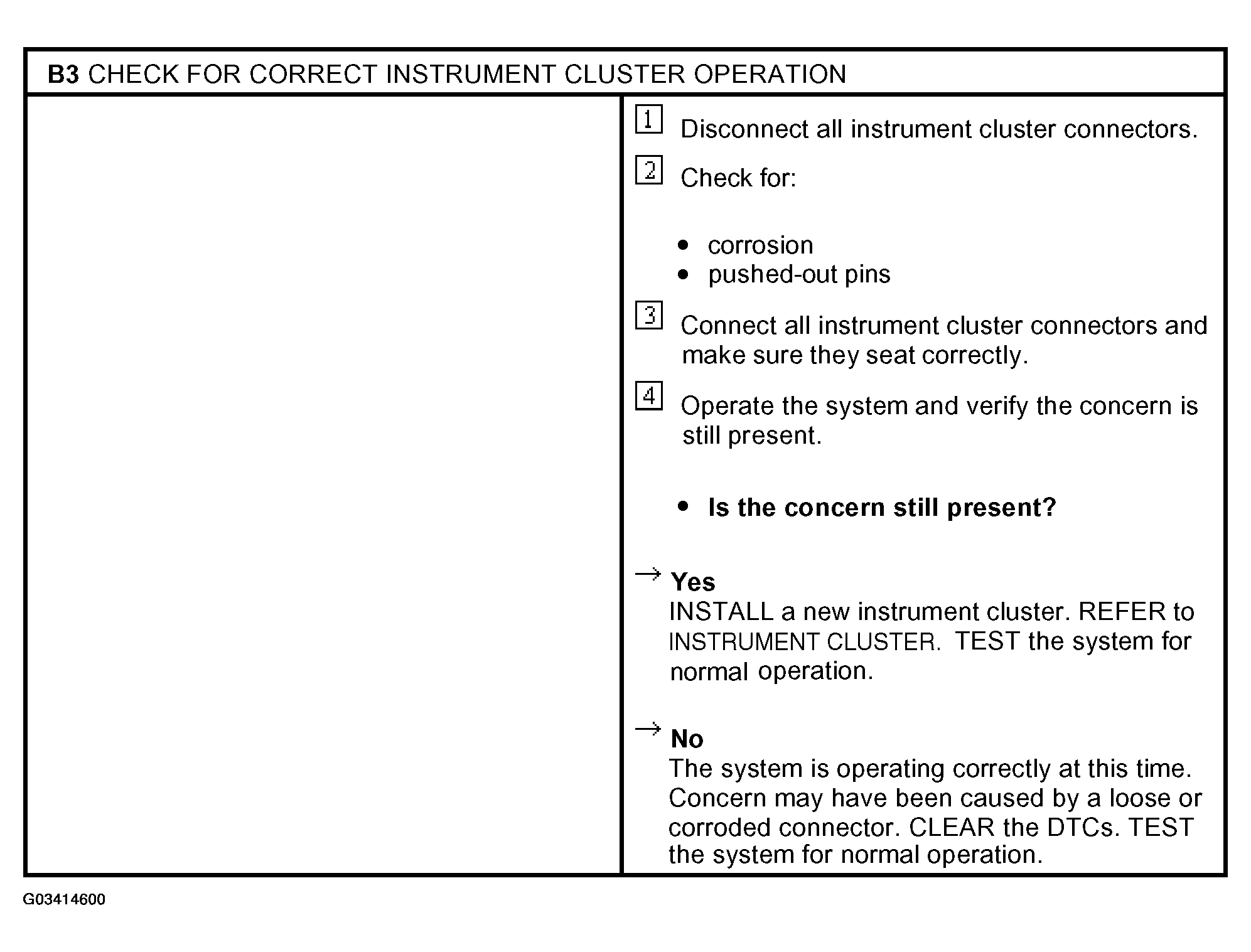

Fig 2: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B3)
G03414600Courtesy of FORD MOTOR CO.
