Wheel Alignment Angles: Camber

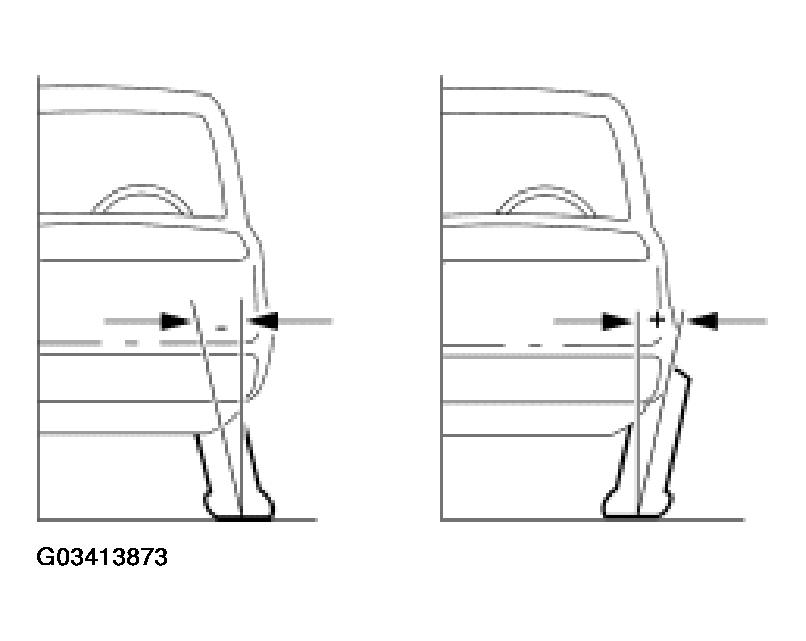

Fig 1: Identifying Negative And Positive Camber

Courtesy of FORD MOTOR CO.

Camber is the vertical tilt of the wheel (1007) when viewed from the front. Camber can be positive or negative and has a direct effect on tire wear.
