Pinpoint Test E: Adjustable Pedal Moves Rearward Only

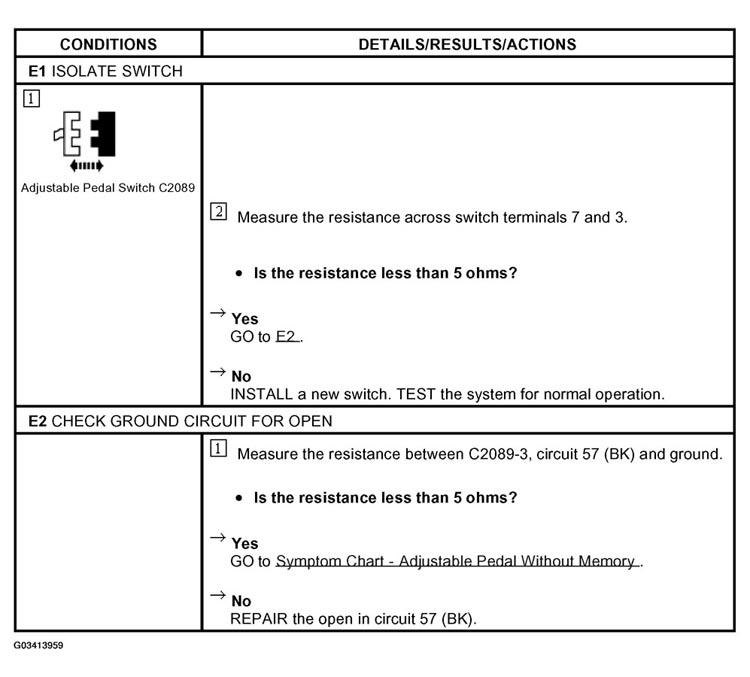

Fig 1: Pinpoint Test E: Adjustable Pedal Moves Rearward Chart

G03413959

Courtesy of FORD MOTOR CO.
