Pinpoint Test D: Adjustable Pedal Moves Forward Only

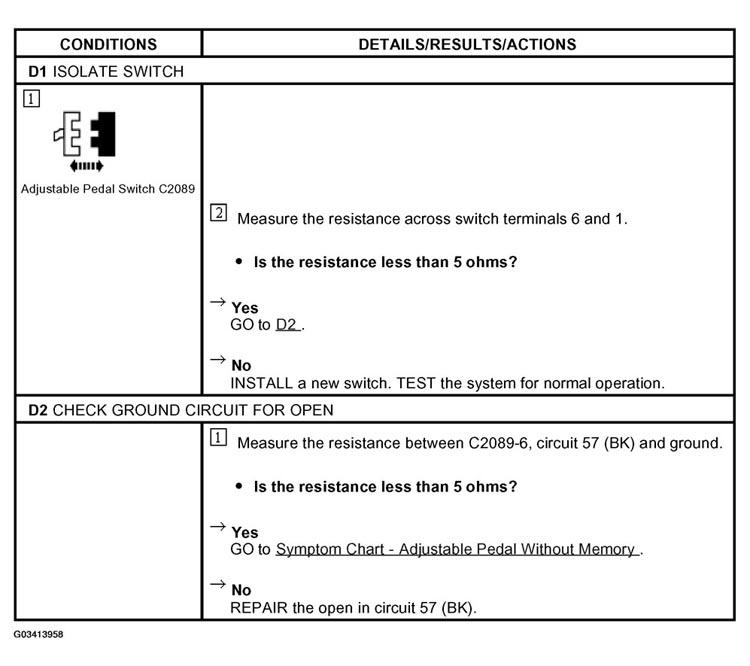

Fig 1: Pinpoint Test D: Adjustable Pedal Moves Forward Chart

G03413958

Courtesy of FORD MOTOR CO.
