Removal & Installation

Remove rear anchor plate. See ANCHOR PLATE .
Remove the hub and rotor. See REAR BRAKE ROTOR .
Remove the rear parking brake shoes and linings. See PARKING BRAKE .
Remove the adapter nuts. See Fig 1.
Slide the adapter far enough to disconnect the parking brake rear cable and conduit. See Fig 2. Remove the rear wheel disc brake adapter and rotor shield assembly.
Remove the bolts and the rear wheel disc brake shield. See Fig 3.
To install, reverse the removal procedure.

Fig 1: Identifying Adapter Nut

Courtesy of FORD MOTOR CO.

Fig 2: Disconnecting Parking Brake Rear Cable

Courtesy of FORD MOTOR CO.

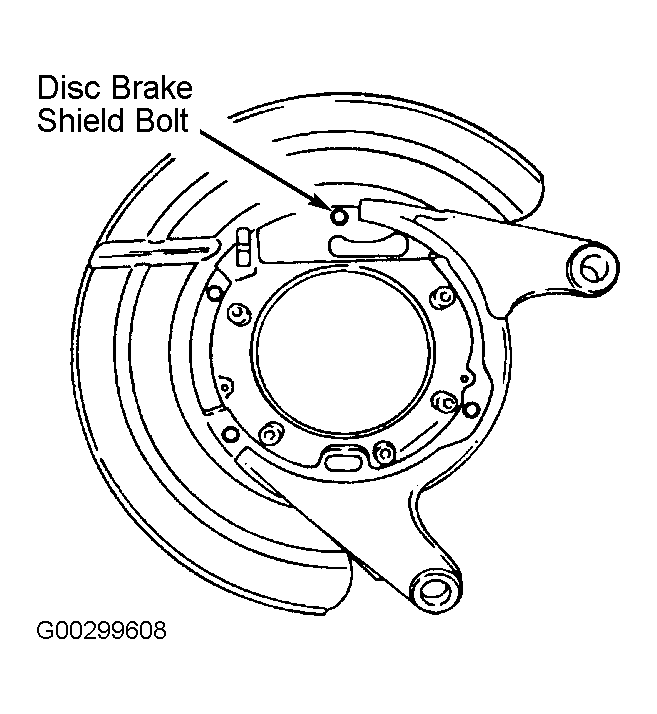

Fig 3: Identifying Disc Brake Shield Bolt

Courtesy of FORD MOTOR CO.
