Home >> Ford >> 2002 >> Excursion 4WD V10-6.8L >> Repair and Diagnosis >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Noise, Vibration, and Harshness Diagnosis >> Pinpoint Tests >> Test F: Drumming Noise

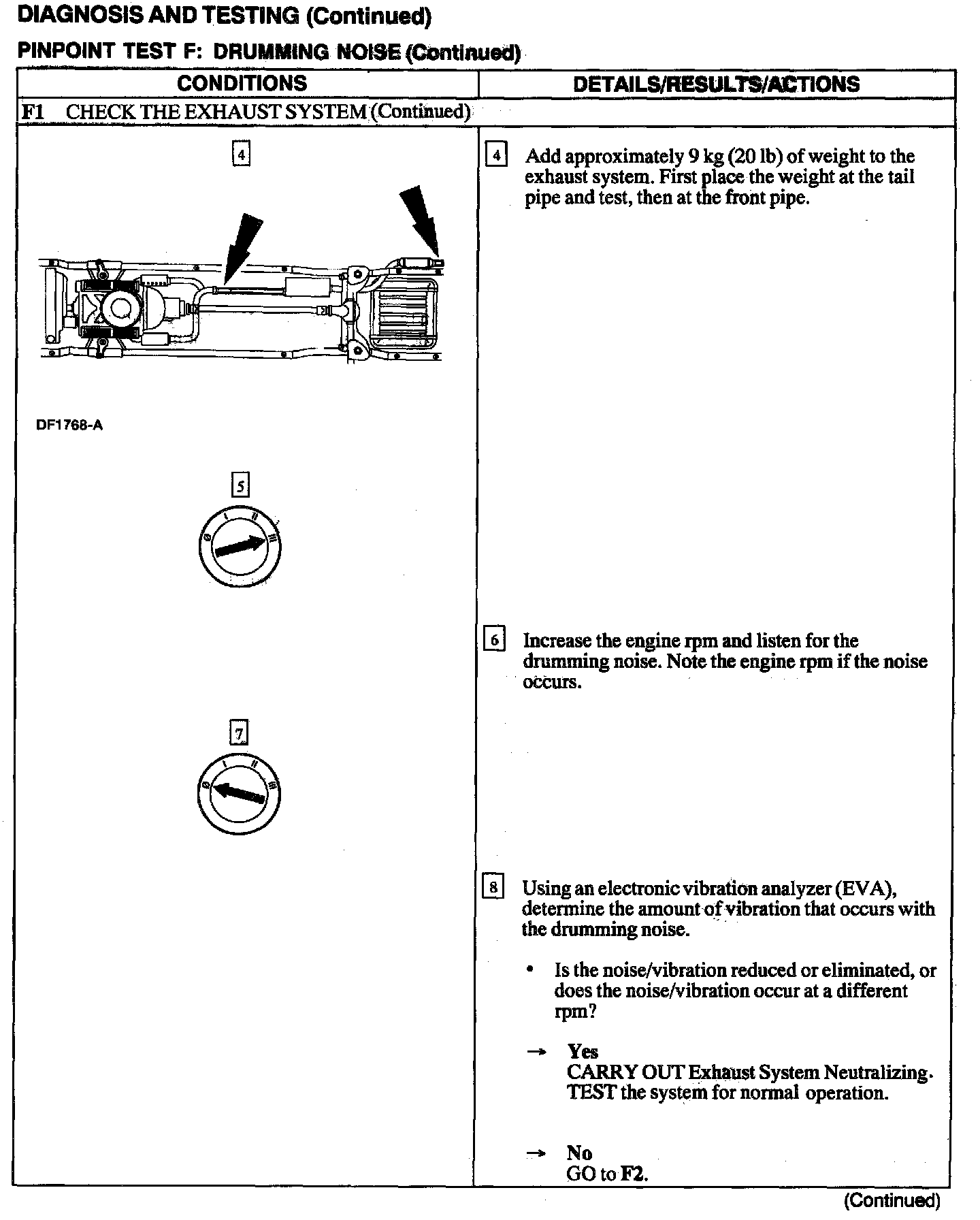

Test F: Drumming Noise

F1:






F1:






F2:
