Test G: A Single Illumination Source Is Inoperative - Door Lock Control Switches
Test G: A Single Illumination Source Is Inoperative - Door Lock Control Switches

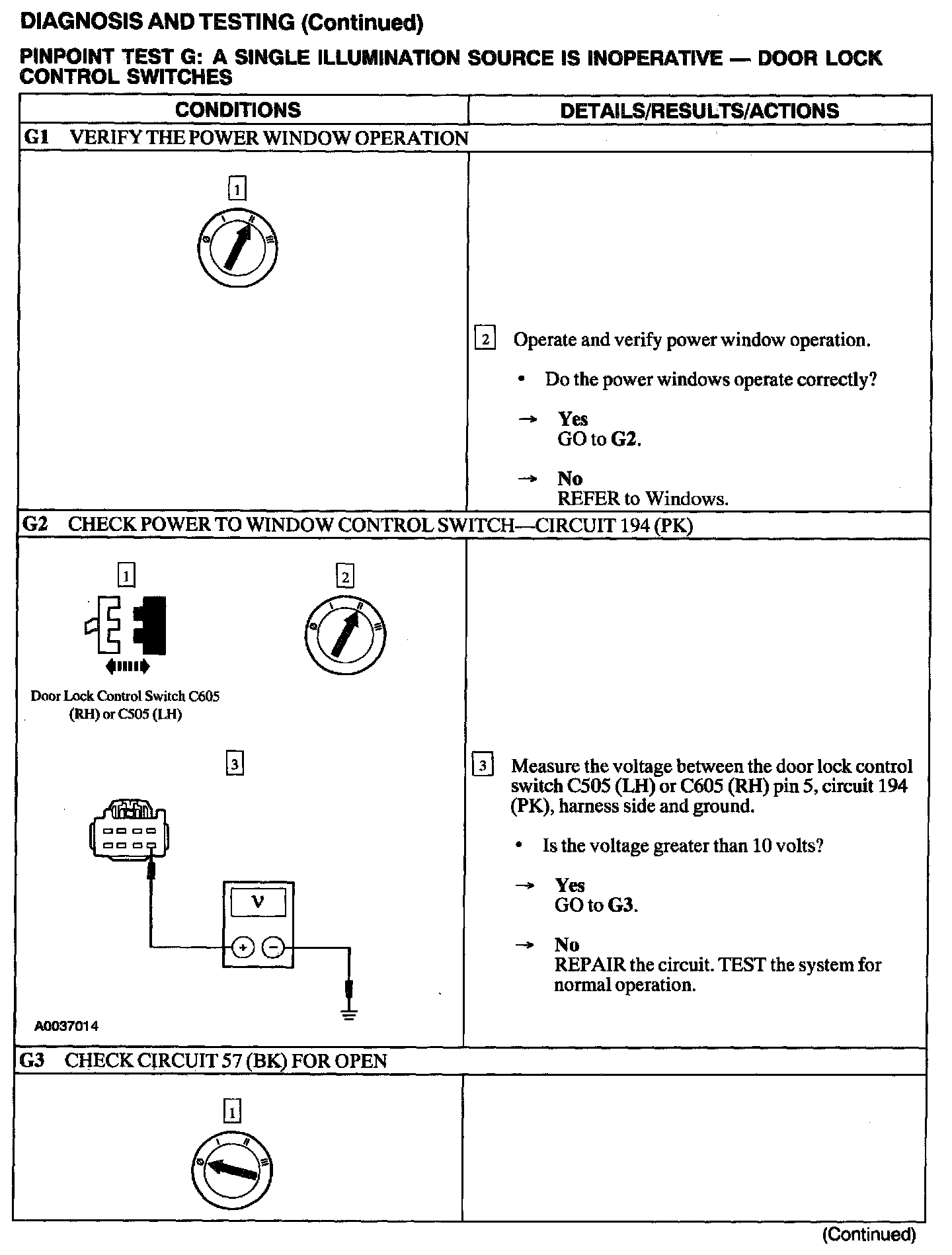

G1 - G3:

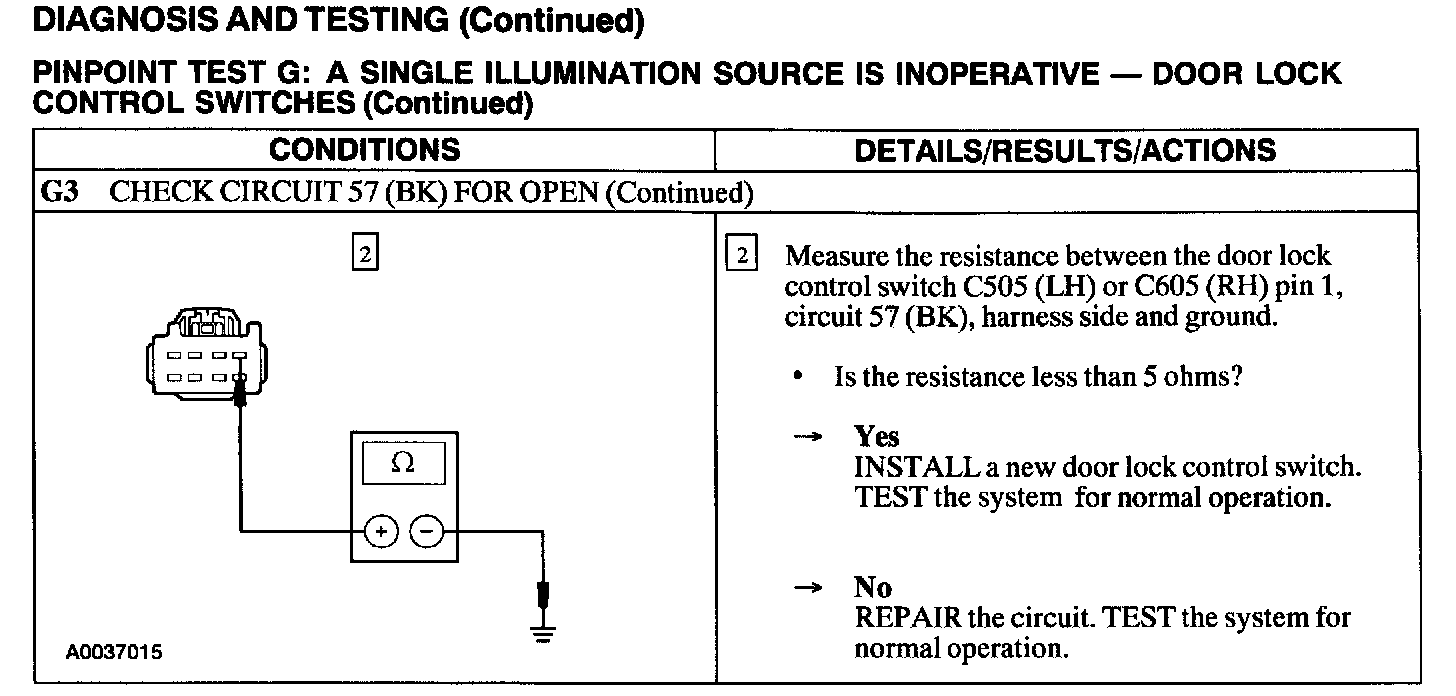

G3:
