Transmission (Manual) And Transfer Case Noise/Vibration

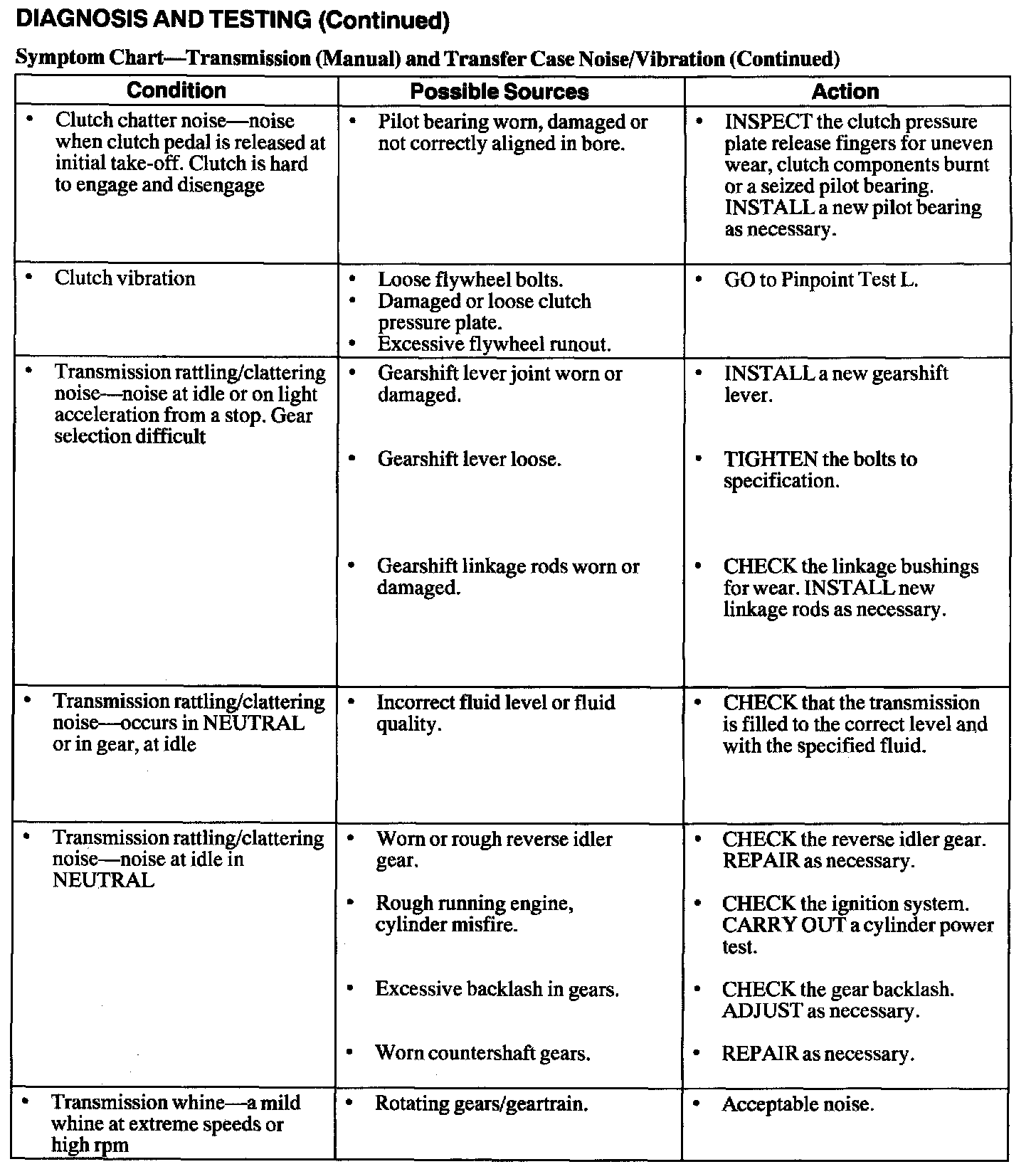

Symptom Chart - Transmission (Manual) And Transfer Case Noise/Vibration, Part 1:

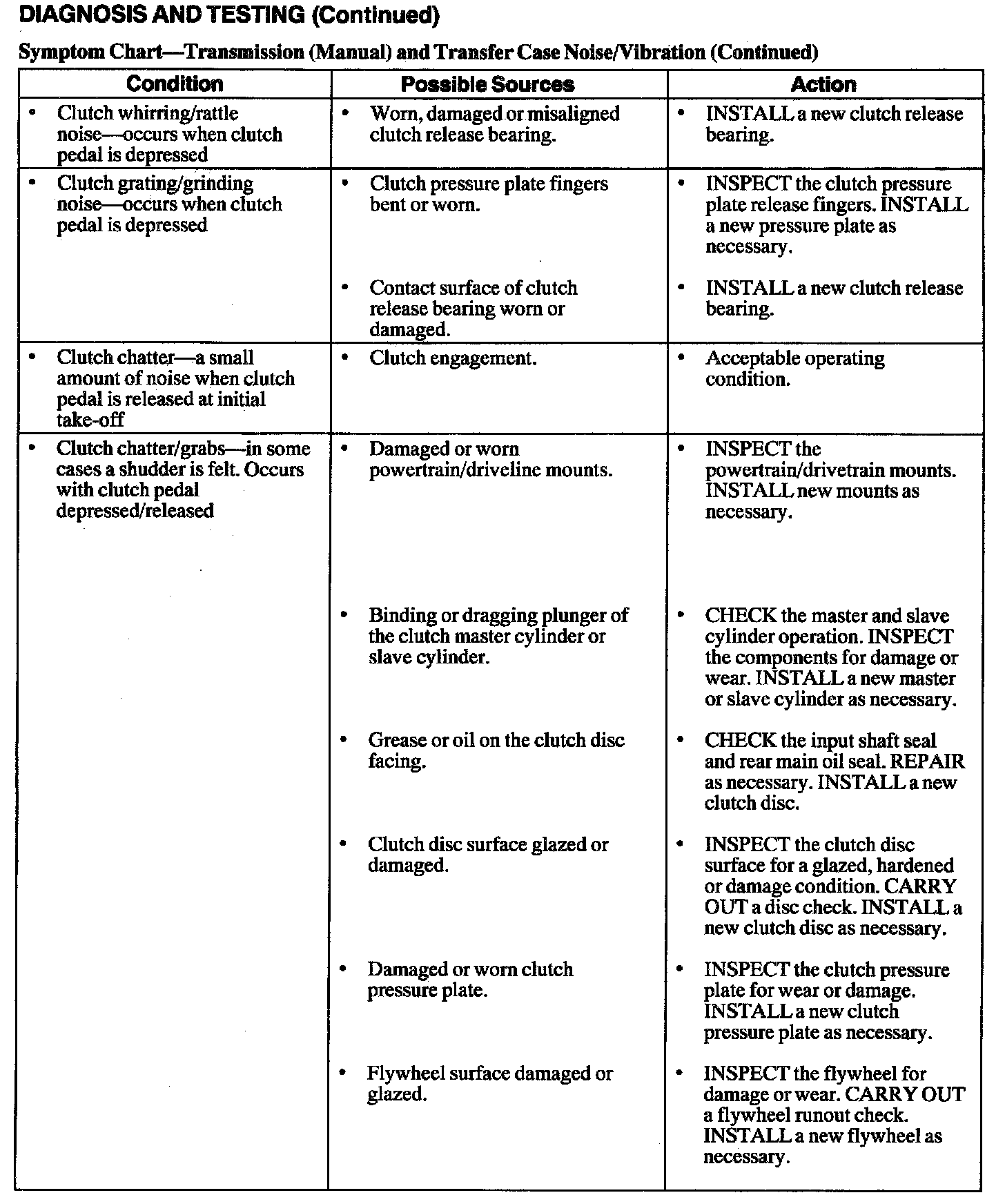

Symptom Chart - Transmission (Manual) And Transfer Case Noise/Vibration, Part 2:

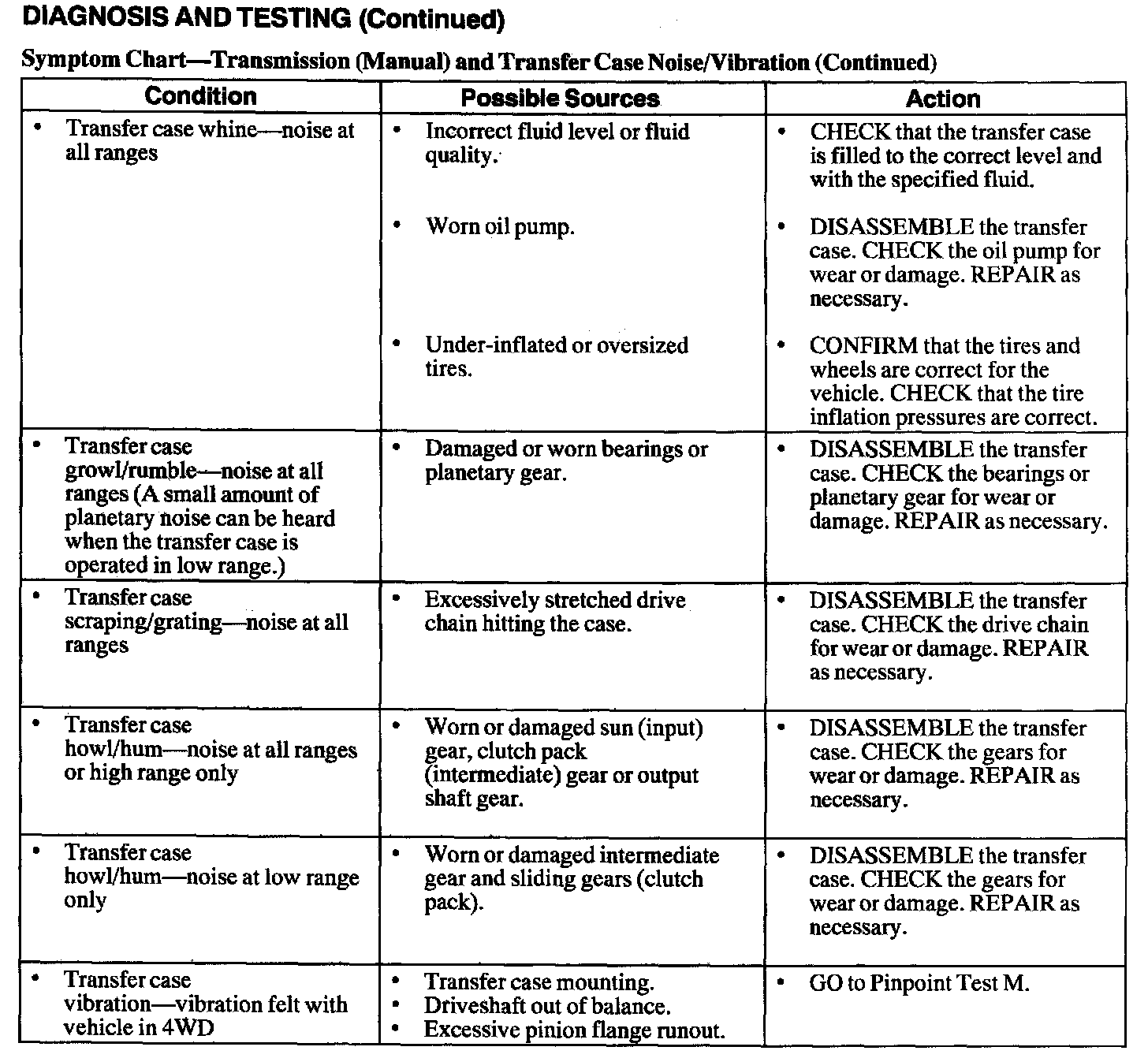

Symptom Chart - Transmission (Manual) And Transfer Case Noise/Vibration, Part 3:

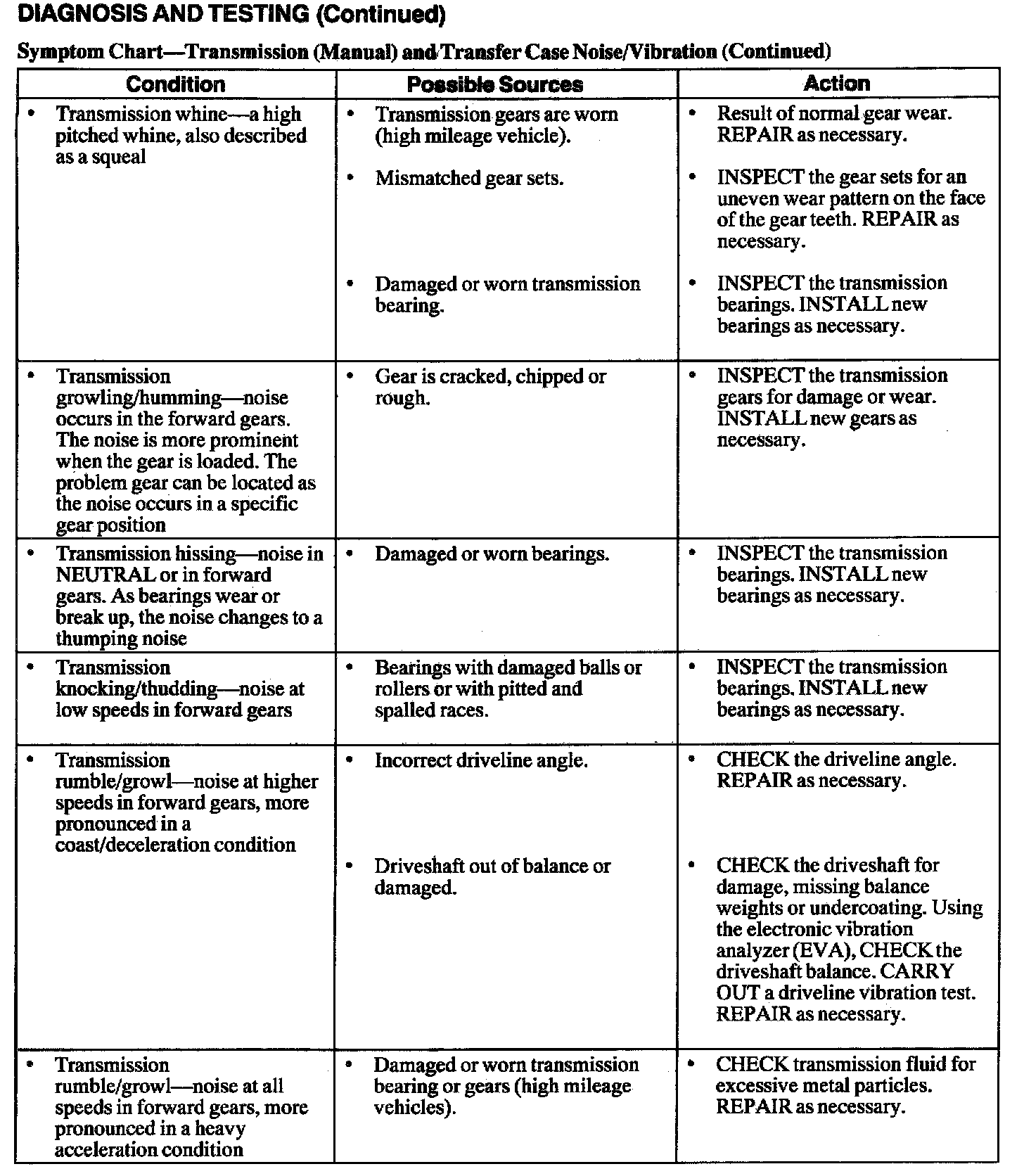

Symptom Chart - Transmission (Manual) And Transfer Case Noise/Vibration, Part 4:

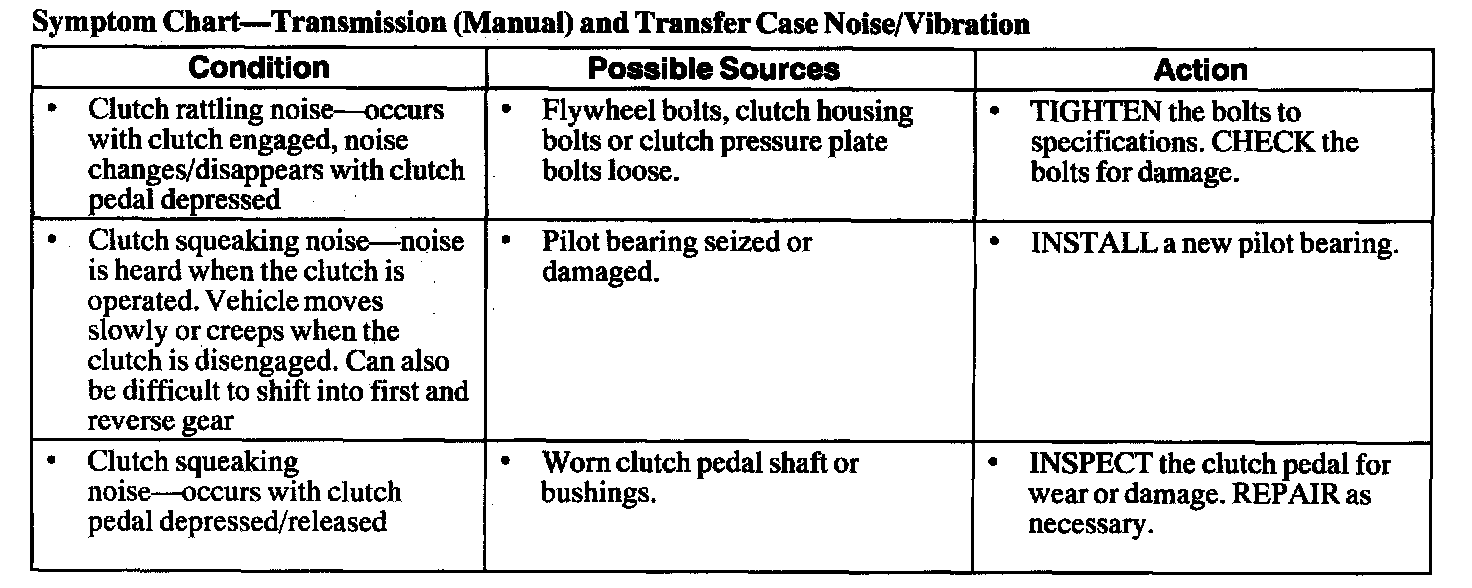

Symptom Chart - Transmission (Manual) And Transfer Case Noise/Vibration, Part 5:
