Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Testing and Inspection >> Pinpoint Tests >> Test P: One Or More Parking, Rear Or License Lamp Is Inoperative

Test P: One Or More Parking, Rear Or License Lamp Is Inoperative

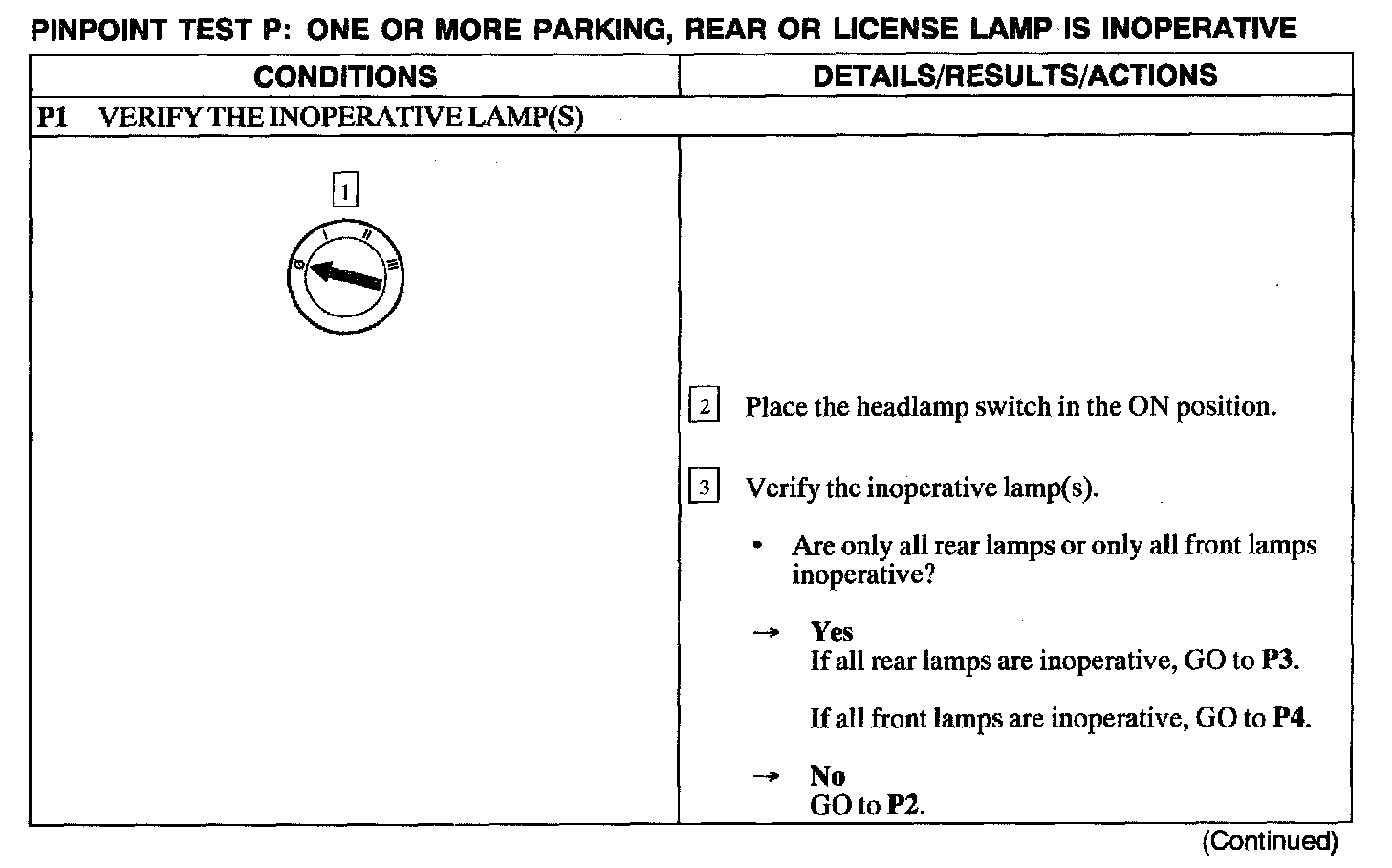

P1:

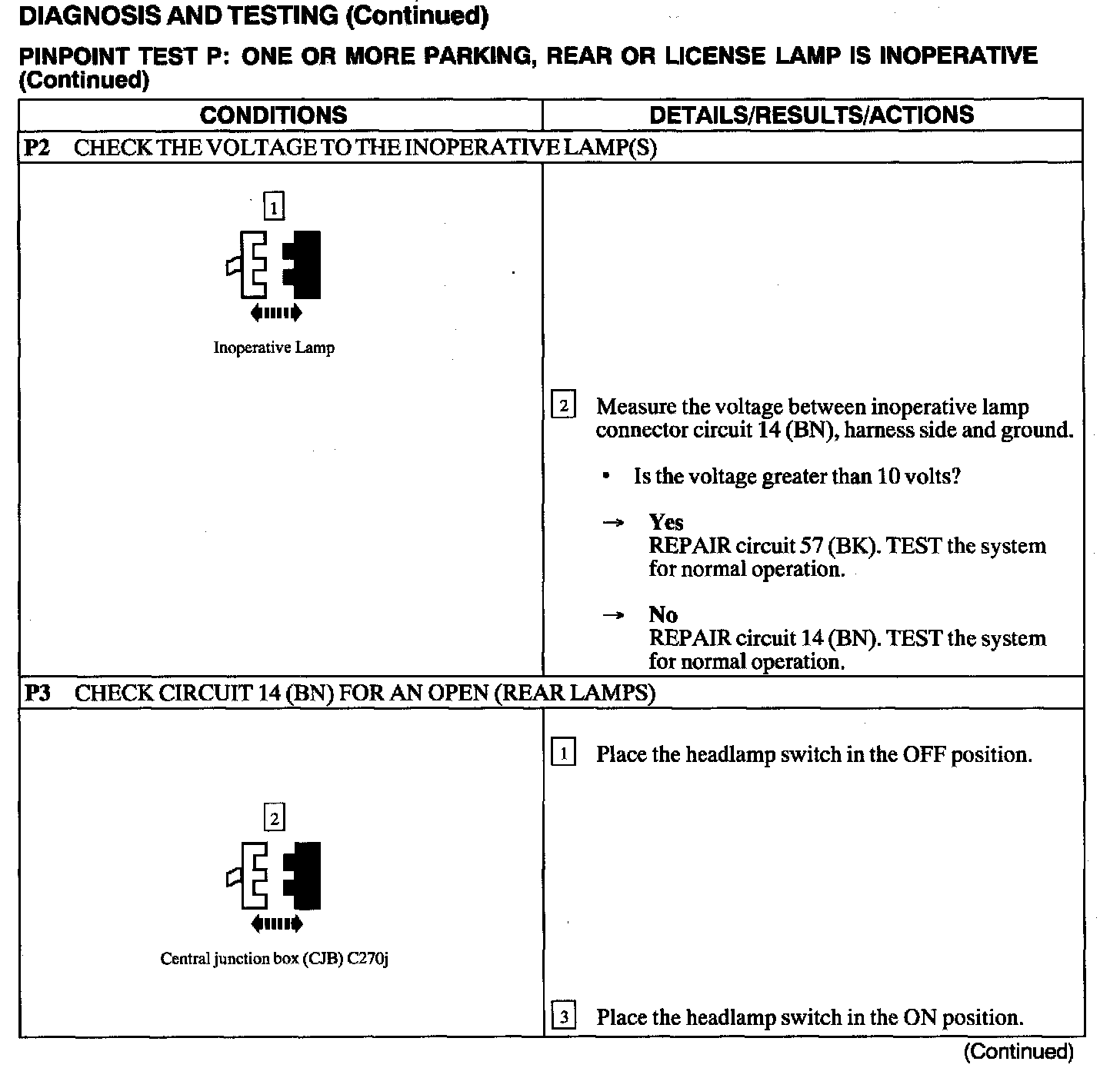

P2 - P3:

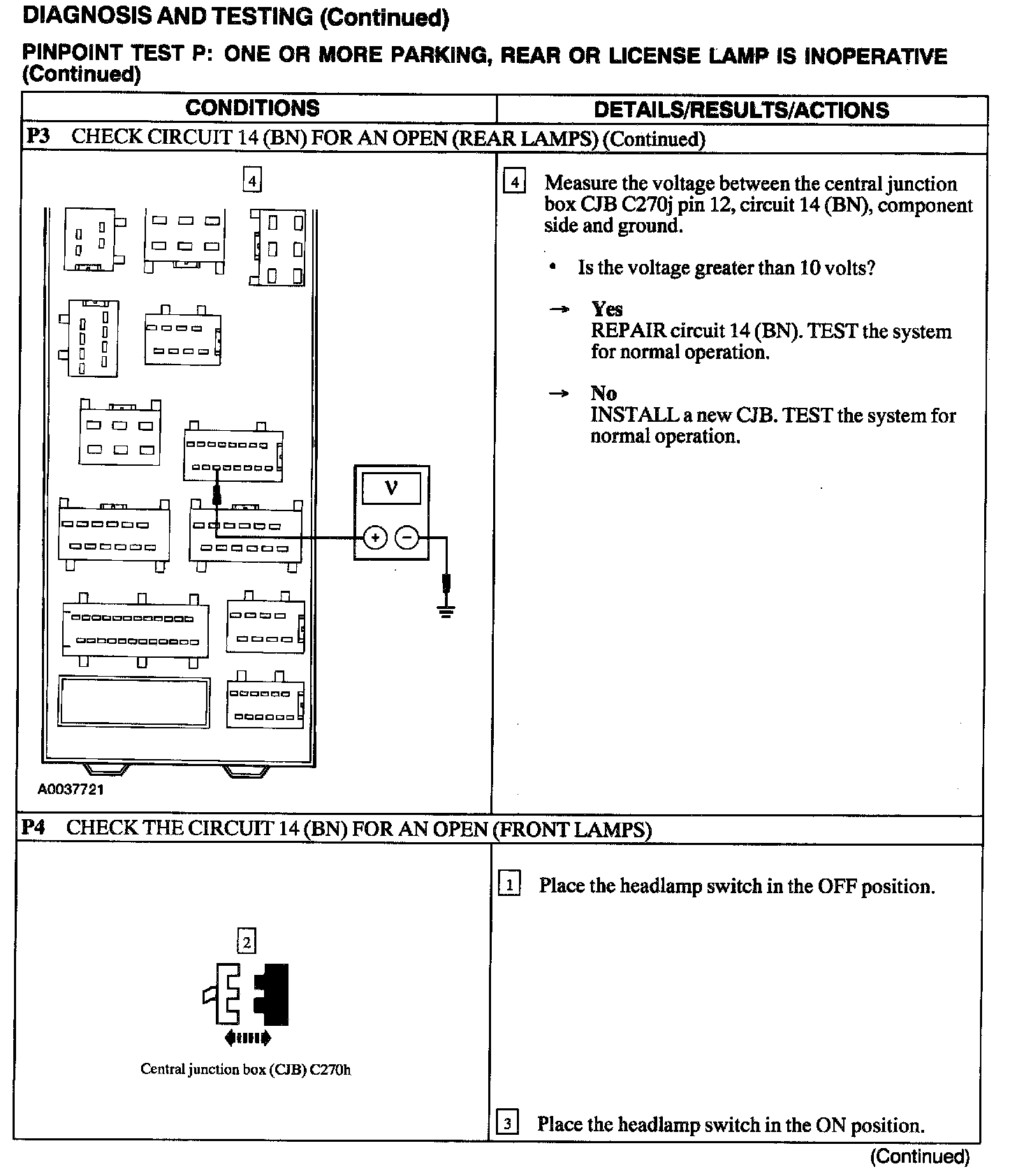

P3 - P4:

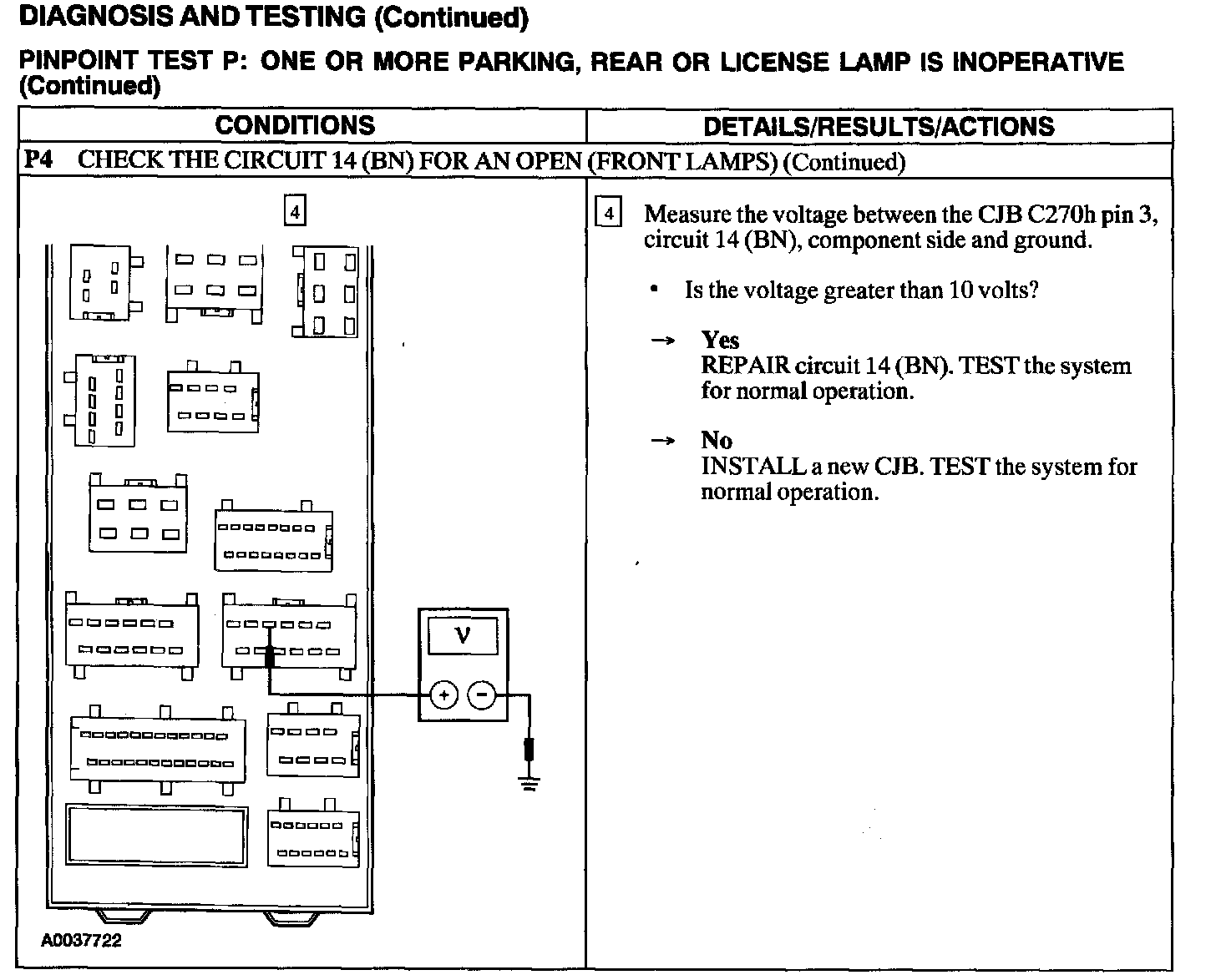

P4:
