Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Instrument Panel Illumination

Diagnosis By Symptom - Instrument Panel Illumination

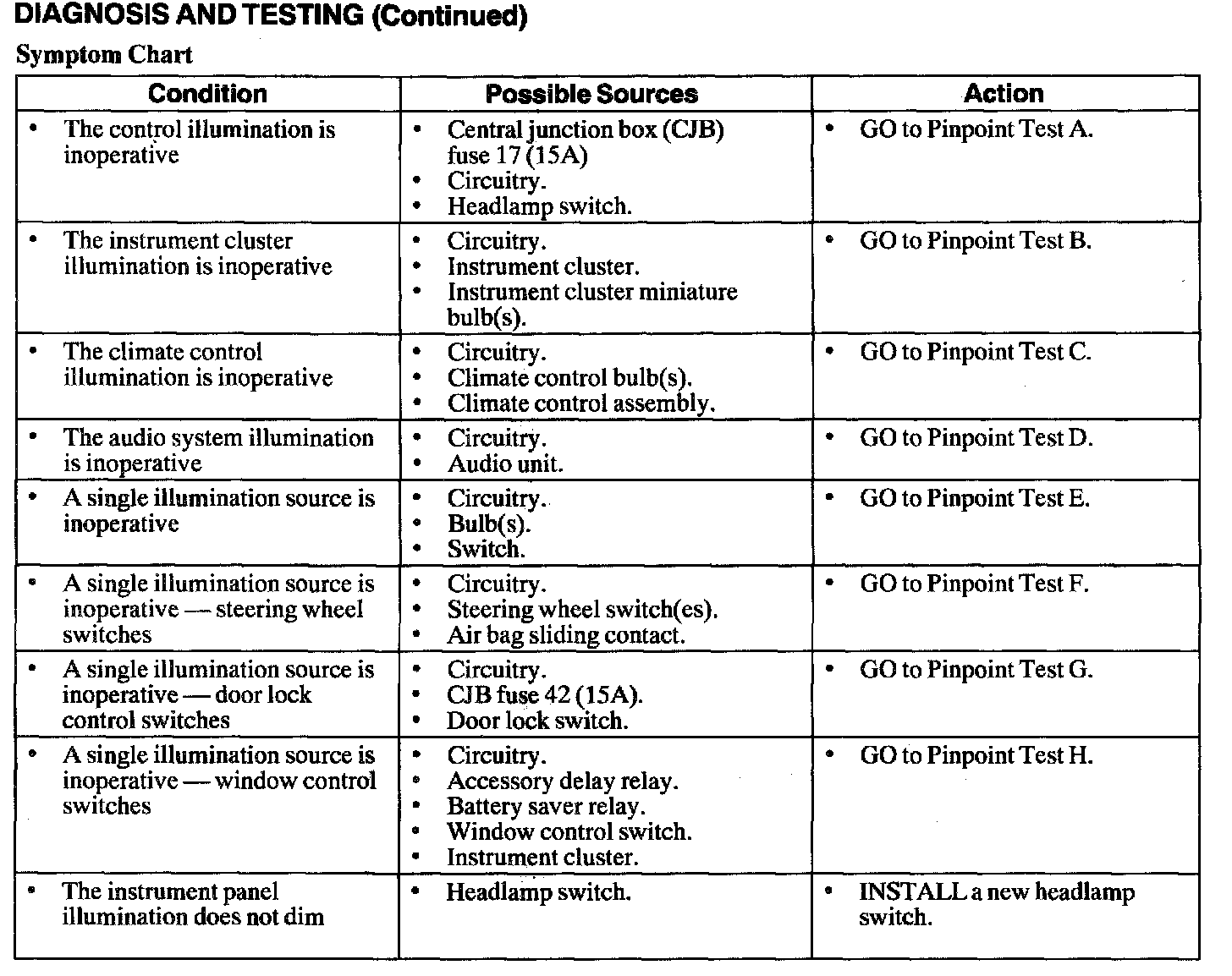

Symptom Chart:
