Test C: A Chime Is Inoperative - Head/Parking Lamps on (With Door Ajar)
Test C: A Chime Is Inoperative - Head/Parking Lamps on (With Door Ajar)

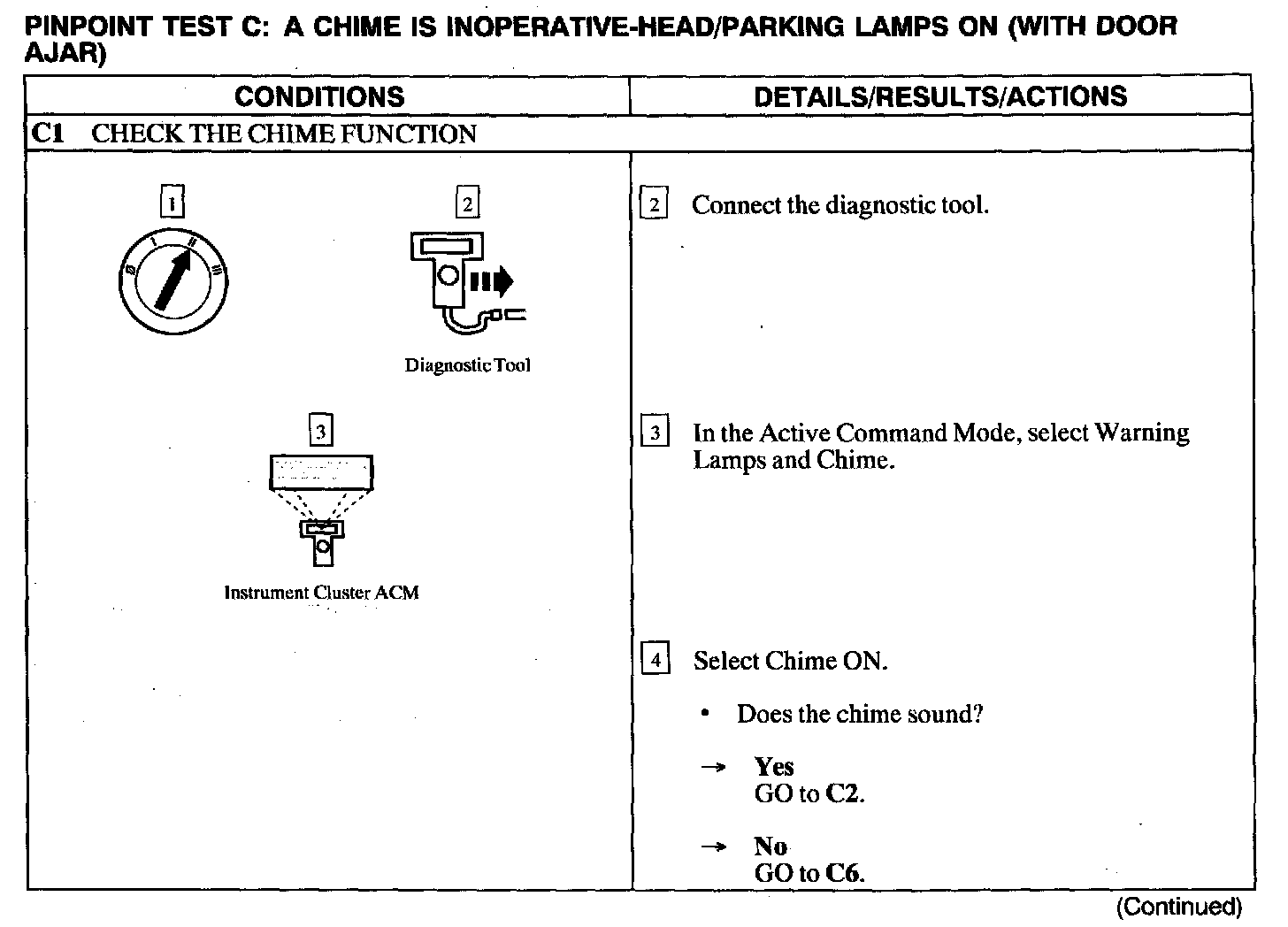

C1:

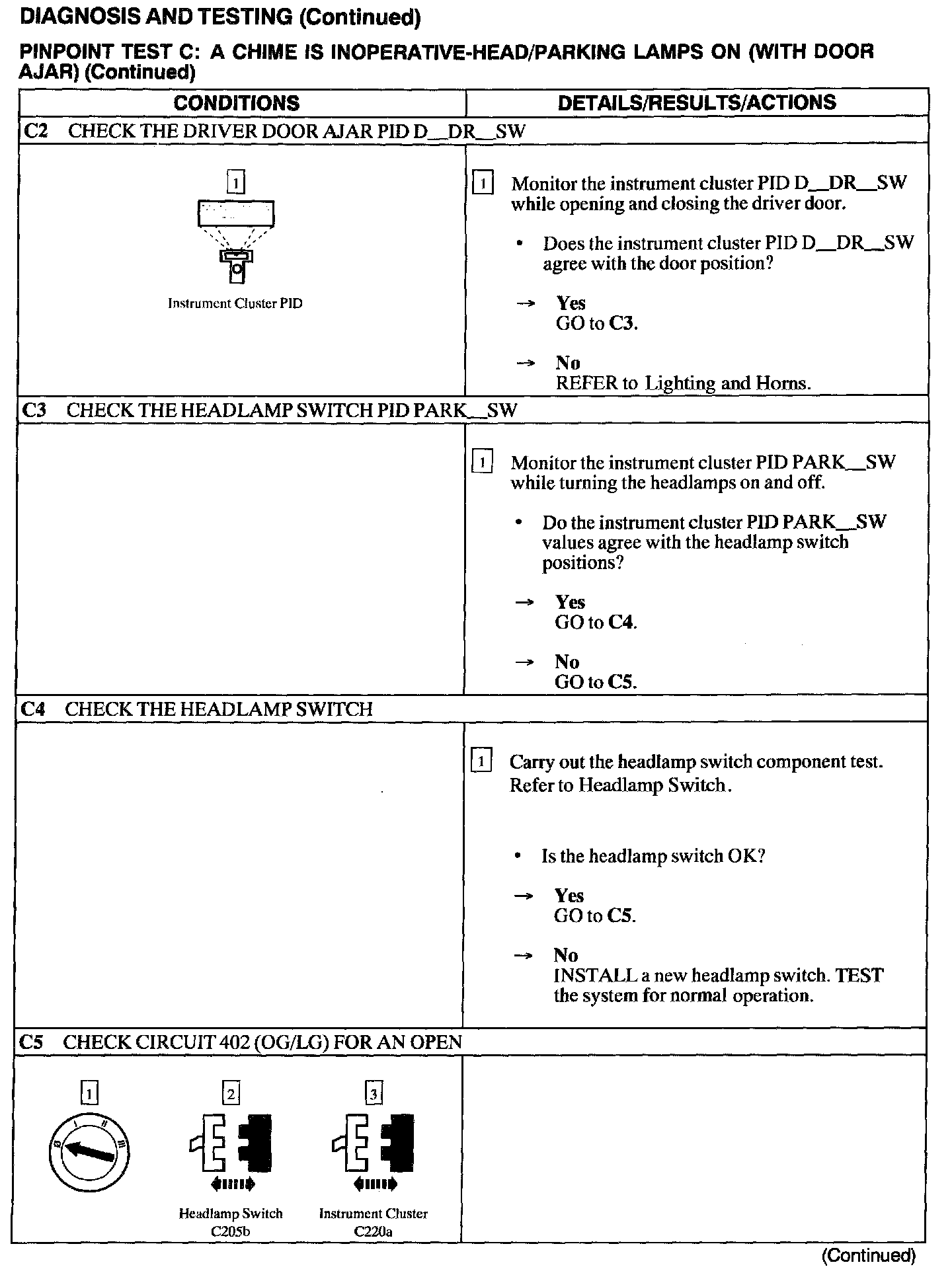

C2 - C5:

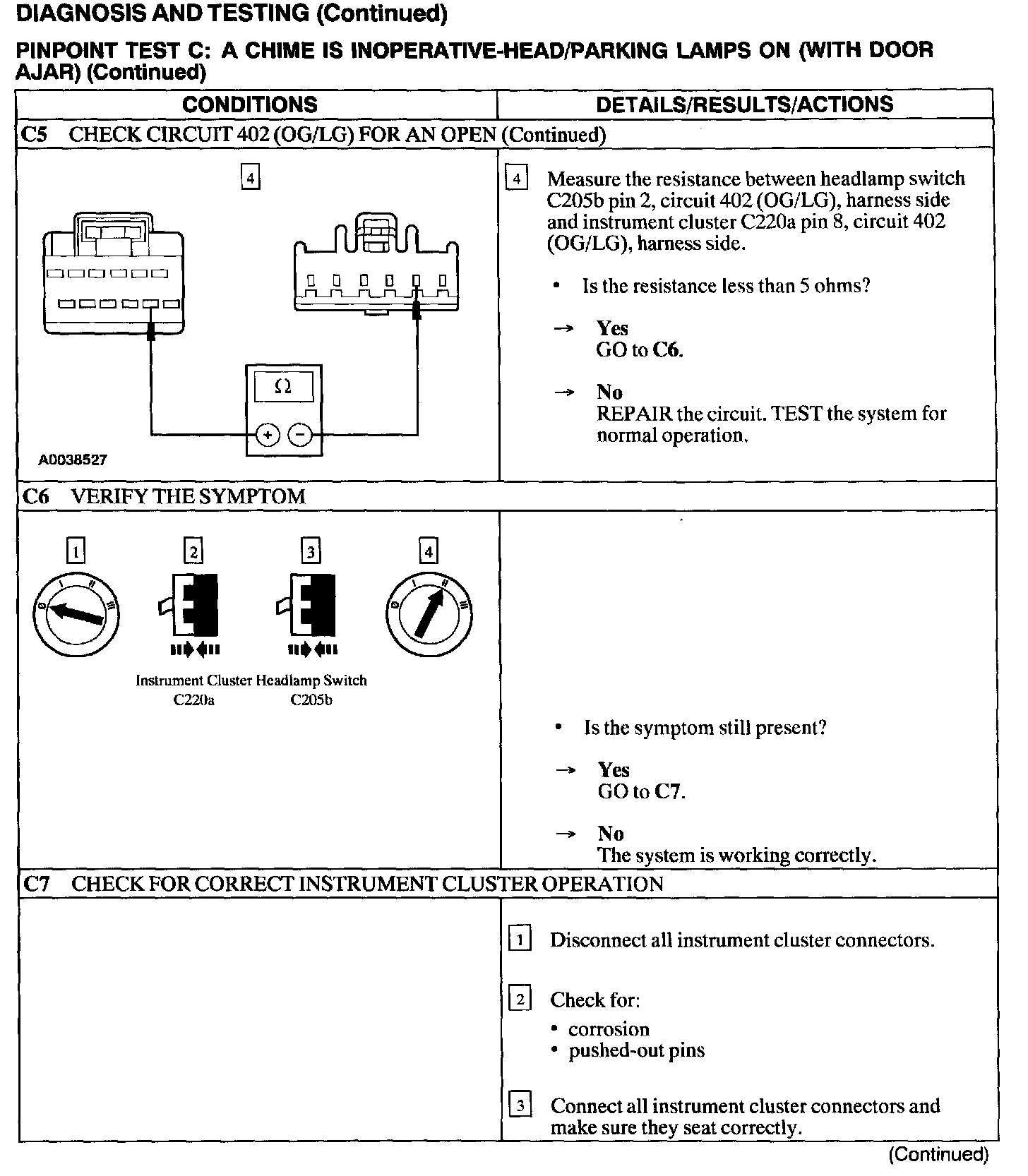

C5 - C7:

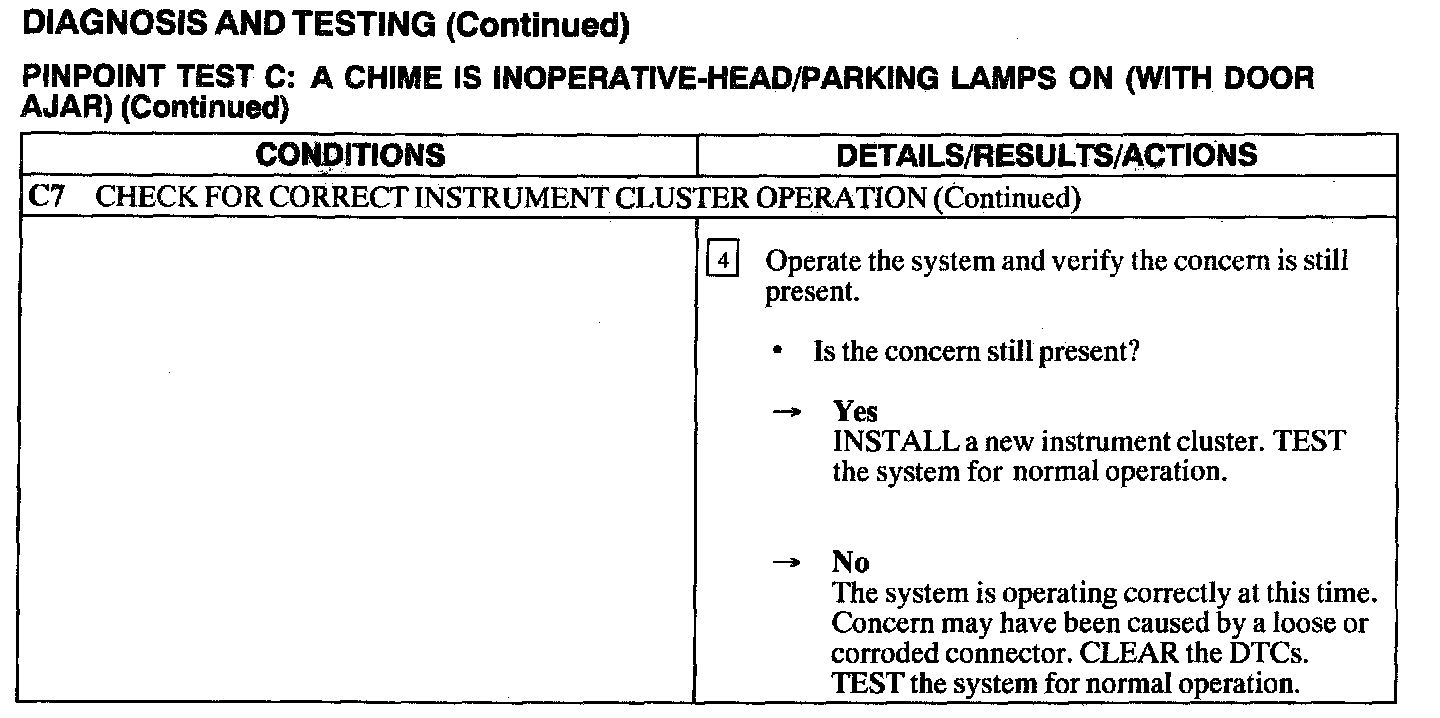

C7:
