Pinpoint Tests - Instrument Panel Illumination
>>
Test F: A Single Illumination Source Is Inoperative - Steering Wheel Switches
Test F: A Single Illumination Source Is Inoperative - Steering Wheel Switches

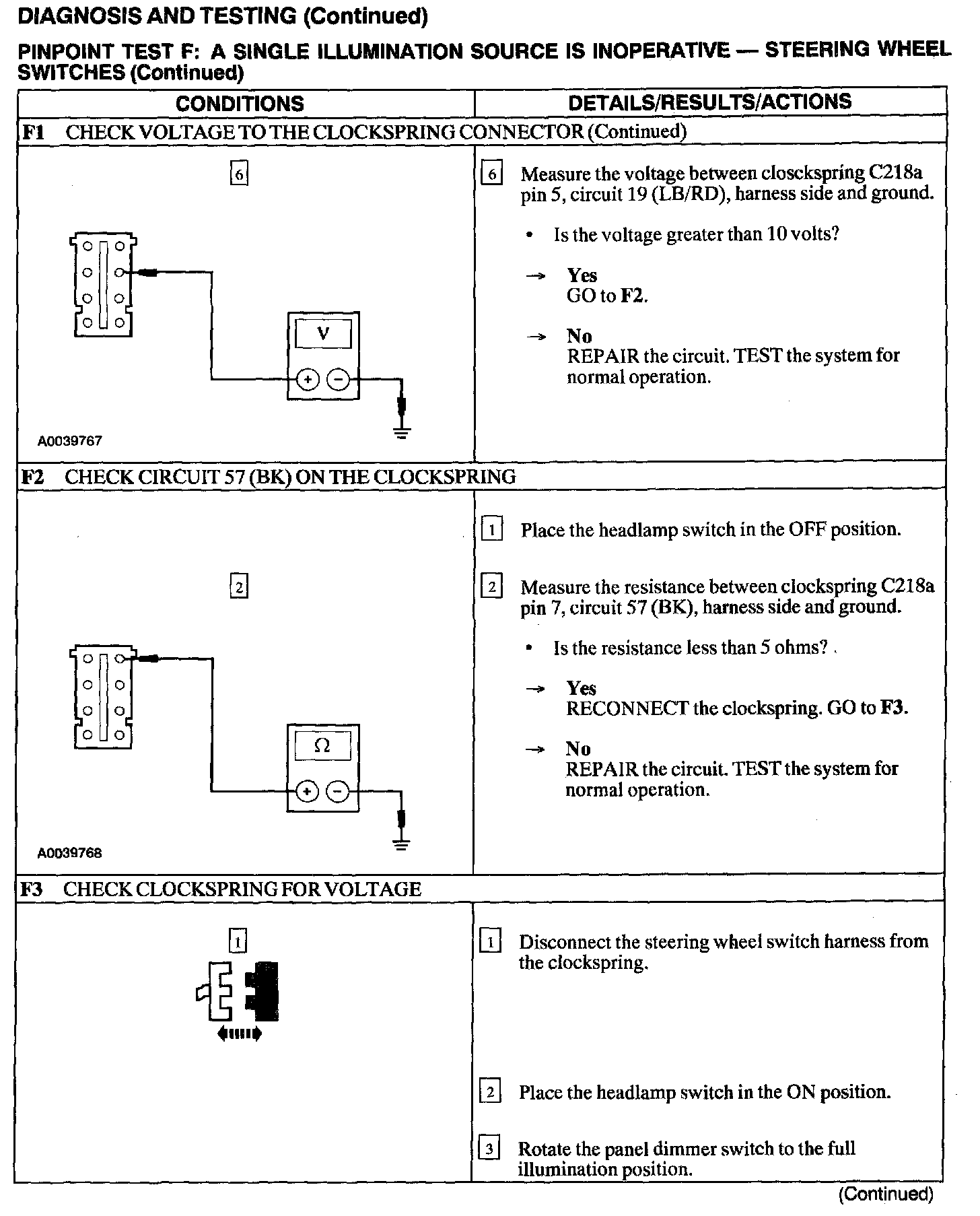

F1:
F1 - F3:

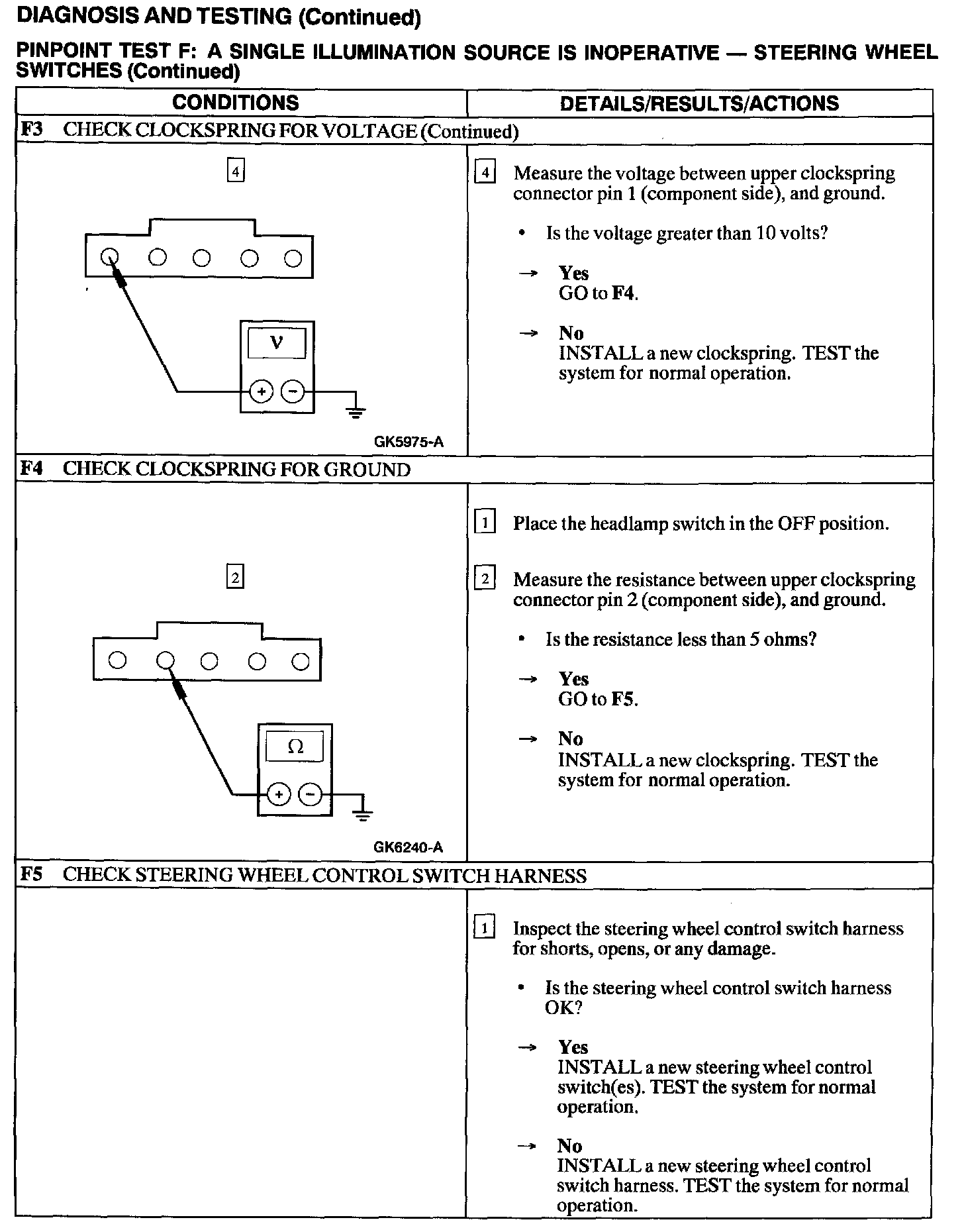

F3 - F5:
