Camshaft Gear/Sprocket: Specifications

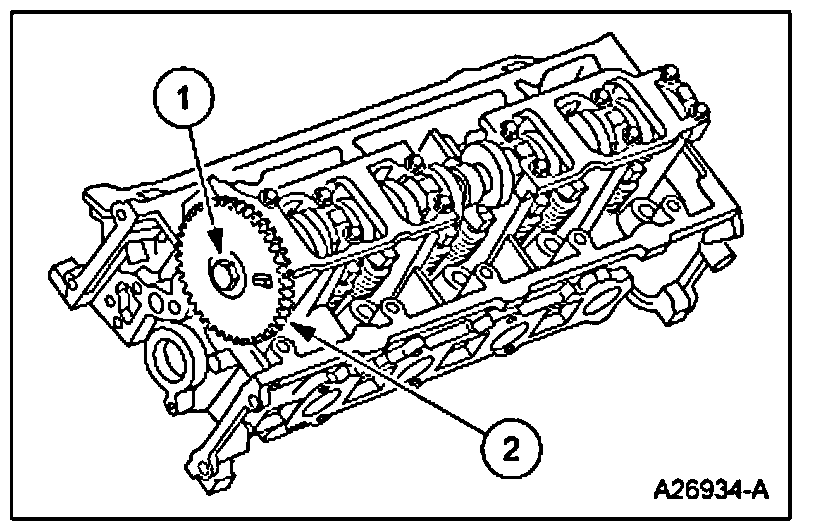

1. On engine equipped with bolt-on sprockets, install the camshaft sprocket (2).
1. Install the bolt (1).
2. Tighten the bolt.
- M10 bolt: Tighten in two stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten to additional 90 degrees.
- M12 bolt: Tighten to 120 Nm (90 lb-ft).
