Parking Assist Switch: Service and Repair

REMOVAL

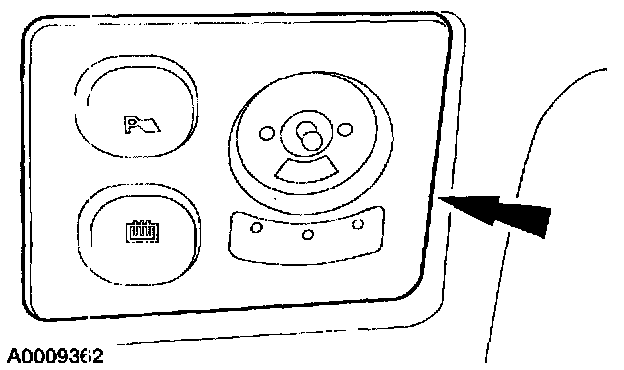

1. Remove the parking aid switch trim plate by gently prying the plate out of the instrument panel.

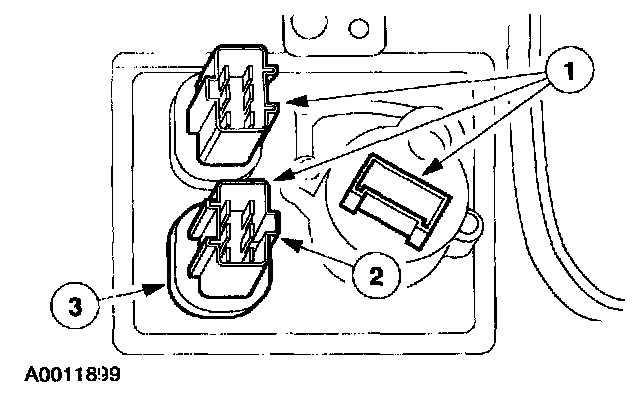

2. Remove the parking aid switch.
1 Disconnect the electrical connectors from the parking aid switch, rear defrost switch (if equipped) and transfer case control switch (if equipped).
2 Release the locking tabs that retain the parking aid switch to the switch plate.
3 Remove the parking aid switch from the switch plate.

INSTALLATION
1. To install, reverse the removal procedure.
