Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test D: Poor Quality Sound From One or More Speakers

Test D: Poor Quality Sound From One or More Speakers

D1:

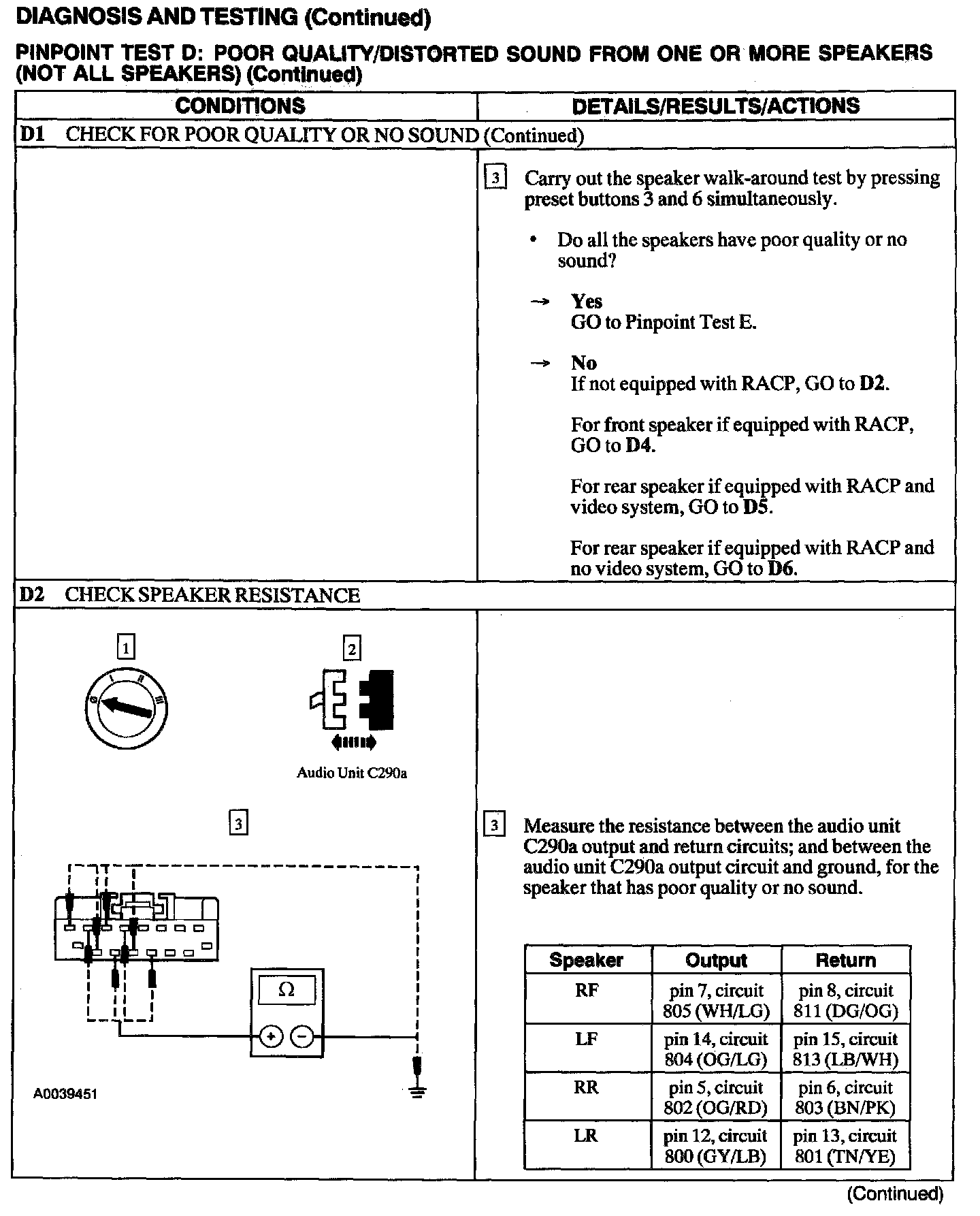

D1 - D2:

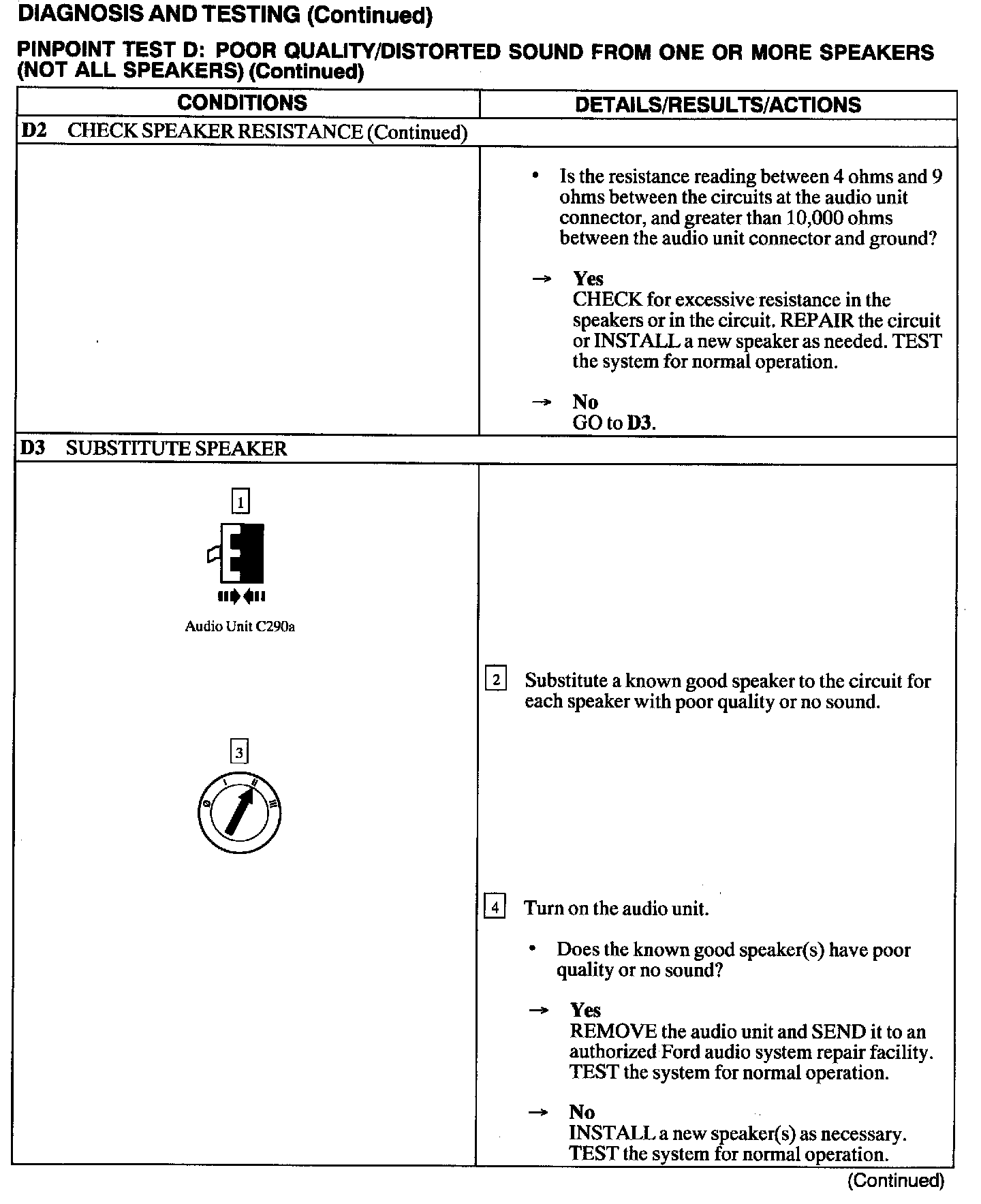

D2 - D3:

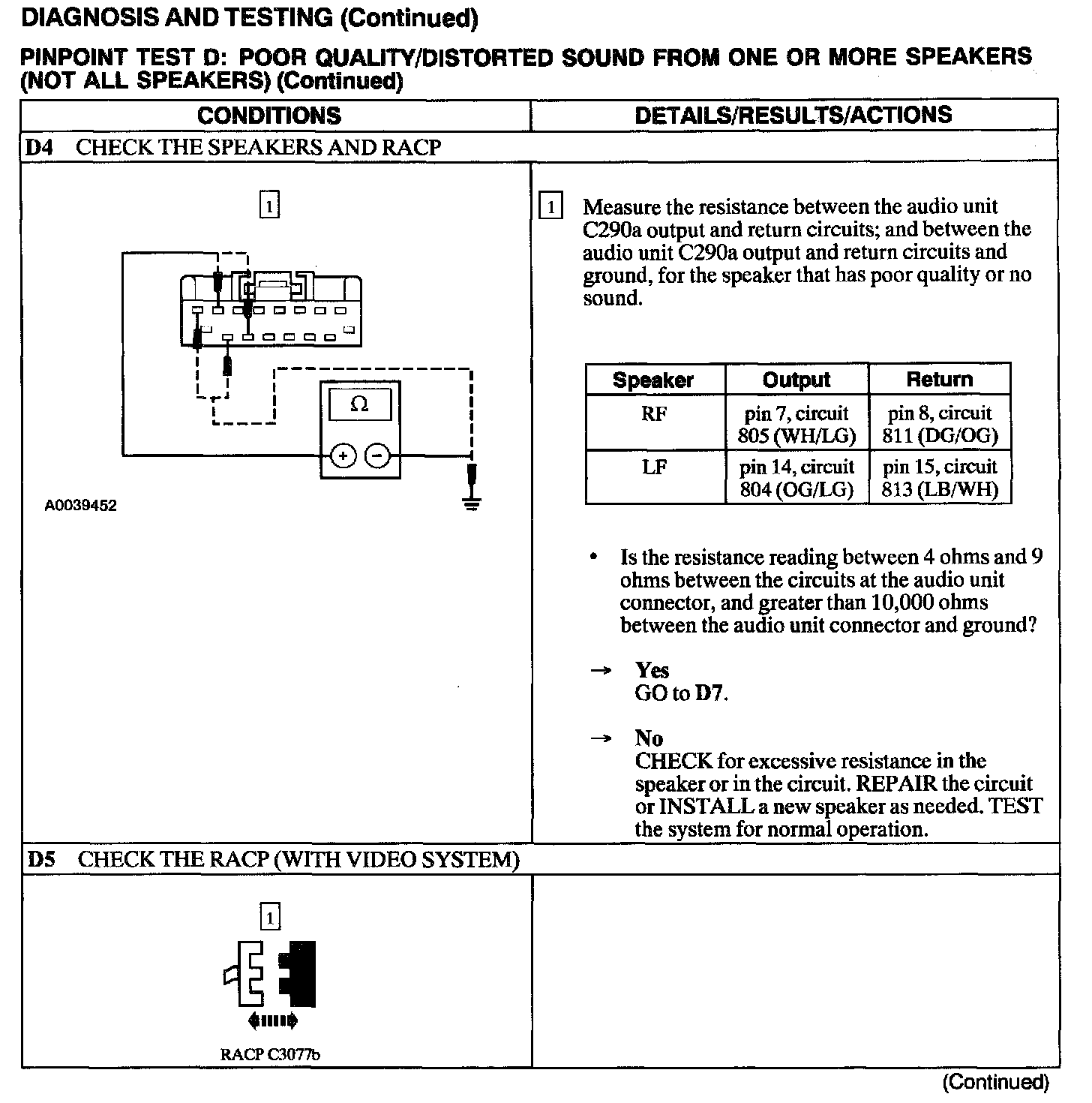

D4 - D5:

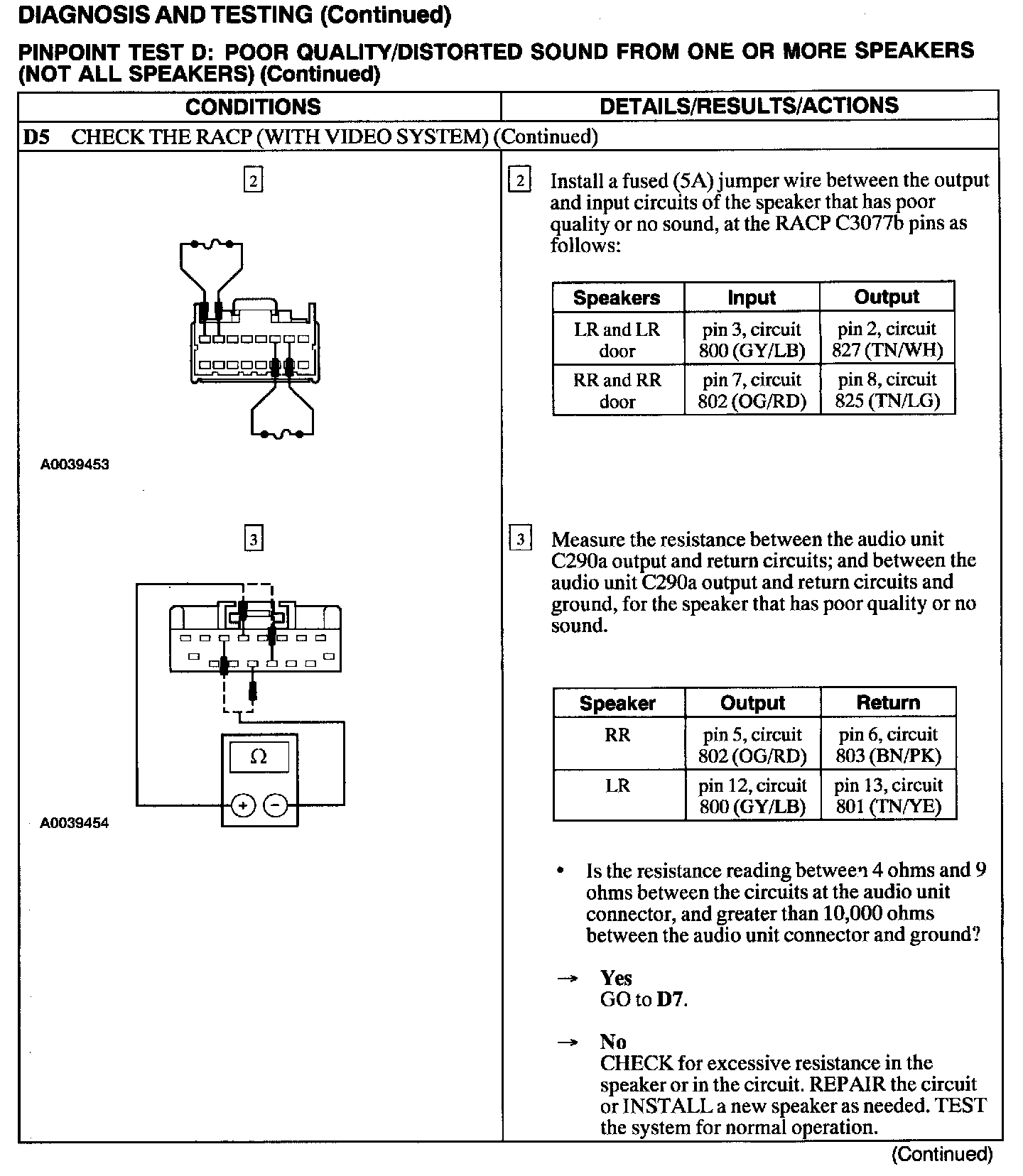

D5:

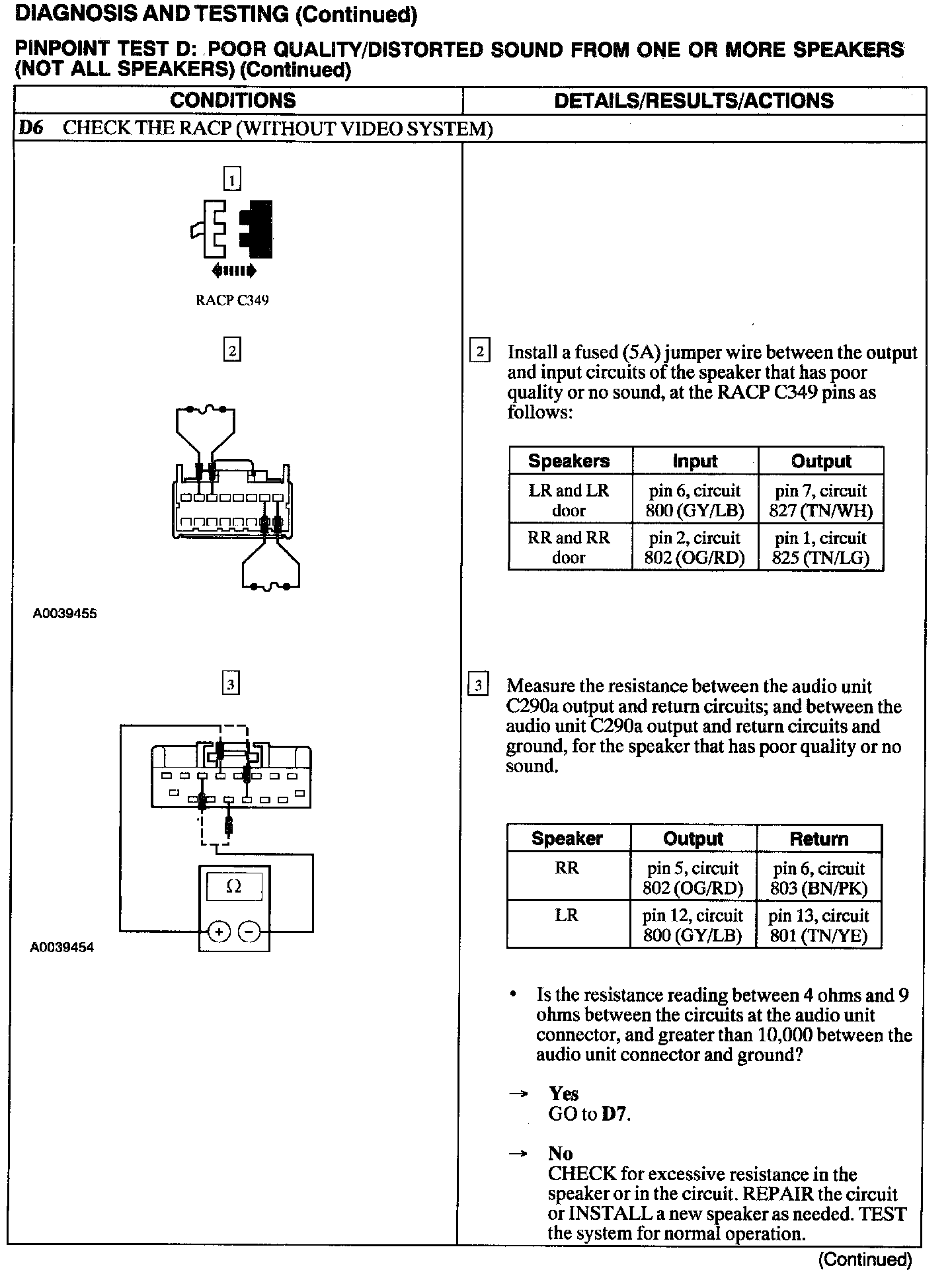

D6:

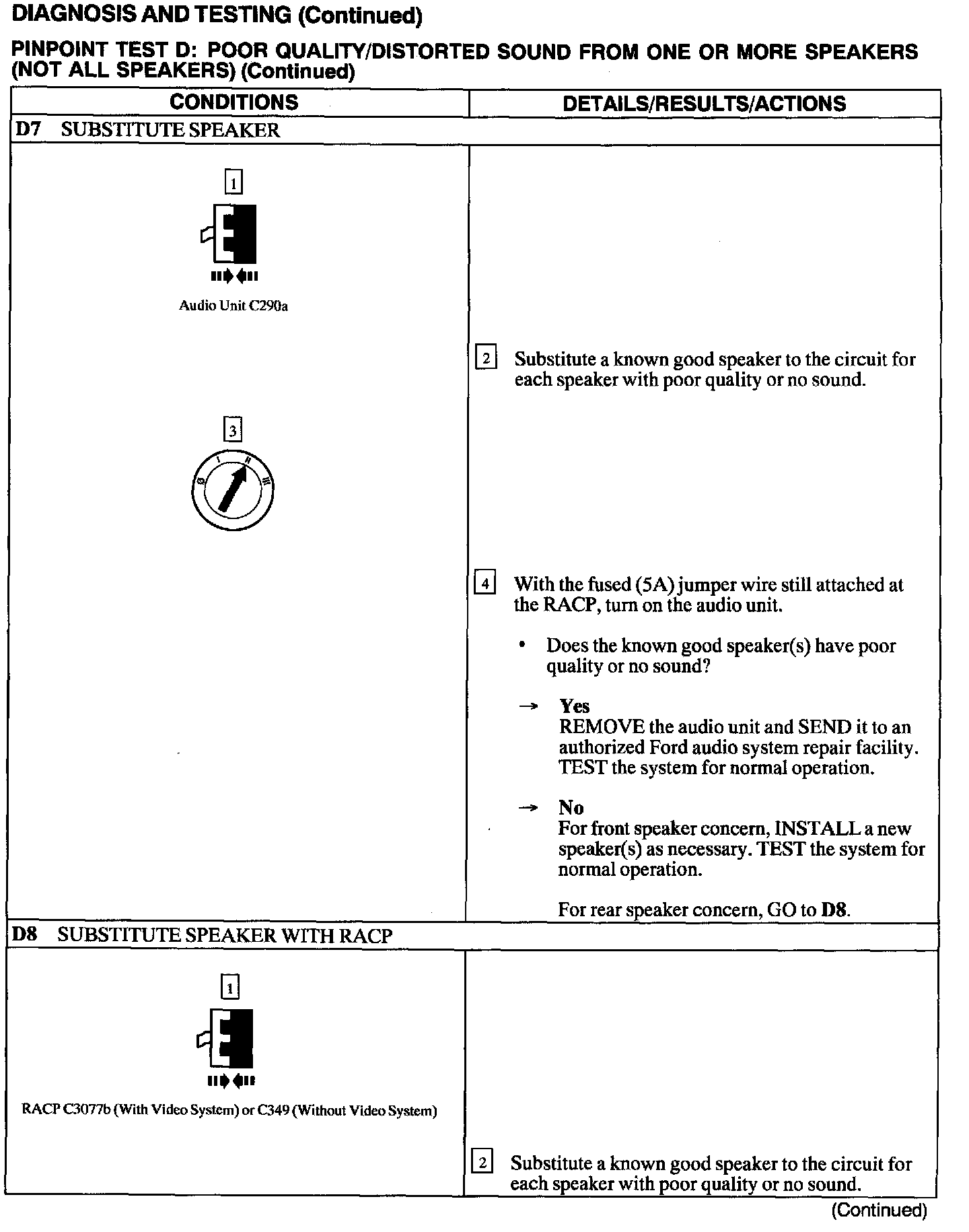

D7 - D8:

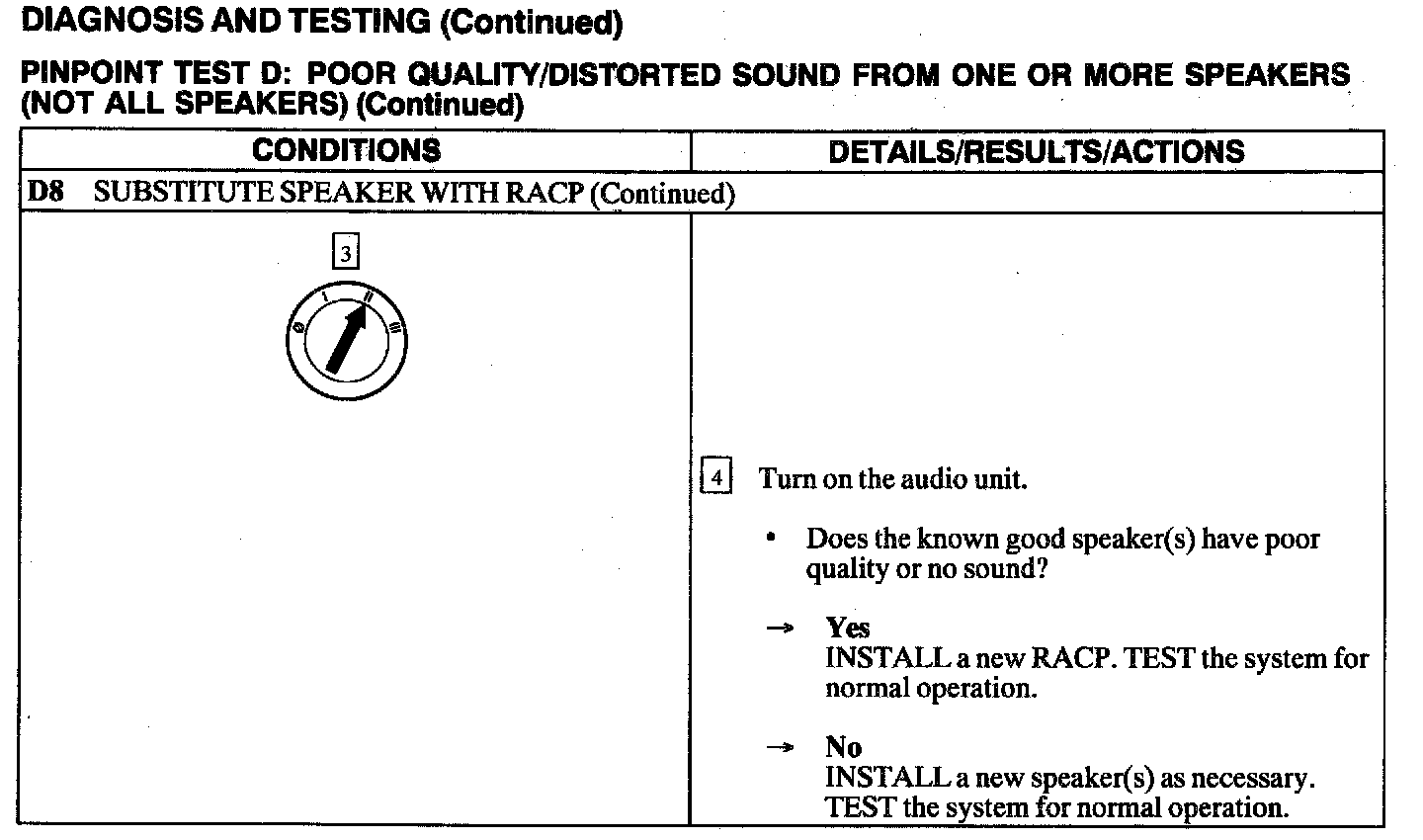

D8:
