Rear Seat Entertainment Diagrams

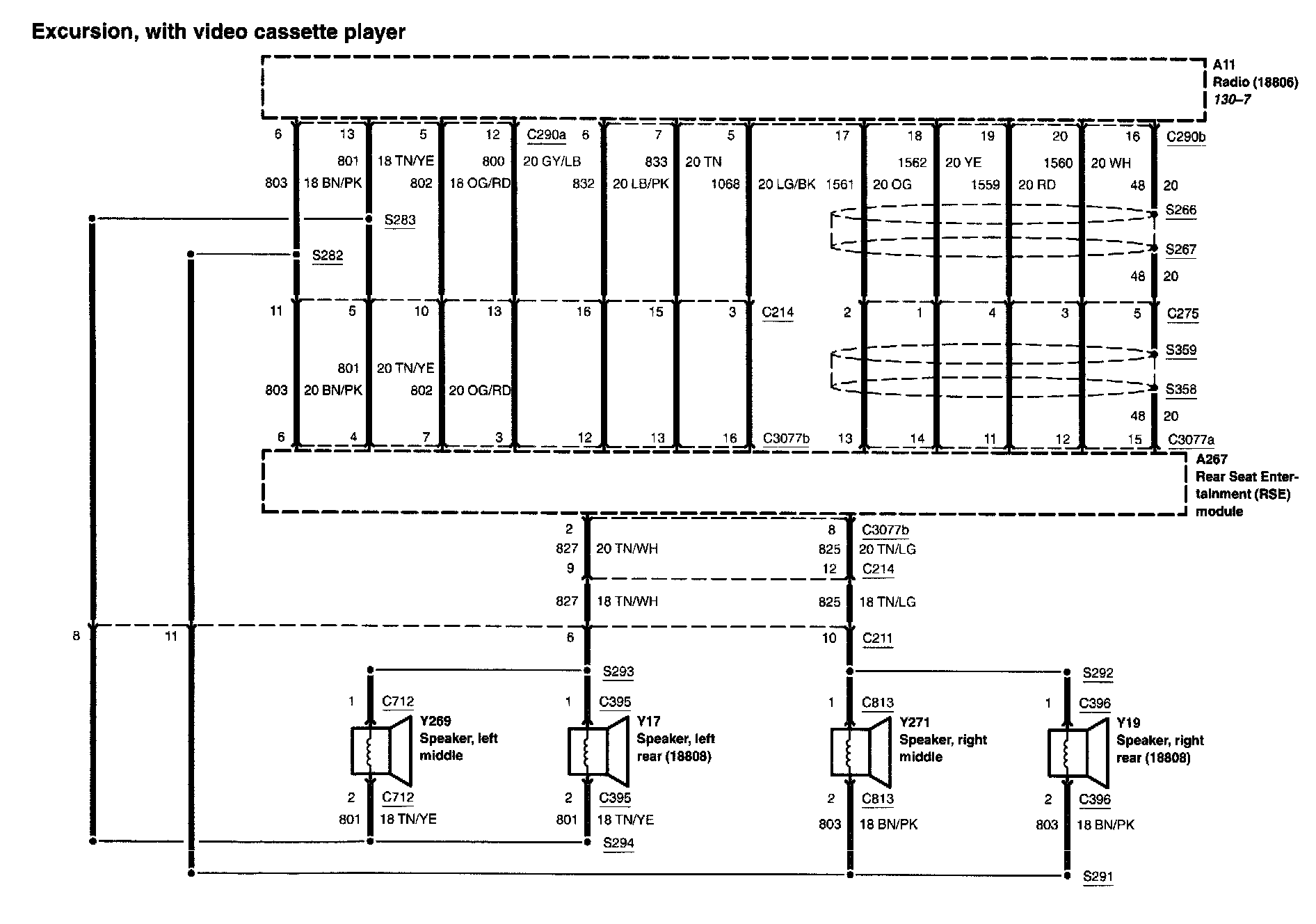

Diagram 132-1:

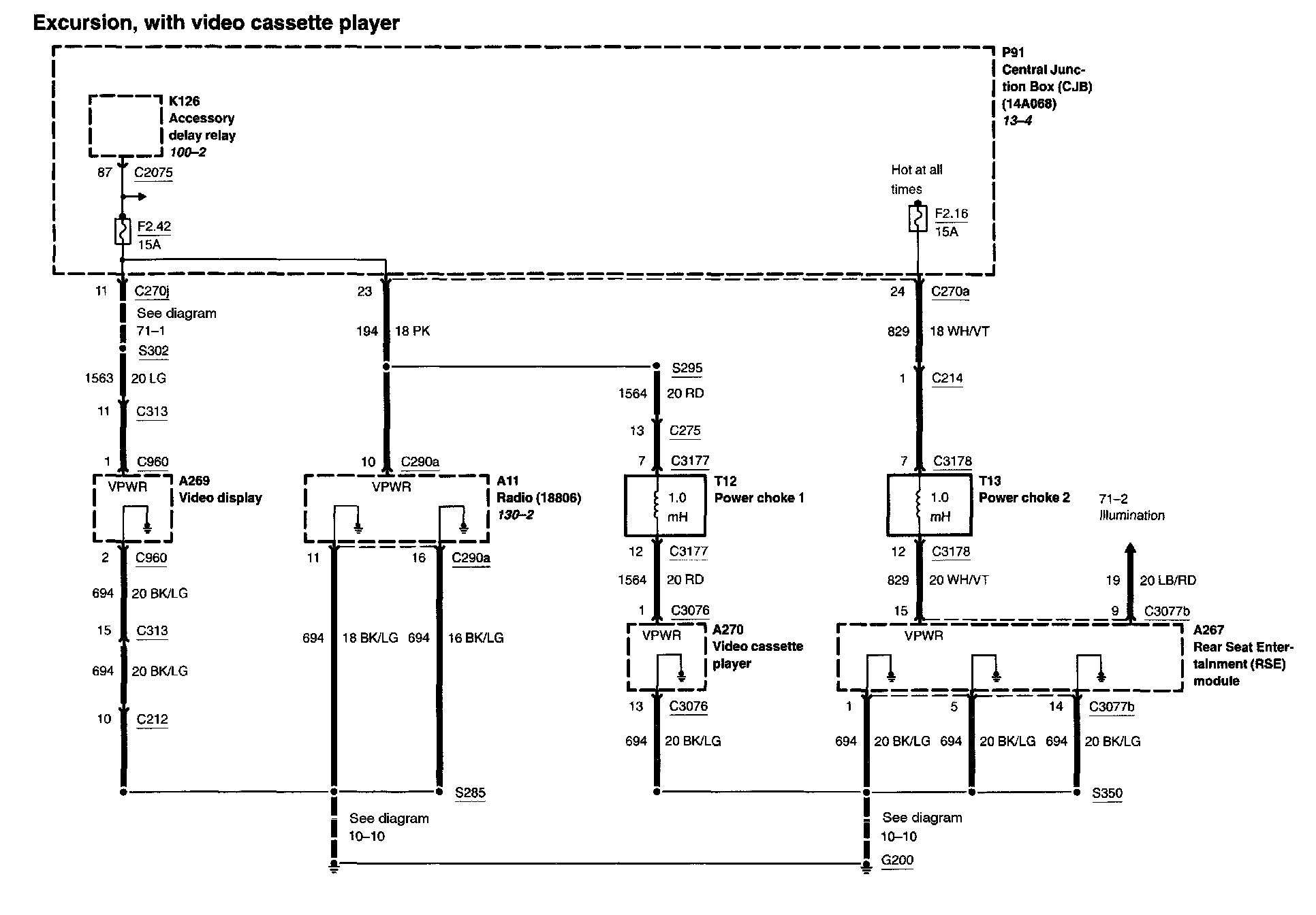

Diagram 132-2:

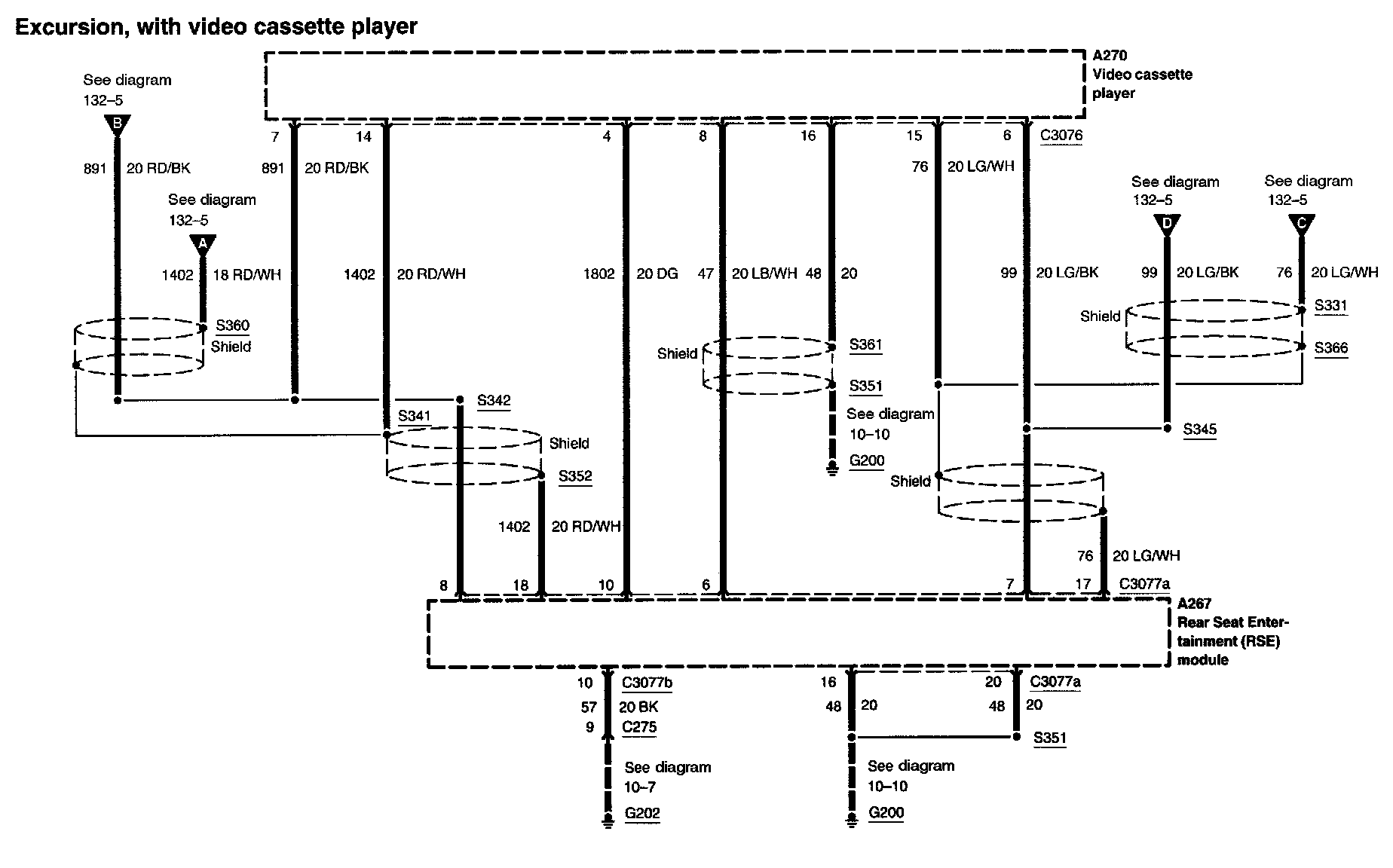

Diagram 132-3:

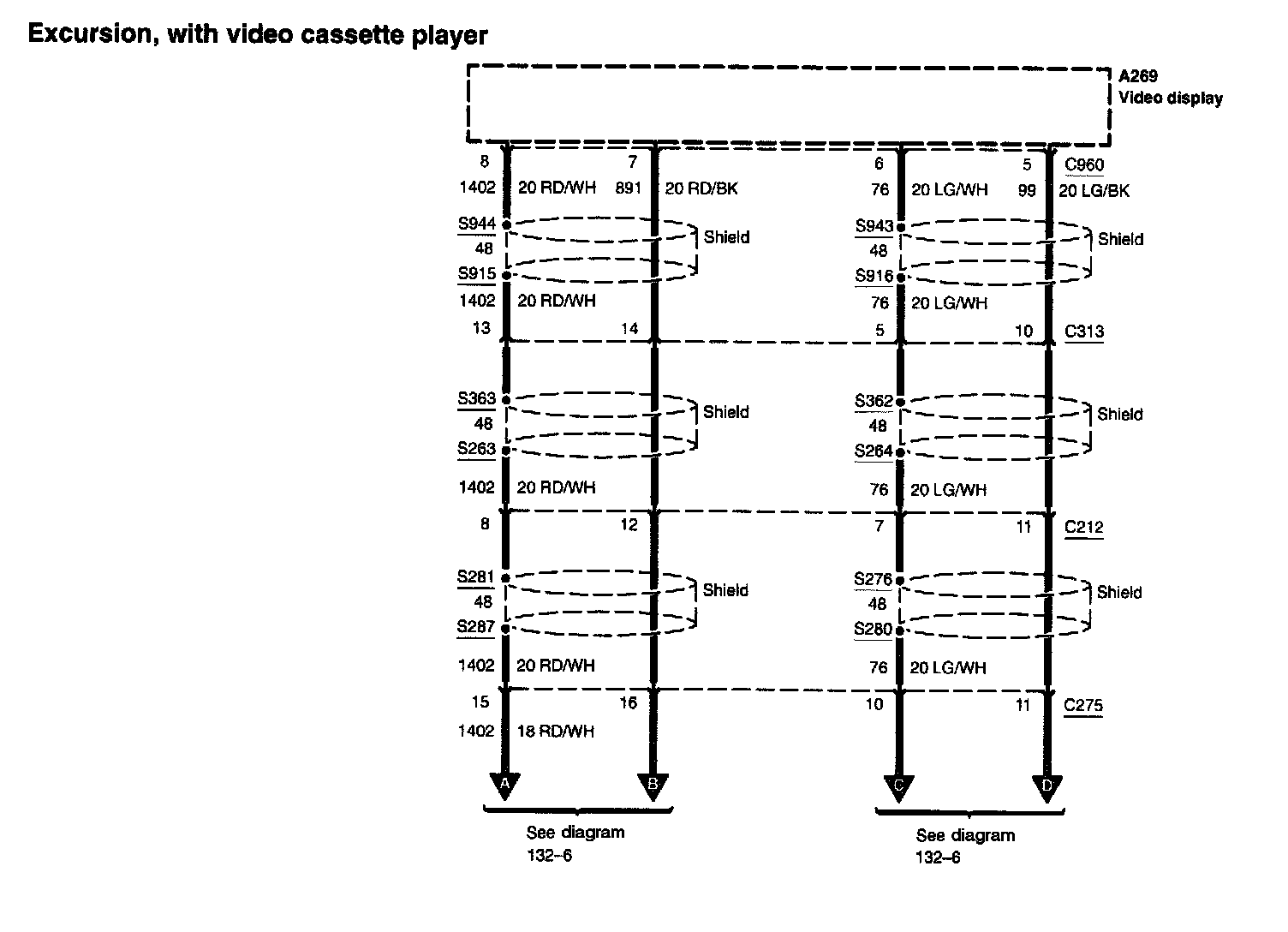

Diagram 132-4:

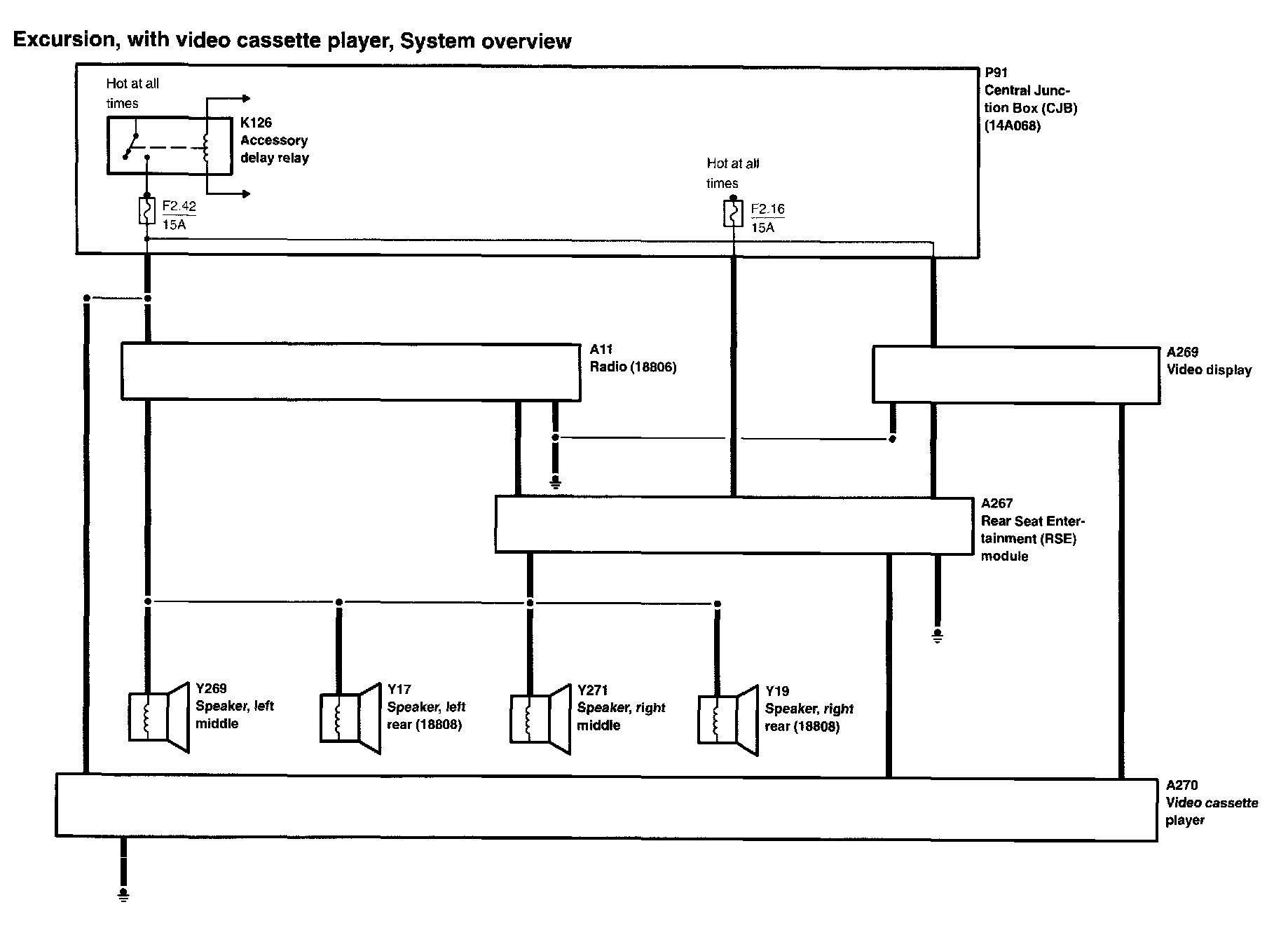

Diagram 132-5:

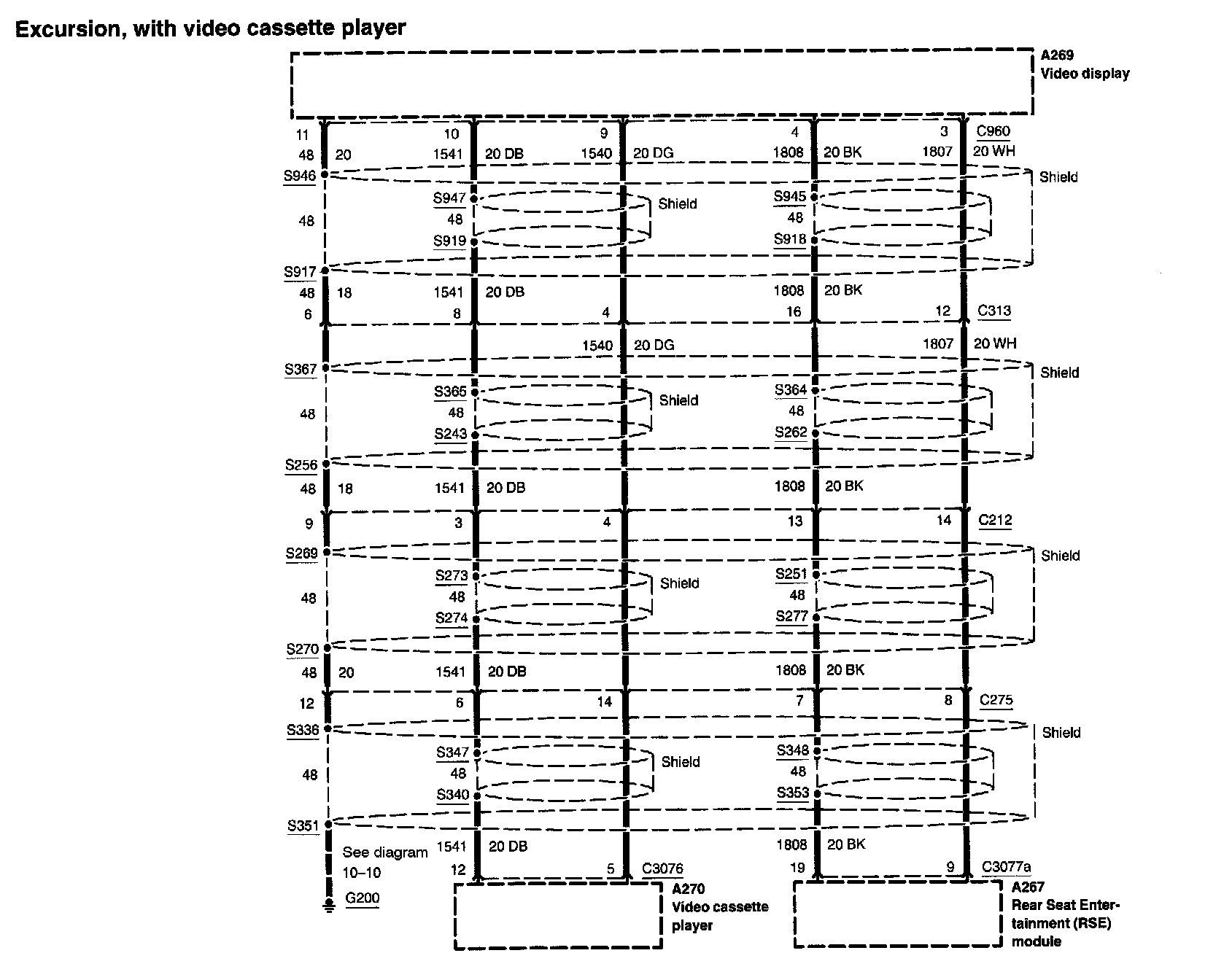

Diagram 132-6:

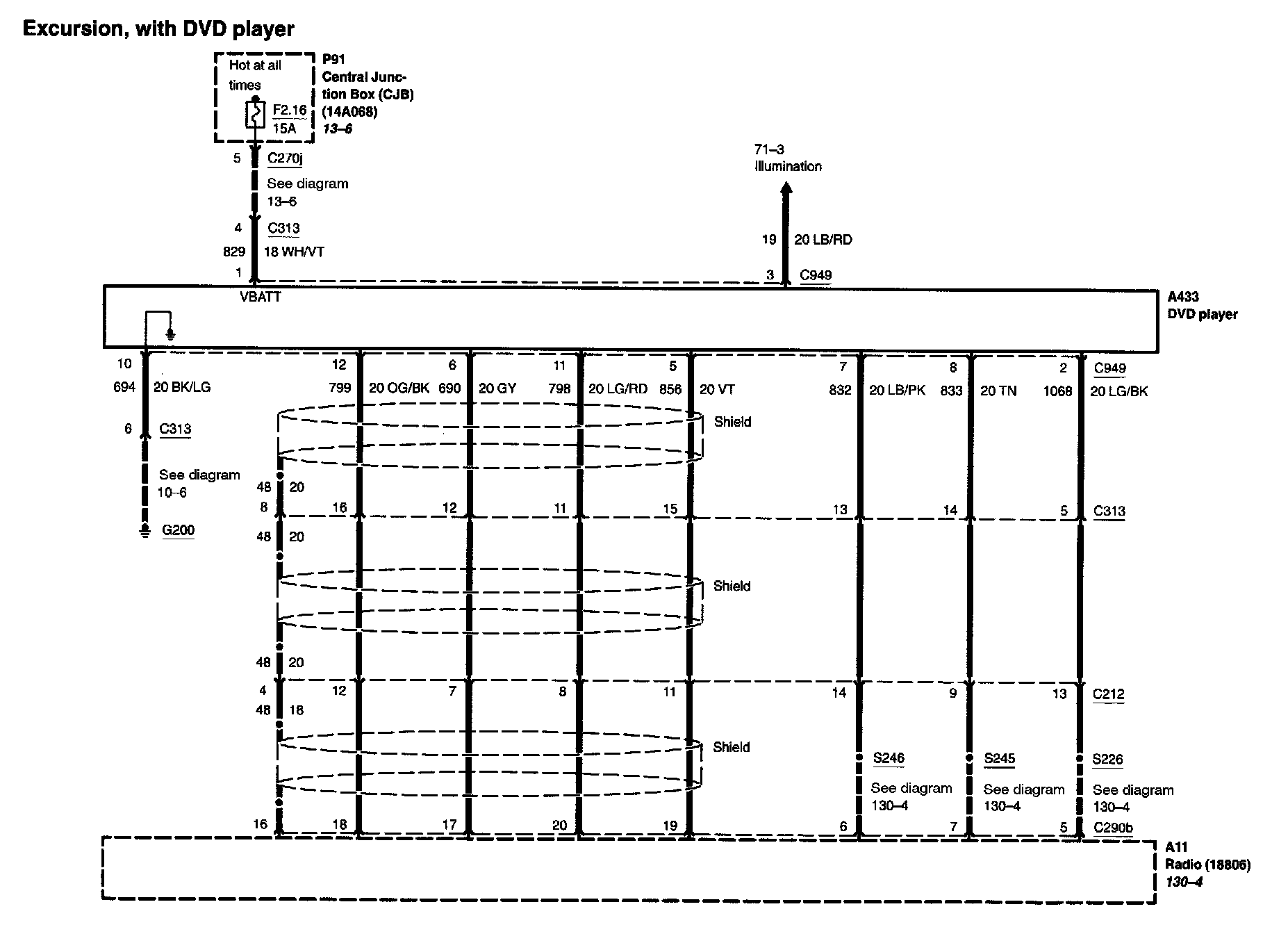

Diagram 132-7:
