Removal & Installation

  1. Remove the parking brake control. See PARKING BRAKE CONTROL  .
  2. Remove the screws. Remove the parking brake warning indicator switch. See Fig 1 .
  3. To install, reverse the removal procedure.

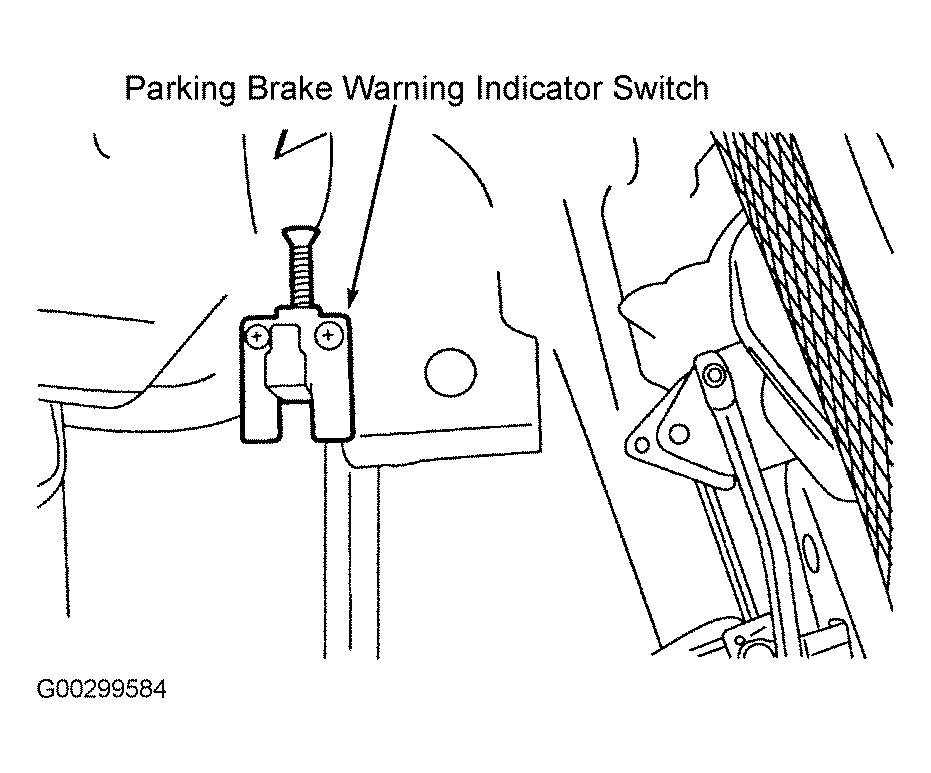

Fig 1: Identifying Parking Brake Warning Indicator Switch
G00299584Courtesy of FORD MOTOR CO.
