Pinpoint Test Y: The Check Fuel Cap Indicator Is Inoperative/Always On

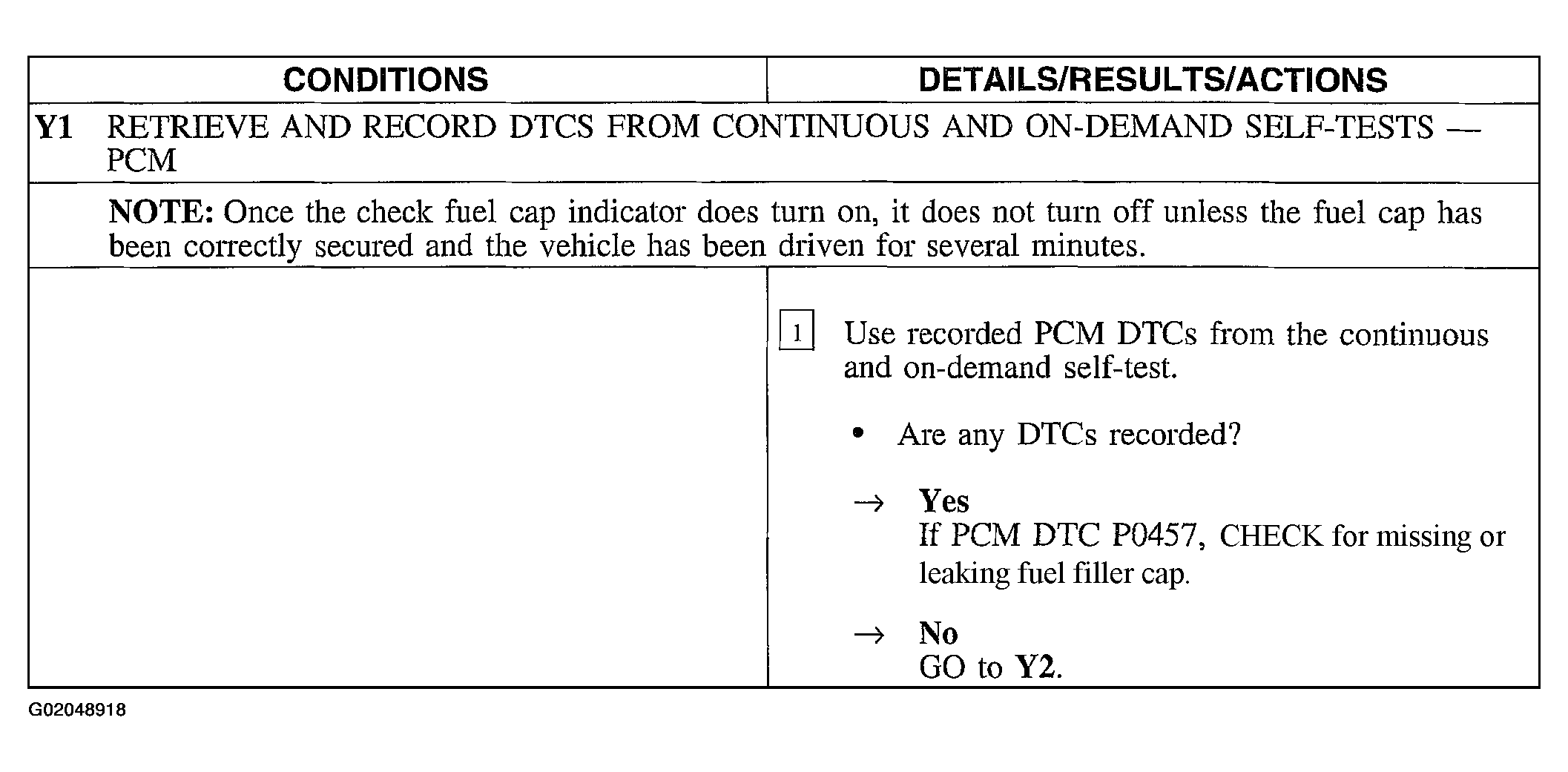

Fig 1: Pinpoint Test Y: The Check Fuel Cap Indicator Is Inoperative/Always On (Step Y1)
G02048918Courtesy of FORD MOTOR CO.

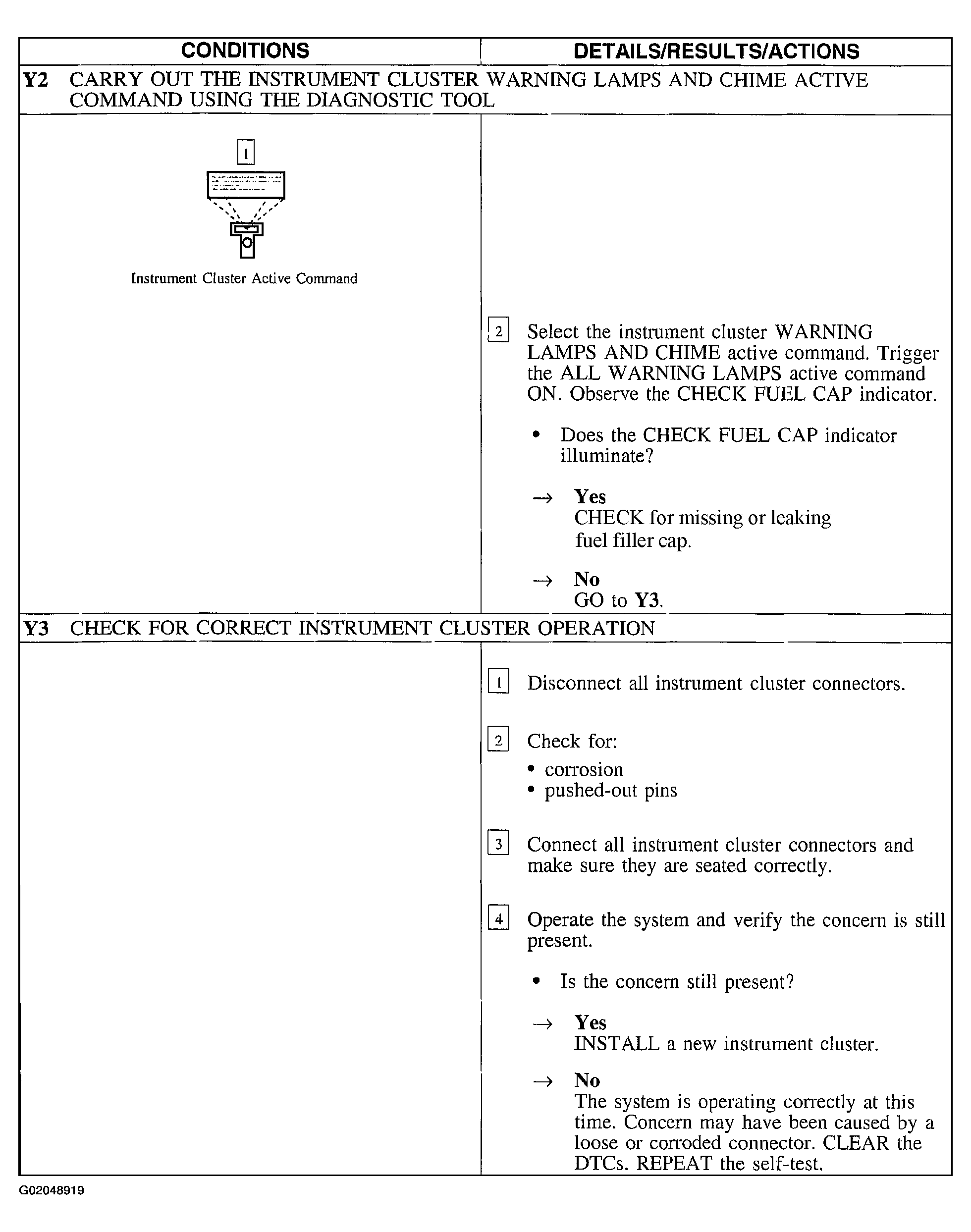

Fig 2: Pinpoint Test Y: The Check Fuel Cap Indicator Is Inoperative/Always On (Steps Y2 & Y3)
G02048919Courtesy of FORD MOTOR CO.
