Pinpoint Test X: The Transmission Range Indicator Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

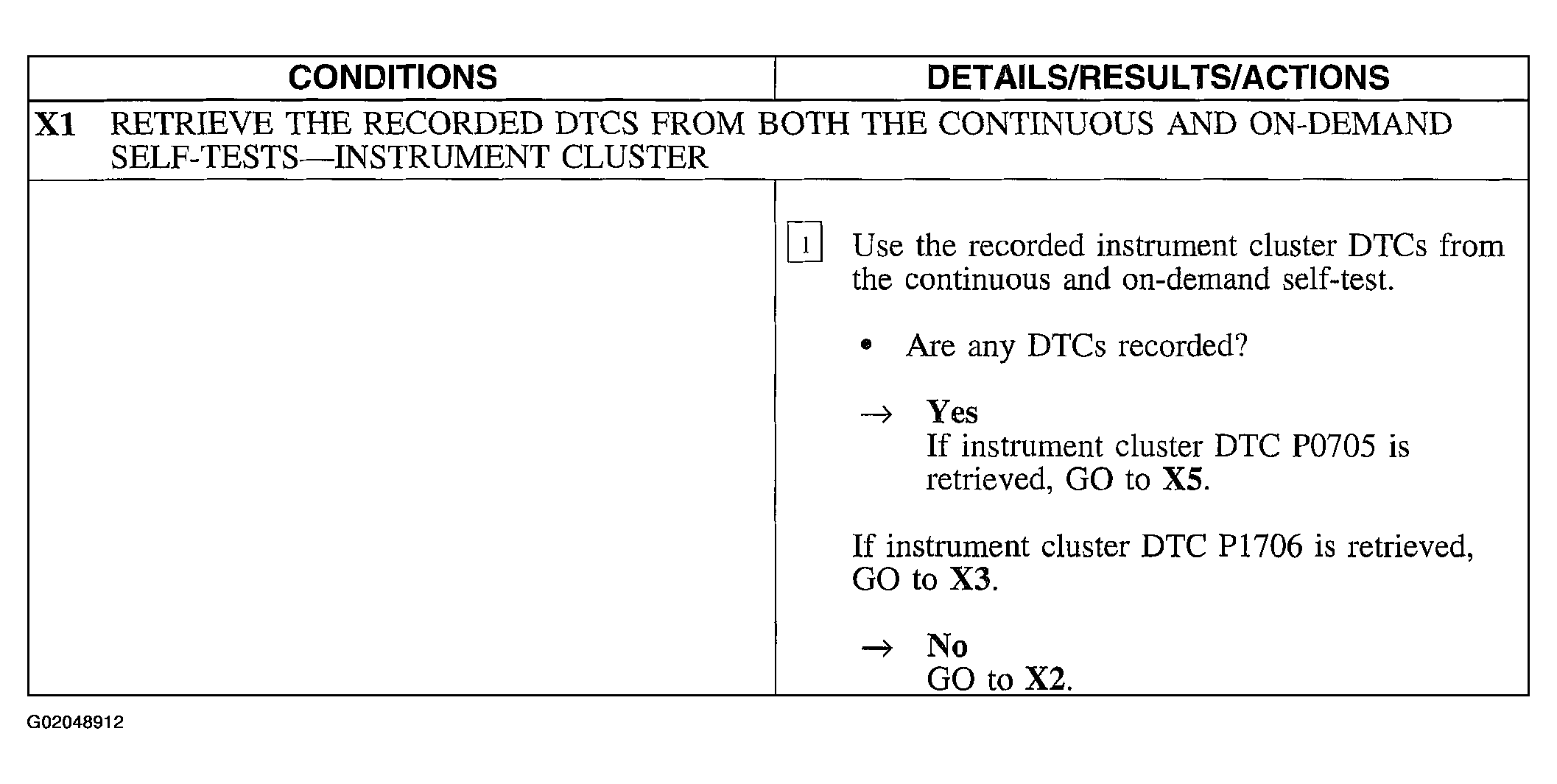

Fig 1: Pinpoint Test X: The Transmission Range Indicator Is Inoperative (Step X1)

Courtesy of FORD MOTOR CO.

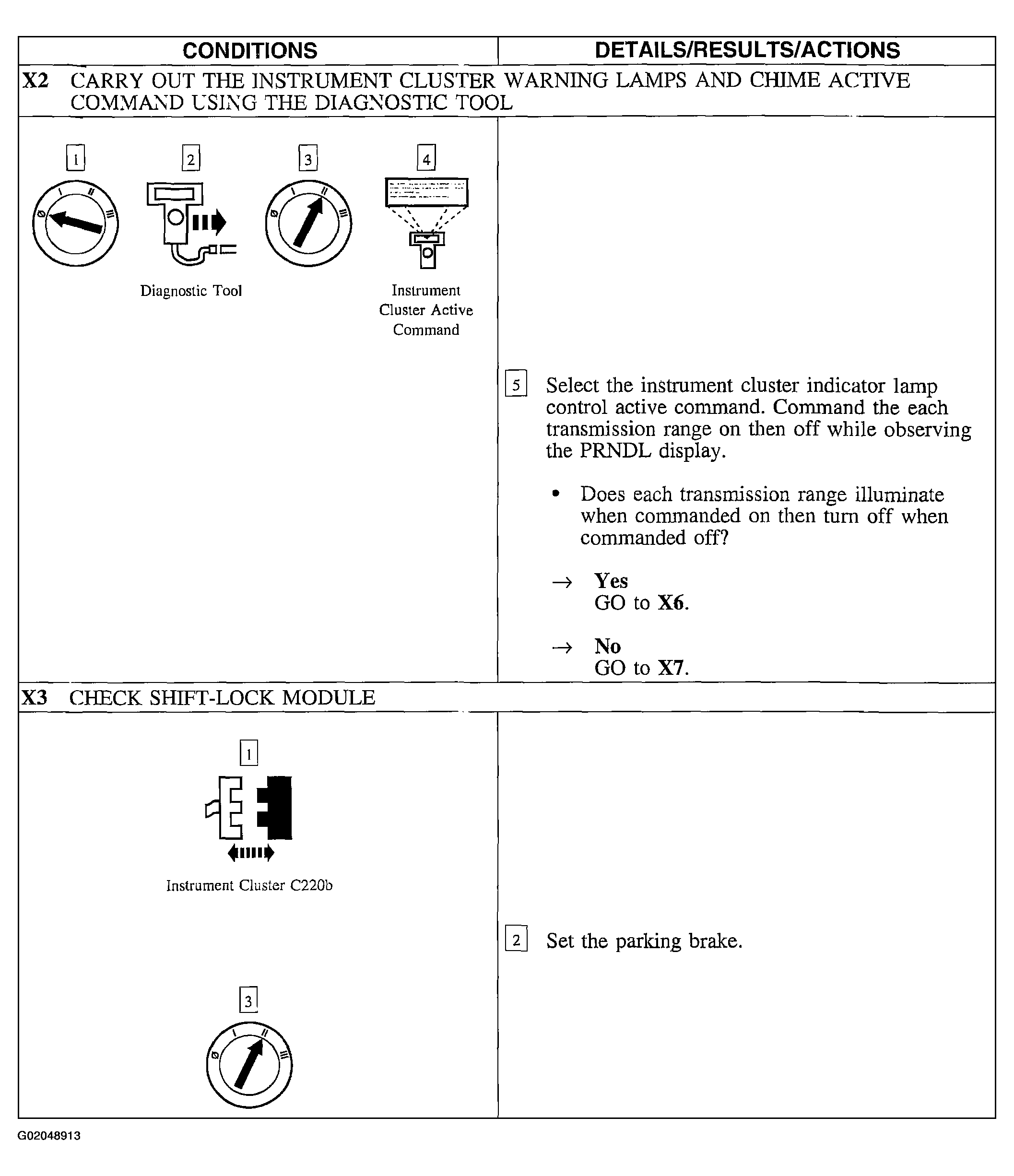

Fig 2: Pinpoint Test X: The Transmission Range Indicator Is Inoperative (Steps X2 & X3)

Courtesy of FORD MOTOR CO.

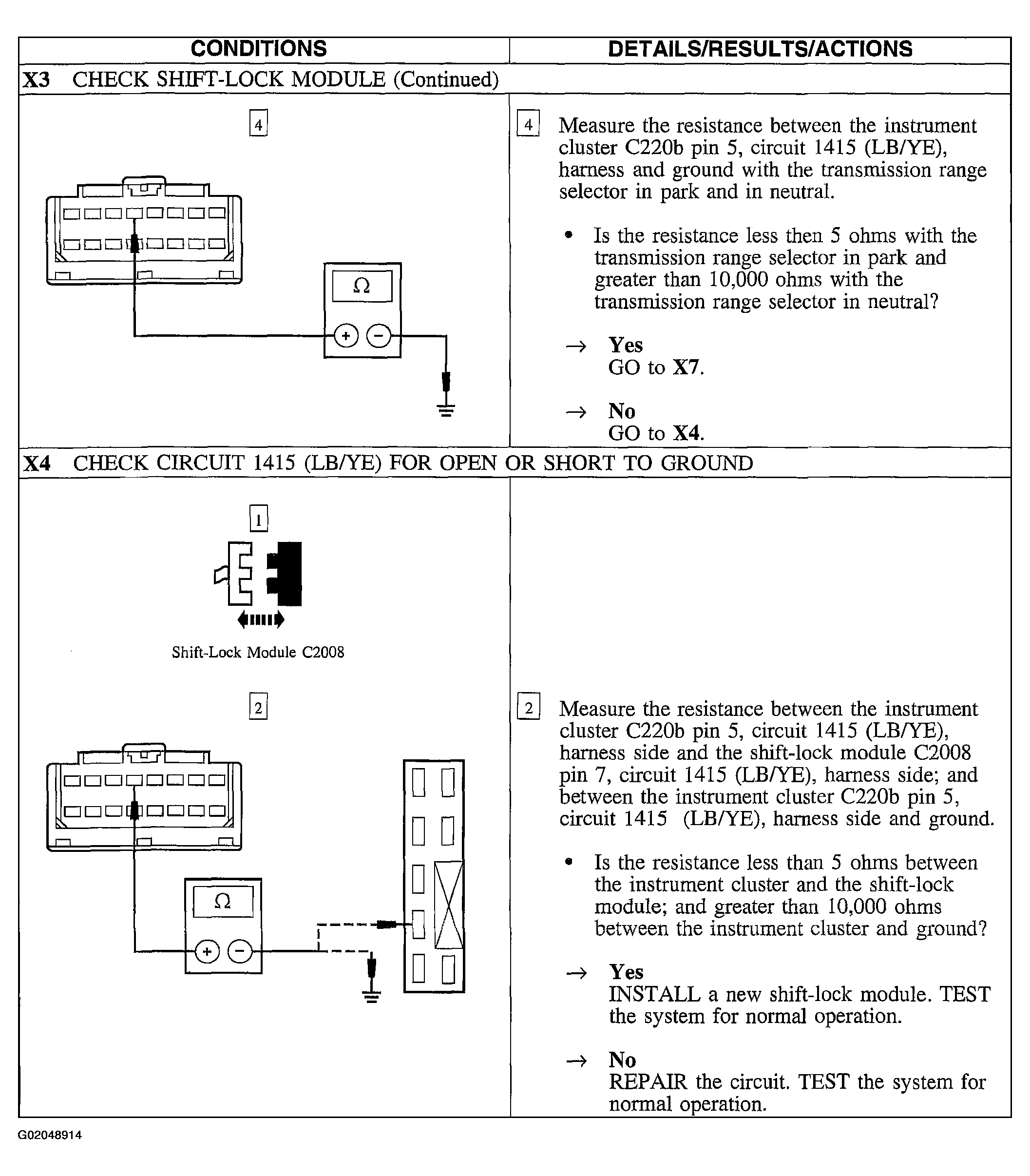

Fig 3: Pinpoint Test X: The Transmission Range Indicator Is Inoperative (Steps X3 Cont. & X4)

Courtesy of FORD MOTOR CO.

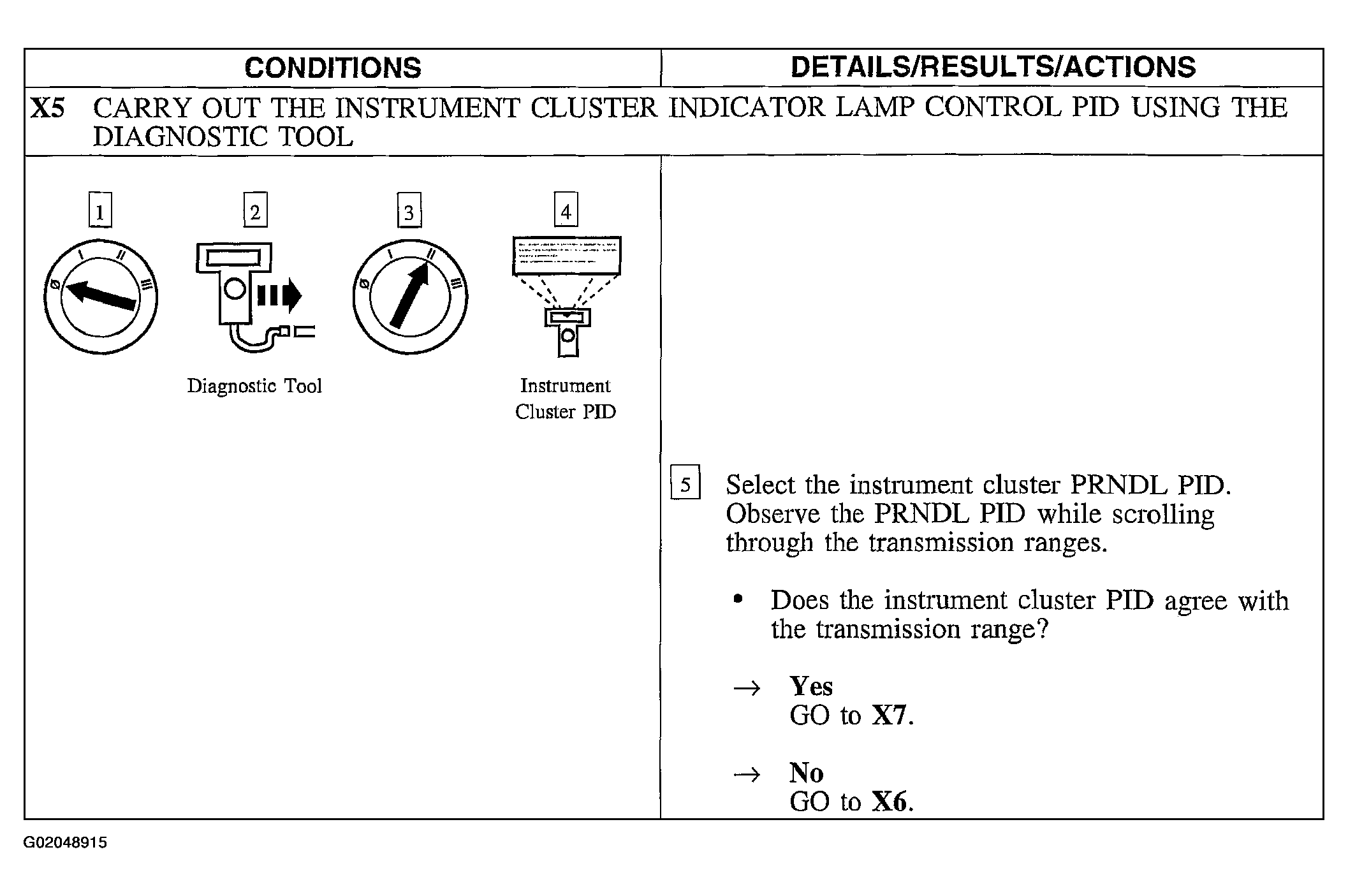

Fig 4: Pinpoint Test X: The Transmission Range Indicator Is Inoperative (Step X5)

Courtesy of FORD MOTOR CO.

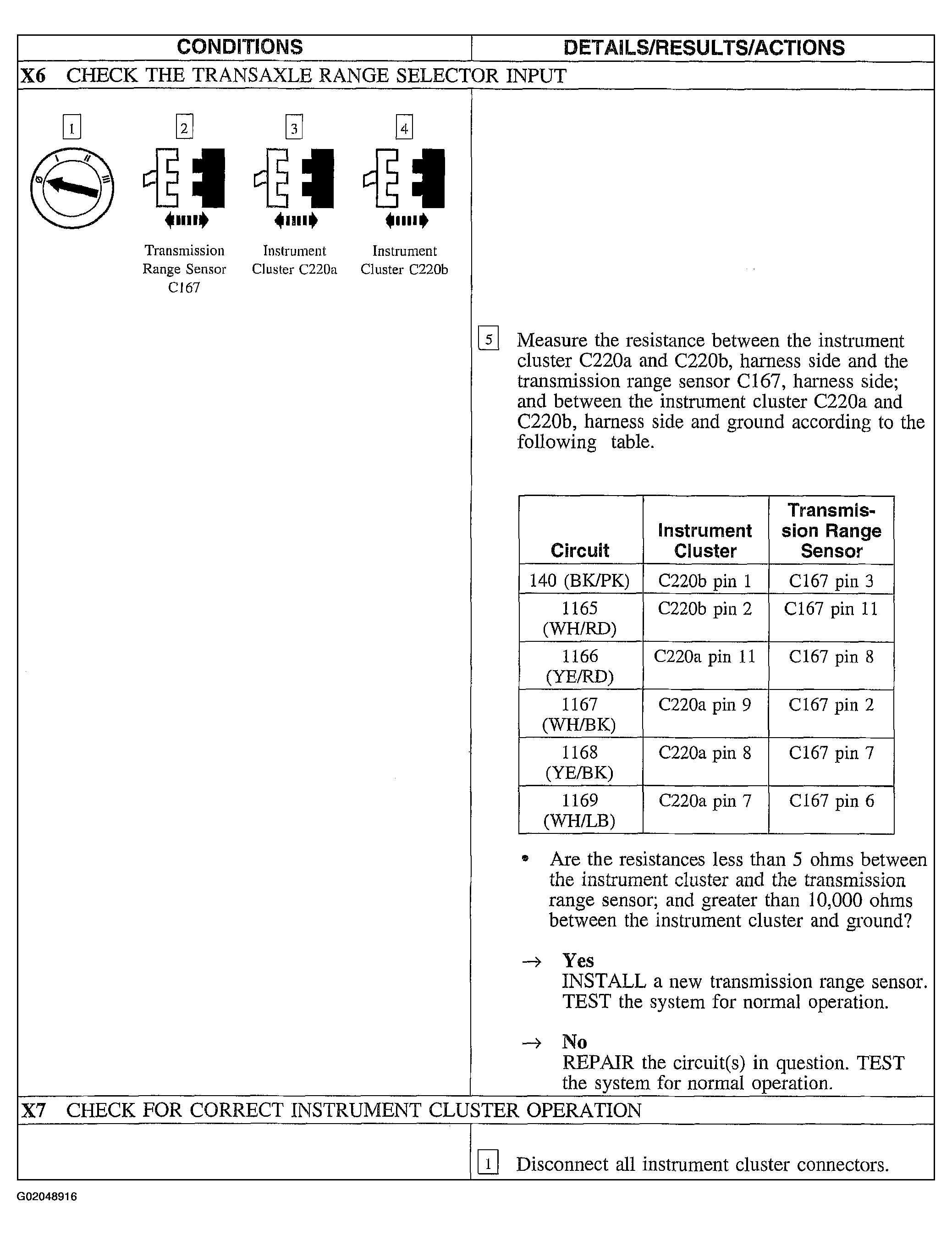

Fig 5: Pinpoint Test X: The Transmission Range Indicator Is Inoperative (Steps X6 & X7)

Courtesy of FORD MOTOR CO.

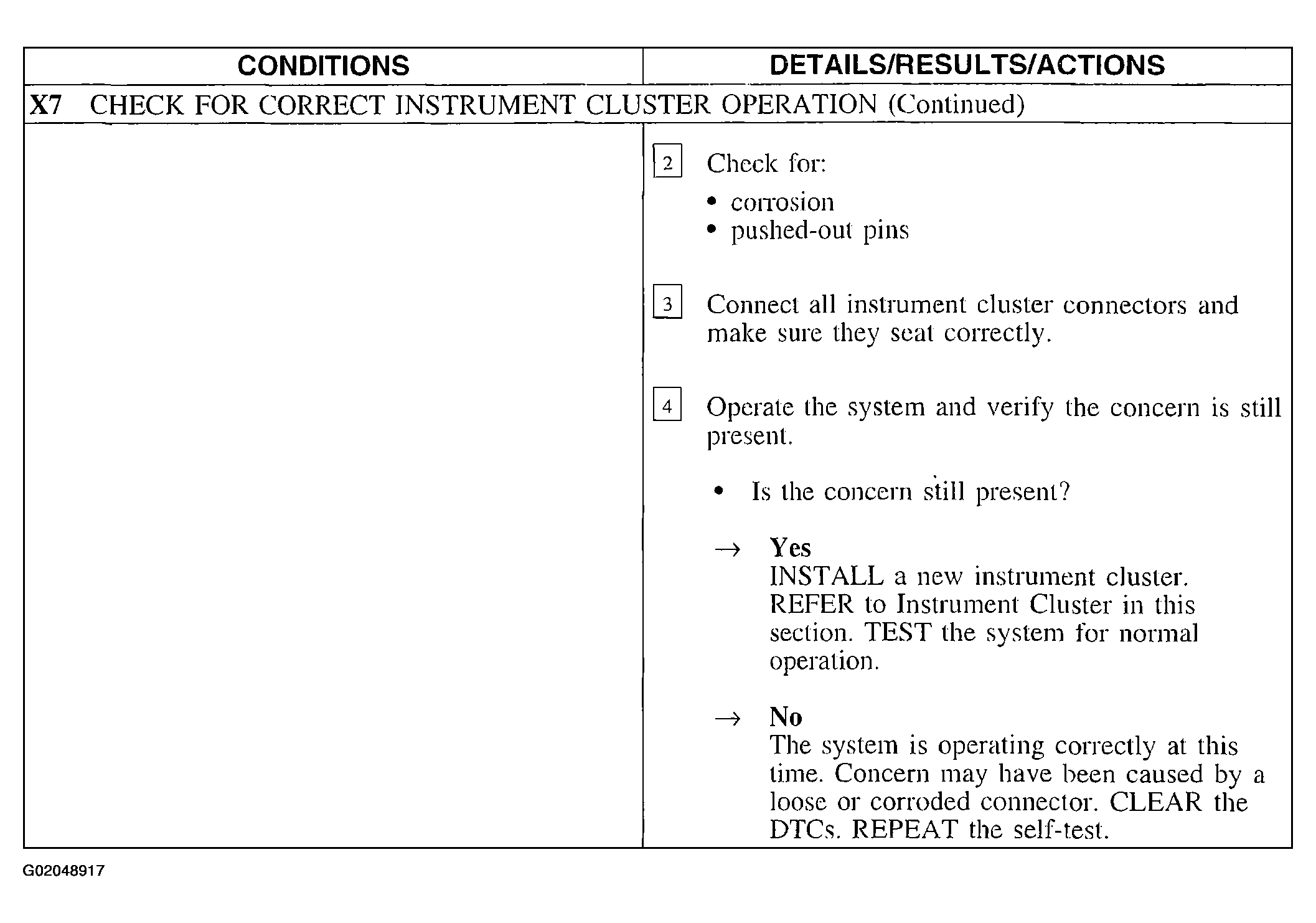

Fig 6: Pinpoint Test X: The Transmission Range Indicator Is Inoperative (Step X7 Cont.)

Courtesy of FORD MOTOR CO.
