Pinpoint Test W: The Four Wheel Drive (4WD) Indicator Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

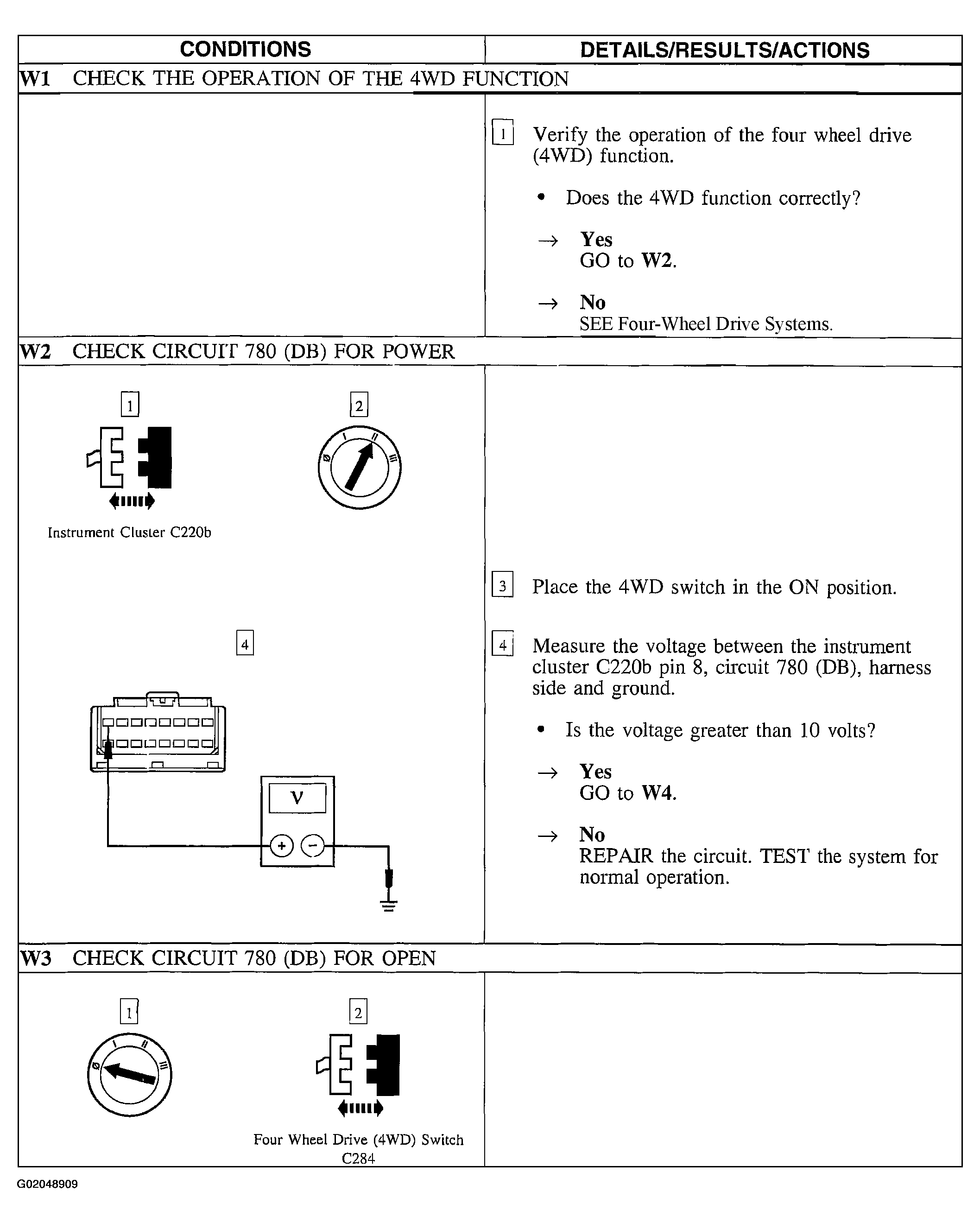

Fig 1: Pinpoint Test W: The Four Wheel Drive (4WD) Indicator Is Inoperative (Steps W1 - W3)

Courtesy of FORD MOTOR CO.

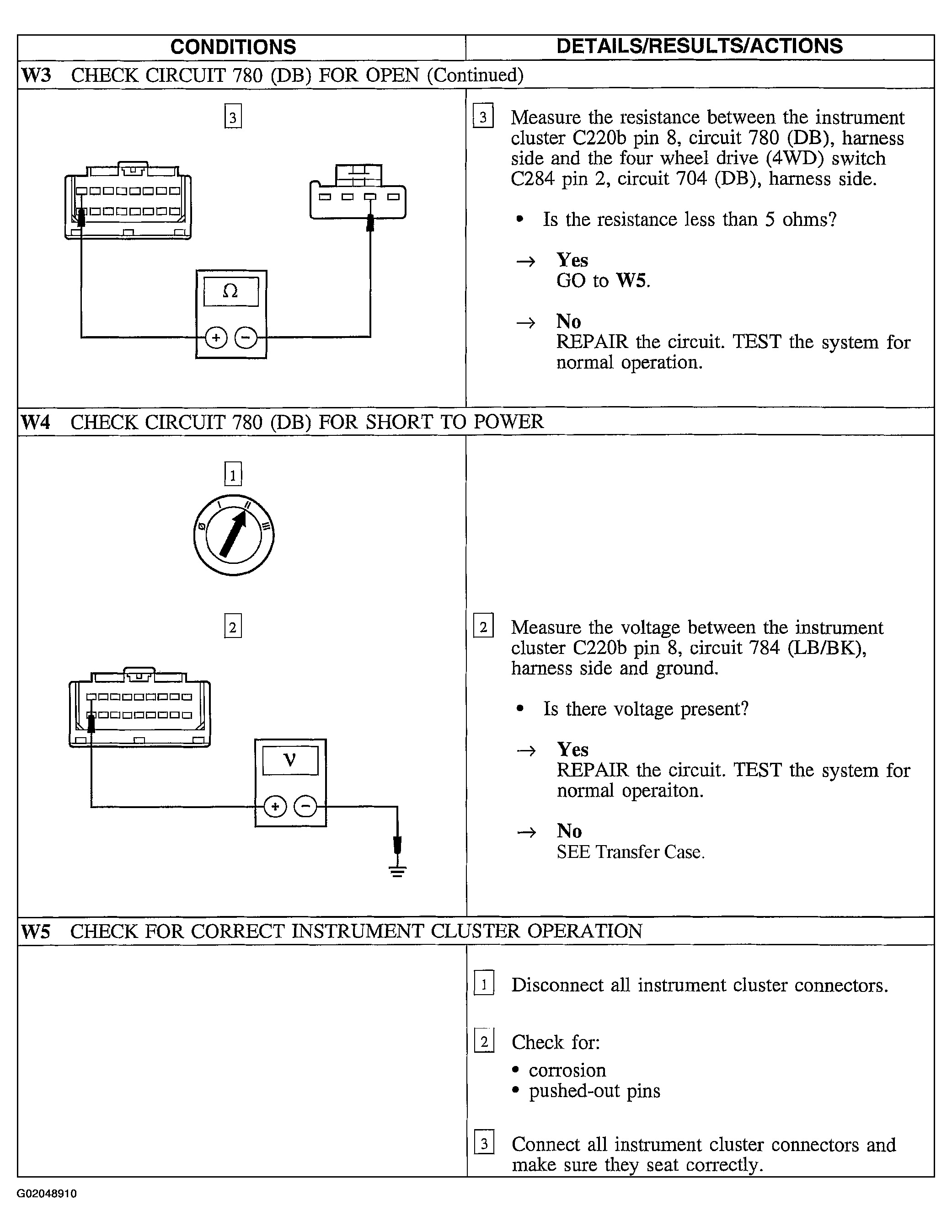

Fig 2: Pinpoint Test W: The Four Wheel Drive (4WD) Indicator Is Inoperative (Steps W3 Cont. - W5)

Courtesy of FORD MOTOR CO.

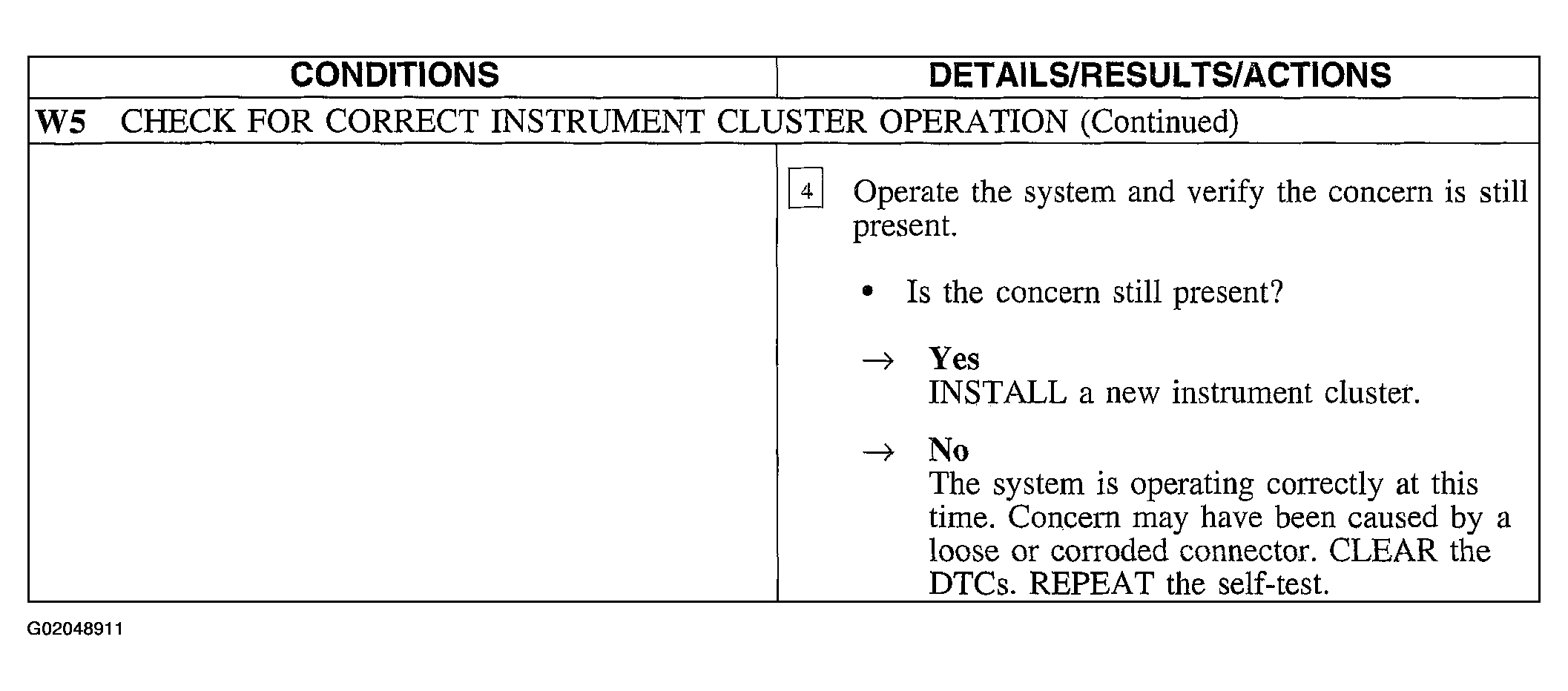

Fig 3: Pinpoint Test W: The Four Wheel Drive (4WD) Indicator Is Inoperative (Step W5 Cont.)

Courtesy of FORD MOTOR CO.
