Pinpoint Test V: The O/D Off Indicator Is Inoperative

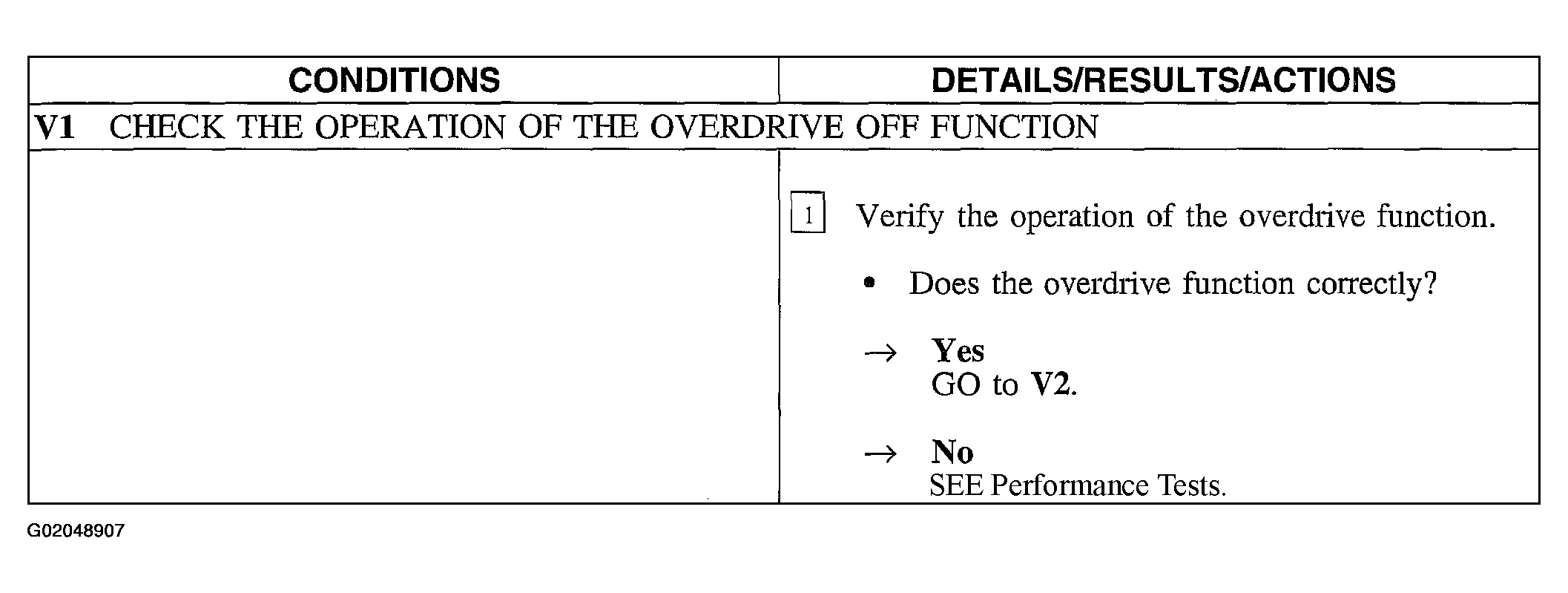

Fig 1: Pinpoint Test V: The O/D Off Indicator Is Inoperative (Step V1)
G02048907Courtesy of FORD MOTOR CO.

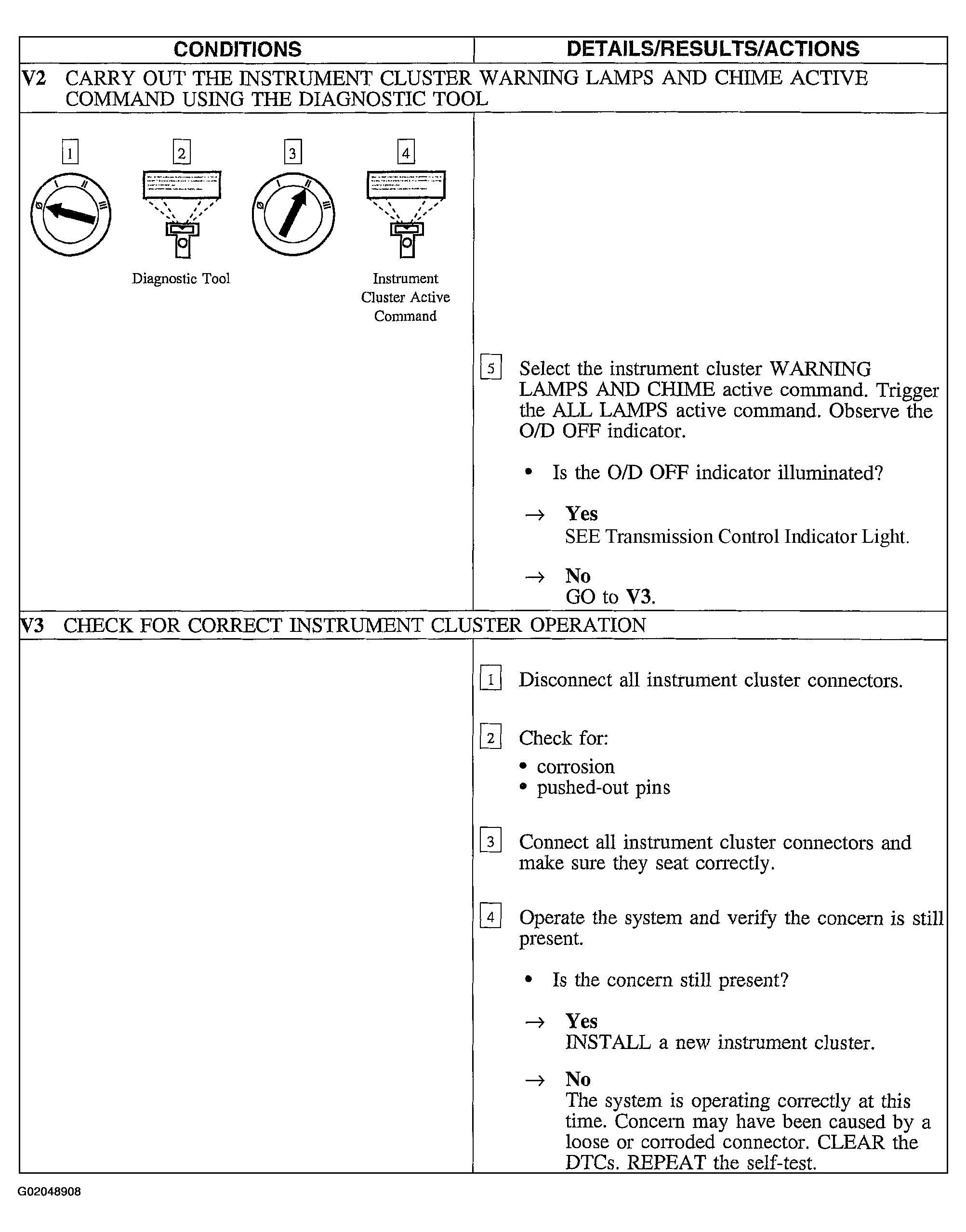

Fig 2: Pinpoint Test V: The O/D Off Indicator Is Inoperative (Steps V2 & V3)
G02048908Courtesy of FORD MOTOR CO.
