Pinpoint Test U: The Door Ajar Indicator Is Inoperative/Chime Is Operative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

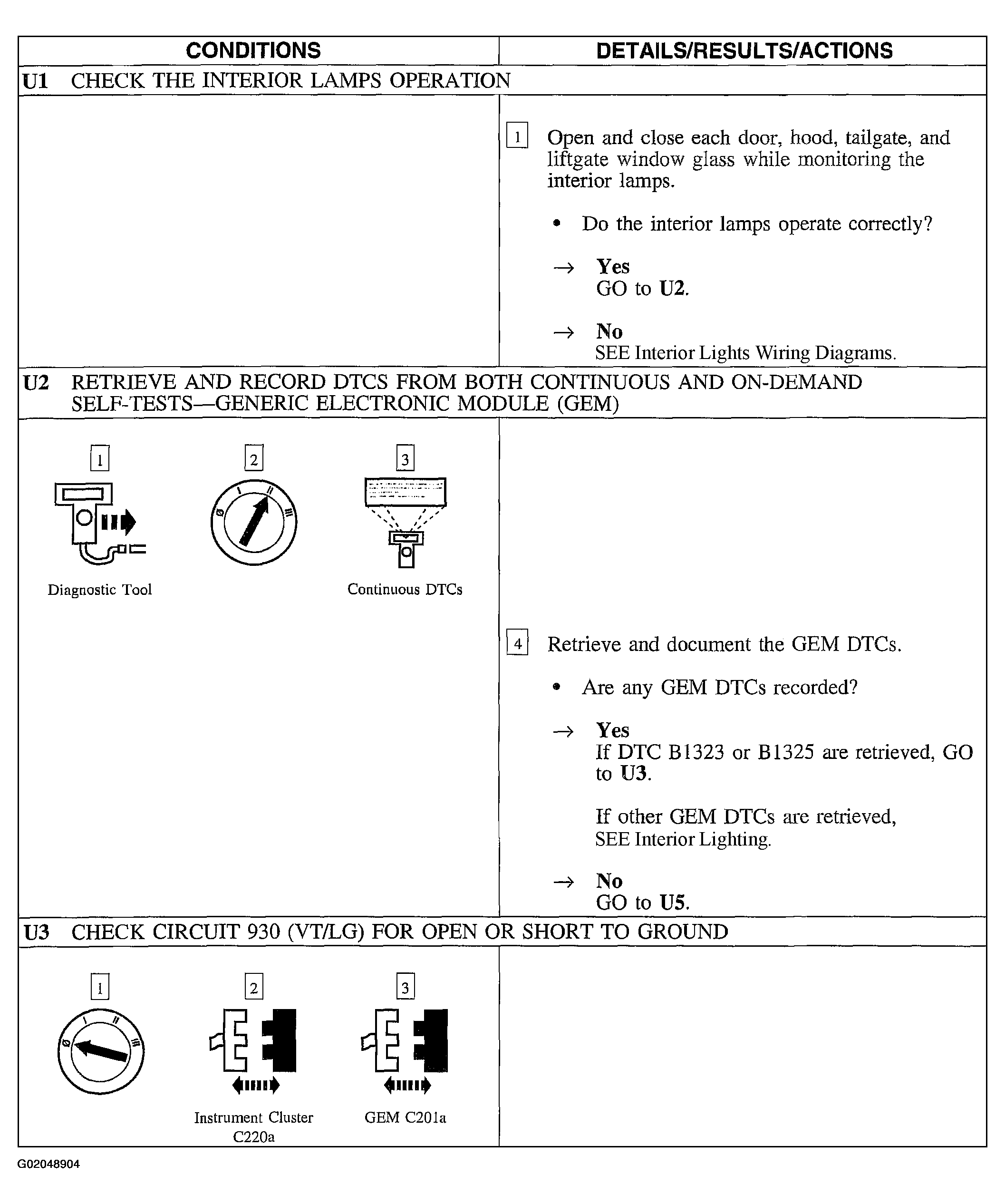

Fig 1: Pinpoint Test U: The Door Ajar Indicator Is Inoperative/Chime Is Operative (Steps U1 - U3)

Courtesy of FORD MOTOR CO.

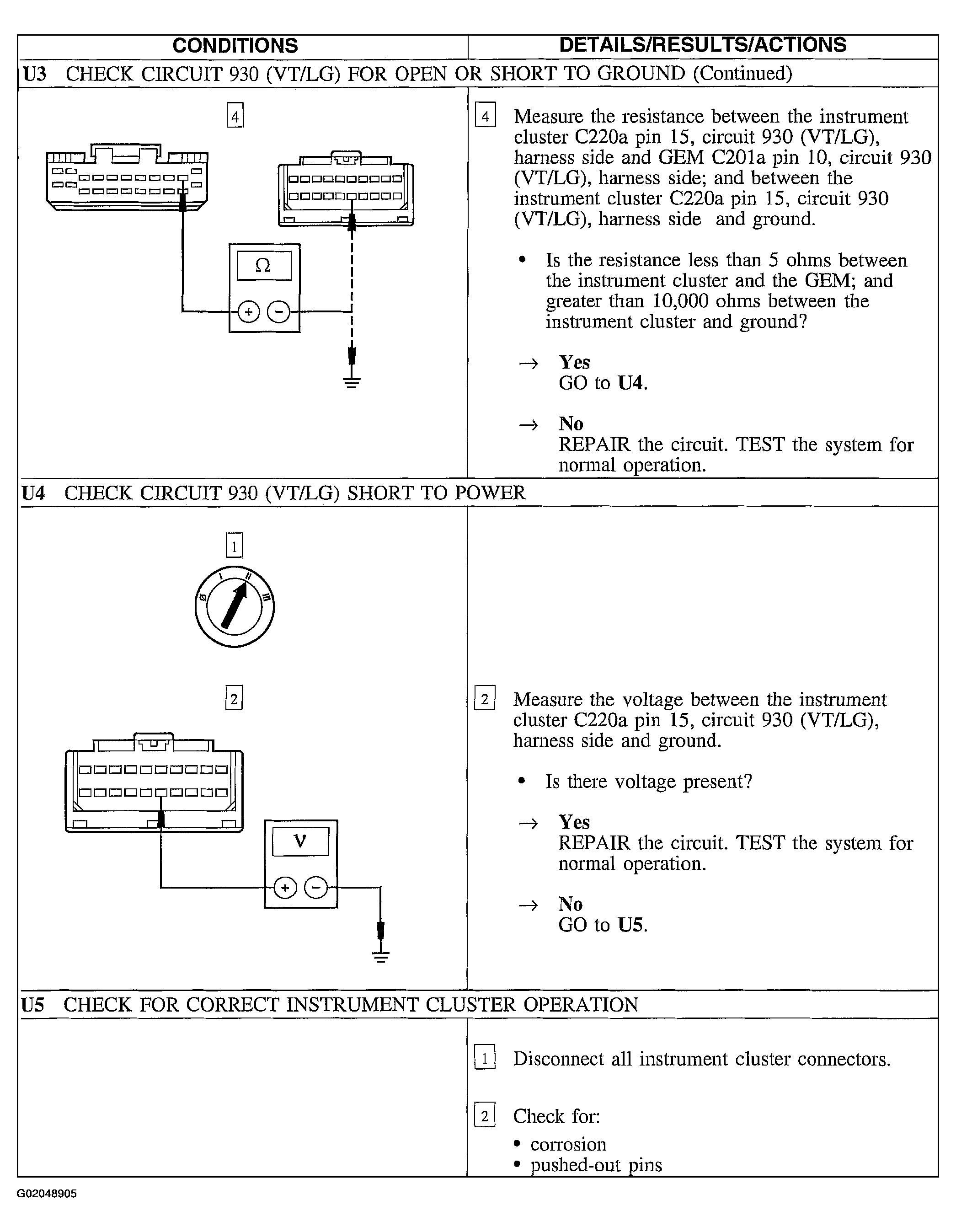

Fig 2: Pinpoint Test U: The Door Ajar Indicator Is Inoperative/Chime Is Operative (Steps U3 Cont. - U5)

Courtesy of FORD MOTOR CO.

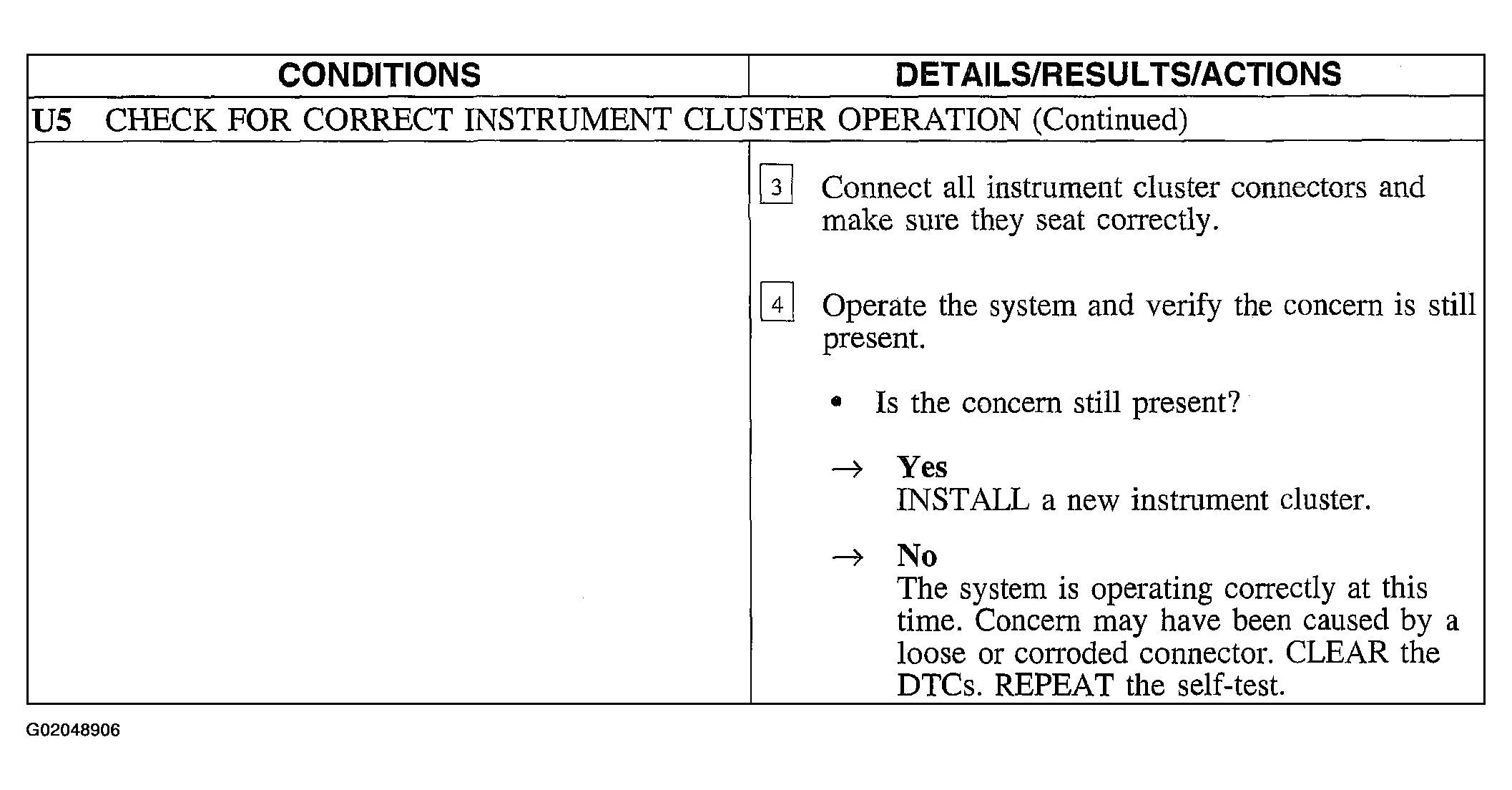

Fig 3: Pinpoint Test U: The Door Ajar Indicator Is Inoperative/Chime Is Operative (Step U5 Cont.)

Courtesy of FORD MOTOR CO.
