Pinpoint Test T: The Safety Belt Warning Indicator Is Inoperative/Chime Is Operative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

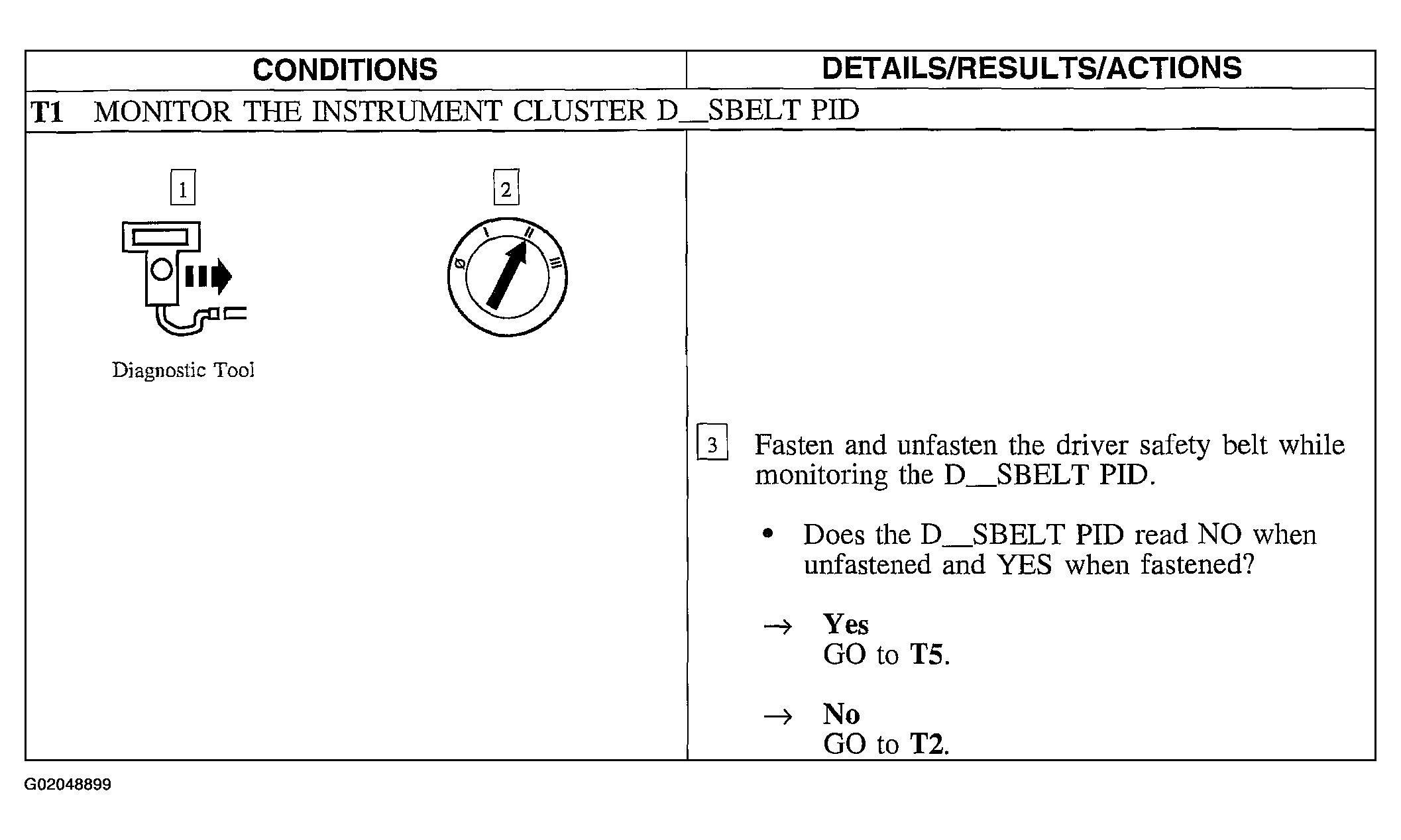

Fig 1: Pinpoint Test T: The Safety Belt Warning Indicator Is Inoperative/Chime Is Operative (Step T1)

Courtesy of FORD MOTOR CO.

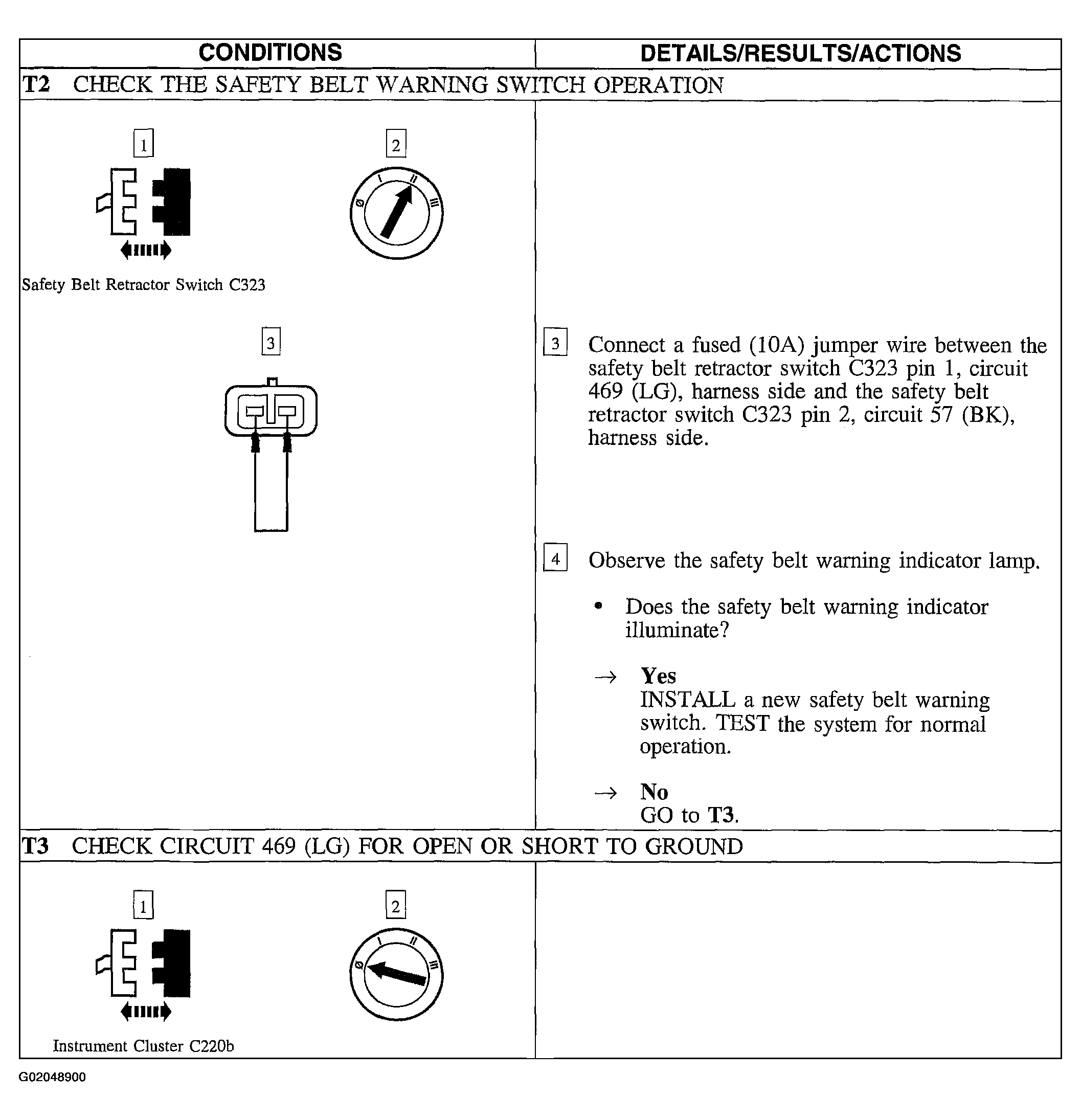

Fig 2: Pinpoint Test T: The Safety Belt Warning Indicator Is Inoperative/Chime Is Operative (Steps T2 & T3)

Courtesy of FORD MOTOR CO.

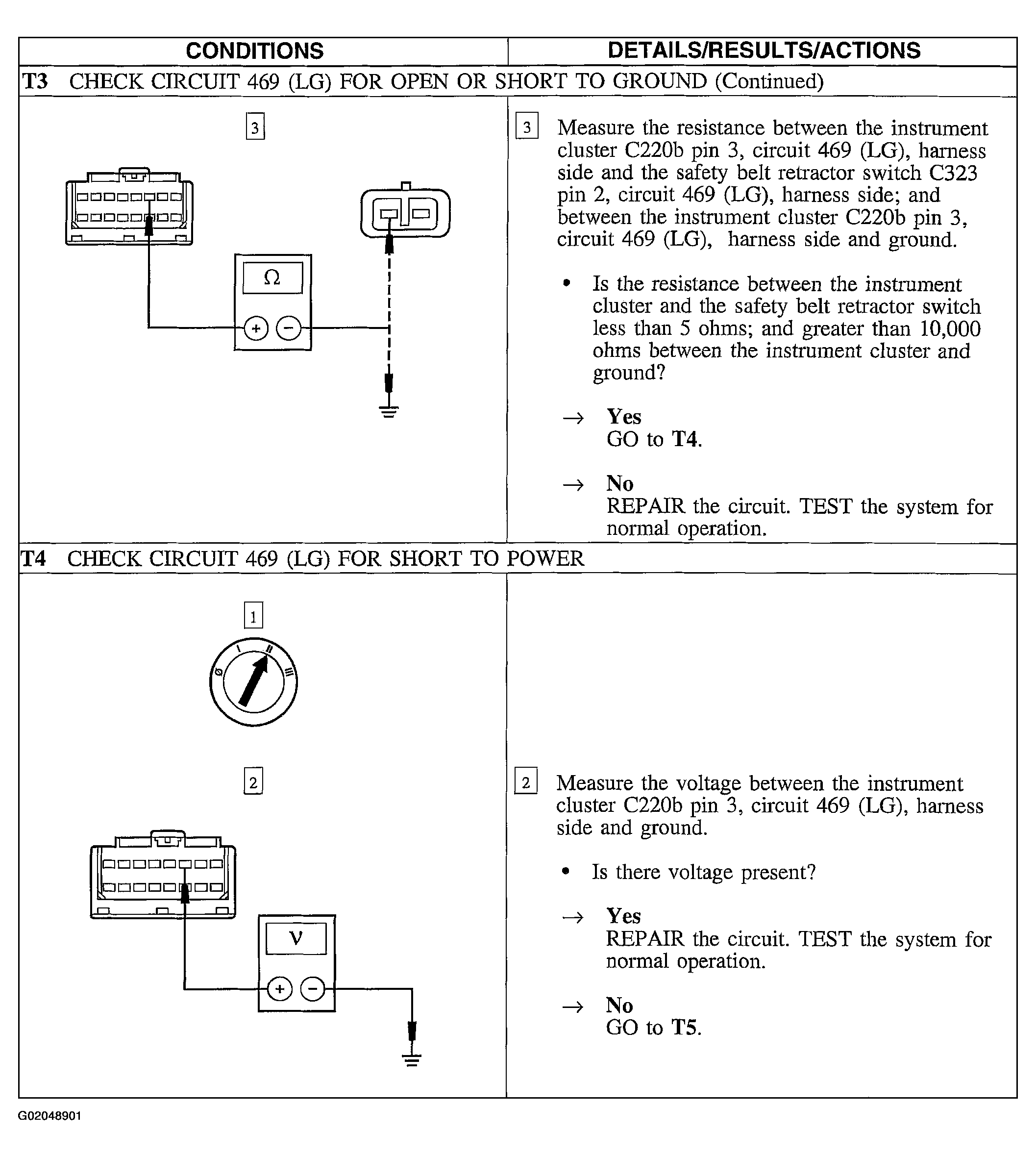

Fig 3: Pinpoint Test T: The Safety Belt Warning Indicator Is Inoperative/Chime Is Operative (Steps T3 Cont. & T4)

Courtesy of FORD MOTOR CO.

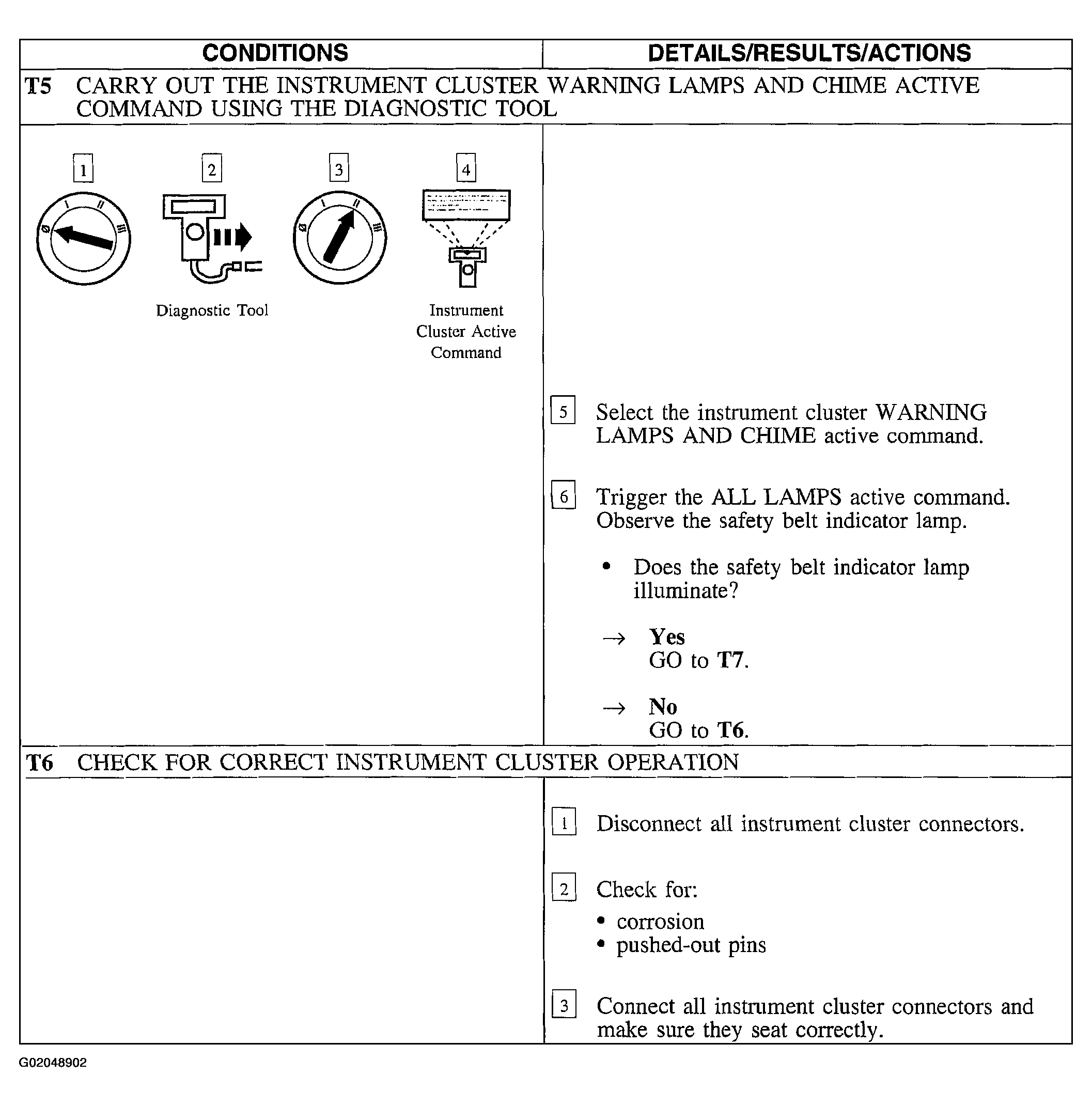

Fig 4: Pinpoint Test T: The Safety Belt Warning Indicator Is Inoperative/Chime Is Operative (Steps T5 & T6)

Courtesy of FORD MOTOR CO.

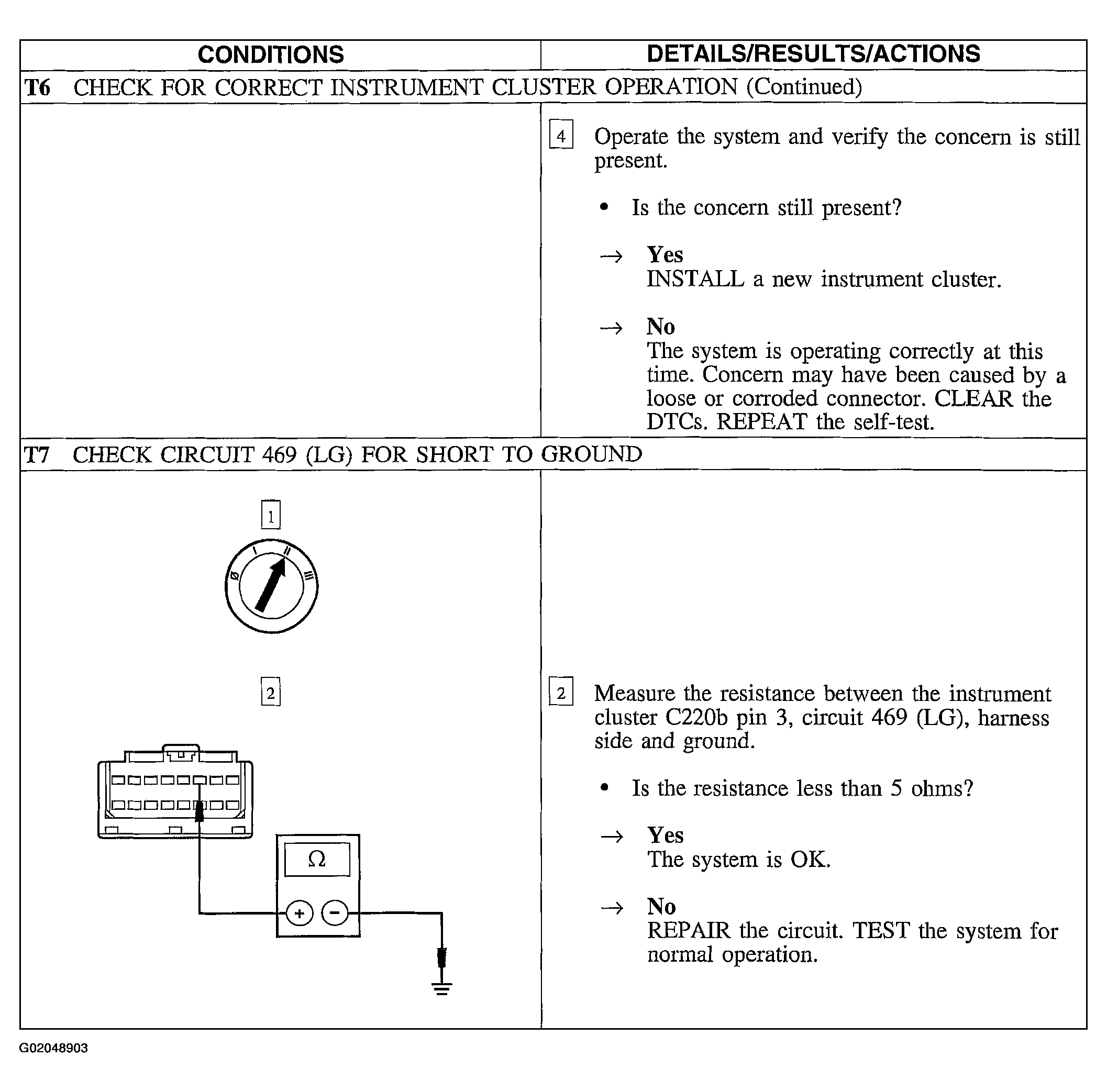

Fig 5: Pinpoint Test T: The Safety Belt Warning Indicator Is Inoperative/Chime Is Operative (Steps T6 Cont. - T7)

Courtesy of FORD MOTOR CO.
