Pinpoint Test S: The Low Coolant Warning Indicator Is Inoperative/Always On-3.0L (4V) Engine

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

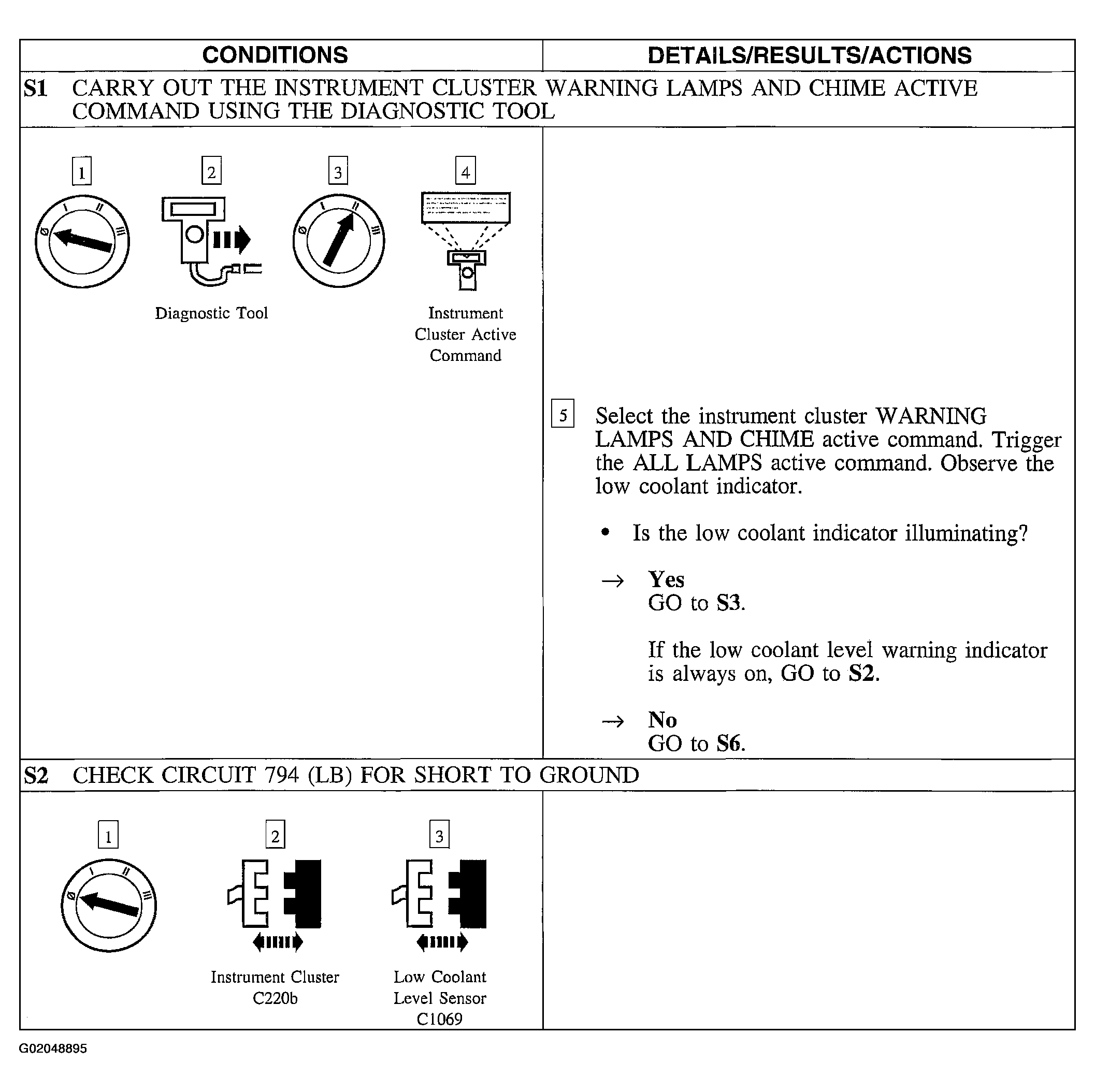

Fig 1: Pinpoint Test S: The Low Coolant Warning Indicator Is Inoperative/Always On - 3.0L (4V) Engine (Steps S1 & S2)

Courtesy of FORD MOTOR CO.

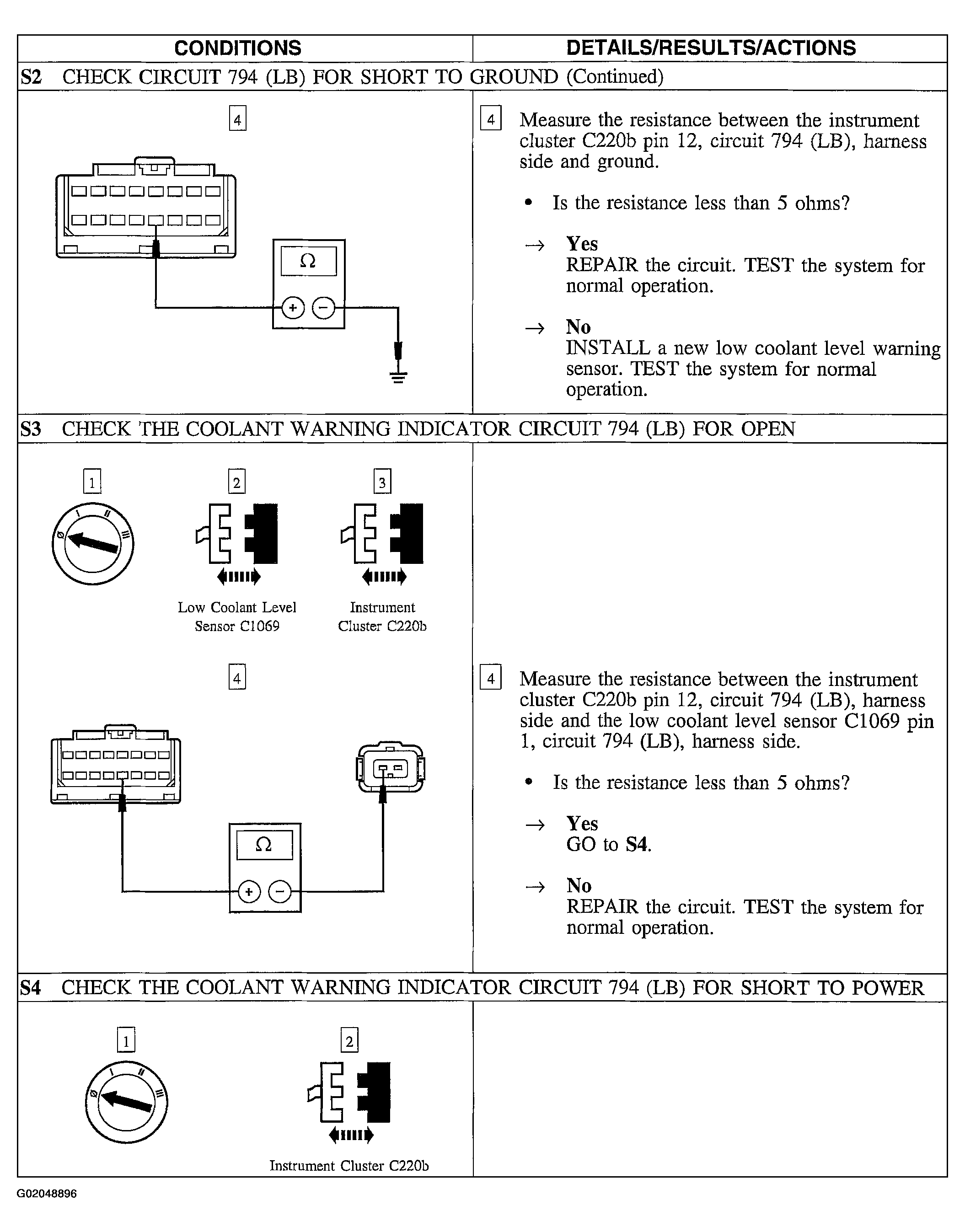

Fig 2: Pinpoint Test S: The Low Coolant Warning Indicator Is Inoperative/Always On - 3.0L (4V) Engine (Steps S2 Cont. - S4)

Courtesy of FORD MOTOR CO.

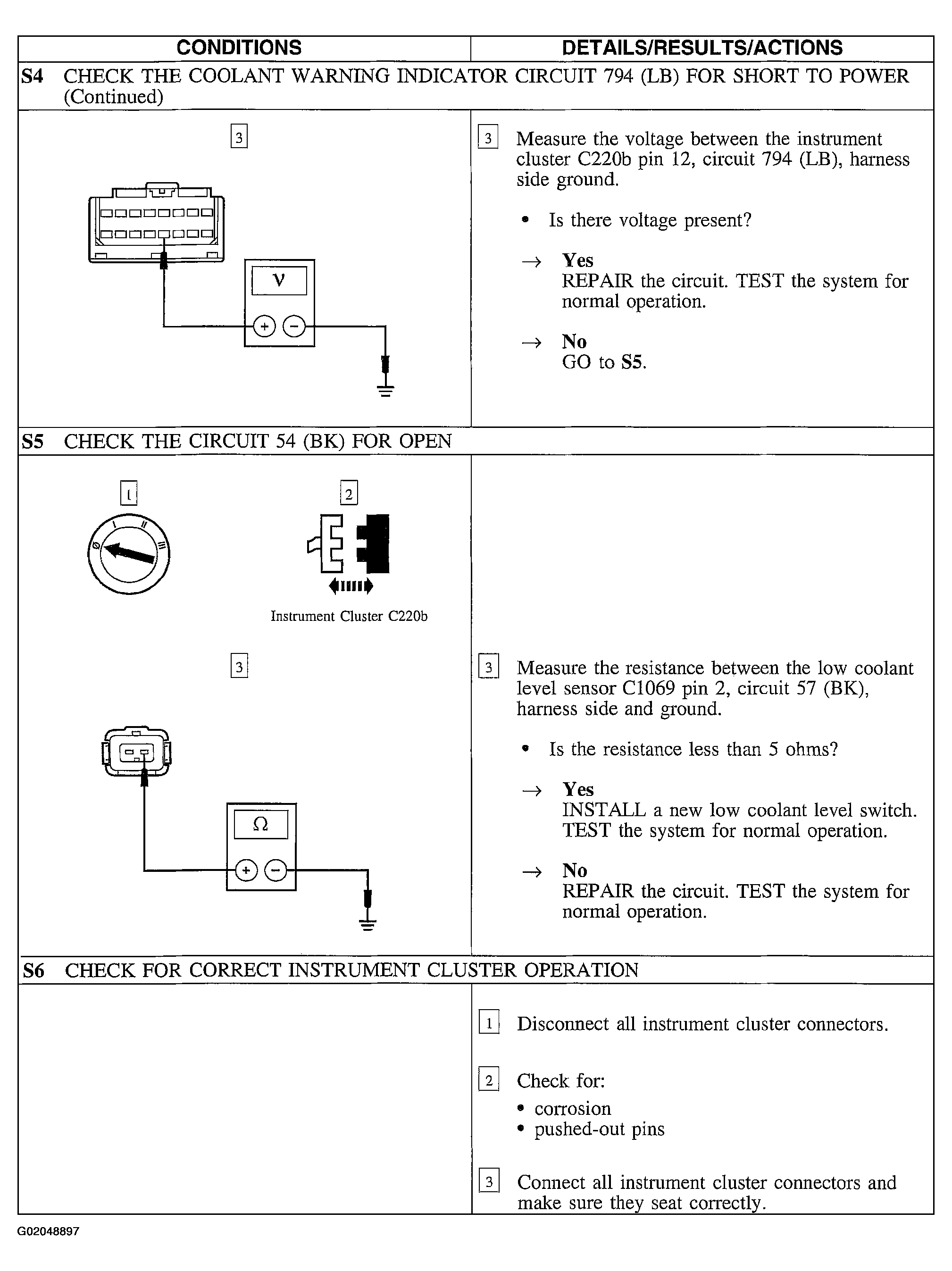

Fig 3: Pinpoint Test S: The Low Coolant Warning Indicator Is Inoperative/Always On - 3.0L (4V) Engine (Steps S4 Cont. - S6)

Courtesy of FORD MOTOR CO.

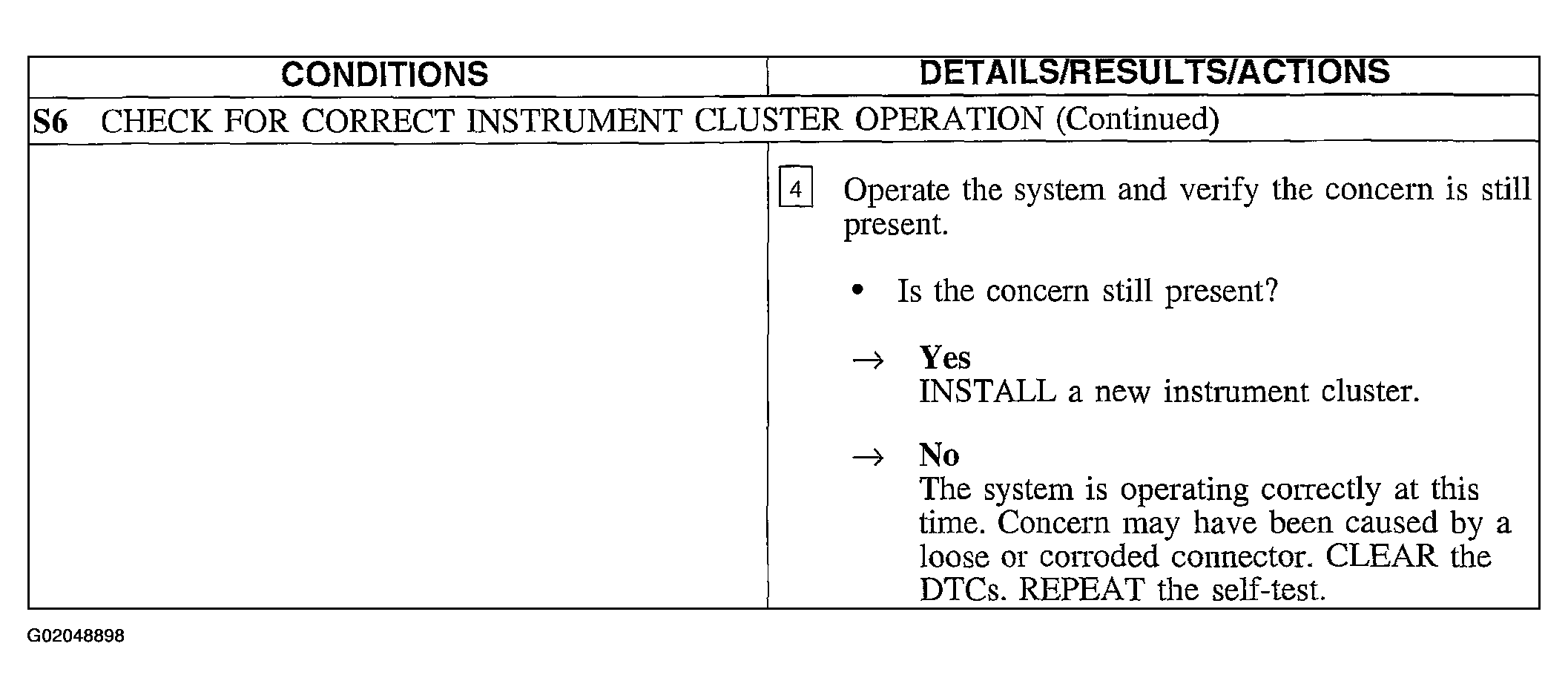

Fig 4: Pinpoint Test S: The Low Coolant Warning Indicator Is Inoperative/Always On - 3.0L (4V) Engine (Step S6 Cont.)

Courtesy of FORD MOTOR CO.
