Pinpoint Test Q: The High Beam Indicator Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

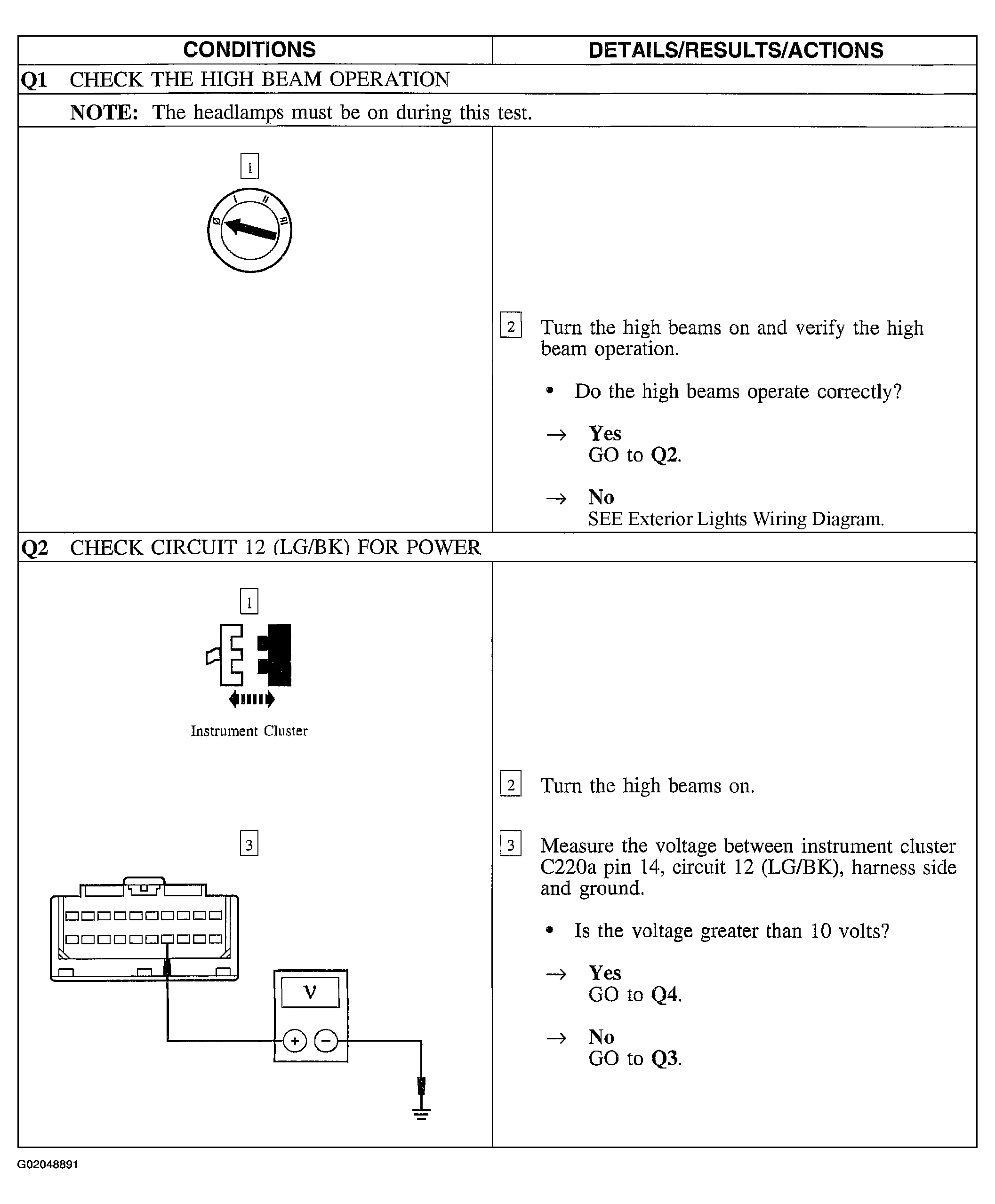

Fig 1: Pinpoint Test Q: The High Beam Indicator Is Inoperative (Steps Q1 & Q2)

Courtesy of FORD MOTOR CO.

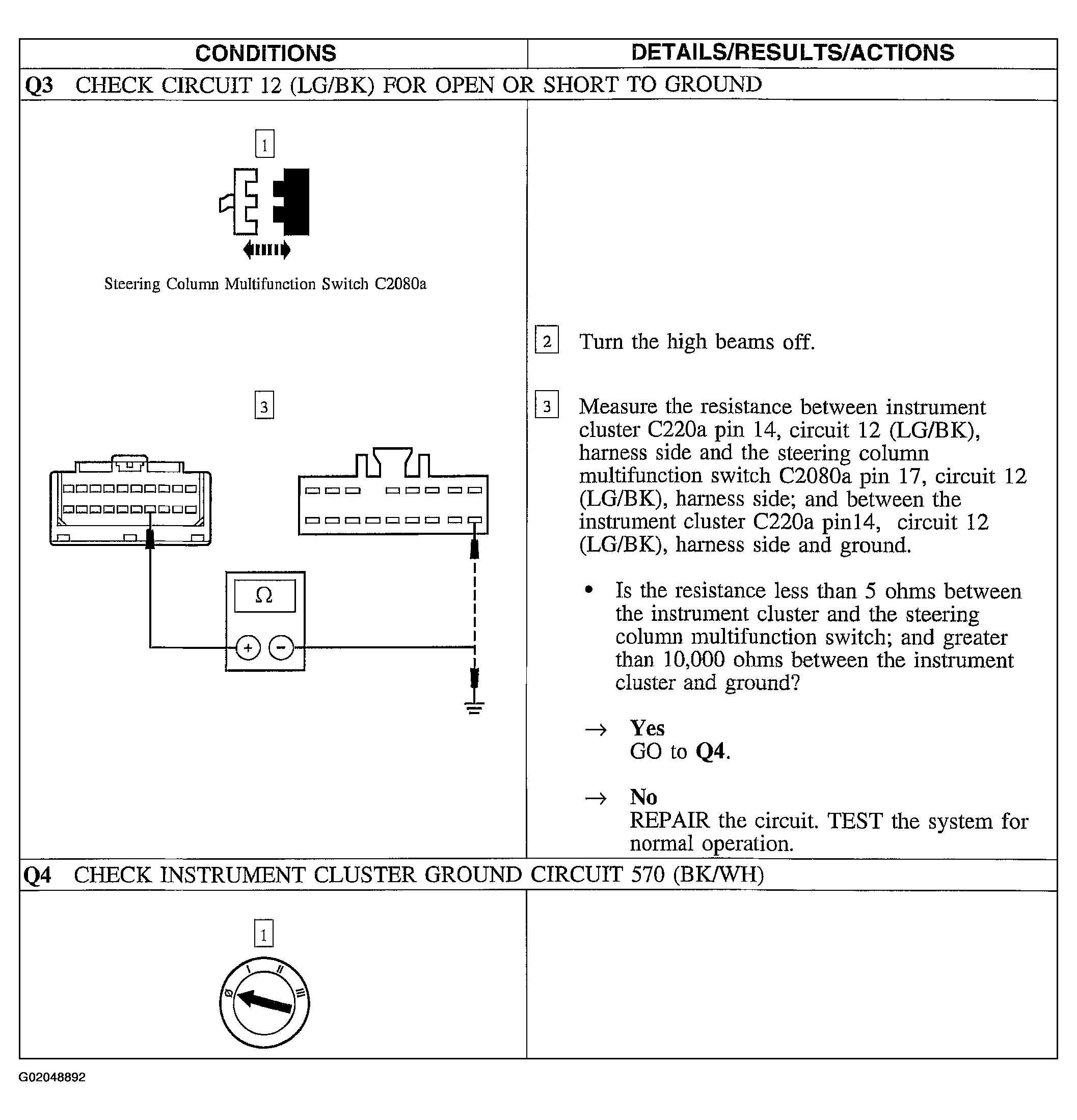

Fig 2: Pinpoint Test Q: The High Beam Indicator Is Inoperative (Steps Q3 & Q4)

Courtesy of FORD MOTOR CO.

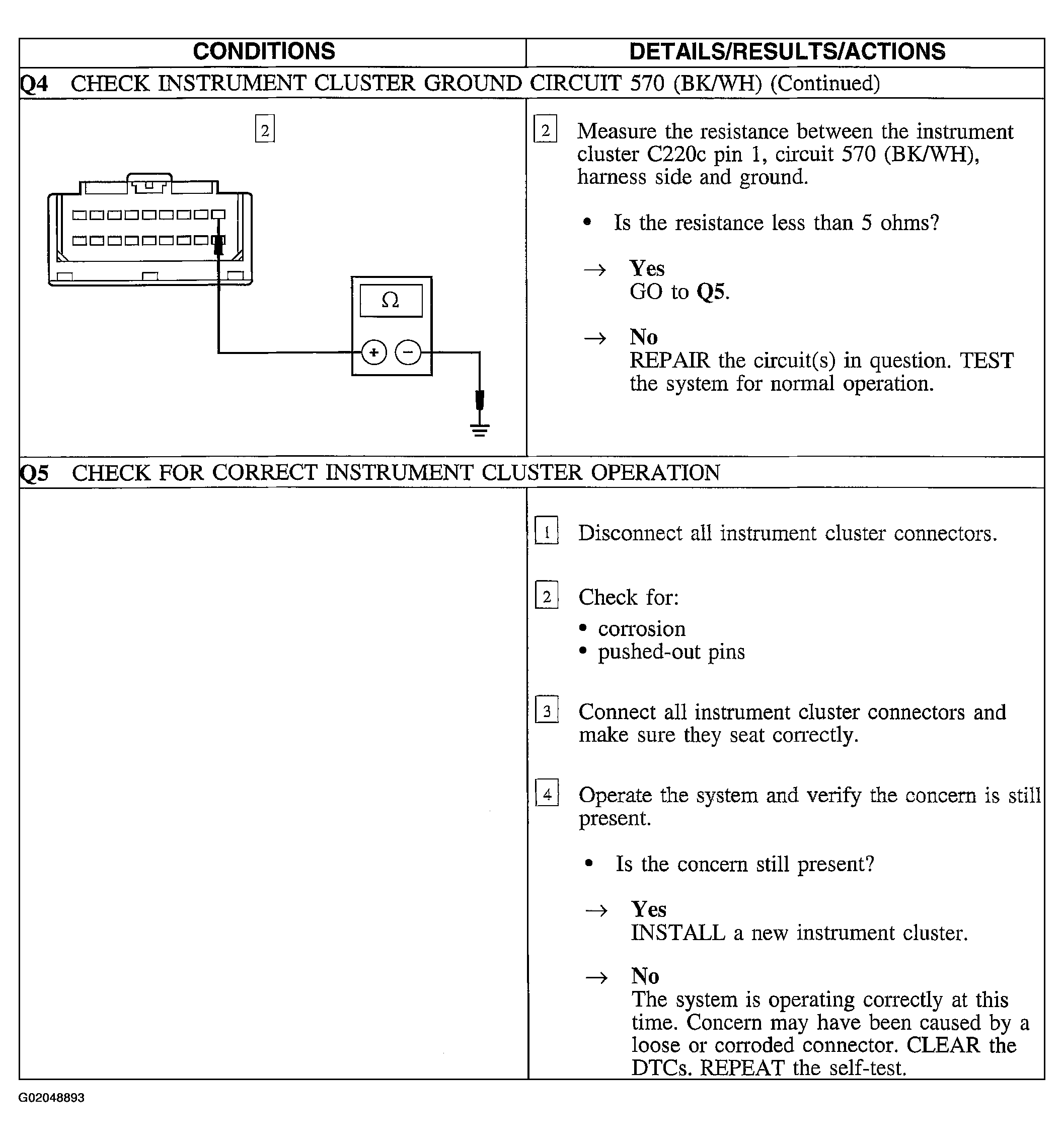

Fig 3: Pinpoint Test Q: The High Beam Indicator Is Inoperative (Steps Q4 Cont. & Q5)

Courtesy of FORD MOTOR CO.
