Pinpoint Test P: The RH Turn Indicator Is Inoperative/Always On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

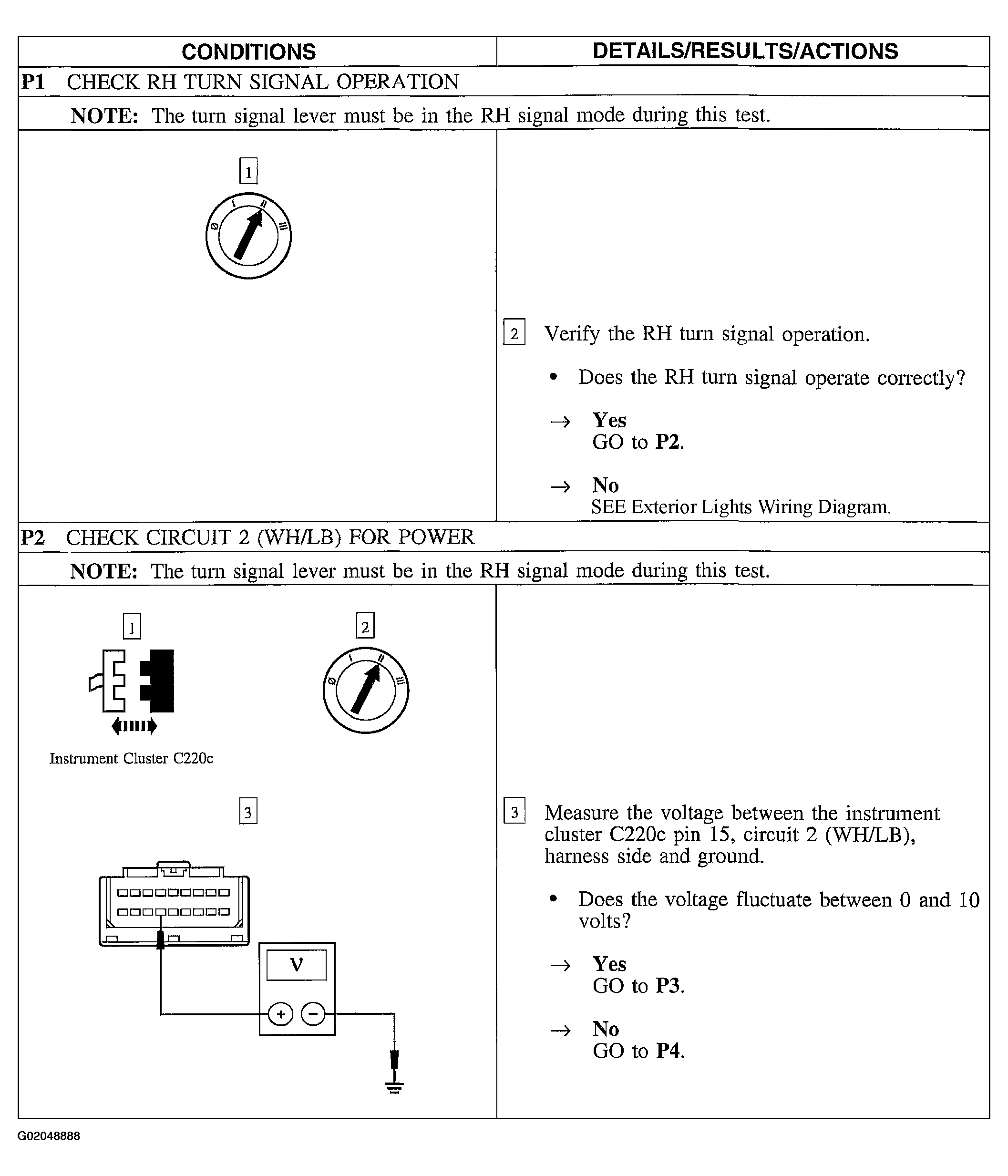

Fig 1: Pinpoint Test P: The RH Turn Indicator Is Inoperative/Always On (Steps P1 & P2)

Courtesy of FORD MOTOR CO.

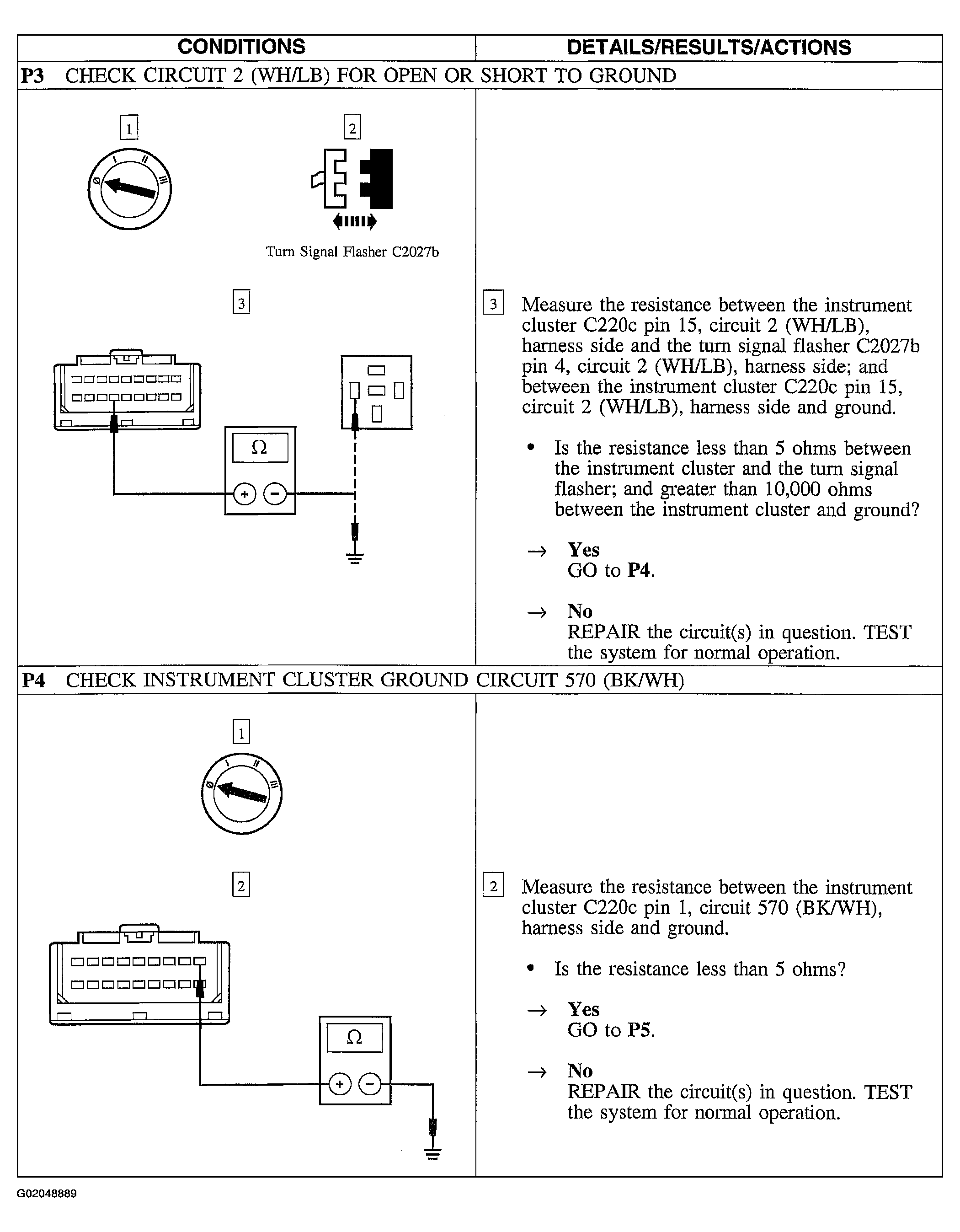

Fig 2: Pinpoint Test P: The RH Turn Indicator Is Inoperative/Always On (Steps P3 & P4)

Courtesy of FORD MOTOR CO.

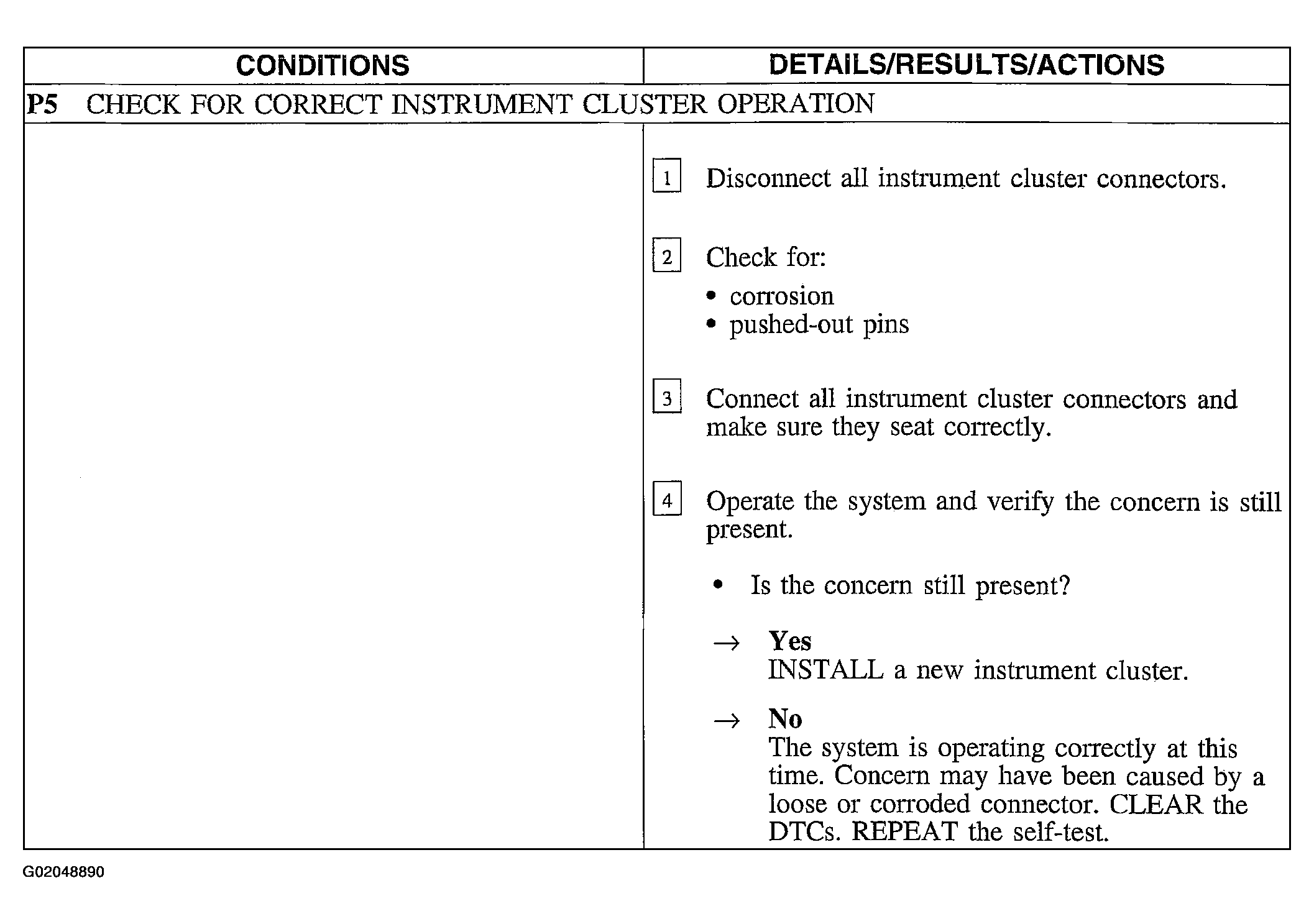

Fig 3: Pinpoint Test P: The RH Turn Indicator Is Inoperative/Always On (Step P5)

Courtesy of FORD MOTOR CO.
