Pinpoint Test O: The LH Turn Indicator Is Inoperative/Always On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

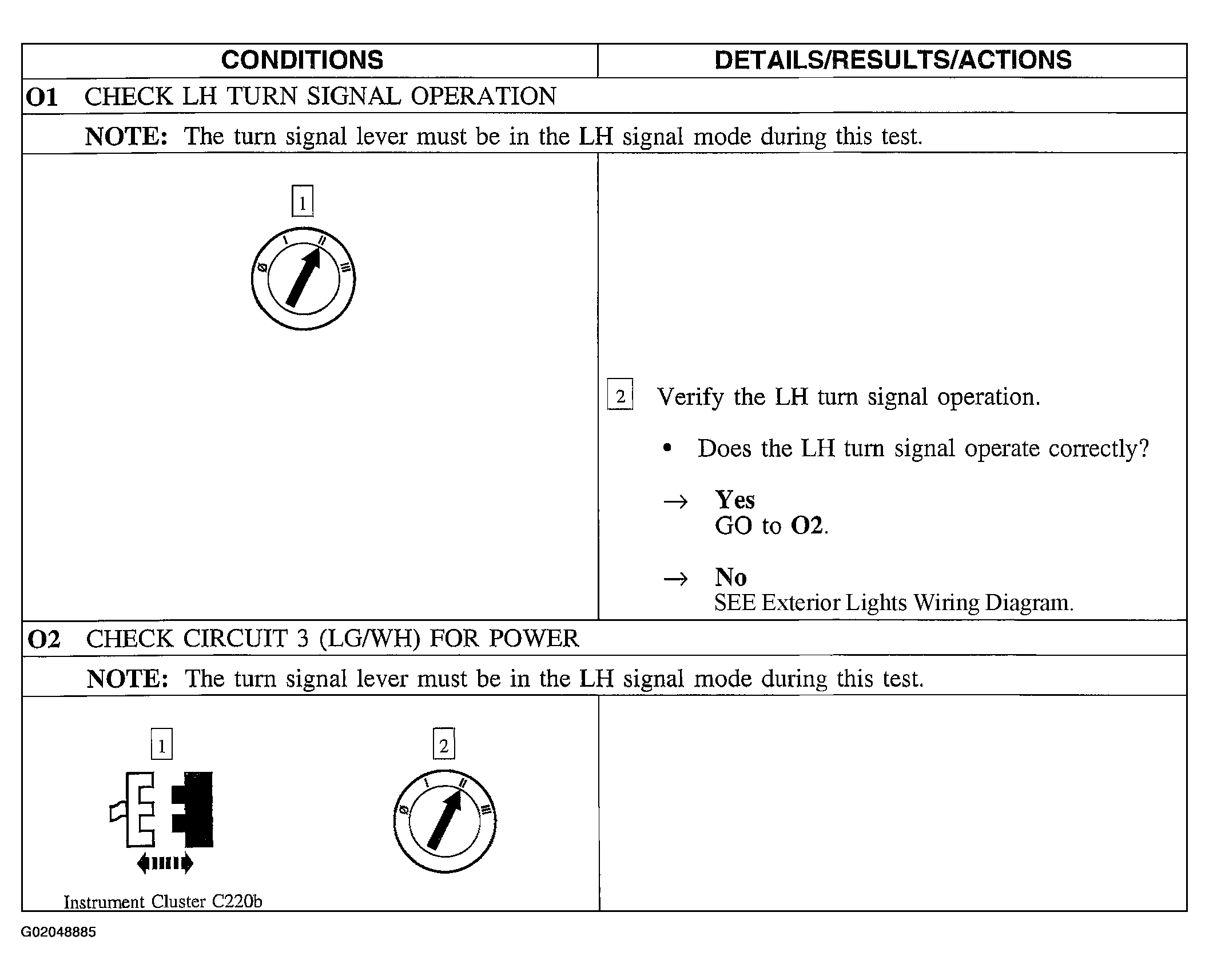

Fig 1: Pinpoint Test O: The LH Turn Indicator Is Inoperative/Always On (Steps O1 & O2)

Courtesy of FORD MOTOR CO.

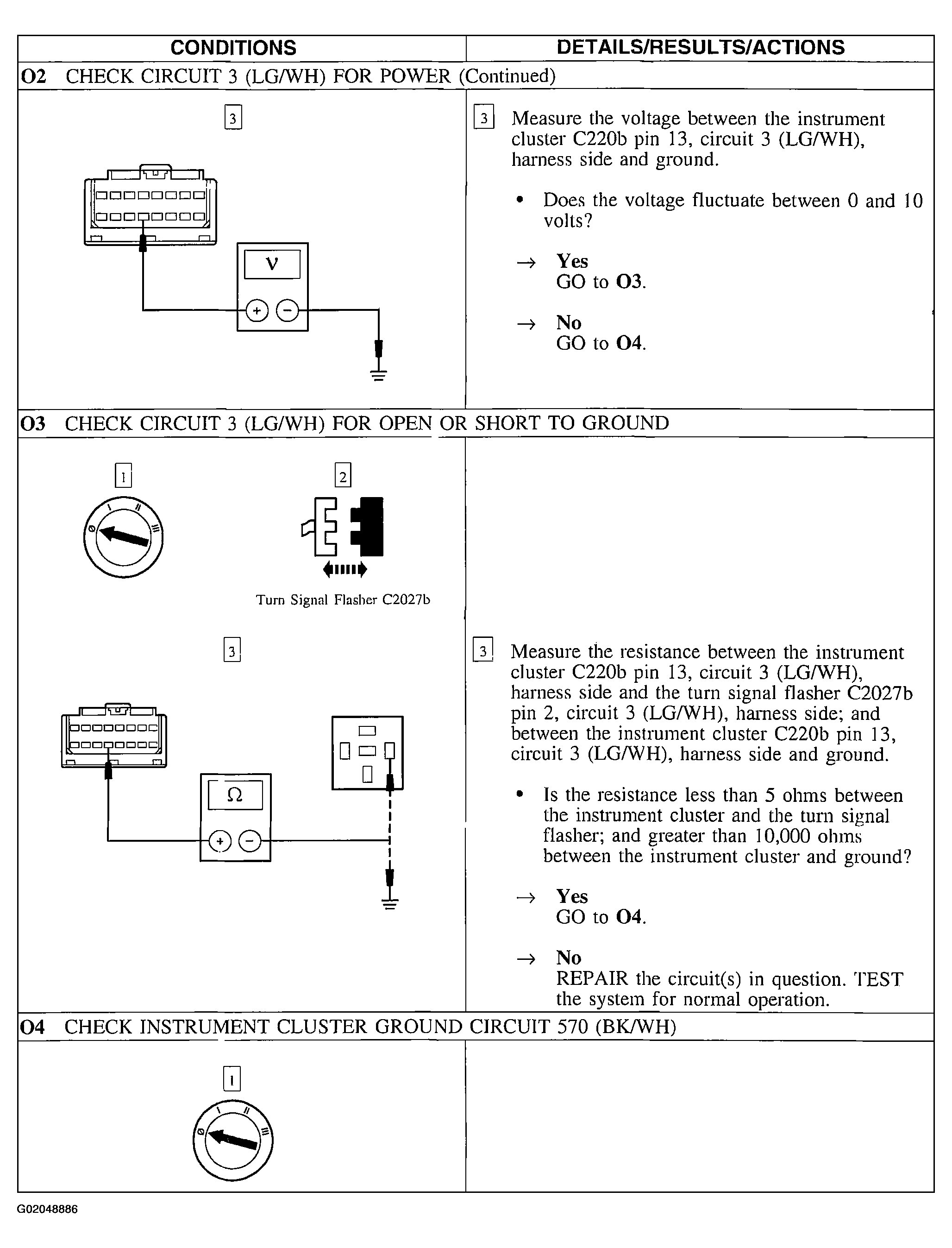

Fig 2: Pinpoint Test O: The LH Turn Indicator Is Inoperative/Always On (Steps O2 Cont. - O4)

Courtesy of FORD MOTOR CO.

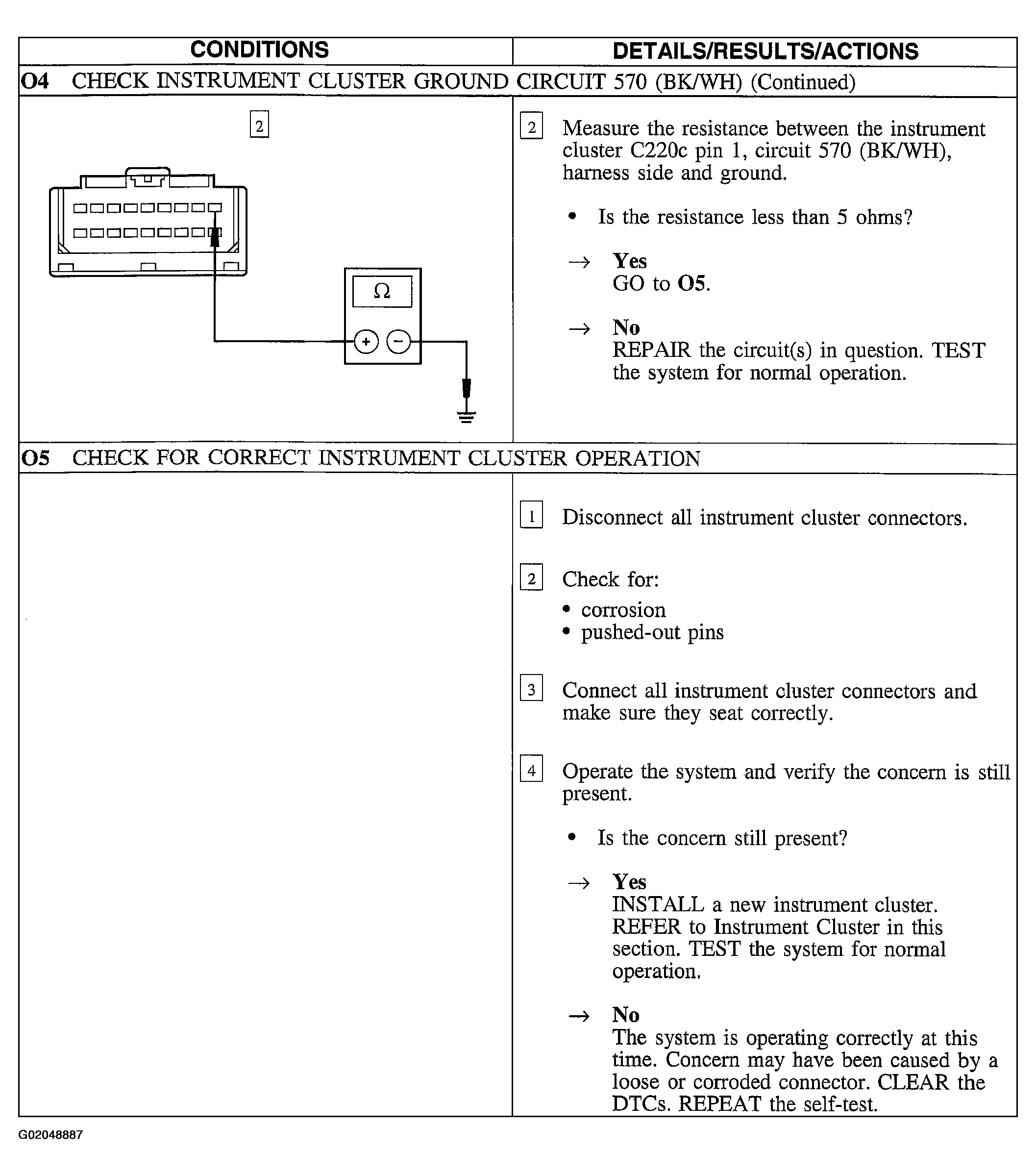

Fig 3: Pinpoint Test O: The LH Turn Indicator Is Inoperative/Always On (Steps O4 Cont. & O5)

Courtesy of FORD MOTOR CO.
