Pinpoint Test N: The Air Bag Indicator Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

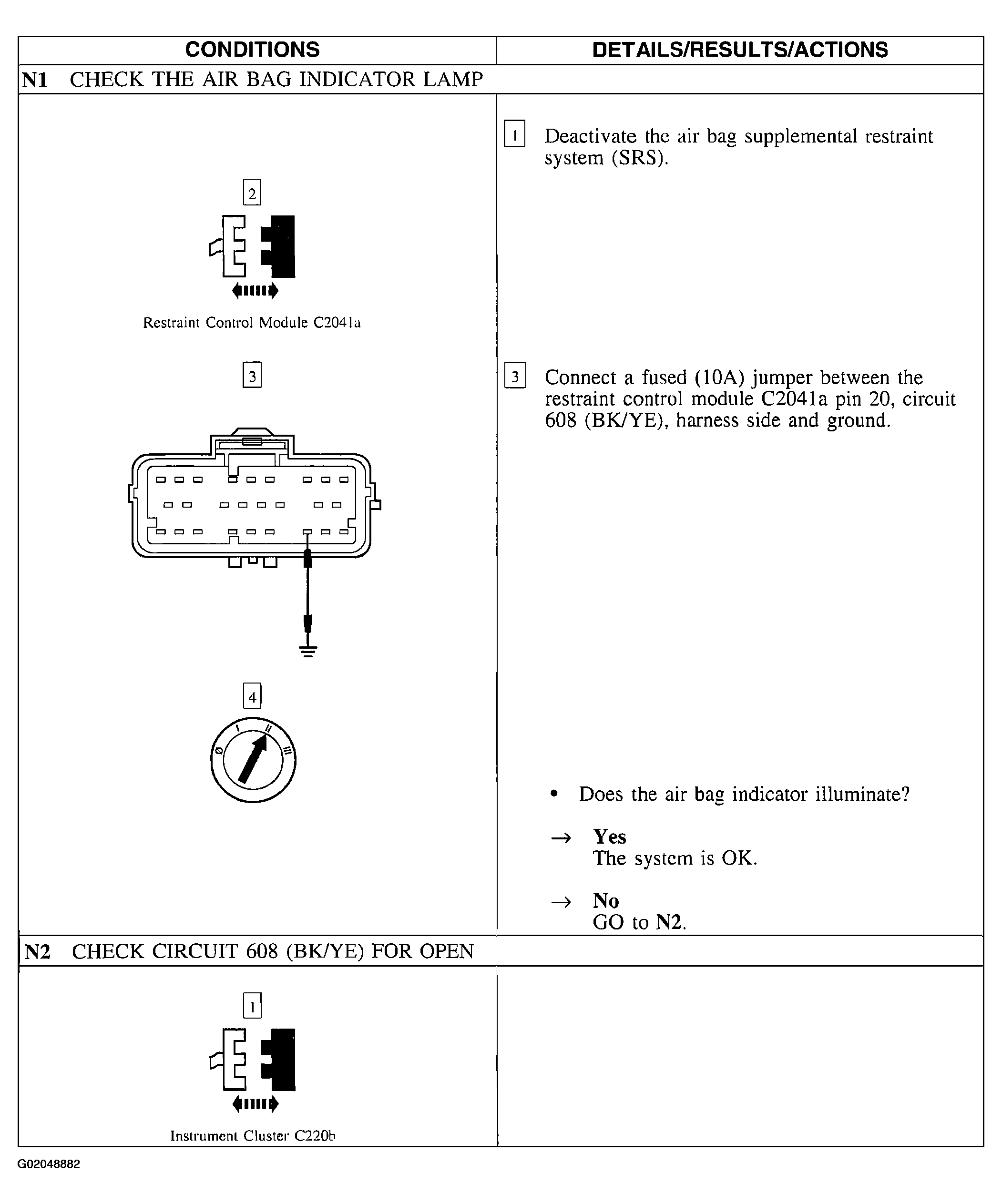

Fig 1: Pinpoint Test N: The Air Bag Indicator Is Inoperative (Steps N1 & N2)

Courtesy of FORD MOTOR CO.

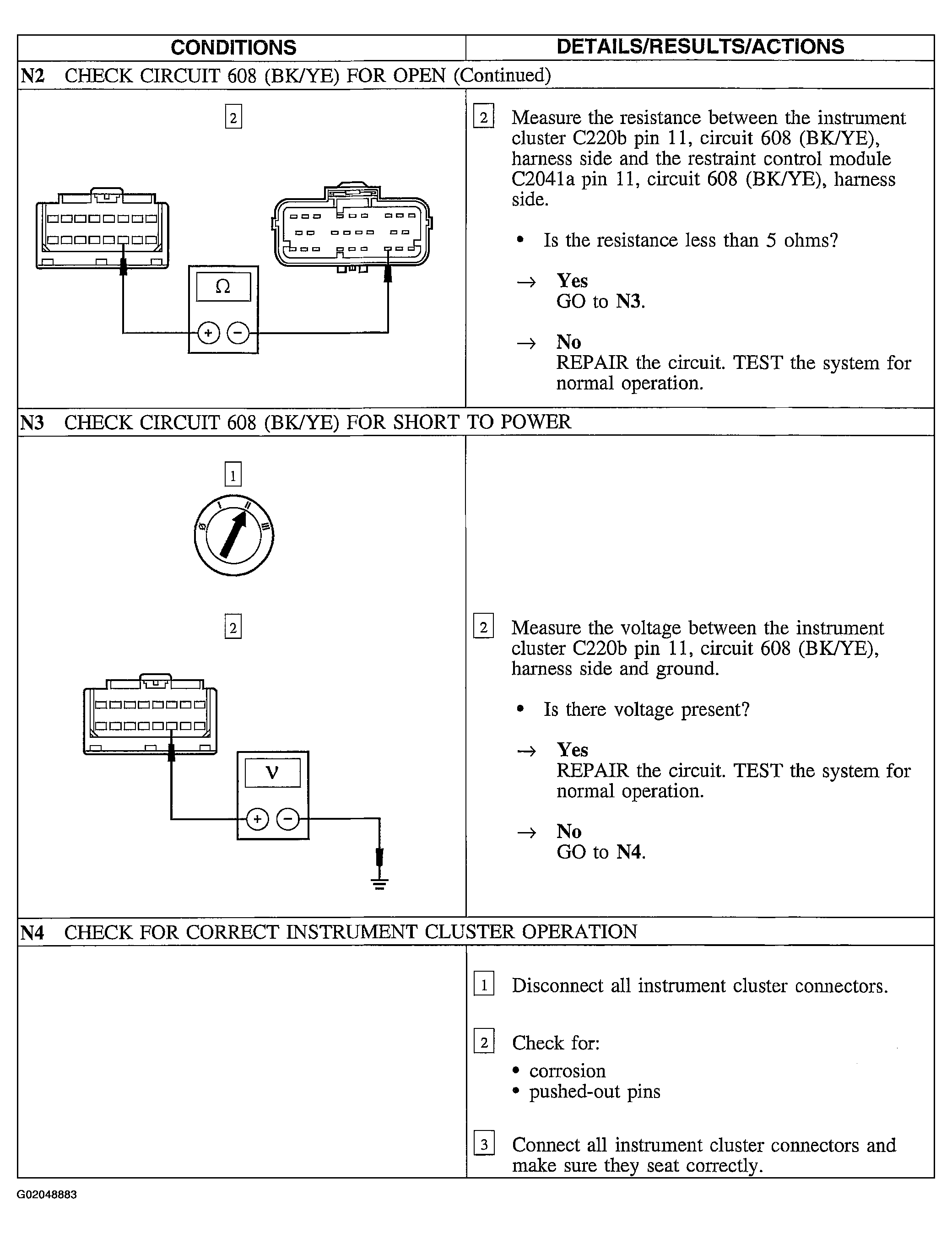

Fig 2: Pinpoint Test N: The Air Bag Indicator Is Inoperative (Steps N2 Cont. - N4)

Courtesy of FORD MOTOR CO.

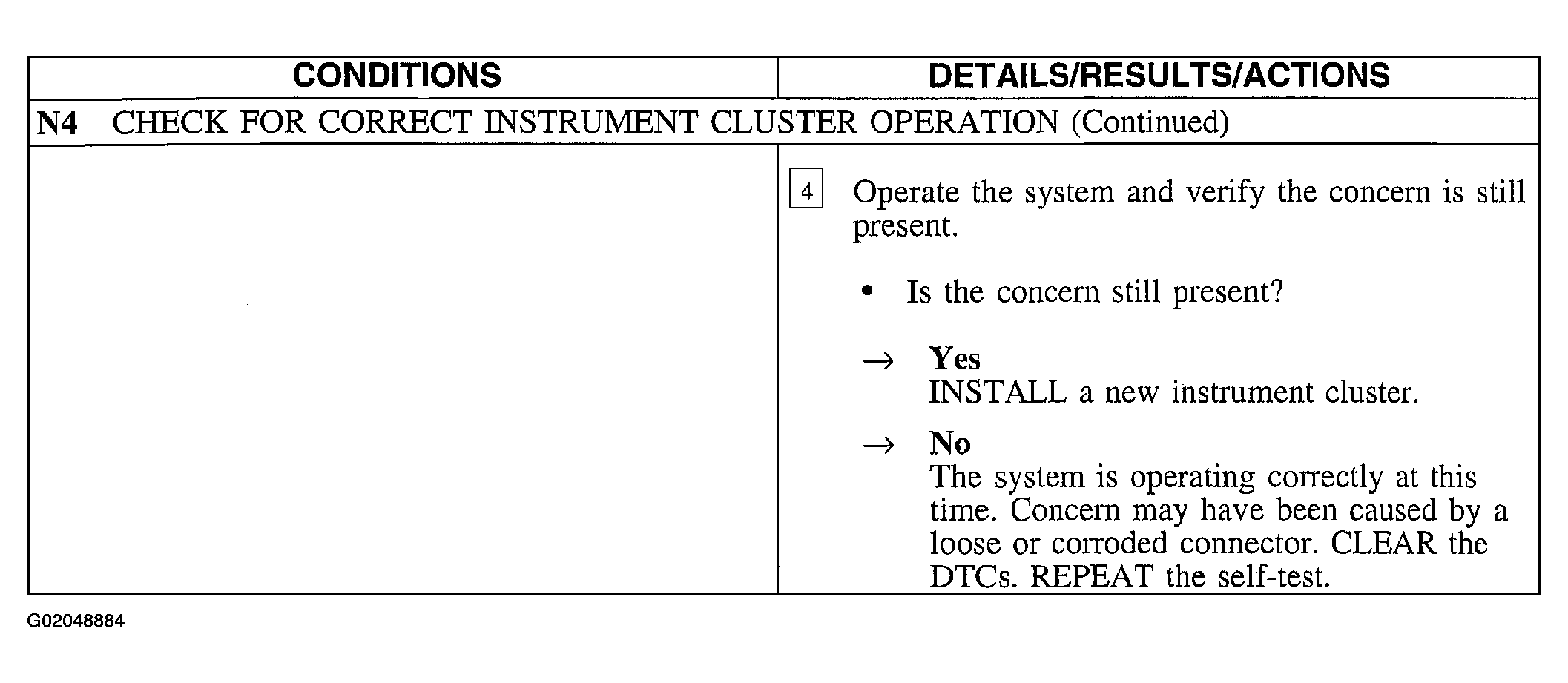

Fig 3: Pinpoint Test N: The Air Bag Indicator Is Inoperative (Step N4 Cont.)

Courtesy of FORD MOTOR CO.
