Pinpoint Test M: The Anti-Lock Brake Indicator Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

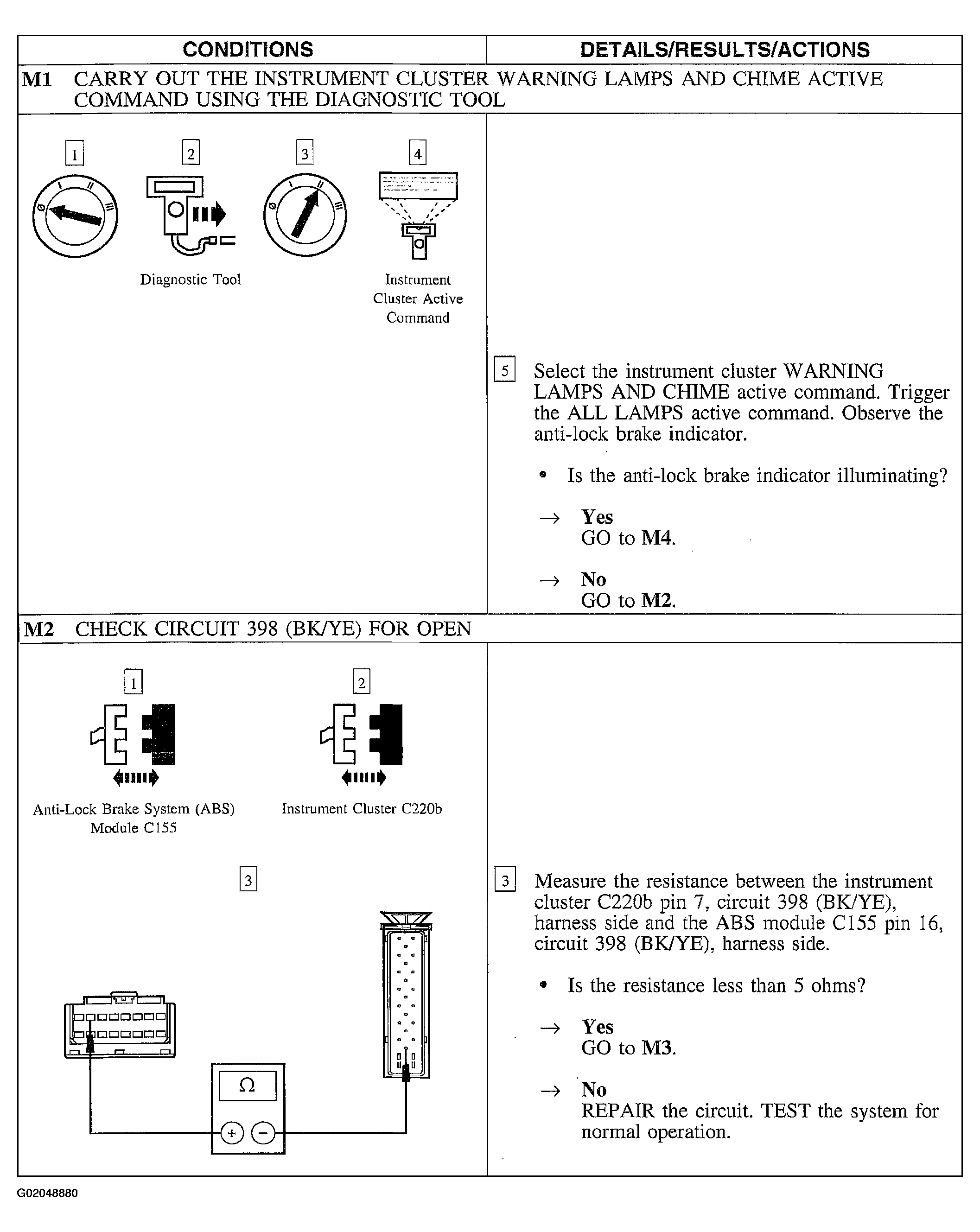

Fig 1: Pinpoint Test M: The Anti-Lock Brake Indicator Is Inoperative (Steps M1 & M2)
G02048880Courtesy of FORD MOTOR CO.

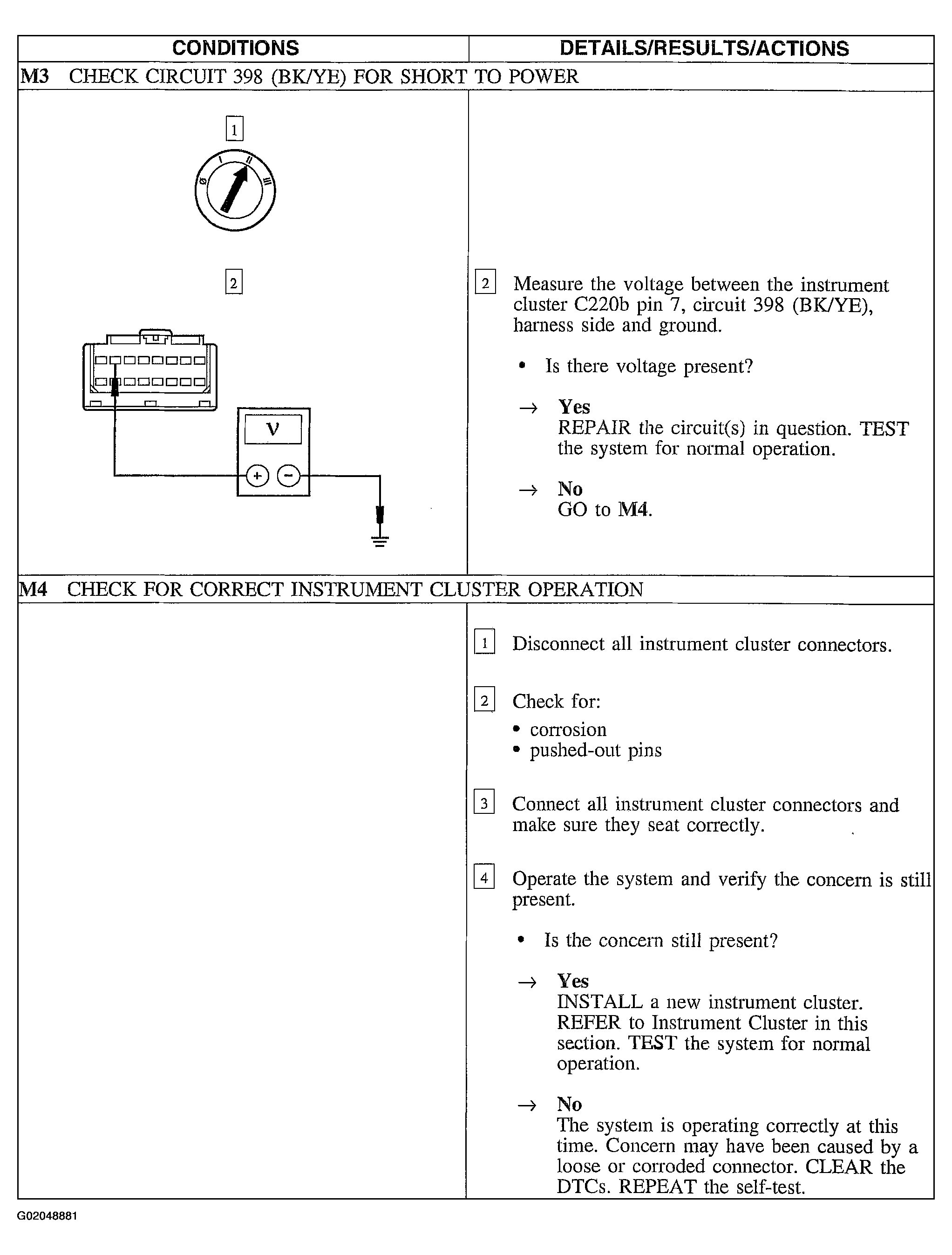

Fig 2: Pinpoint Test M: The Anti-Lock Brake Indicator Is Inoperative (Steps M3 & M4)
G02048881Courtesy of FORD MOTOR CO.
