Pinpoint Test L: The Low Oil Pressure Indicator Is Inoperative/Always On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

Fig 1: Pinpoint Test L: The Low Oil Pressure Indicator Is Inoperative/Always On (Step L1)

Courtesy of FORD MOTOR CO.

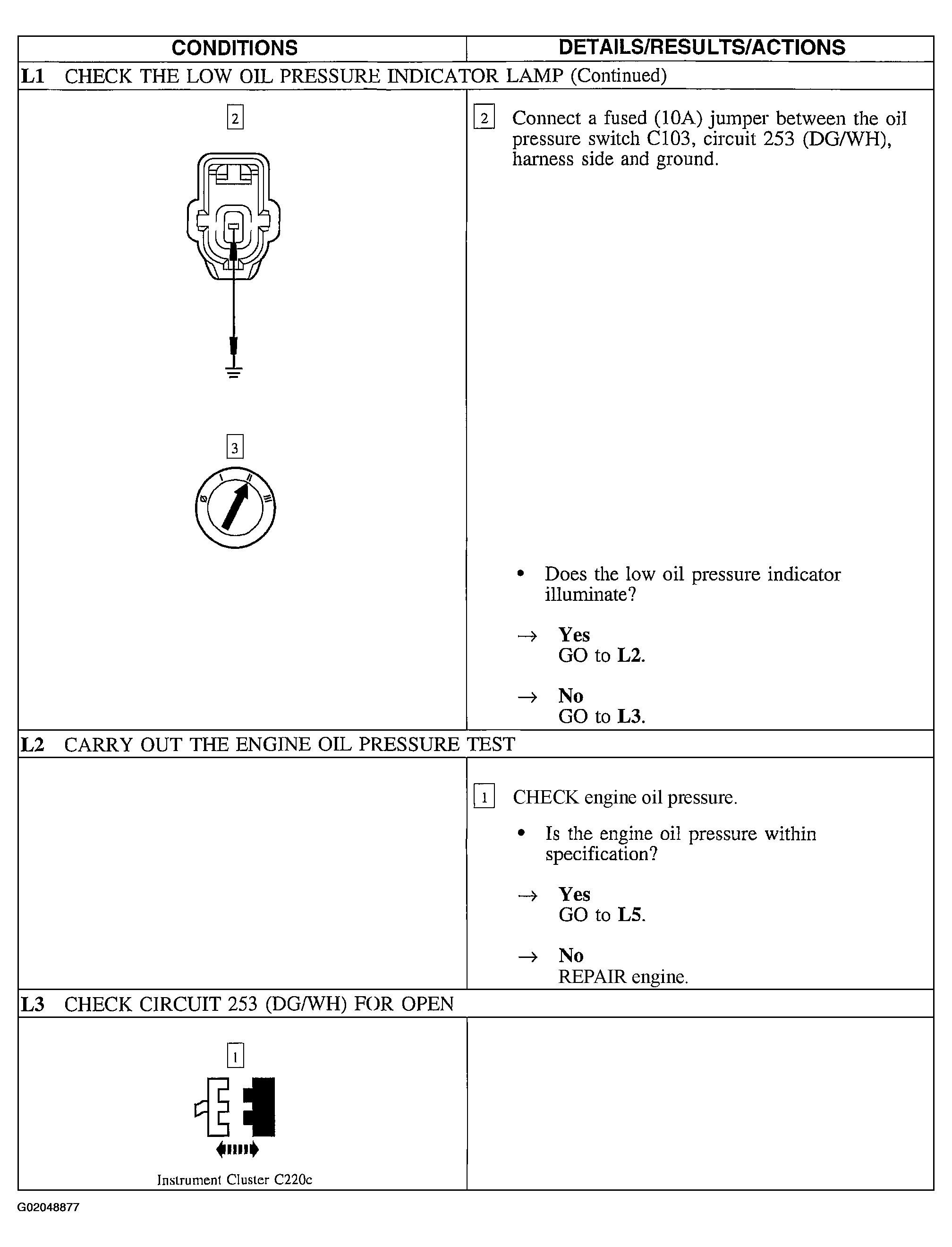

Fig 2: Pinpoint Test L: The Low Oil Pressure Indicator Is Inoperative/Always On (Steps L1 Cont. - L3)

Courtesy of FORD MOTOR CO.

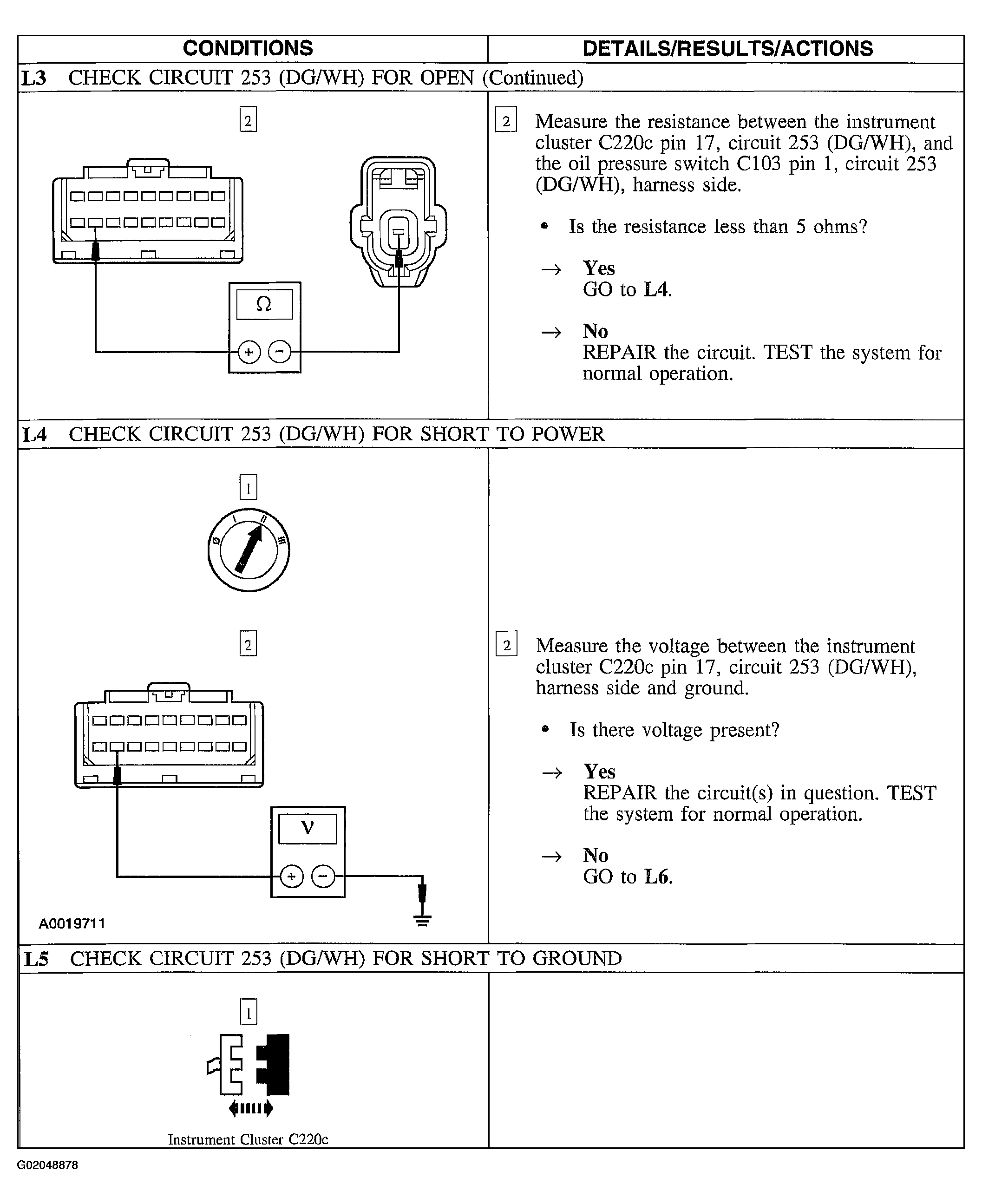

Fig 3: Pinpoint Test L: The Low Oil Pressure Indicator Is Inoperative/Always On (Steps L3 Cont. - L5)

Courtesy of FORD MOTOR CO.

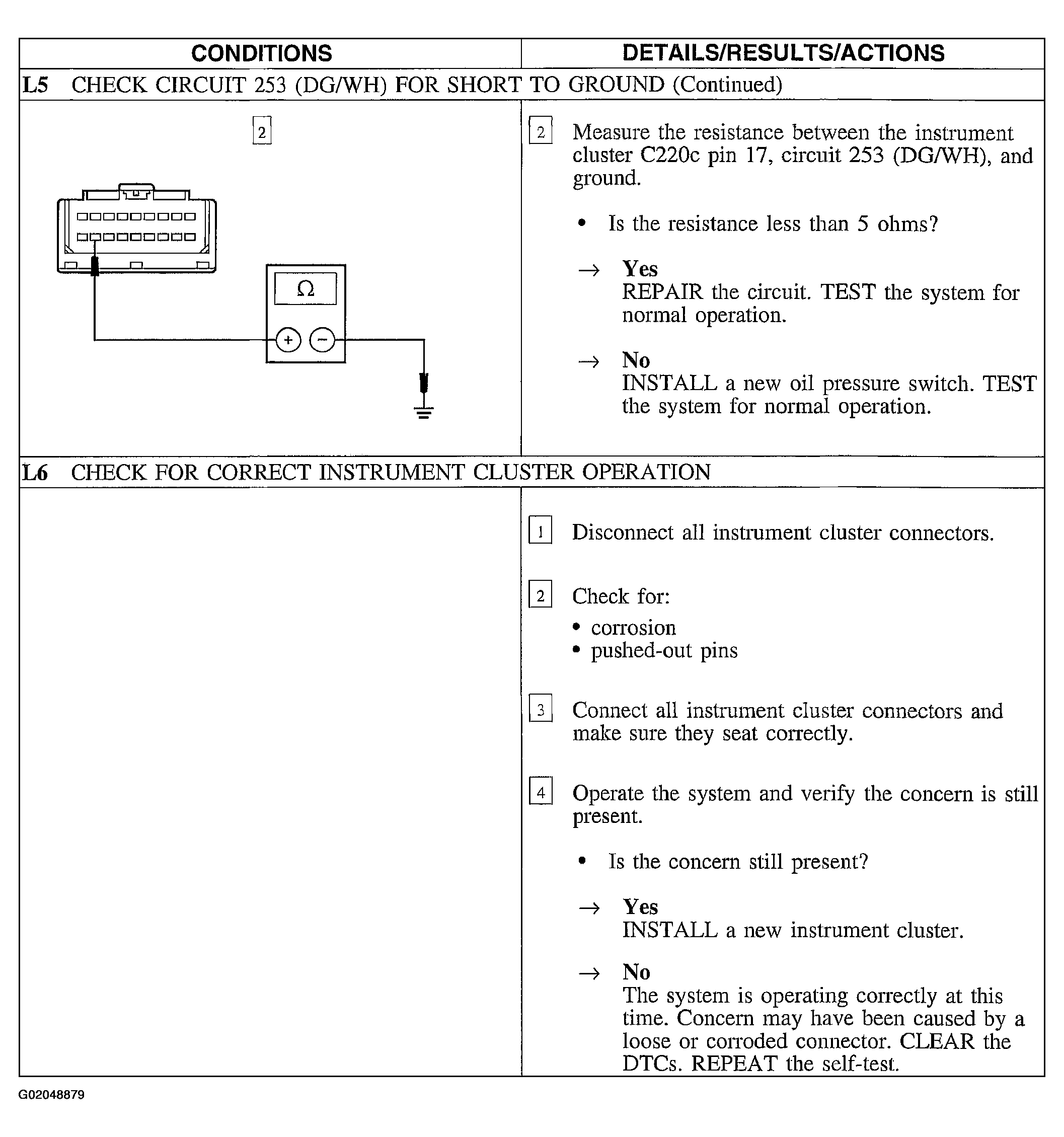

Fig 4: Pinpoint Test L: The Low Oil Pressure Indicator Is Inoperative/Always On (Steps L5 Cont. - L6)

Courtesy of FORD MOTOR CO.
