Pinpoint Test K: The Charge System Warning Indicator Is Never On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

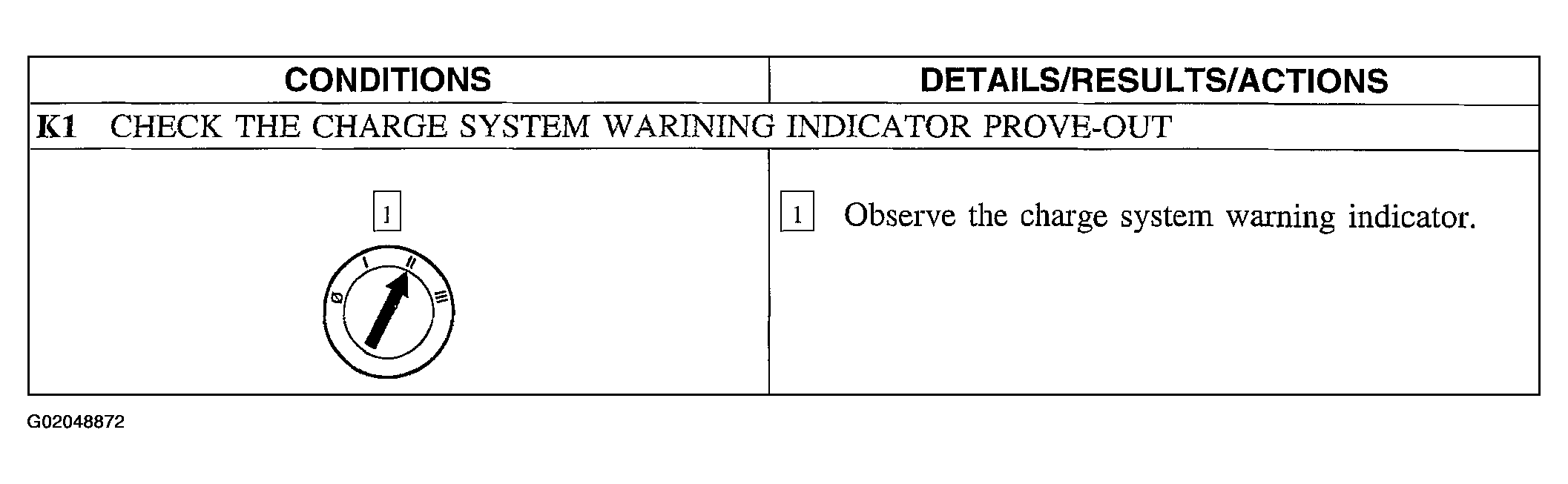

Fig 1: Pinpoint Test K: The Charge System Warning Indicator Is Never On (Step K1)

Courtesy of FORD MOTOR CO.

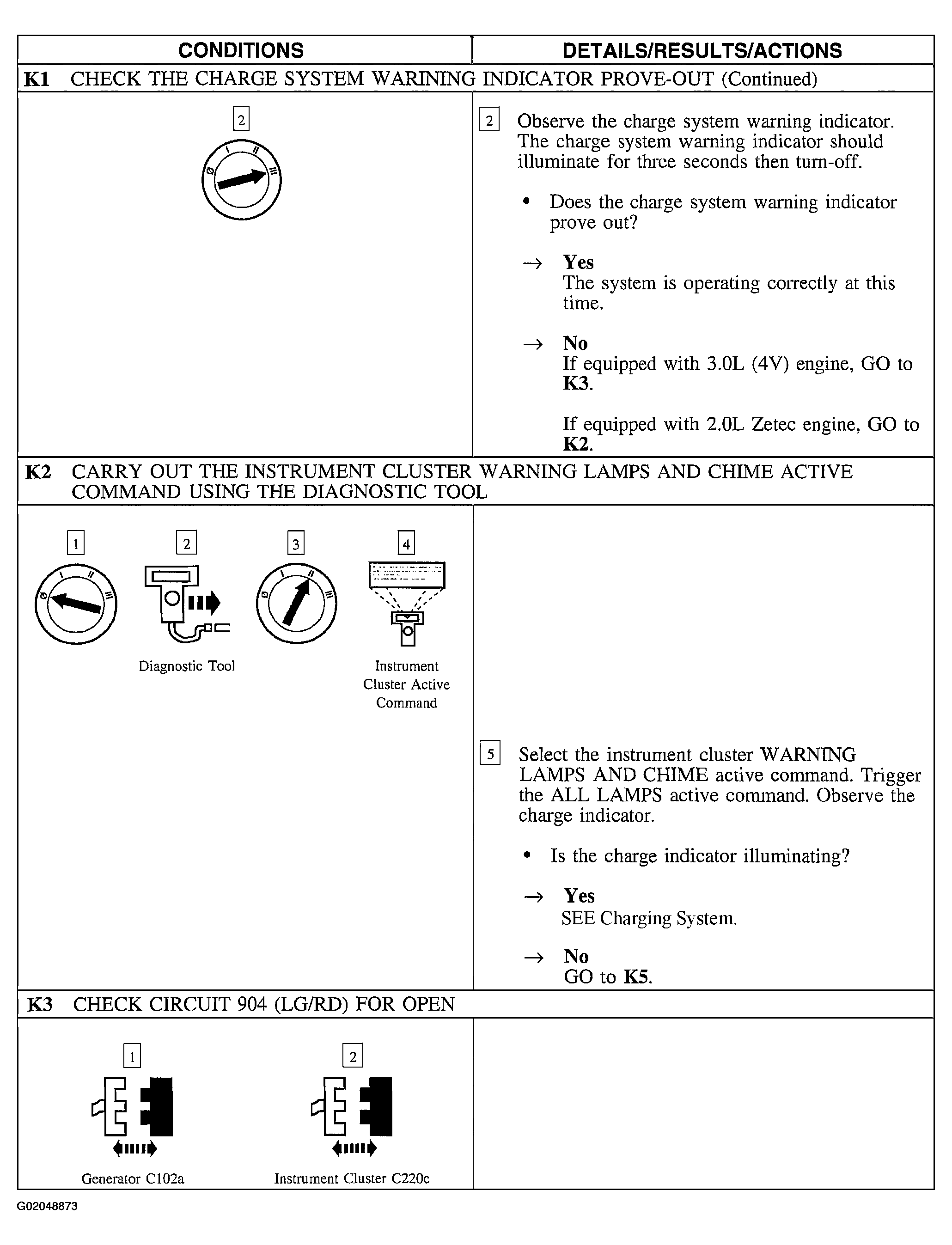

Fig 2: Pinpoint Test K: The Charge System Warning Indicator Is Never On (Steps K1 Cont. - K3)

Courtesy of FORD MOTOR CO.

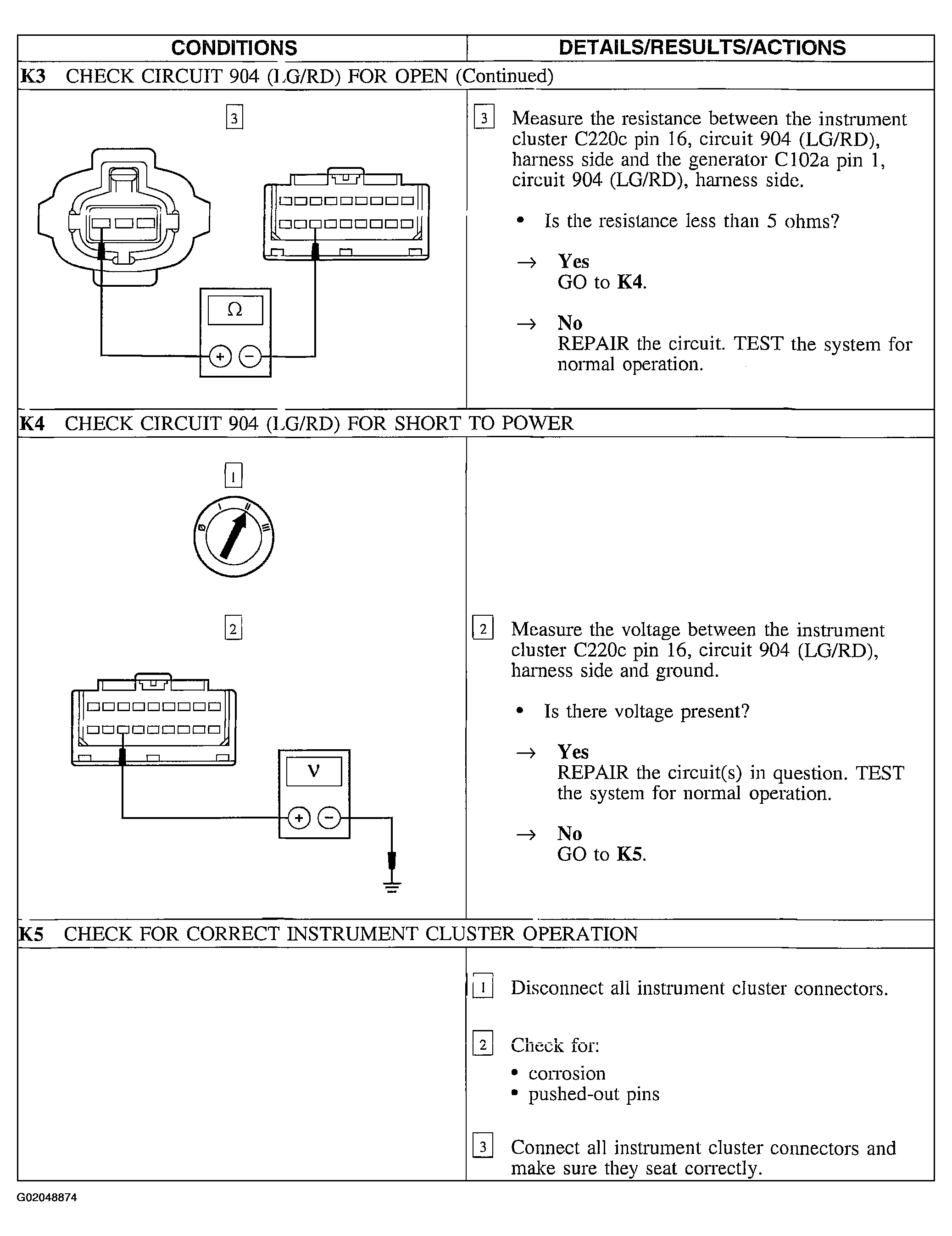

Fig 3: Pinpoint Test K: The Charge System Warning Indicator Is Never On (Steps K3 Cont. - K5)

Courtesy of FORD MOTOR CO.

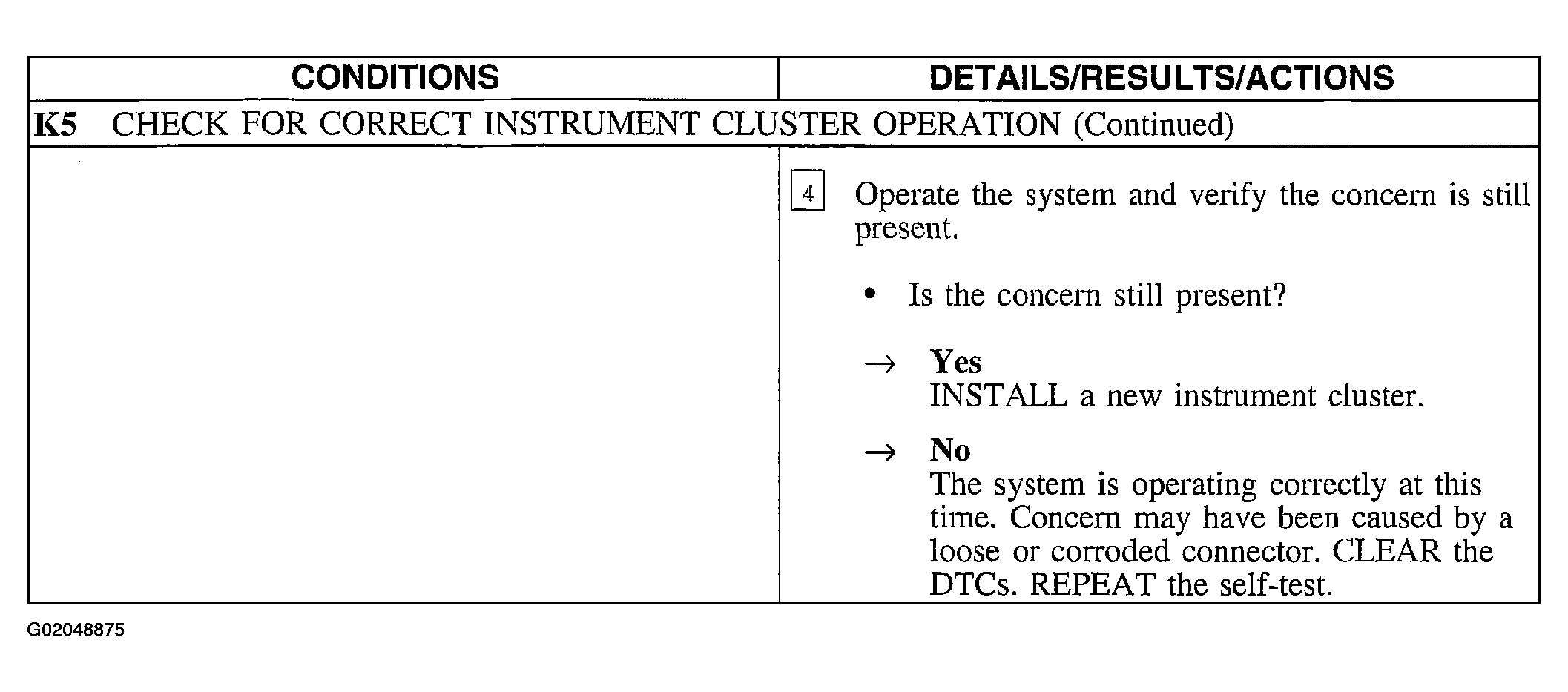

Fig 4: Pinpoint Test K: The Charge System Warning Indicator Is Never On (Step K5 Cont.)

Courtesy of FORD MOTOR CO.
