Pinpoint Test J: The Theft Indicator Is Inoperative

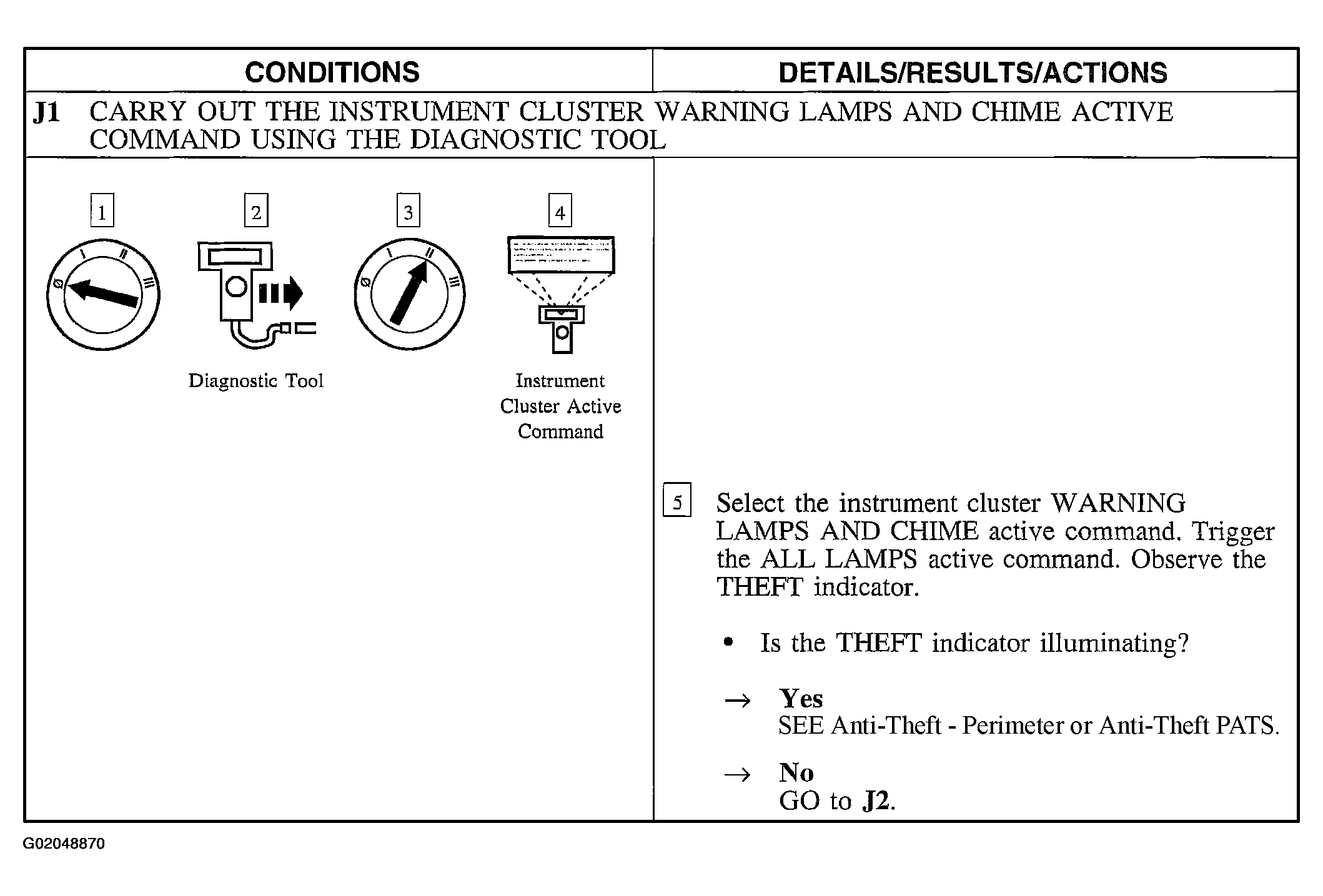

Fig 1: Pinpoint Test J: The Theft Indicator Is Inoperative (Step J1)
G02048870Courtesy of FORD MOTOR CO.

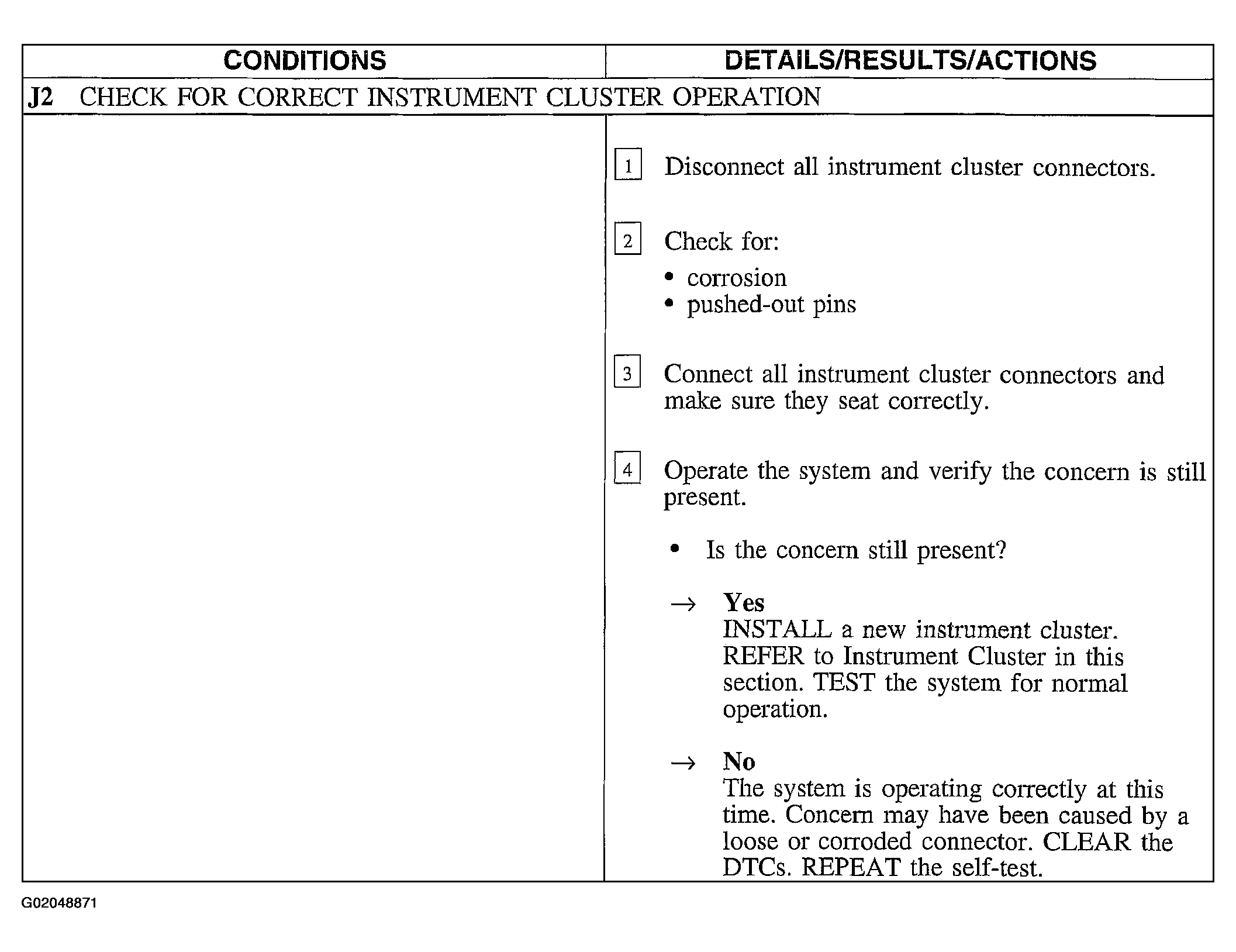

Fig 2: Pinpoint Test J: The Theft Indicator Is Inoperative (Step J2)
G02048871Courtesy of FORD MOTOR CO.
