Pinpoint Test H: The Low Fuel Warning Indicator Is Never/Always On

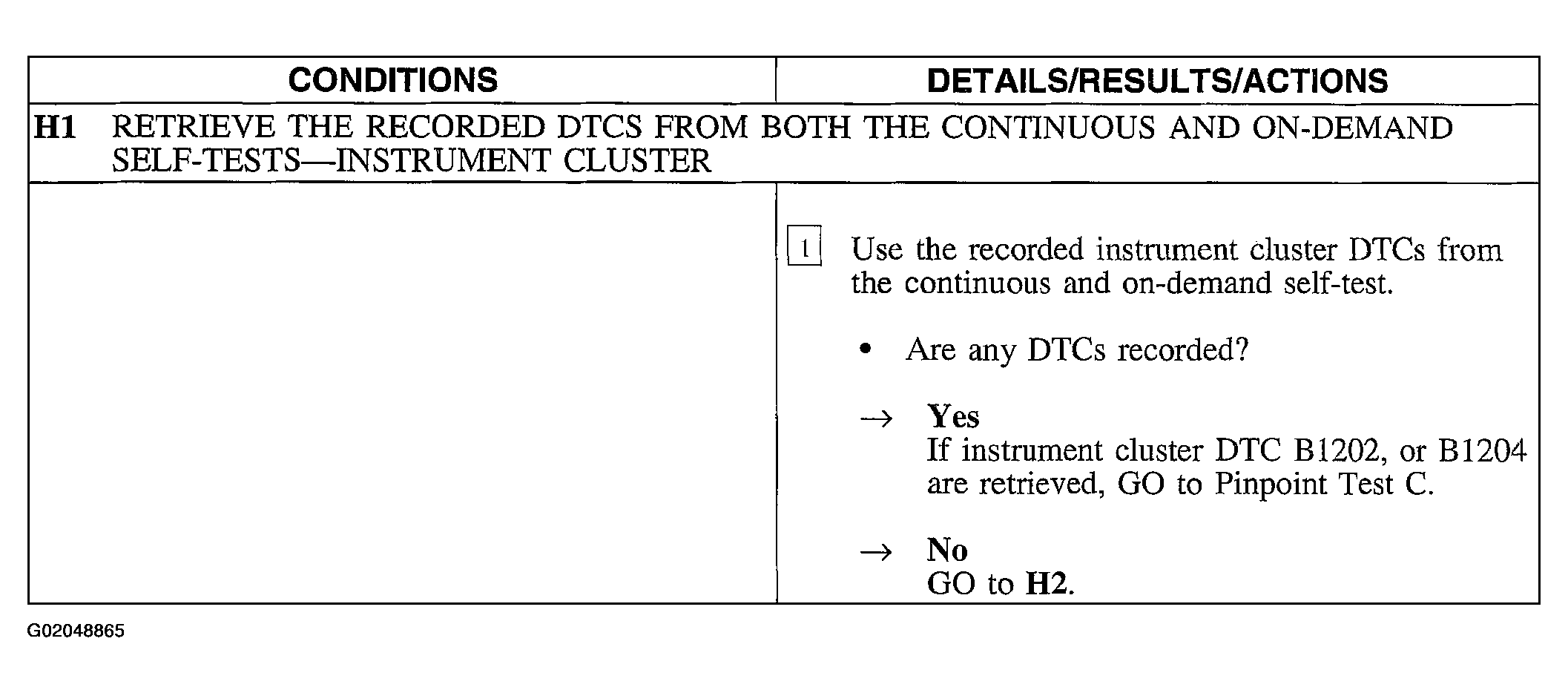

Fig 1: Pinpoint Test H: The Low Fuel Warning Indicator Is Never/Always On (Step H1)
G02048865Courtesy of FORD MOTOR CO.

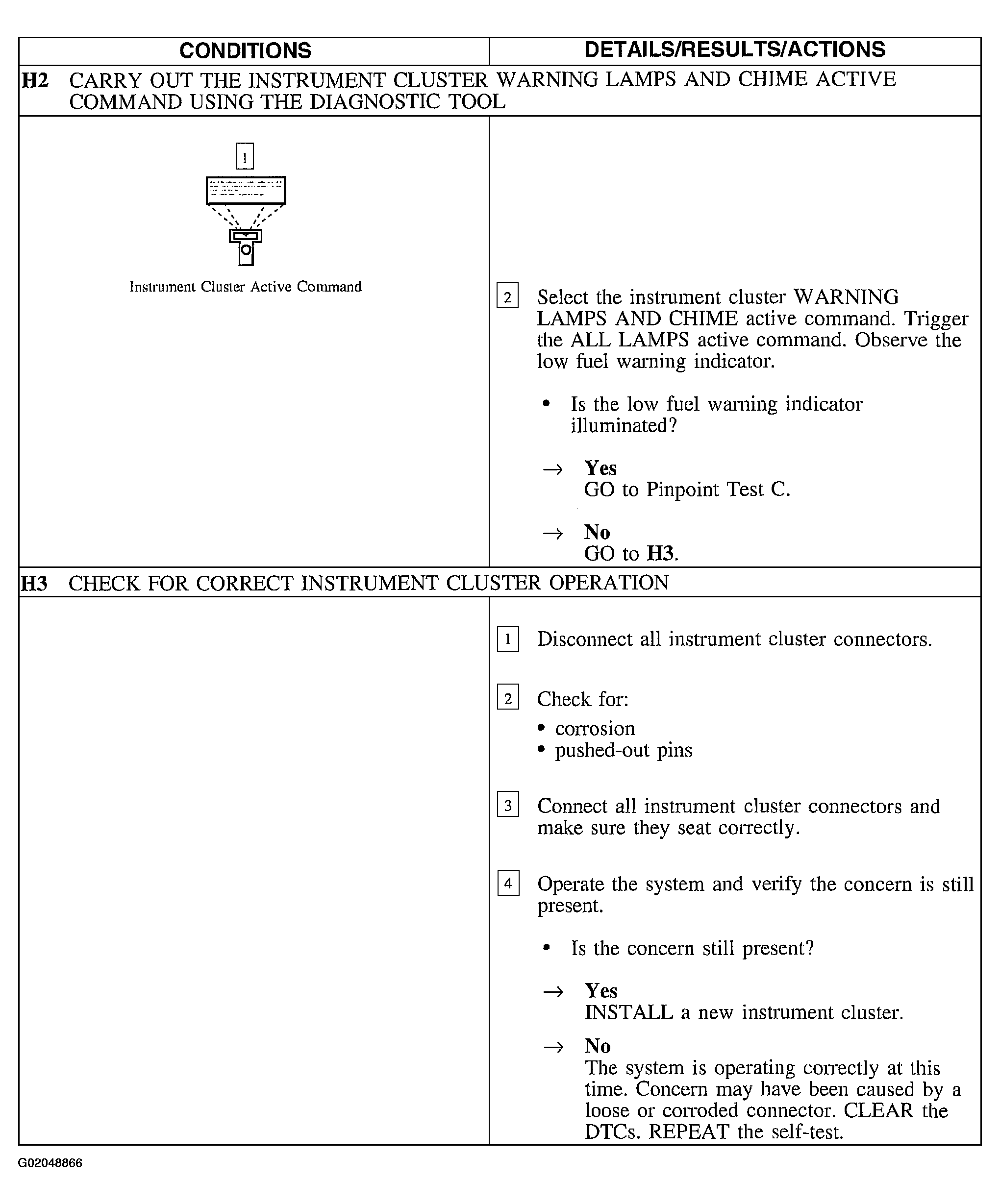

Fig 2: Pinpoint Test H: The Low Fuel Warning Indicator Is Never/Always On (Steps H2 & H3)
G02048866Courtesy of FORD MOTOR CO.
