Pinpoint Test G: The Brake Warning Indicator Is Never/Always On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

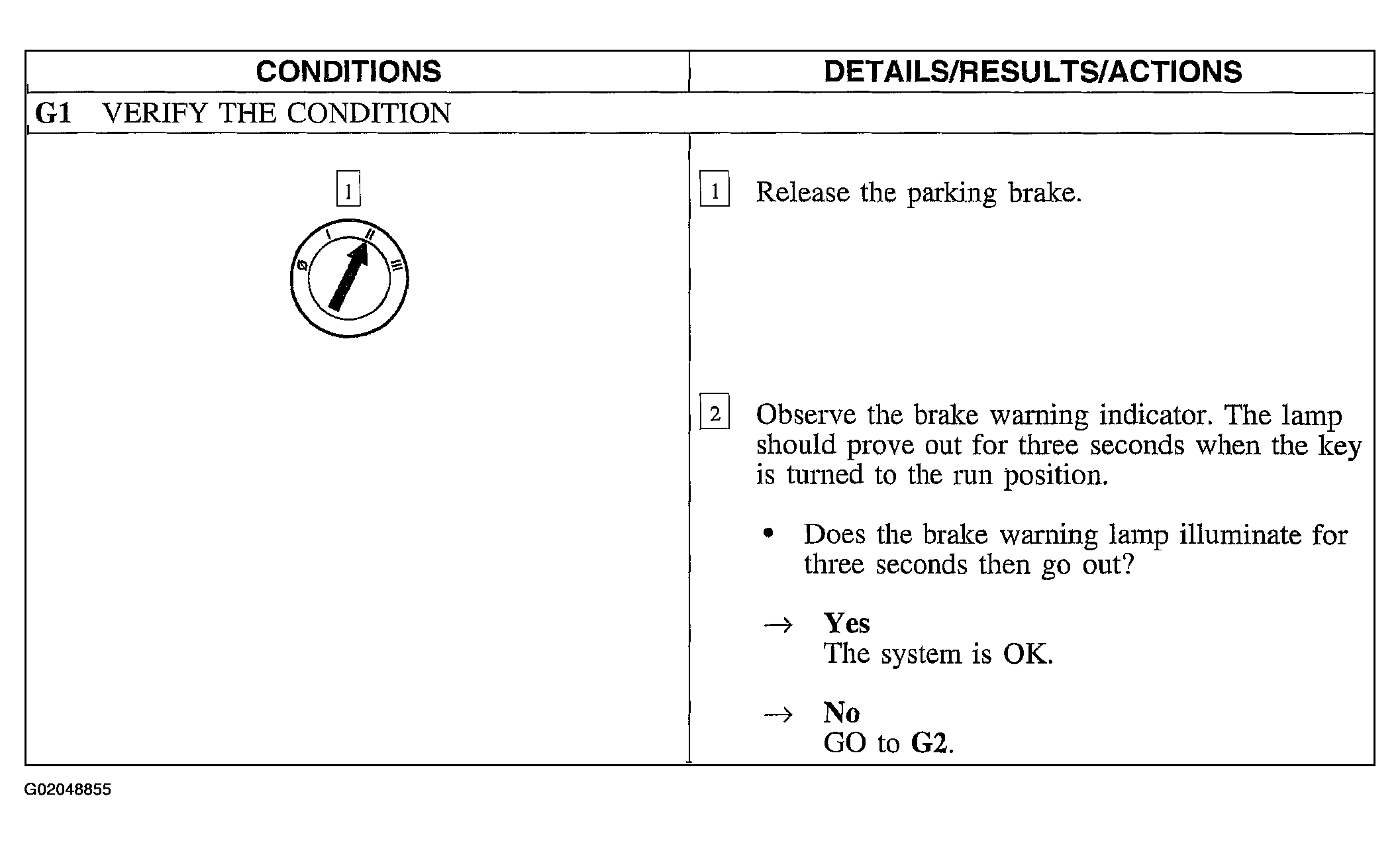

Fig 1: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Step G1)

Courtesy of FORD MOTOR CO.

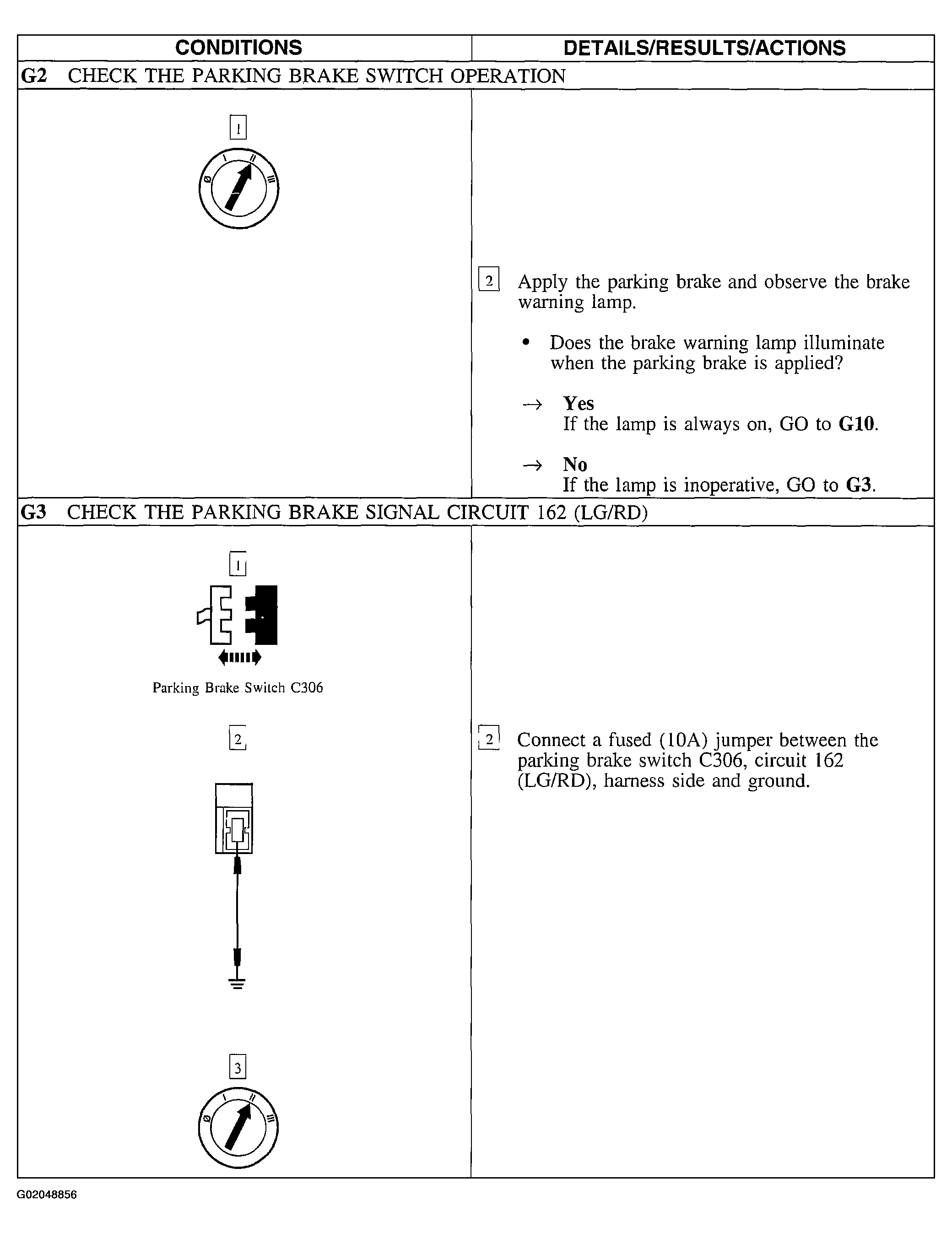

Fig 2: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Steps G2 & G3)

Courtesy of FORD MOTOR CO.

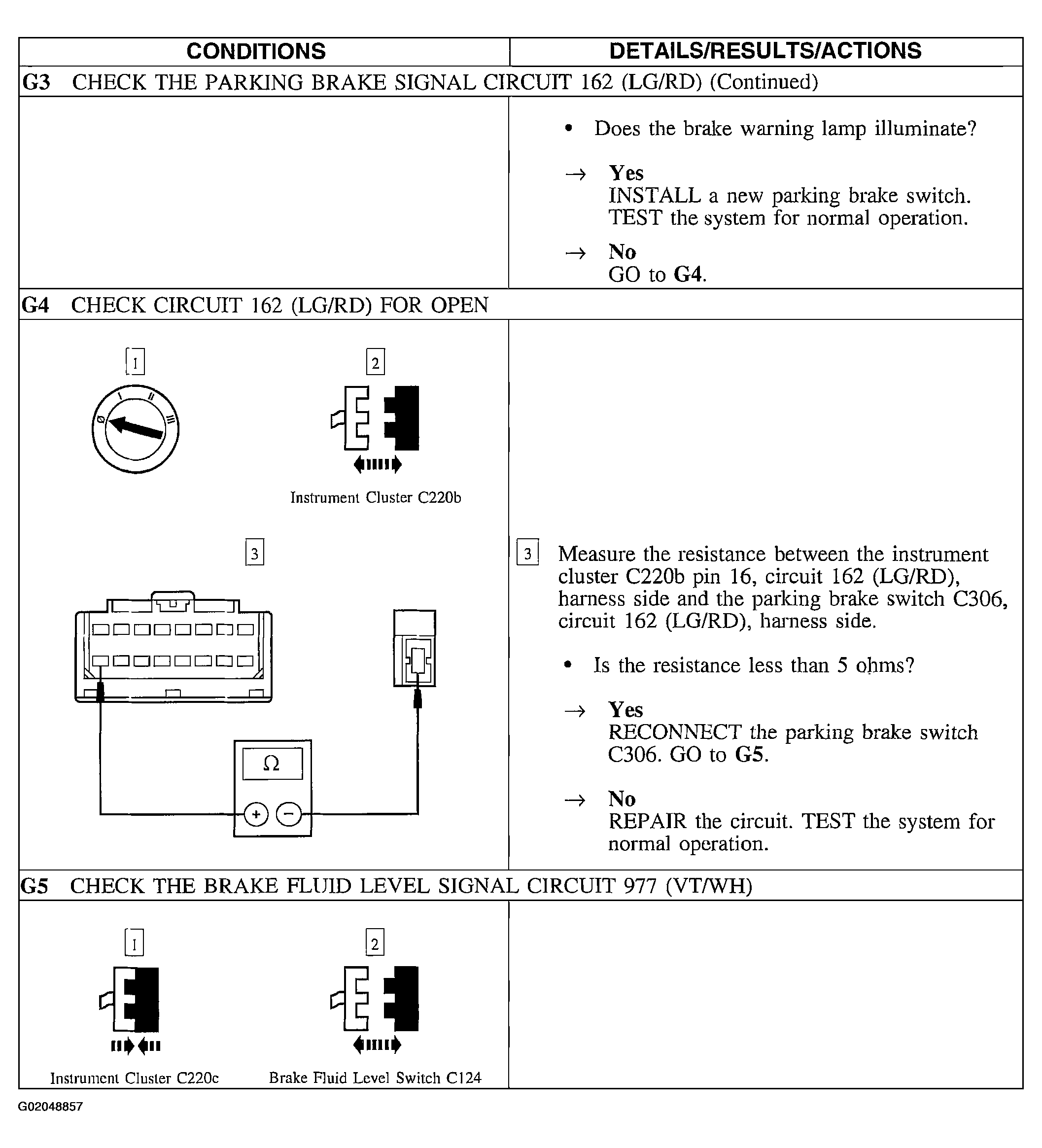

Fig 3: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Step G3 Cont. - G5)

Courtesy of FORD MOTOR CO.

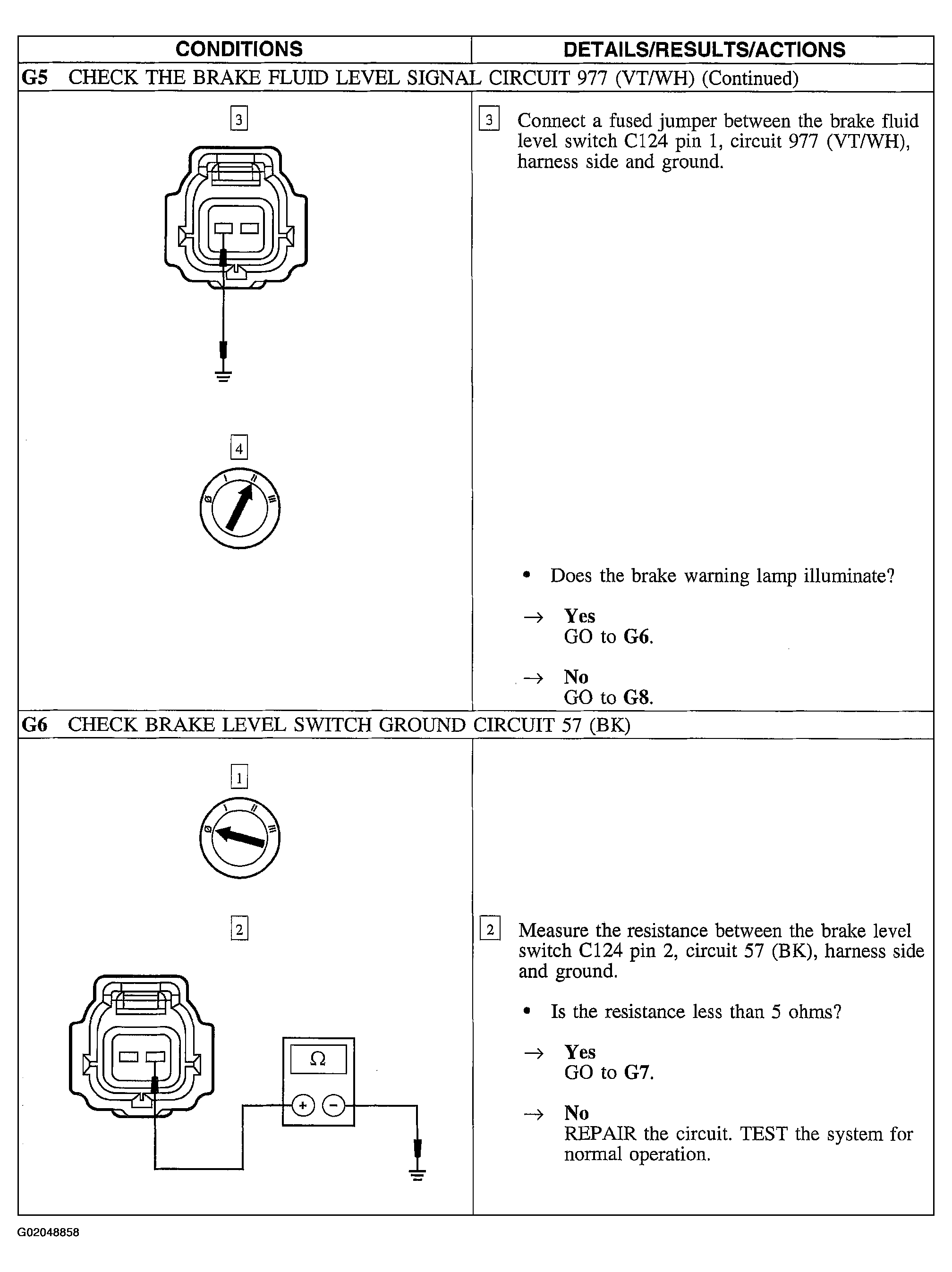

Fig 4: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Step G5 Cont. & G6)

Courtesy of FORD MOTOR CO.

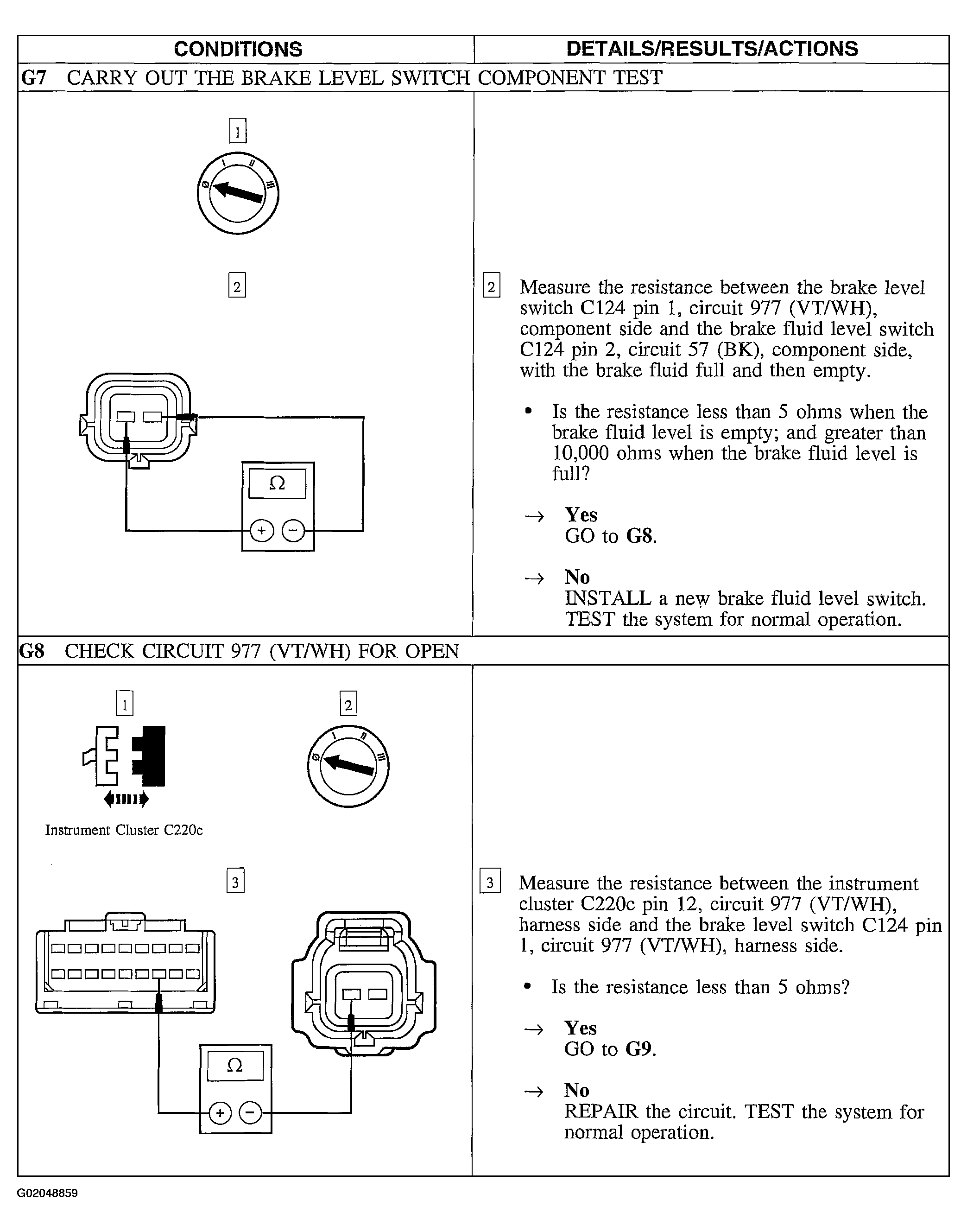

Fig 5: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Steps G7 & G8)

Courtesy of FORD MOTOR CO.

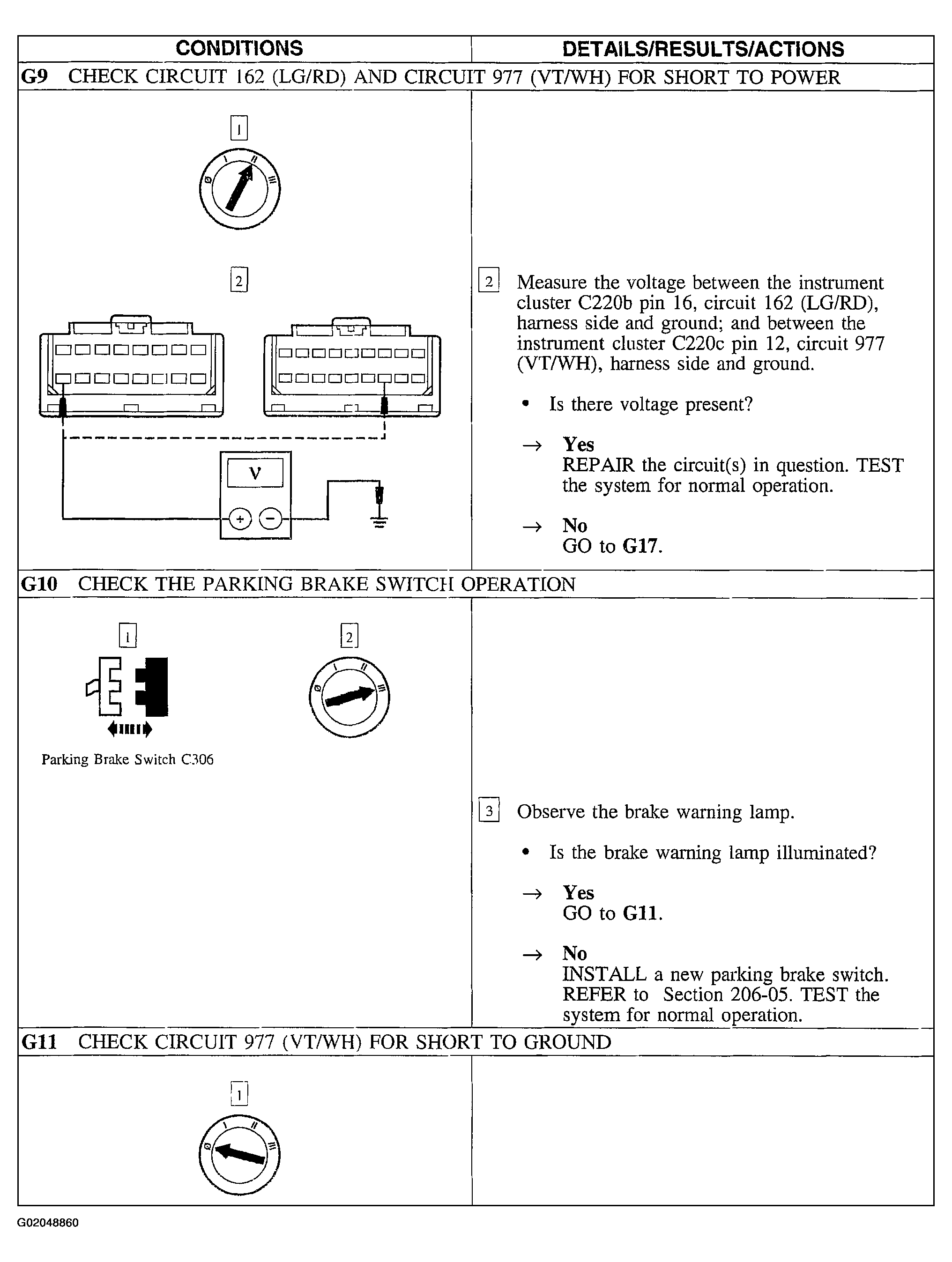

Fig 6: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Steps G9 - G11)

Courtesy of FORD MOTOR CO.

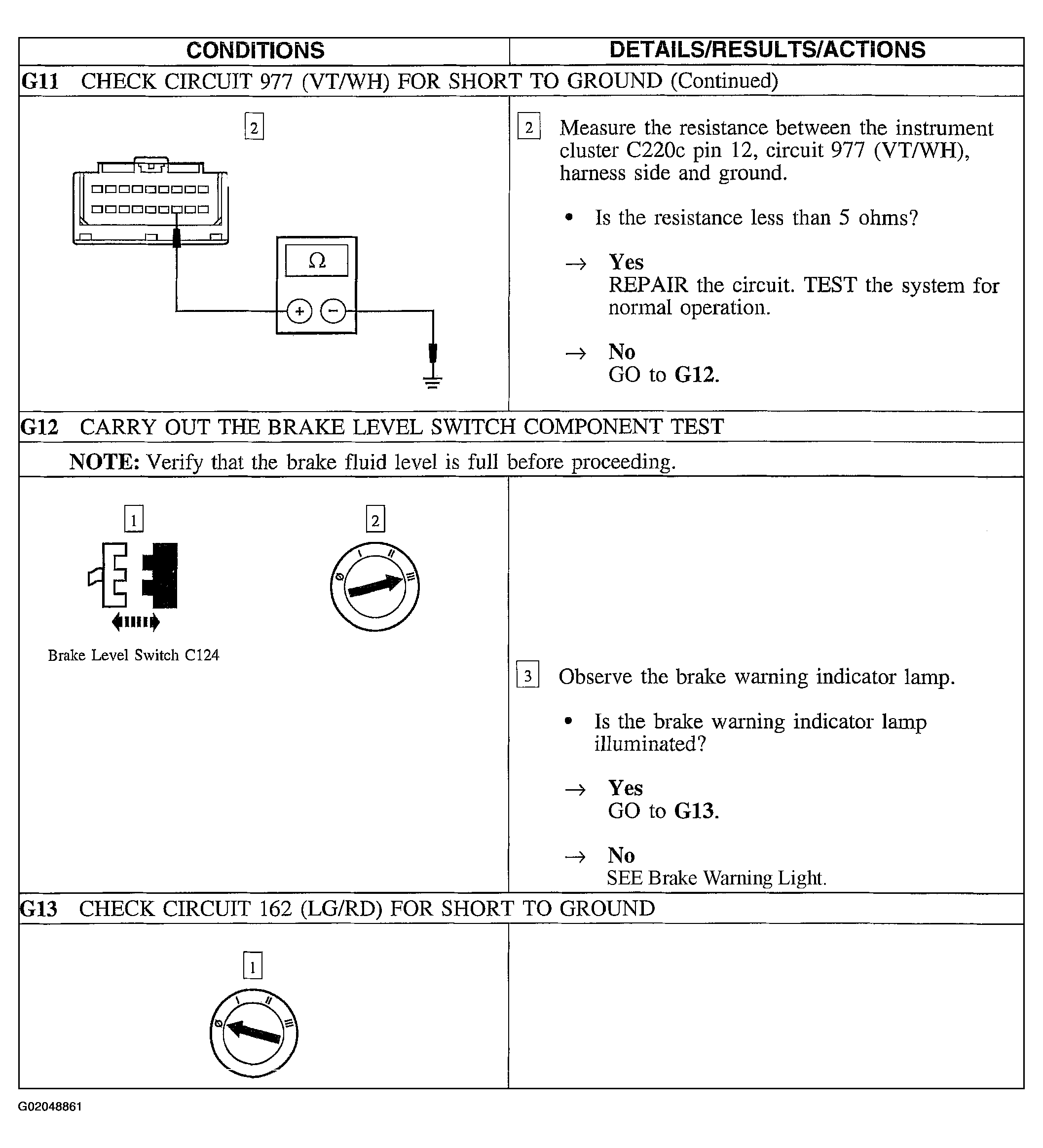

Fig 7: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Steps G11 Cont. - G13)

Courtesy of FORD MOTOR CO.

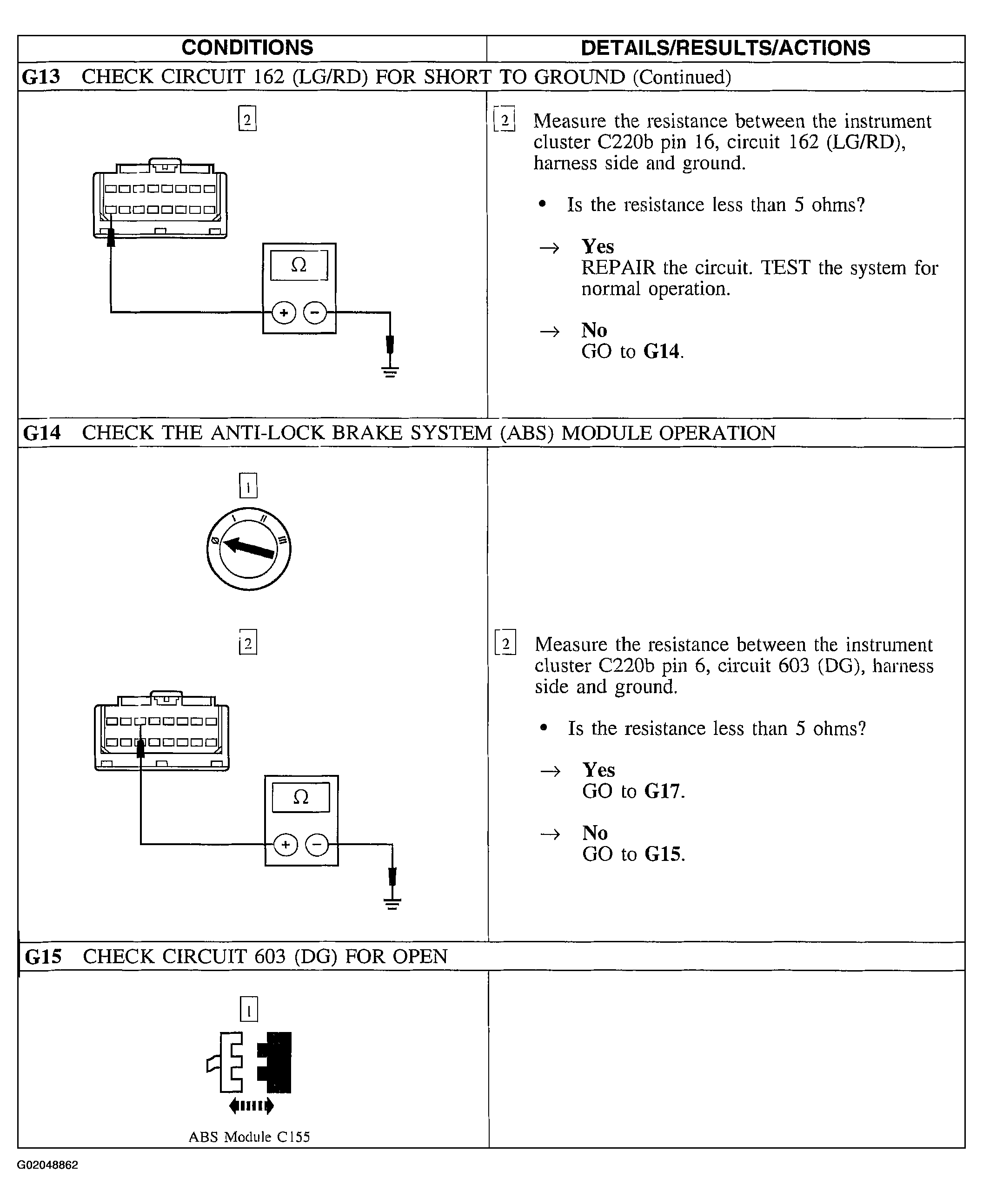

Fig 8: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Steps G13 Cont. - G15)

Courtesy of FORD MOTOR CO.

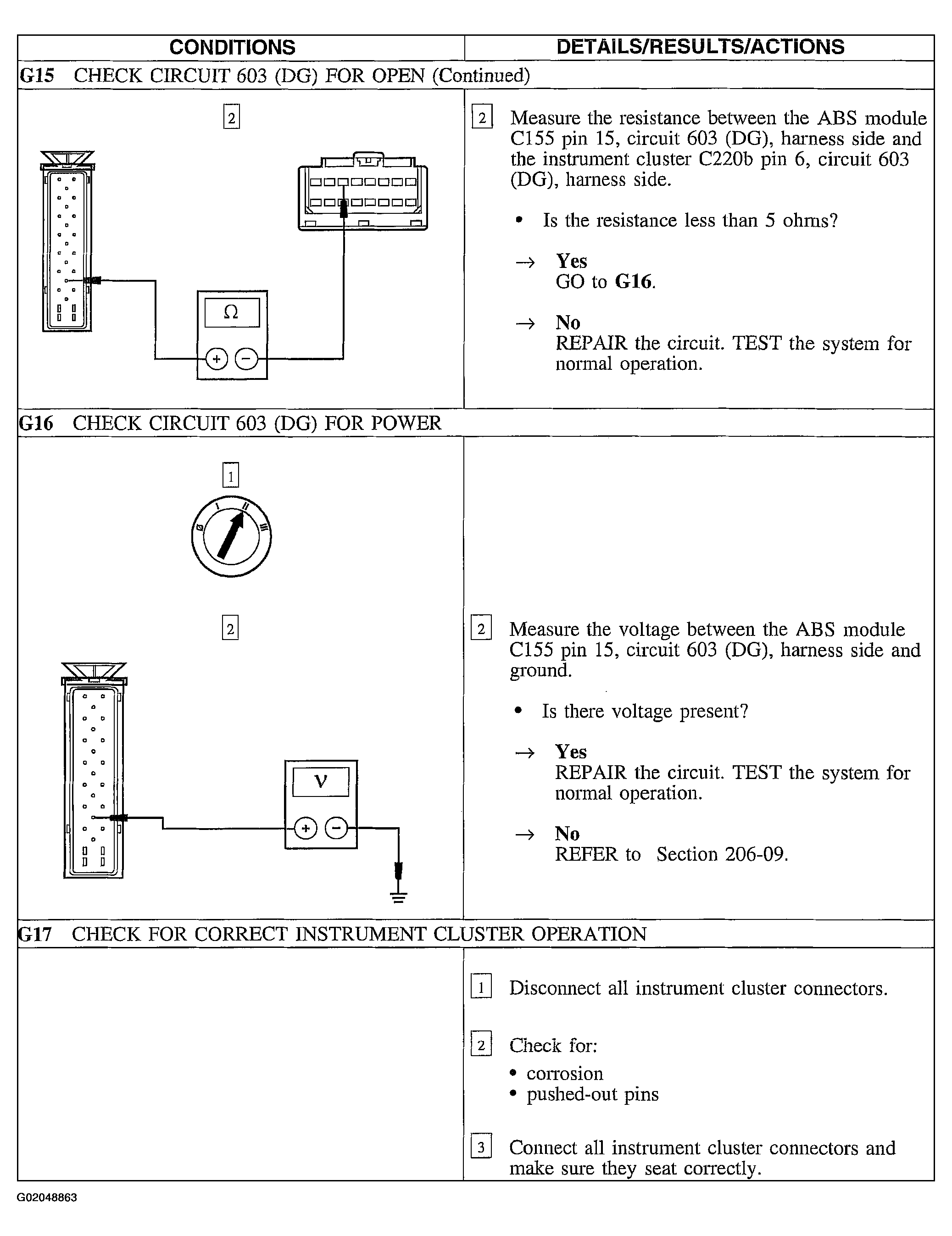

Fig 9: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Steps G15 Cont. - G17)

Courtesy of FORD MOTOR CO.

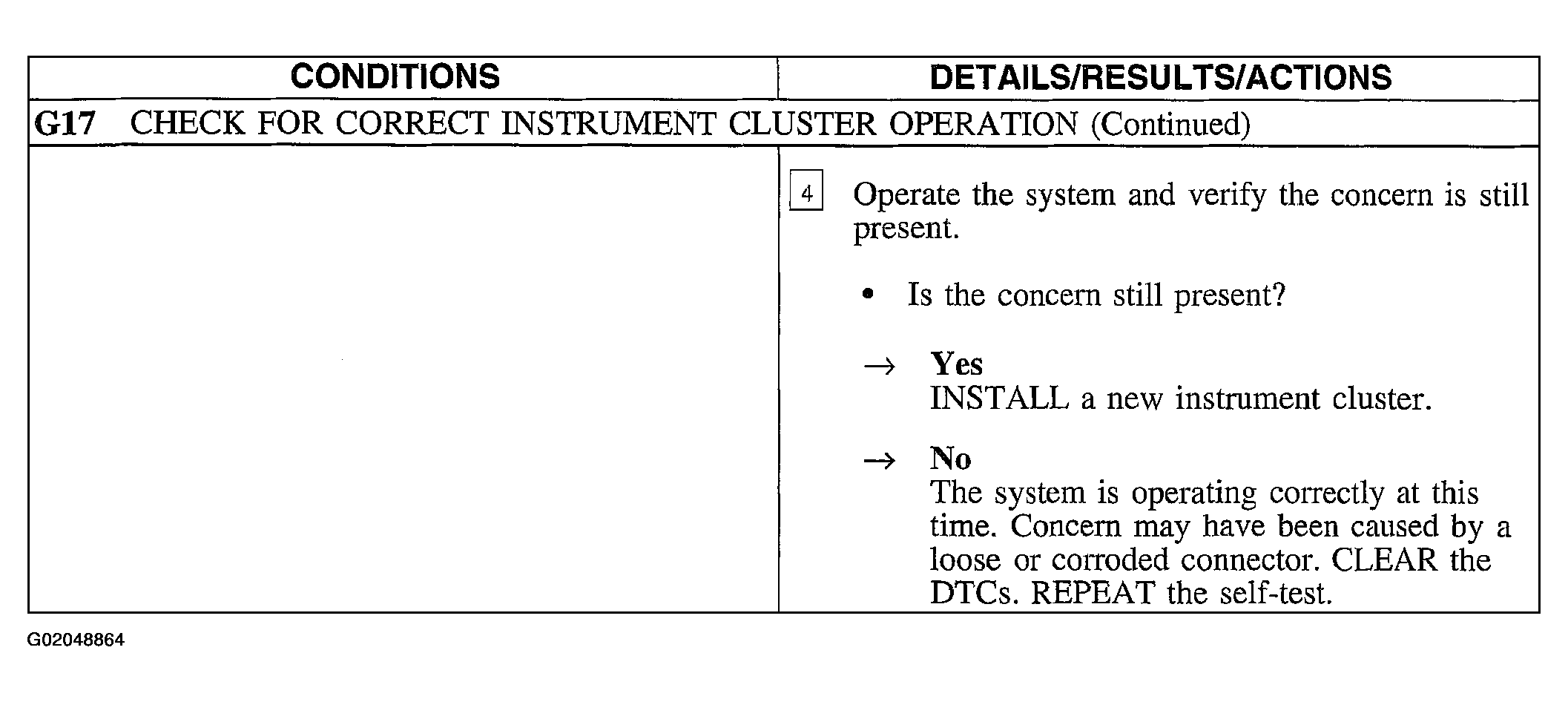

Fig 10: Pinpoint Test G: The Brake Warning Indicator Is Never/Always On (Step G17 Cont.)

Courtesy of FORD MOTOR CO.
