Pinpoint Test E: The Tachometer Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

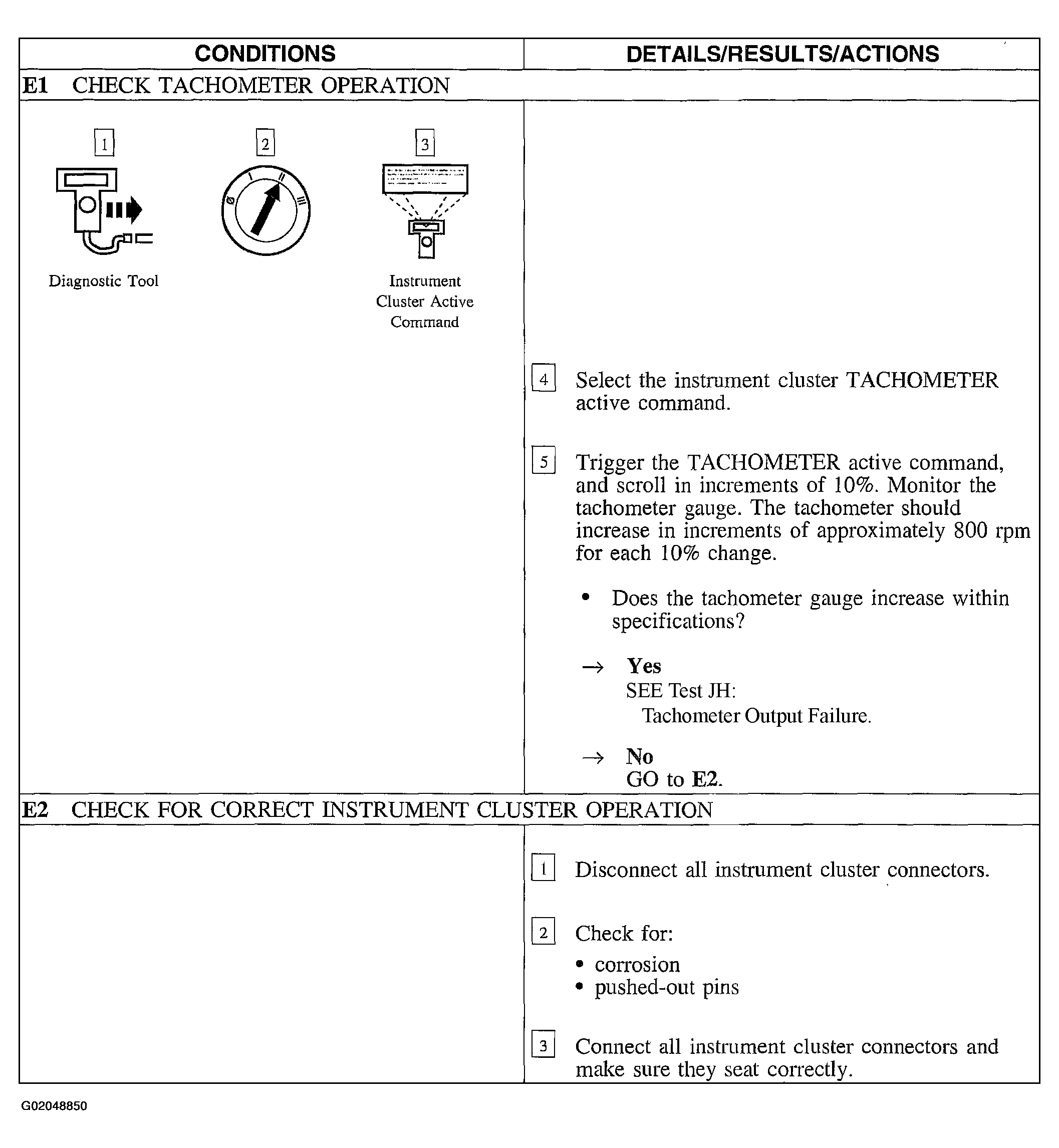

Fig 1: Pinpoint Test E: The Tachometer Is Inoperative (Step E1 & E2.)
G02048850Courtesy of FORD MOTOR CO.

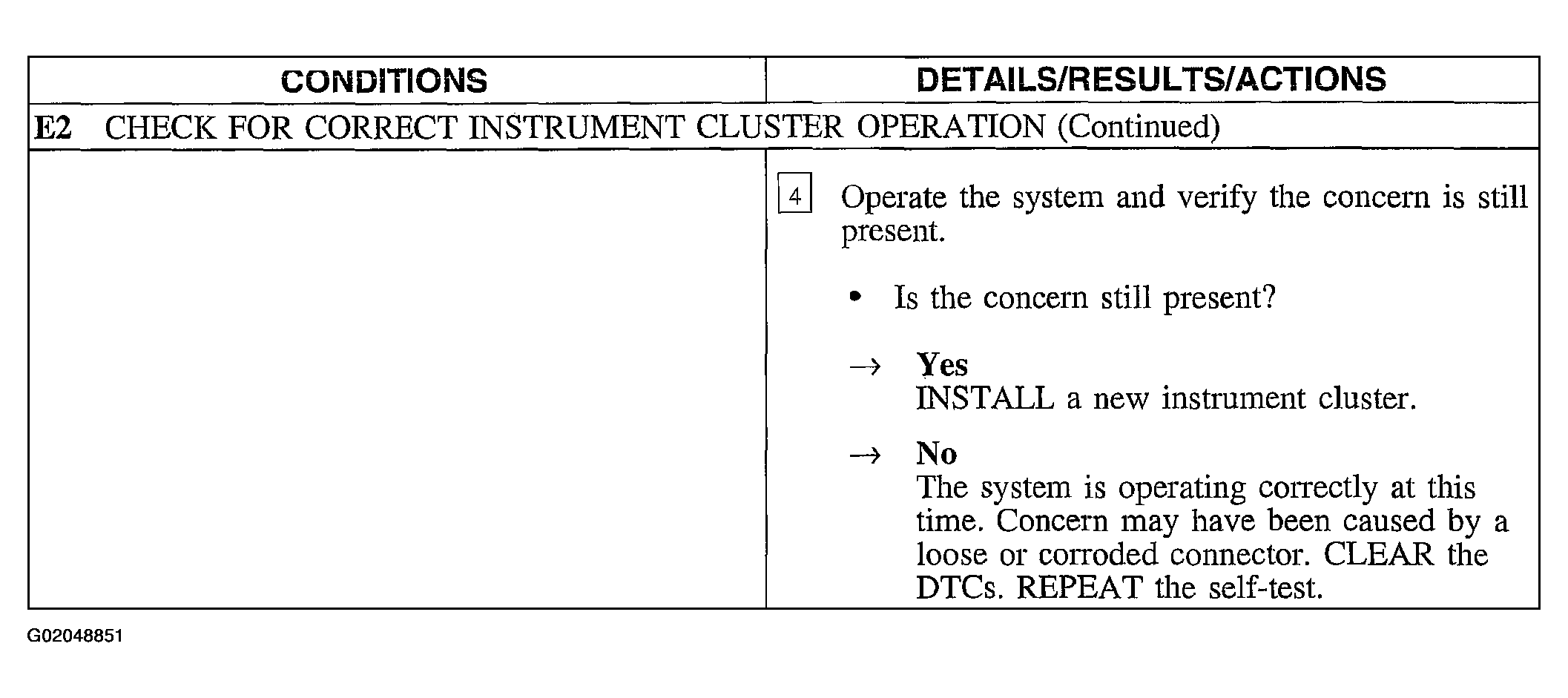

Fig 2: Pinpoint Test E: The Tachometer Is Inoperative (Step E2 Cont.)
G02048851Courtesy of FORD MOTOR CO.
